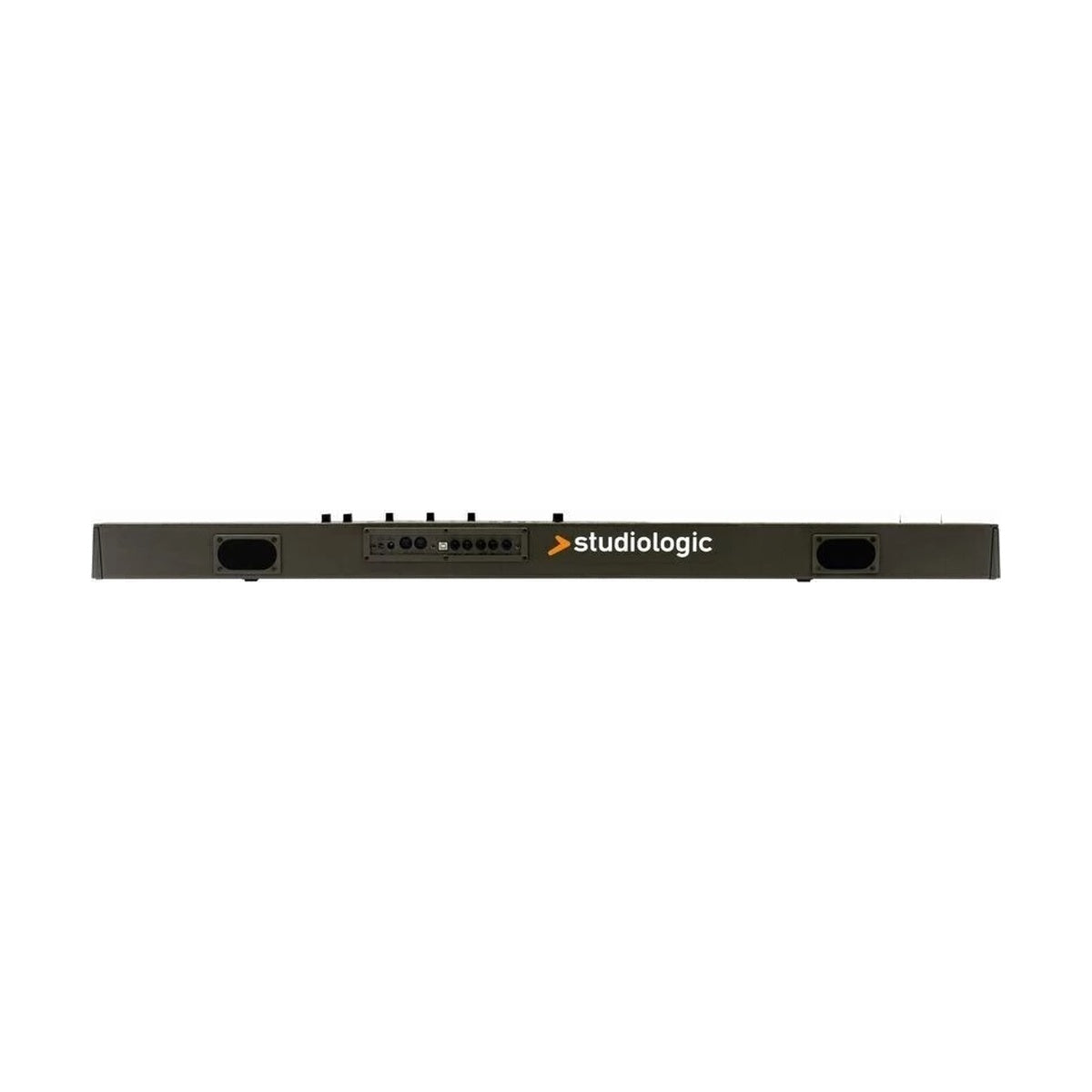

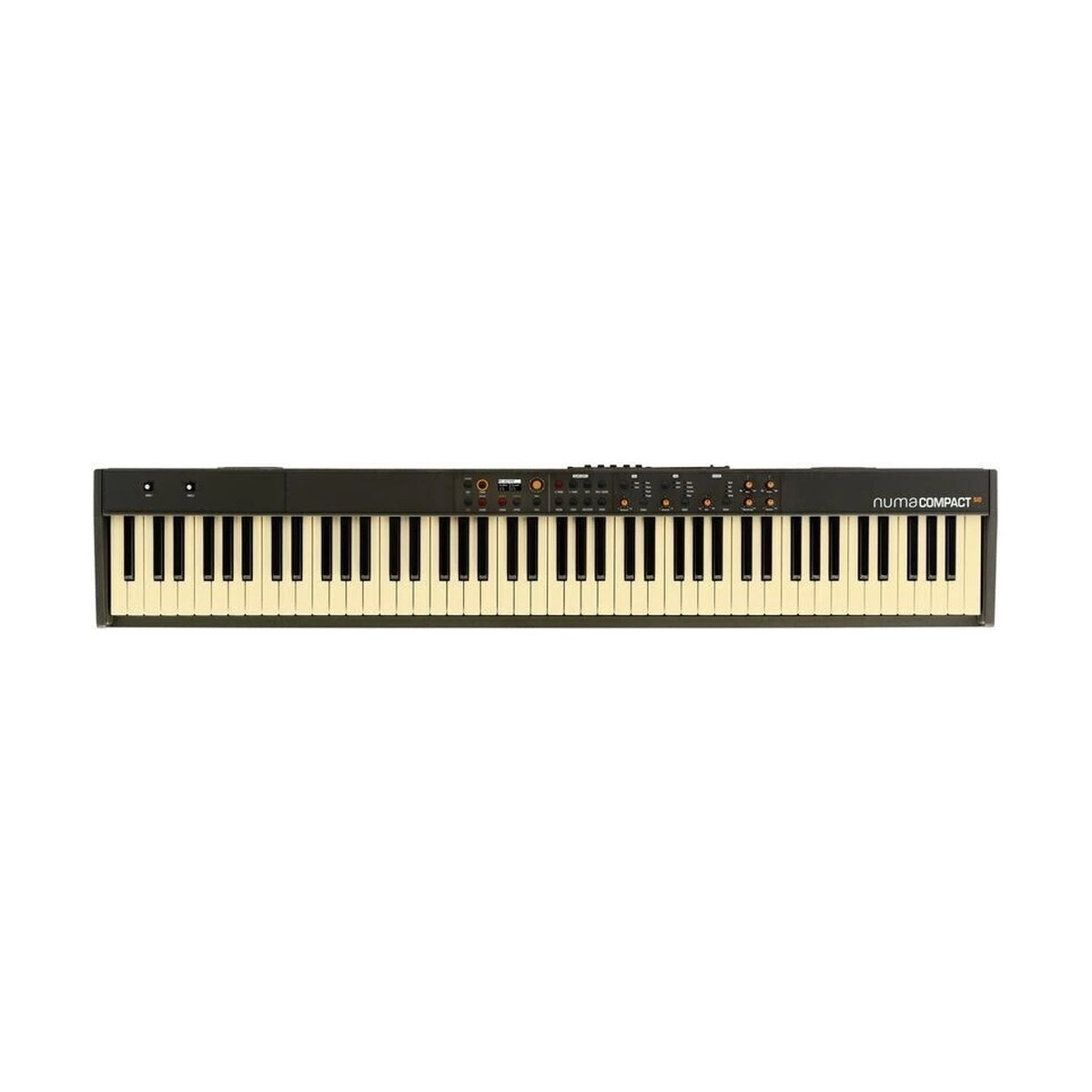

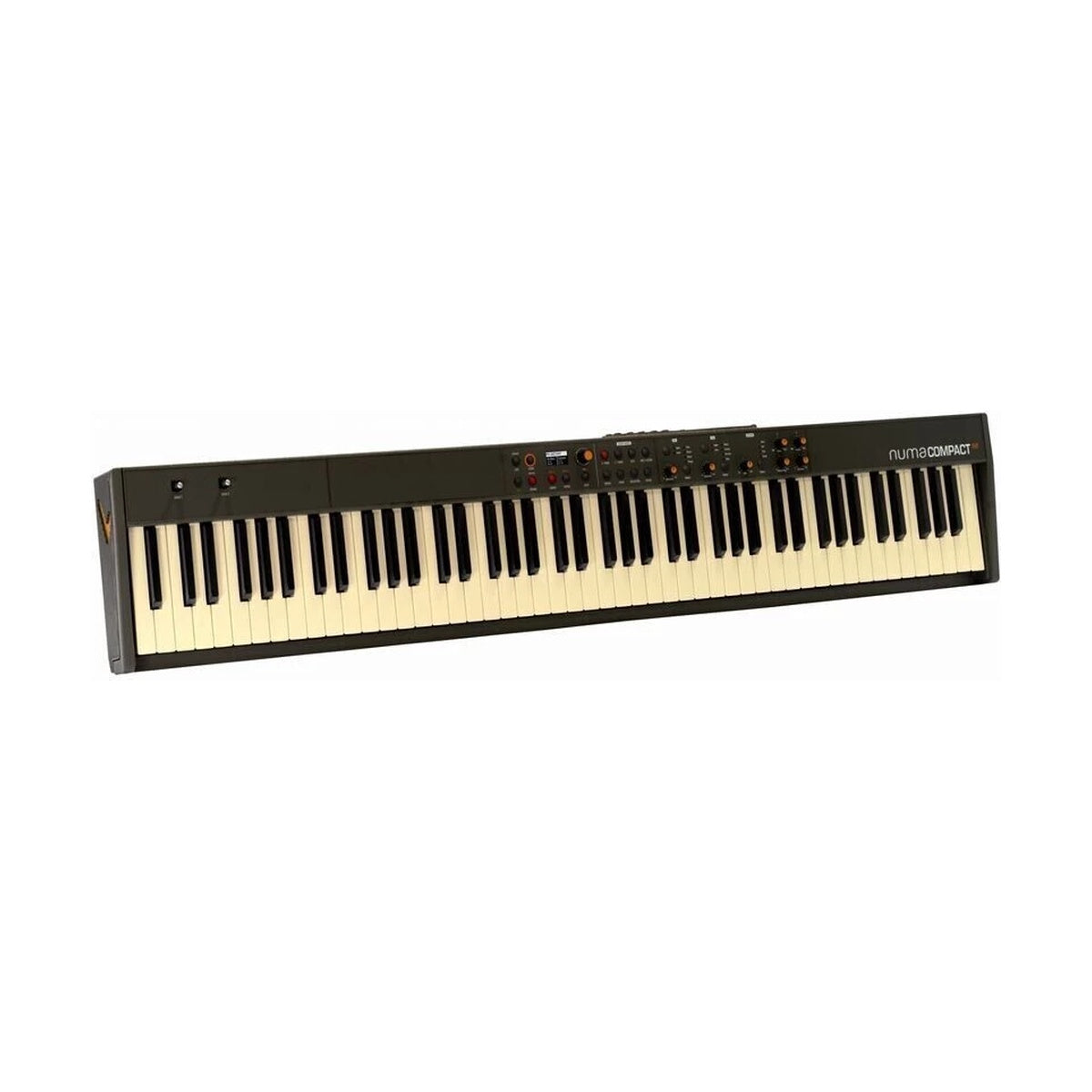

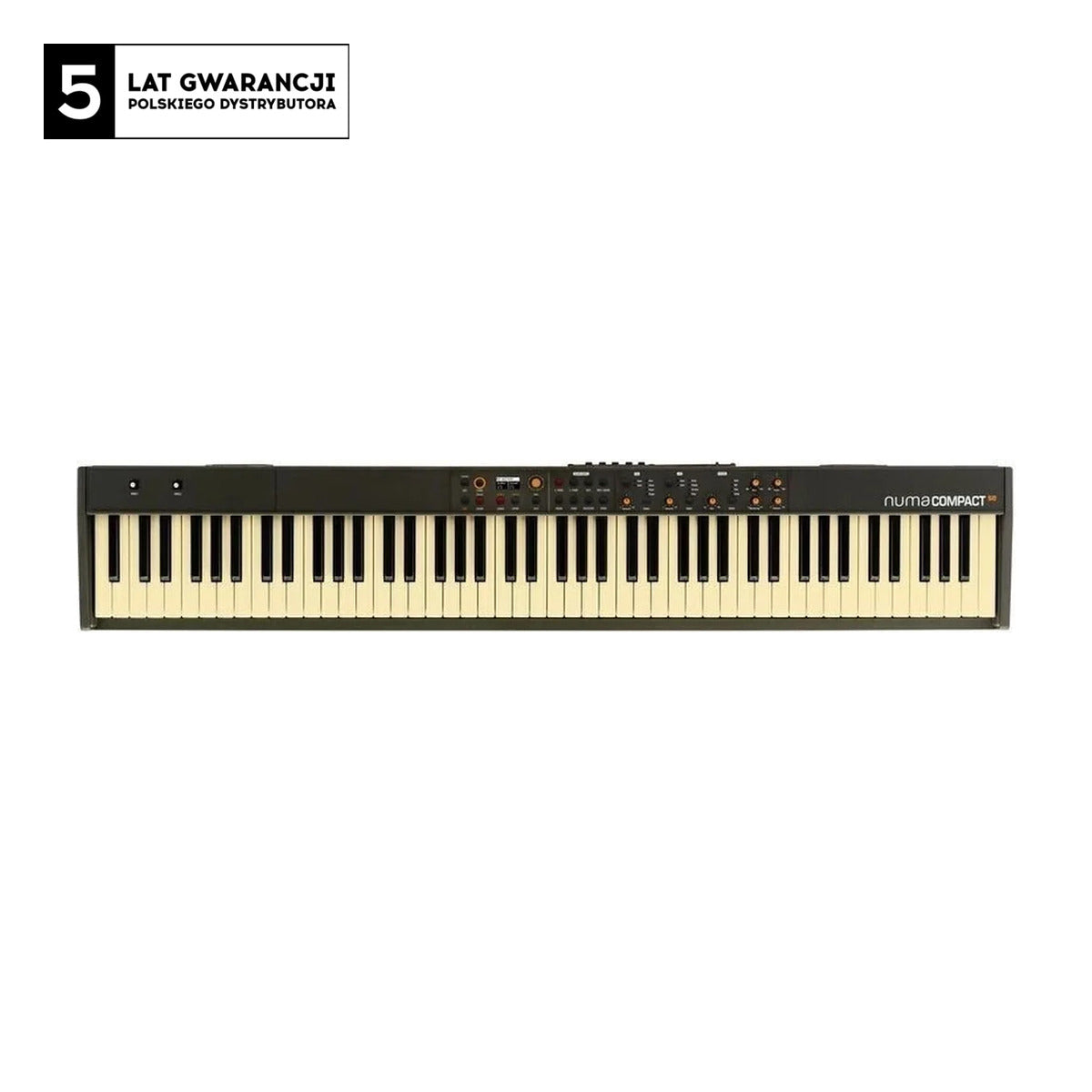

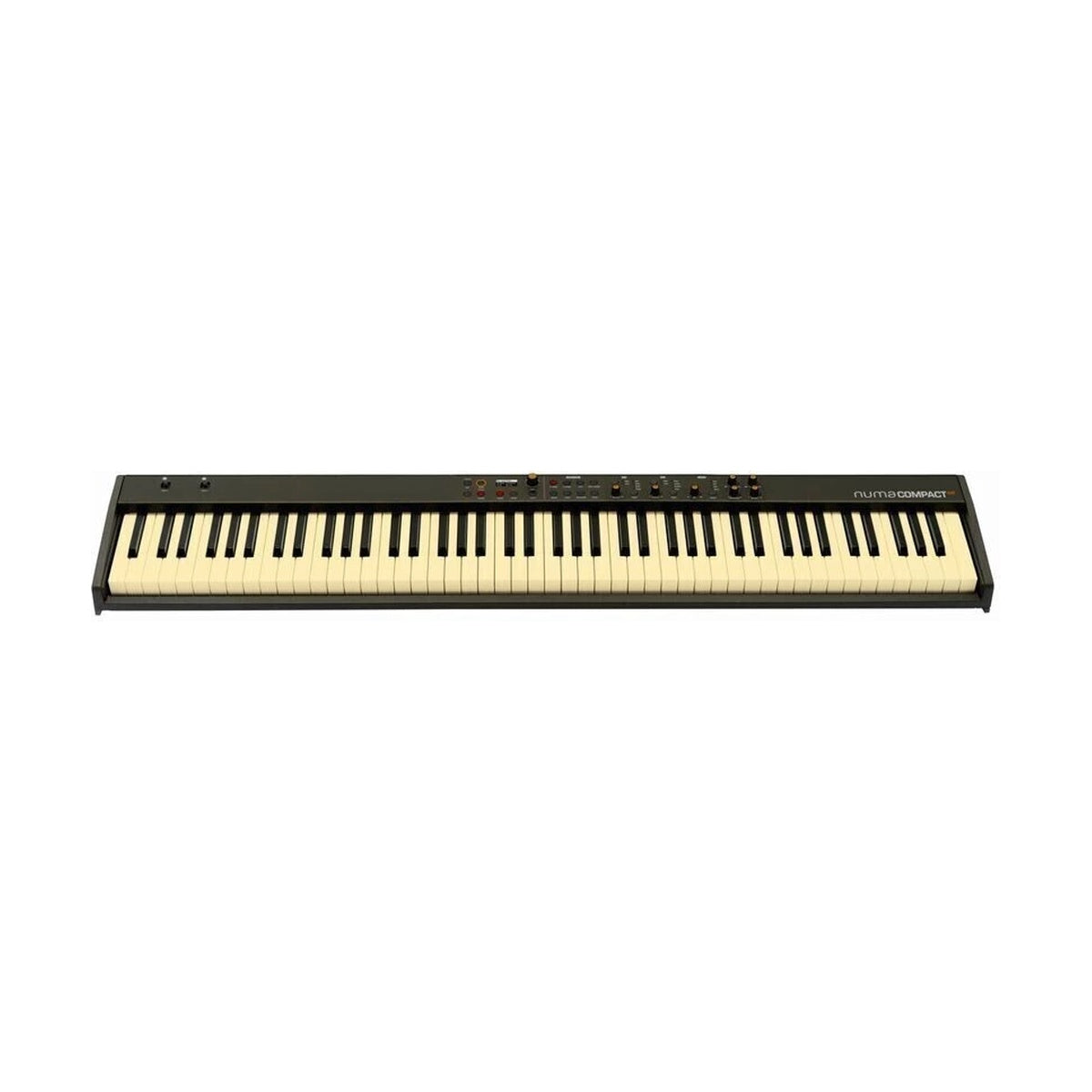

Studiologic Numa Compact SE
Configurer
Studiologic Numa Compact SE – a modern 88-key digital piano with semi-weighted TP/9 keys, 200-voice polyphony, 148 onboard sounds, and four powerful sound engines. Built-in stereo speakers, OLED display, advanced effect processor, and flexible MIDI/USB connectivity make it a complete instrument for both stage and studio.
This instrument combines an acoustic piano engine with physical modeling, an electric piano engine with fine articulations, a tonewheel organ engine, and a powerful synthesizer engine with a wide variety of presets. All sounds are crafted with True Sound stereo multisampling technology and editable via the Numa Manager app. The compact yet expressive keyboard responds to velocity and aftertouch, while onboard controls and dual pitch/mod joysticks ensure full expression.
The integrated sound engines provide high-definition acoustic pianos, authentic electric pianos, lush organs, and flexible synth textures. A powerful FX section includes up to six simultaneous effects: Drive, Chorus, Phaser, Rotary, Tremolo, Delay, and Reverb, all tailored to match the selected sound engine. With 120 user programs, dual MIDI zones, and a built-in 10W stereo speaker system, Numa Compact SE is an all-in-one solution for stage performance and home practice alike.
KEY FEATURES
- 88-note semi-weighted TP/9 Piano keyboard with velocity and aftertouch
- 4 sound engines: Acoustic, Electric, Organ, and Synth
- 200-voice polyphony and 148 factory sounds
- True Sound stereo multisample playback
- FX section with up to 6 simultaneous effects
- OLED display, encoder with push function, 7 knobs, 23 buttons
- Dual joysticks for pitch and modulation control
- USB Audio, MIDI I/O, expression and universal pedal inputs
- Built-in 10W + 10W stereo speaker system
- Compatible with Numa Manager software
TECHNICAL SPECIFICATIONS
- Keyboard: 88 semi-weighted keys with ivory feel, TP/9 Piano action
- Touch response: Soft, Medium, Hard, Fixed
- Factory sounds: 148 presets including acoustic/electric pianos, organs, synths
- User programs: 120 user slots, 1 GB sample memory
- Sound engines: Acoustic (duplex resonance, damper/hammer noise), Electric (EP, Wurly, FM), Organ (tonewheel model), Synth (waveform generator)
- Effects: FX1 (Drive, Chorus, Phaser, Flanger), FX2 (Rotary, Tremolo, Pan Trem, Delay), Reverb (Room, Hall, Plate, Spring)
- Split/Layer: 2 internal parts + 2 external MIDI zones
- Outputs: 2x 6.3mm TR mono jacks, 6.3mm TRS headphone jack
- Pedals: Expression and universal inputs
- MIDI: In/Out DIN ports, USB-MIDI
- Power: 12V DC (adapter included) or USB
- Dimensions: 1270 x 230 x 100 mm
- Weight: 7.1 kg
- Included: Power adapter, USB cable
