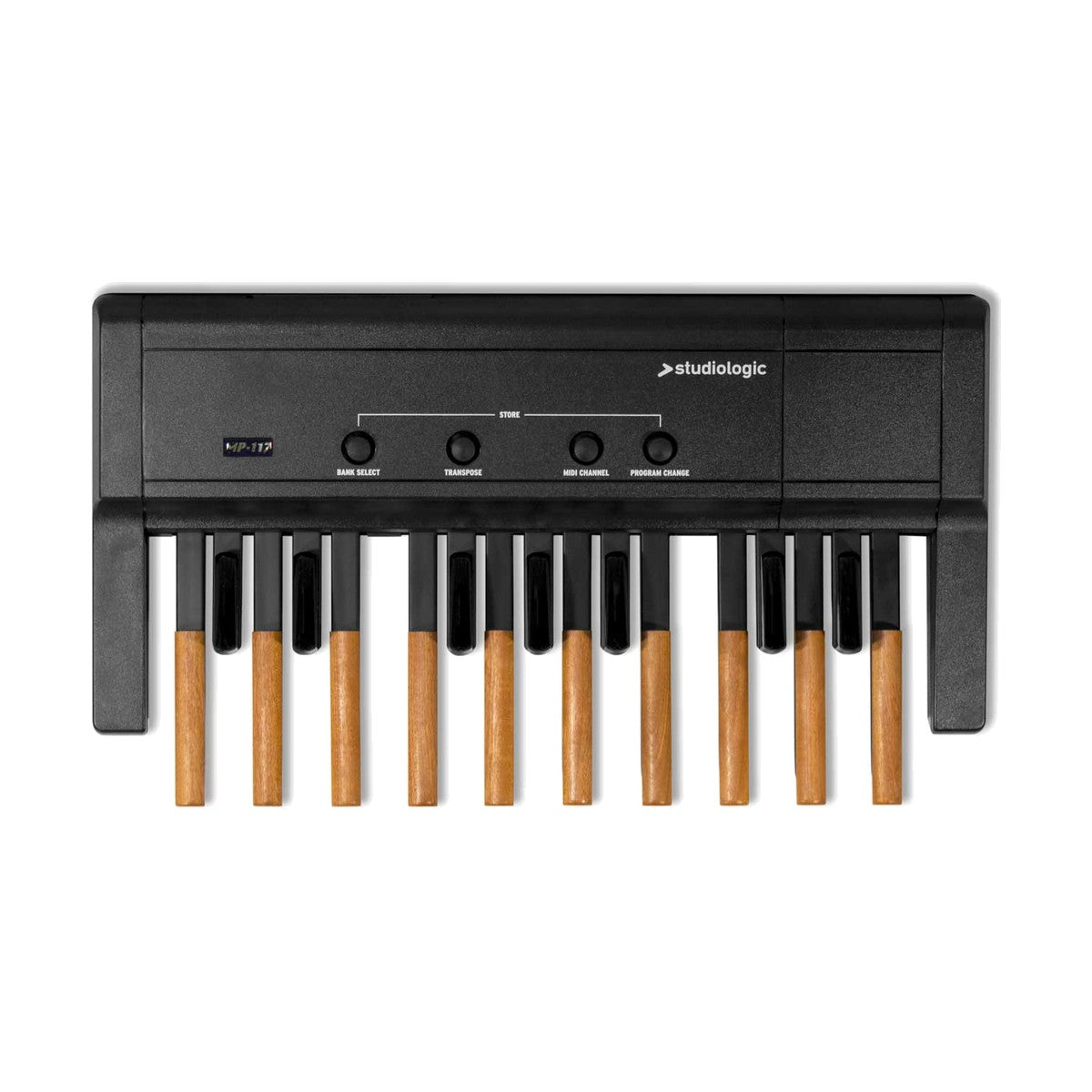

Studiologic Midi Pedalboard MP113
Configurer
Studiologic MP-113 is a dynamic MIDI pedalboard with 13 notes (C2 to C3) that brings the Studiologic touch to your feet and controls any MIDI device. One zone with full extension, a MIDI Out, Program Change, Bank Select, MIDI channel and transposition up to +/- 24 semitones. See controllers in our Warsaw showroom.
A bass line with your feet while your hands are busy
An organist, a keyboardist playing a pad or a musician with a sampler has both hands occupied, and the bass has to play at the same time. The MP-113 has 13 pedals with a dynamic curve, so the force of your press shapes the sound, and the MIDI Out drives a sound from a module, a synthesizer or a computer. The range from C2 to C3 covers an octave of bass, and transposition shifts it up to +/- 24 semitones.
Settings without bending down to the instrument
Four function buttons and a virtual numeric keypad let you change program, bank and MIDI channel straight from the pedalboard. Power comes from a 9 V adapter plugged into 100 to 240 V mains. It measures 54.5 x 43.5 x 14 cm and weighs 5.5 kg, so the pedalboard sits steadily on the floor.
KEY FEATURES
- 13 pedals, range C2 to C3
- Dynamic pedal response curve
- MIDI Out, one zone with full extension
- Program Change, Bank Select, MIDI channel, transposition up to +/- 24 semitones
- 4 function buttons and a virtual numeric keypad
TECHNICAL SPECIFICATIONS
- Type: MIDI pedalboard controller (MP-113)
- Pedals: 13 notes, C2 to C3
- MIDI: Out
- Functions: Program Change, Bank Select, MIDI channel, transpose (max +/- 24 semitones)
- Zones: 1 zone with full extension
- Power: DC IN 9 V, adapter 100 to 240 V / 9 V 1 A
- Dimensions: width 54.5 cm / 21.5 in, depth 43.5 cm / 17 in, height 14 cm / 5.6 in
- Weight: 5.5 kg / 12.1 lbs
