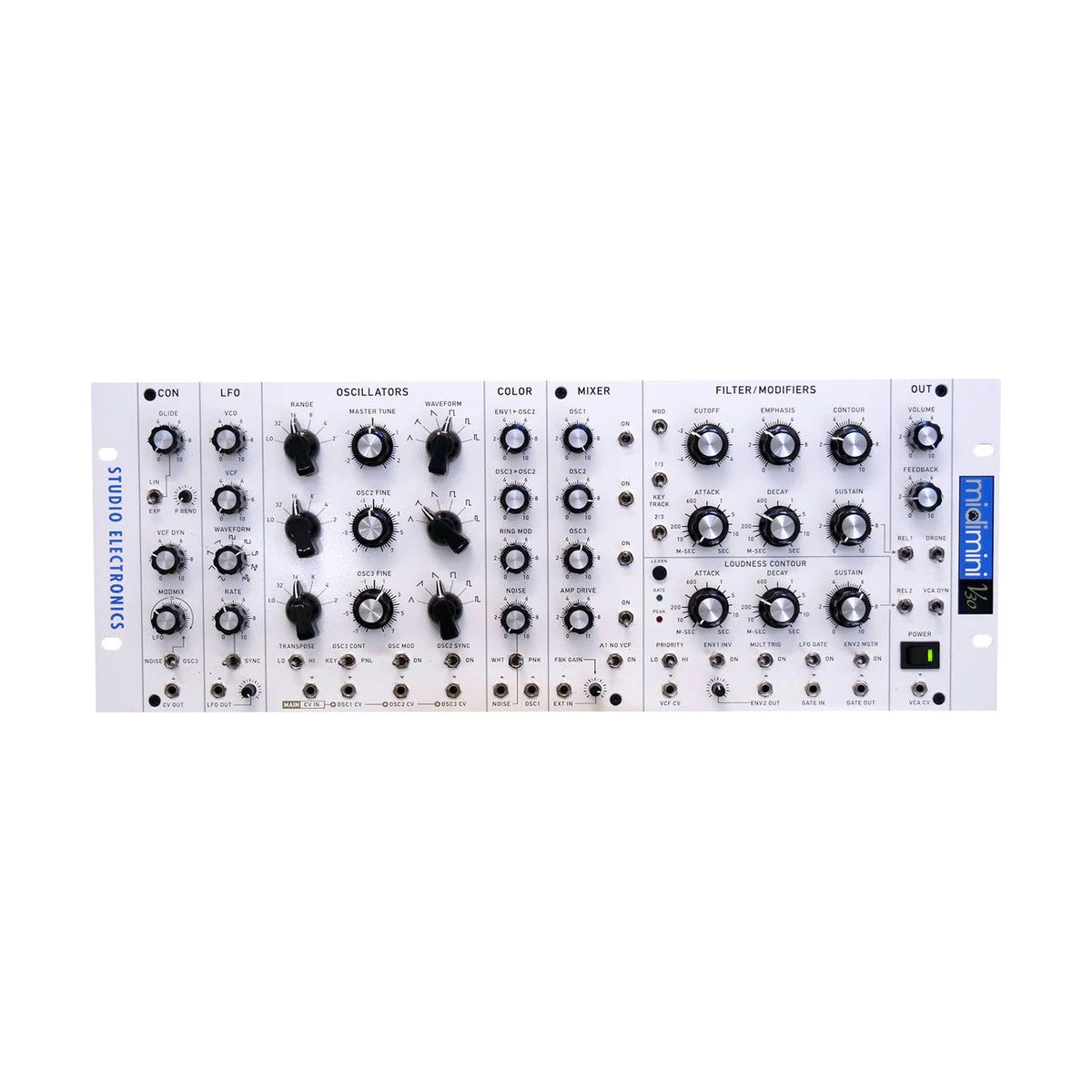

The Studio Electronics MidiMini V30 White is a white, 4U rack-mountable analog monophonic synthesizer featuring 3 oscillators (OSC), a contour generator (CON), an LFO, mixer, filters, modifiers, VCA CV control, 5-pin MIDI In, MIDI Out, and a 1/4" TRS Audio Out. It also includes a voltage switch.
The MidiMini V30 White boasts a 14-point CV/Gate patch panel for seamless Eurorack integration, making it ideal for modular synthesizer setups. Sound generation is handled by three wide-range oscillators with variable waveforms. Oscillators and white/pink noise sources feed into a mixer section with feedback and overdrive capabilities. A 24dB/octave low-pass ladder filter is included, controlled by two ADSR envelopes (one for amplification, one for filtering). A Drone mode enables sustained notes. A versatile LFO offers nine waveforms. The Glide function switches between linear and exponential curves.
MidiMini V30 White Features
- Through-hole construction: Every single PCB.
- Classic 4-pole, 24 dB/oct Lowpass Ladder filter with voltage-controlled cutoff.
- 14 3.5mm (Eurorack) compatible patch points, including CV & Gate.
- New COLOR vibe: ENV1>OSC2, OSC3>OSC2, Boomstar Hardware Ring Mod & Noise.
- Oscillator 2 Sync: Modulate (sweep) both OSC1 and OSC2 via ENV1>OSC2.
- Amp Drive: Boomstar Modular AMP saturation and overdrive, integrated into the V30.
- Output feedback loop and gain control—interacts expressively with Amp Drive.
- MIDI-syncable, AMF*-capable, multi-waveform LFO, routable to VCO and VCF.
- LFO Out patch point with level control, for deep modulation or oscillation creation.
- LFO Gate: LFO pulse of VCF/VCA from the SE-02.
- OSC 1 Triangle Wave to amplifier, for high resonance/low frequency compensation.
- Envelope 2 Master Mode: ENV2 (VCA) controls Filter (VCF) Envelope.
- Independent Release control of Filter and Amplifier.
- Flexible Linear and Exponential Glide.
- Front panel-mounted external audio input with level control.
- Handy Boomstar Drone feature for eternal sustain and easy tuning.
- Low/Last/High Note Priority, ENV1 invert, VCF/VCA dynamics & VCF (ENV1) Multi-trigger.
- Boomstar MIDI Learn feature for MIDI, Aftertouch, and Modwheel.
MidiMini V30 White Specifications
- 39 pots, 32 switches, 14 jacks
- Metal-shafted pots
- Sturdy and reliable Mountain Switch toggles
- Hand-wired PEC Cantina commercial mil-spec audio tapers in critical areas; elsewhere Alpha PC Mount linear taper pots with heavy grease, classic feel
- AC INPUT - 500 mA; 100 Volts to 240 Volts AC, 50/60 Hz Input
- VOLTAGE - 115/220 switch
- MIDI THRU - Din
- MIDI IN - Din
- AUDIO - 1/4” TS
- PCB Mounting Scheme - Through-hole
- Filter - 4 pole, 24 db/oct, lowpass ladder filter, with voltage-controlled Cutoff
Dimensions:
- Width: 19” (48.26 cm)
- Depth: 6 1/8” (15.56 cm)
- Height: 7.5” (19.05 cm), 4 rack spaces
