SSQ XX4
SSQ XX4
Warsaw Showroom
Nowogrodzka 6
102
00-513 Warszawa
Pologne
Configurer

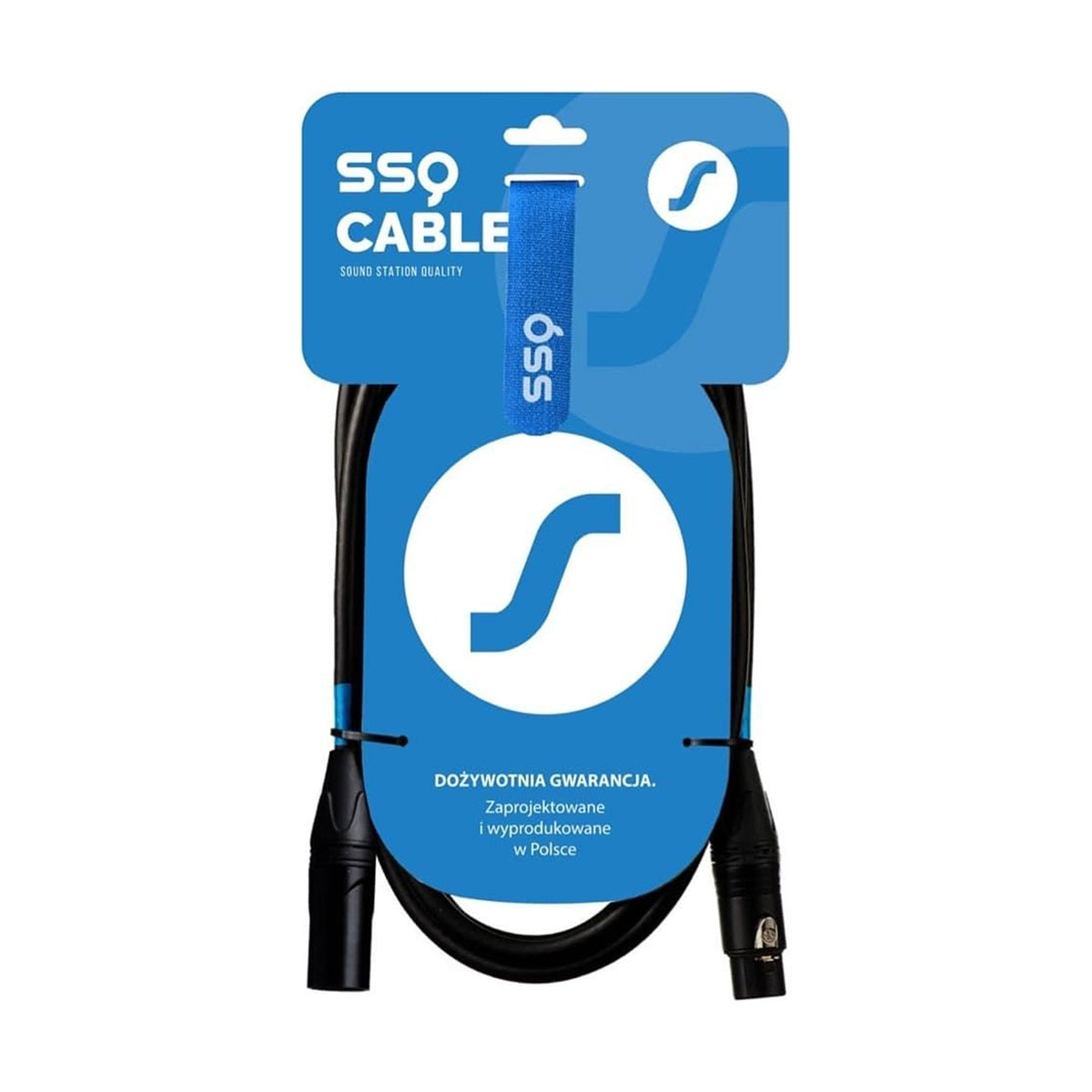

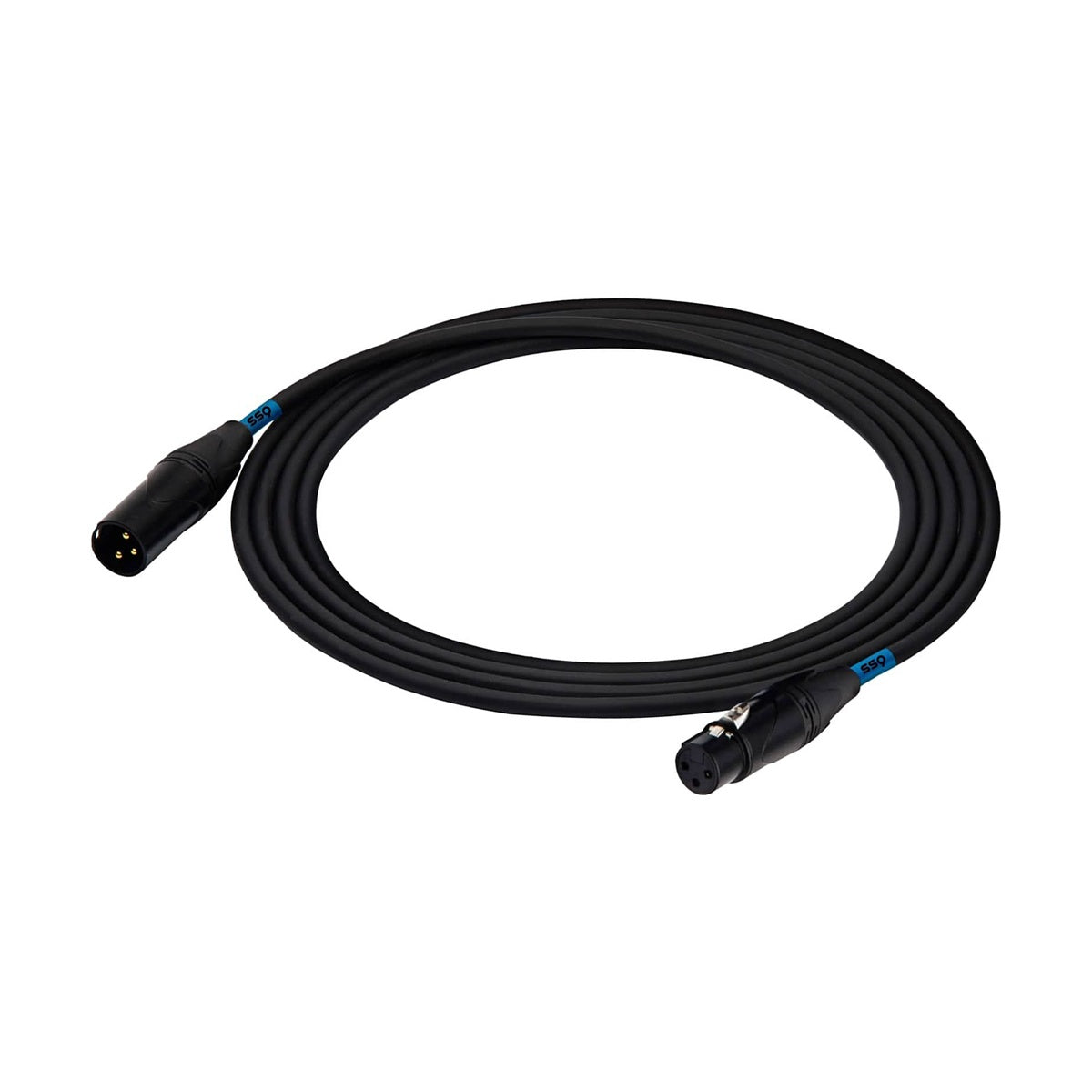

The SSQ XX4 is a professional-grade, 4-meter balanced microphone cable designed and manufactured in Poland for uncompromised signal stability. Built around 2 x 0.23 mm² oxygen-free copper (OFC) conductors and high-quality XLR connectors, this cable delivers the transparent audio transfer essential for critical studio tracking and rigorous live stage environments.
Signal integrity and mechanical resilience
Operating in environments saturated with RF waves and electromagnetic fields from stage lighting or power supplies often results in induced noise within the audio path. The XX4 model actively rejects this interference using a dense, cross-braided copper shield with a coverage exceeding 90%, ensuring maximum protection against EMI and RFI. The optimal 6mm outer diameter strikes a balance between flexibility for stage routing and mechanical ruggedness, preventing the internal cores from breaking or crushing under the weight of standard touring equipment.
Connection security and long-term durability
Cable failures predominantly occur at the junction where the wire meets the connector. To mitigate this weak point, SSQ employs lead-free tin alloyed with silver during the soldering process, which enhances electrical conductivity and prevents contact oxidation. Furthermore, the most vulnerable stress points are reinforced with dedicated heat-shrink tubing. The female XLR connector features a robust metal locking latch that prevents accidental disconnection from microphones or stage boxes during a dynamic performance. This focus on reliability is backed by the manufacturer's lifetime warranty.
KEY FEATURES
- Fully balanced architecture to ensure common-mode rejection of line noise.
- Connectors soldered with a silver-infused, lead-free alloy for optimal signal transfer.
- Dense copper cross-braid shielding (over 90% coverage) for superior EMI/RFI rejection.
- Heat-shrink reinforcements at both connector ends to provide advanced strain relief.
- Female XLR connector equipped with a secure metal locking latch.
- Manufactured in Poland and backed by a lifetime warranty.
TECHNICAL SPECIFICATIONS
- Cable Type: Balanced microphone/line cable.
- Length: 4 meters (13.1 feet).

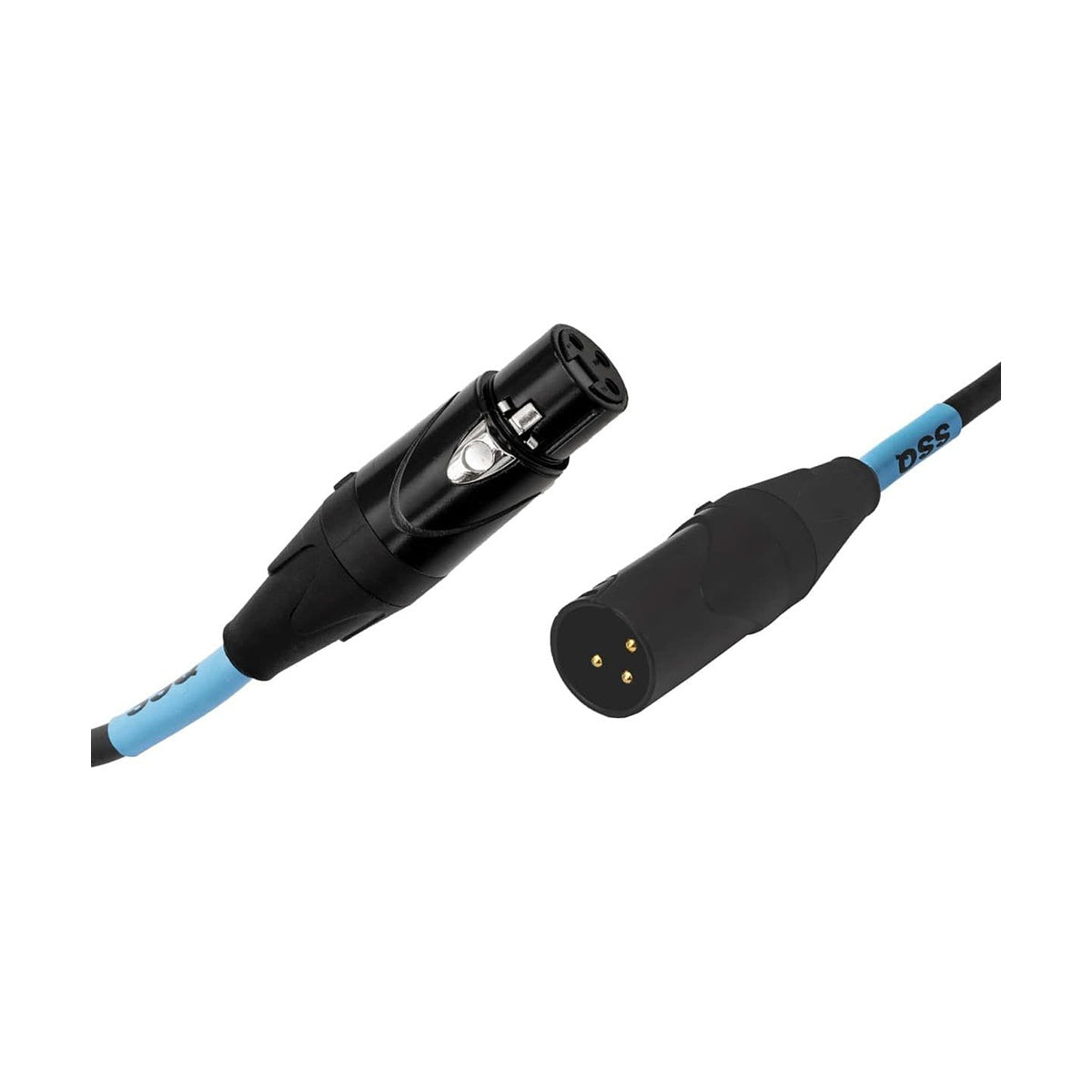

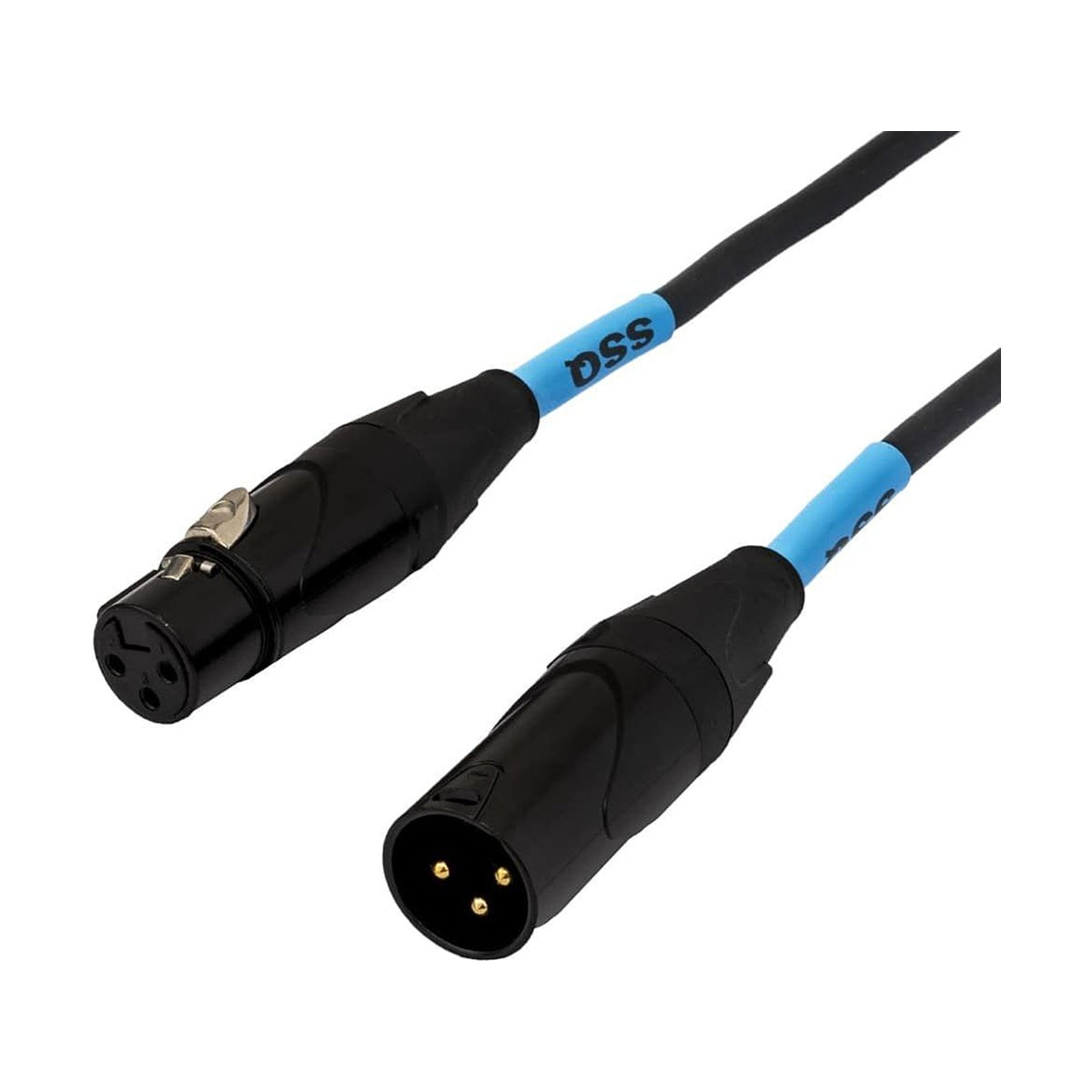

- Connectors: 3-pin XLR Male to 3-pin XLR Female.
- Conductor Gauge: 2 x 0.23 mm² (Oxygen-Free Copper).
- Outer Diameter: 6 mm.
- Shielding: Dense copper cross-braid.
- Included Accessories: Reusable hook-and-loop cable tie.
