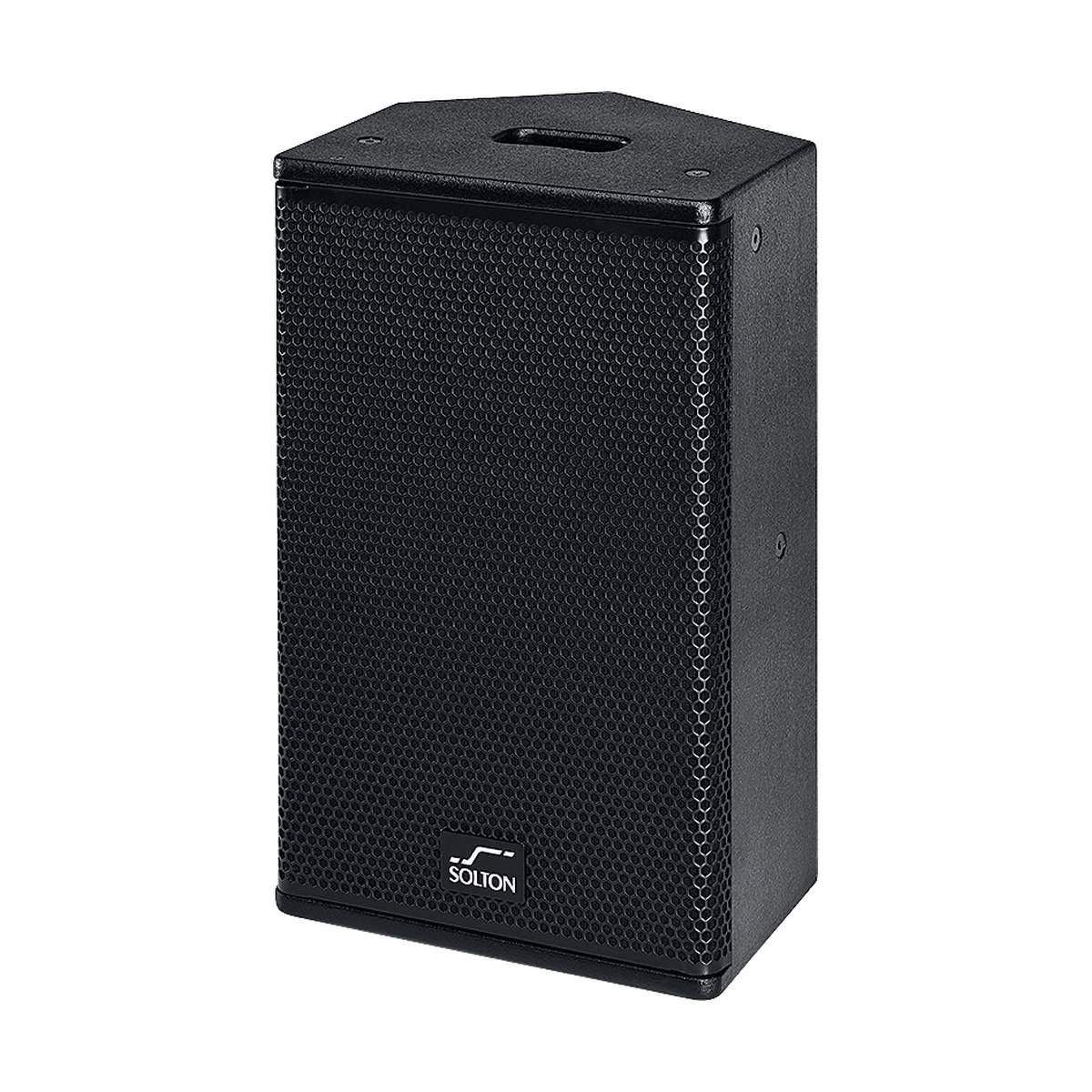

Solton T-10 A / HD 101

The T-10 A pairs a 10" low-frequency driver with a 50mm voice coil to a 1" compression HF driver on a 1.75" voice coil, both handled by a two-channel Class D amplifier with integrated two-channel DSP. The enclosure is 15mm birch plywood, built as a compact multi-angle cabinet weighing just 14.8 kg. Frequency response (±3 dB) covers 65 Hz–18 kHz, with a -10 dB frequency range extending from 55 Hz to 20 kHz, and 300 W continuous power handling (1200 W peak) yields a maximum SPL of 123 dB continuous / 128 dB peak at 1m.

One cabinet covering three different roles

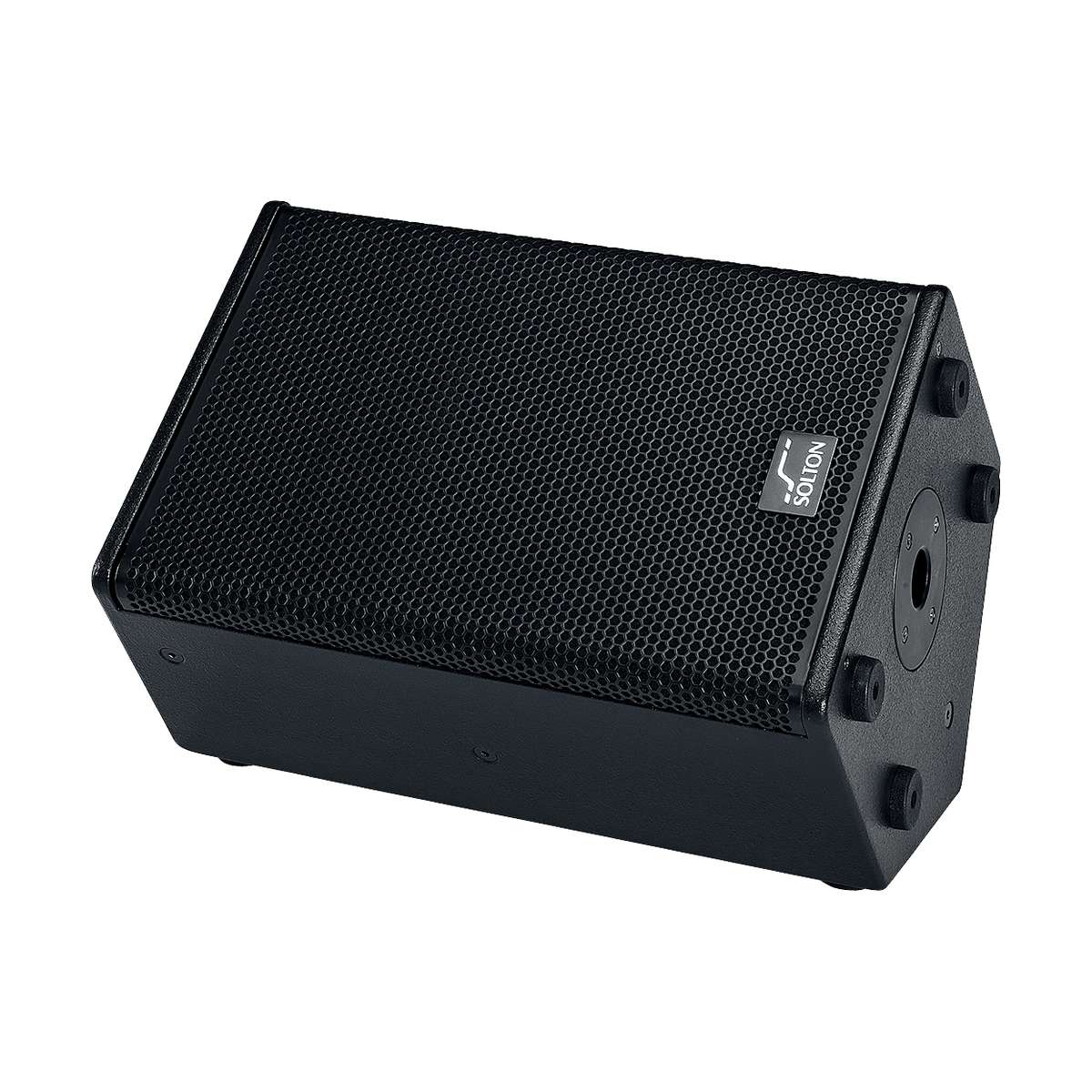

A common problem for anyone running sound on small to mid-size events: different gigs call for different speaker configurations — stand-alone fullrange one night, stage monitor the next, MF/HF section in a larger PA another. The T-10 A addresses this with a user-rotatable, constant-directivity 90° x 60° horn that mounts horizontally or vertically, plus four selectable DSP presets tuned to different use cases. That means one cabinet model covers scenarios that would otherwise require several different boxes in the gear inventory.

Mic inputs without needing a separate mixer

Small events, conferences, and bar setups often lack a dedicated mixer for a simple announcement or speech. The T-10 A has two combo XLR/6.35mm jack inputs with level control, one switchable between MIC and LINE mode and equipped with a precision mic preamp in MIC mode. A switchable Line/Mix Out lets several cabinets be chained together without external routing, and a dual-band limiter protects the low- and high-frequency drivers independently when the system is pushed near its limits.

KEY FEATURES

• Active two-way design with two-channel Class D amplifier
• Integrated two-channel DSP with 4 presets
• User-rotatable, constant-directivity 90° x 60° horn, horizontal or vertical mounting
• Dual-band limiter protecting LF and HF drivers independently
• 2 combo XLR/6.35mm jack inputs, one with MIC/LINE switch and mic preamp
• Switchable Line/Mix Out for daisy-chaining cabinets
• Multi-angle 15mm birch plywood enclosure with polyurea finish
• 7 M8 inserts, carry handle, and pole-mount socket
• Weight of only 14.8 kg

TECHNICAL SPECIFICATIONS

• Type: self-powered, two-way, bi-amped, multifunctional
• Frequency range (-10 dB): 55 Hz - 20 kHz
• Frequency response (±3 dB): 65 Hz - 18 kHz
• Coverage pattern: 90° H x 60° V nominal, user-rotatable
• Power handling: 300 W continuous, 1200 W peak
• System sensitivity (1W/1m): 98 dB
• Maximum SPL (at 1m): 123 dB continuous / 128 dB peak
• HF driver: 1.75" voice coil, 1" exit compression driver
• LF driver: 10", 2" voice coil
• Crossover: active / DSP
• Connectors: 2x XLR/6.35mm jack combo, 1x XLR
• Dimensions: 320 x 518 x 293 mm
• Weight: 14.8 kg
