Roland TR-1000 Rhythm Creator - Drum Machine
Roland TR-1000 Rhythm Creator - Drum Machine
Warsaw Showroom
Nowogrodzka 6
102
00-513 Warszawa
Pologne
Configurer
Roland TR-1000 Rhythm Creator is a drum machine that combines an analog engine recreating TR-808 and TR-909 circuits with ACB modelling, FM synthesis, PCM samples and a stereo sampler. Four layer tracks and six single tracks sit under a TR-REC sequencer with song mode, motion recording and step probability. The unit is built on an aluminium panel and a steel chassis, with no fan.
808 and 909 from real circuits, not samples
The analog engine offers 16 sounds faithfully recreated from the original TR-808 and TR-909 circuits, with new parameters and a wider dynamic range. Next to it runs the ACB platform with 21 circuit-bent 8X and 9X models, FM percussion, virtual analog synthesis and a PCM library. Each track has a sound generator, compressor, filter with four-band EQ and an amp section, and four tracks can stack two independent generators.
A sequencer that swings and evolves
Program step by step in classic TR-REC, record in real time or step off the quantize grid, with shuffle set per track. Cycle conditions, per-step probability and different play directions make a pattern change on every pass. The Morph slider and snapshots (up to 16 per track) change the sound and the mix with one move.
KEY FEATURES
- 16 analog sounds from TR-808 and TR-909 circuits
- ACB, FM, PCM and a sampler: stereo, time-stretch, non-destructive slicing
- Analog SVF filter and Drive, digital effects, reverb and delay per track
- TR-REC sequencer, song mode, motion recording, snapshots
- Morph slider with macro assignments to parameters
- 10 individual outputs that double as trigger outs, plus Analog FX output
- USB-C multichannel audio and MIDI interface, TR-1000 App editor
TECHNICAL SPECIFICATIONS
- Generators: Analog 16, ACB 75, FM 7, PCM 340, Sample 2,121 tones
- Sequencer: 4 layer tracks and 6 single tracks, 16 steps, 8 variations, 4 fill-ins
- User memory: 46 GB, 2,048 patterns and 2,048 kits
- Sampler: 16-bit, 48 kHz, up to 16 minutes per sample

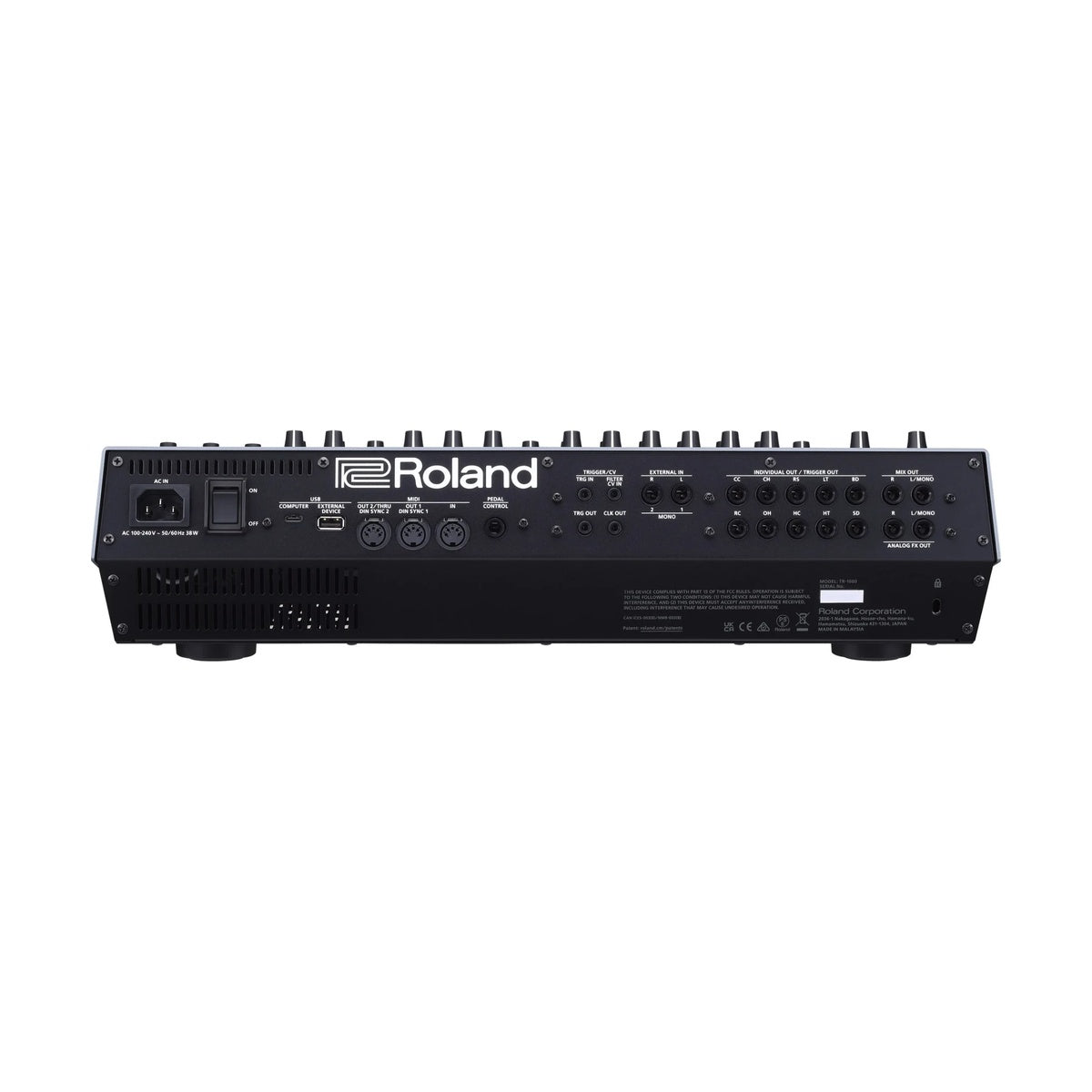

- Connectors: Mix Out, Analog FX Out, individual outs, External In, Trigger, CV, Clock
- MIDI In/Out/Thru with DIN Sync, USB-C (audio, MIDI), USB-A, pedal input
- Dimensions: 486 x 311 x 125 mm, weight 5.5 kg, power consumption 38 W
