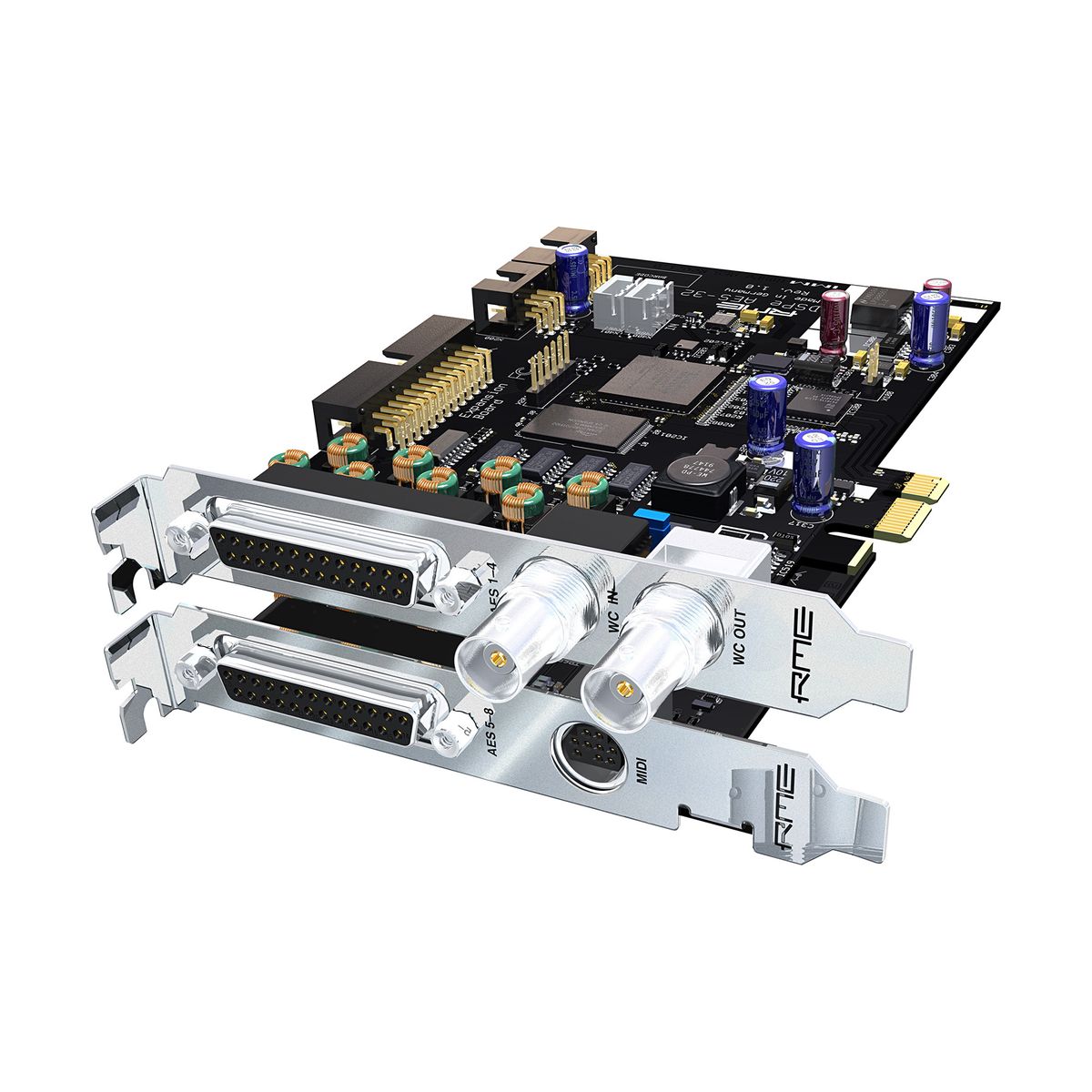

RME HDSPe AES
This item is available on a custom order basis only
Please contact us for more details.
Nous contacterConfigurer
This item is available on a custom order basis only
Please contact us for more details.
Nous contacterThis item is available on a custom order basis only
Please contact us for more details.
Nous contacterRME HDSPe MADI– 128-channel PCI Express card with 1× optical MADI (SC) and 1× coaxial MADI (BNC),Word Clock I/O, 2× MIDI I/O (breakout), 6.3 mm line/phones analog output, mixerTotalMix FX(without FX DSP) and the clockSteadyClock FS; do 64×64 @ 44.1/48 kHz, 32×32 @ 88.2/96 kHz and 16×16 @ 176.4/192 kHz.
HDSPe MADIfully utilizes the MADI standard: it supports 56/64 channel modes, 48K/96K frame (Single/Double Wire), and operation up to 192 kHz with multiple sampling (S/MUX). TotalMix FX allows you to freely route and mix 64 inputs and 64 playback to 64 physical outputs (8192-channel matrix). The analog monitor output (line/headphones) facilitates quick listening without an additional converter.
The board has MADI connectors (in/out: optical and BNC) and an analog stereo output, and on the expansion board – Word Clock In/Out (BNC, with termination) and a breakout socket for2× MIDI In/Out. ThanksSteadyClock FSThe card probably retrieves the clock directly from the MADI signal, and is built into the AVDECC drivers? (not applicable) – instead, it isMIDI over MADI(virtual port). Compliance withARC USBand toolsDIGICheckThe set is being completed.
KEY FEATURES
- 1× optical MADI I/O (SC) + 1× coaxial MADI I/O (BNC)
- Do 64×64 @ 48 kHz; 32×32 @ 96 kHz; 16×16 @ 192 kHz; modes 56/64 ch and 48K/96K Frame (Single/Double Wire)
- TotalMix FX: free routings/submixes; 64 In + 64 Playbacks → 64 Out (matrix of 8192 channels)
- Analog output line/phones 6.3 mm (monitoring); dynamics up to approx. 116 dB (according to RME)
- Word Clock In/Out (BNC; transformer-isolated, switchable termination 75 Ω)
- 2× MIDI In/Out (breakout) + virtual portMIDI over MADI
- SteadyClock FS – high resistance to jitter, stable synchronization with MADI/Word
- Compliance with ARC USB; includes DIGICheck software
TECHNICAL SPECIFICATION
- Interface: PCI Express x1 (rev. 1.1), 2.5 Gb/s; full duplex (up to 500 MB/s)
- I/O: Optical MADI (in/out), Coaxial MADI BNC (in/out), Word Clock In/Out (BNC), 2× MIDI In/Out (breakout), 6.3 mm analog line/phones
- Channels/frequencies: 64×64 @ 44.1/48 kHz; 32×32 @ 88.2/96 kHz; 16×16 @ 176.4/192 kHz.
- MADI Modes: 56/64 ch; 48K Frame / 96K Frame (Single/Double Wire); S/MUX for DS/Quad Speed
- Clock sources: Internal, MADI (opt./coax), Word Clock;SyncCheckIt seems like your message was incomplete. Could you please provide the text you would like translated?Inteligentne sterowanie zegarem
- Word Clock: With switchable termination 75 Ω (operates from ~1.2 Vpp), Out 4 Vpp/75 Ω
- Phones/Line Out: stereo 6.3 mm TRS; (plays pairs 63/64, 31/32 or 15/16 depending on fs)
- Additional features: MADI conversion/splitting (opt.↔coax), patchbay/router in TotalMix;MIDI over MADI; firmware update (Flash Update)
