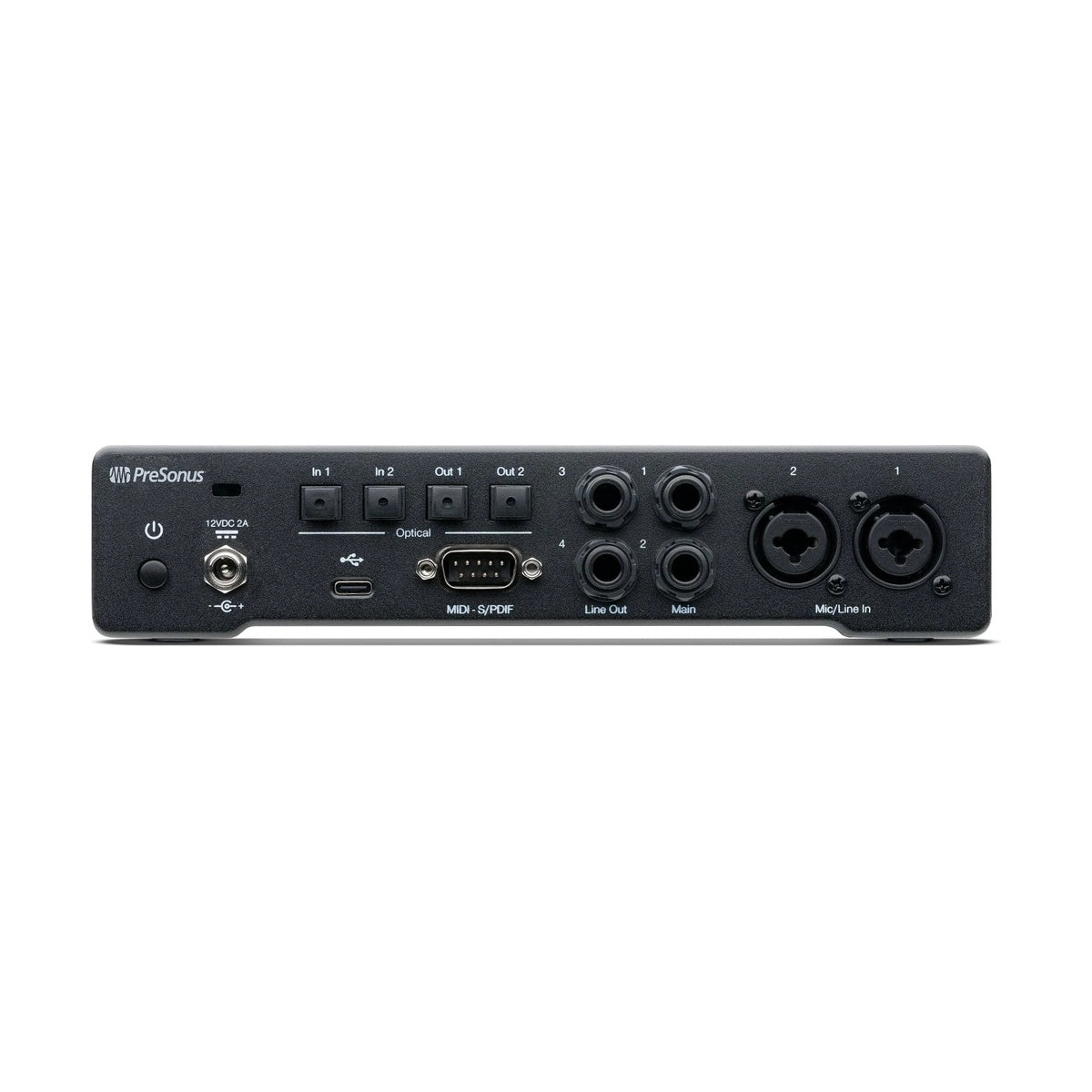

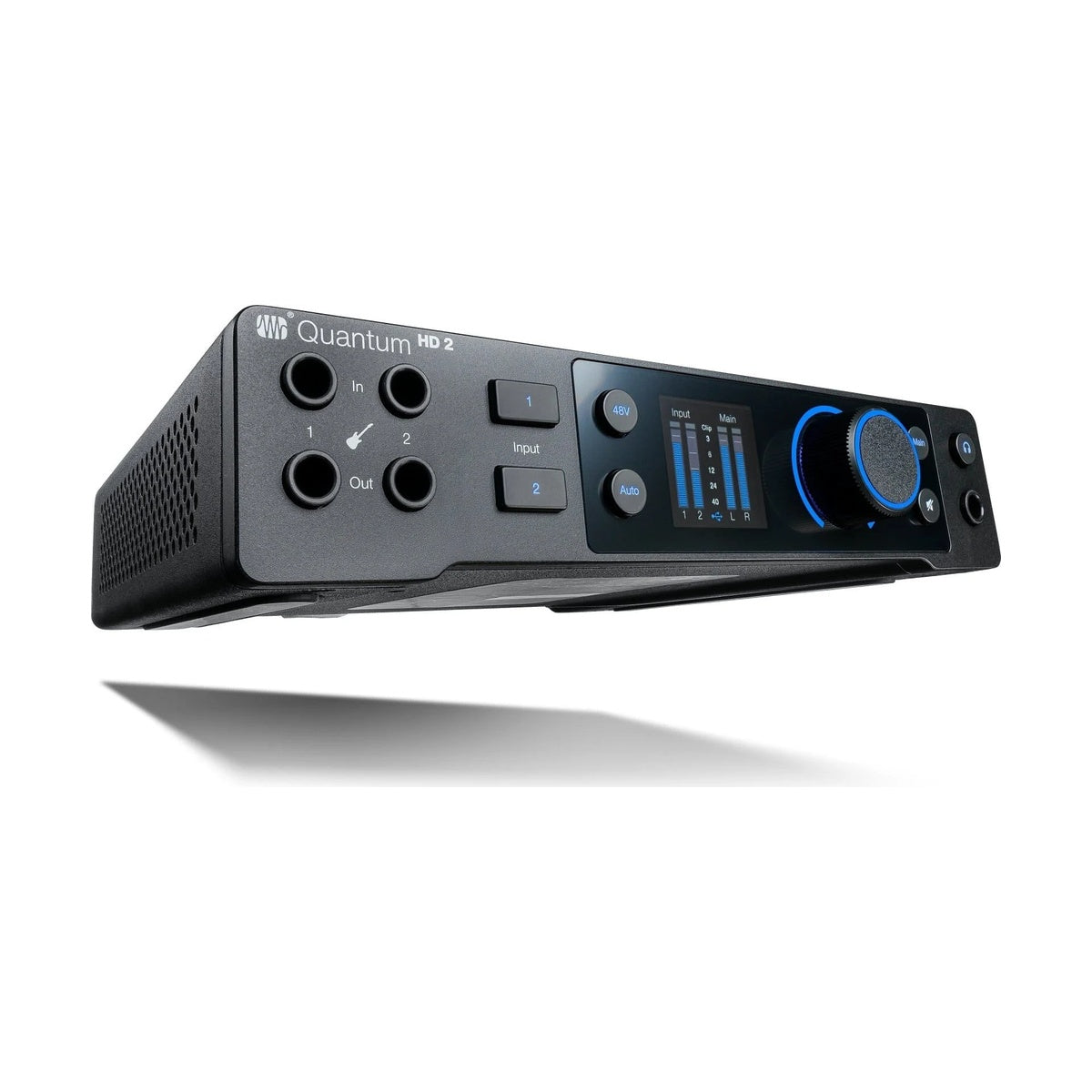

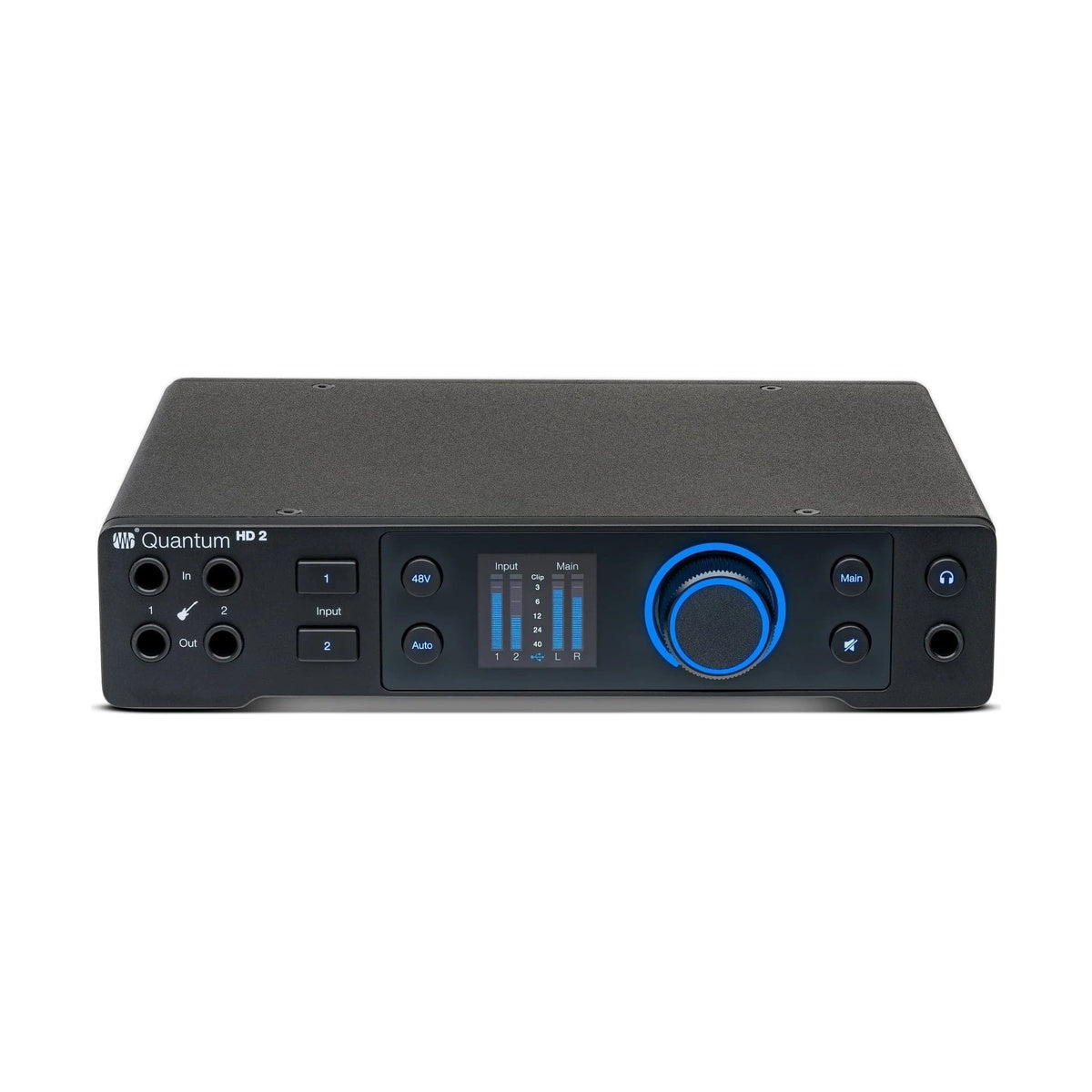

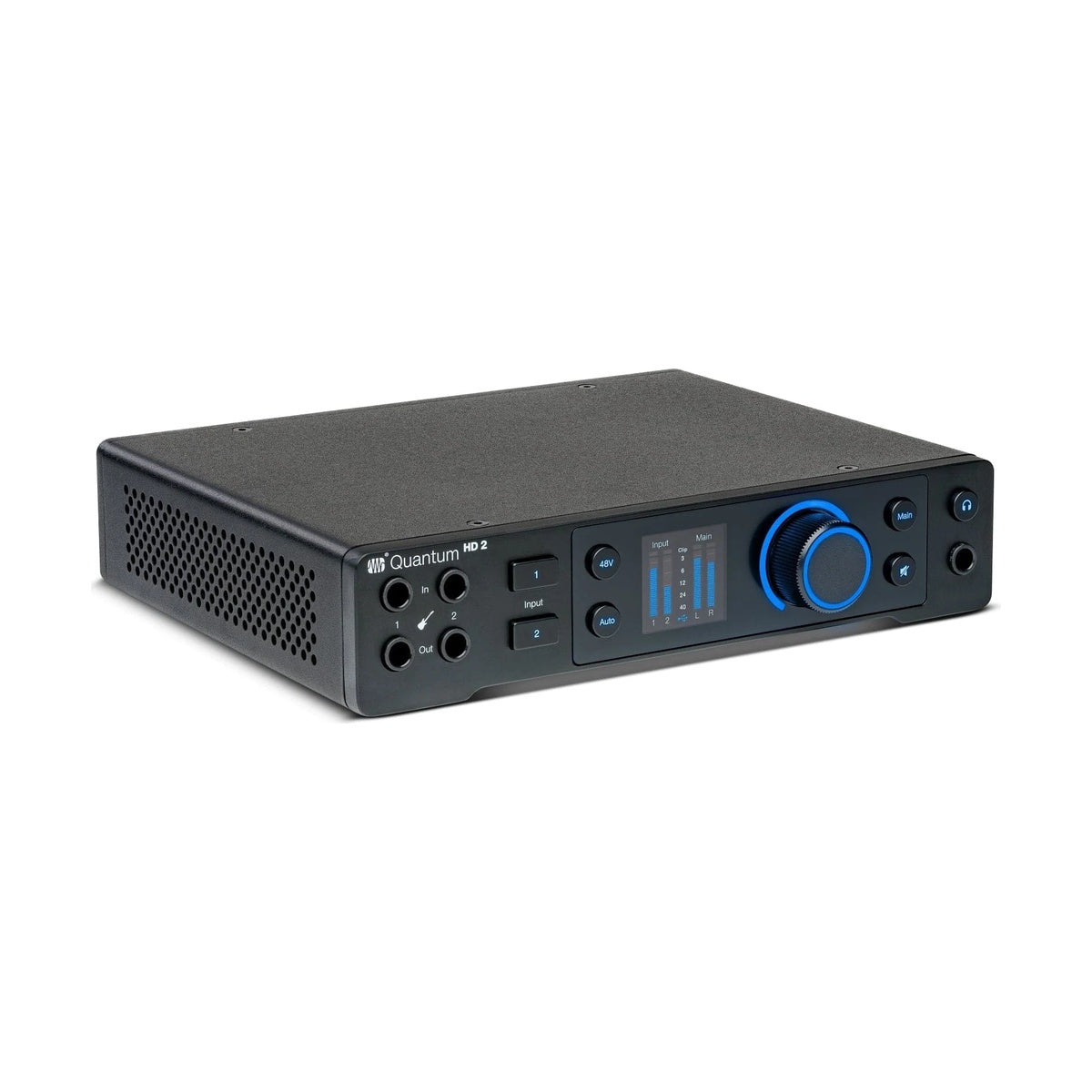

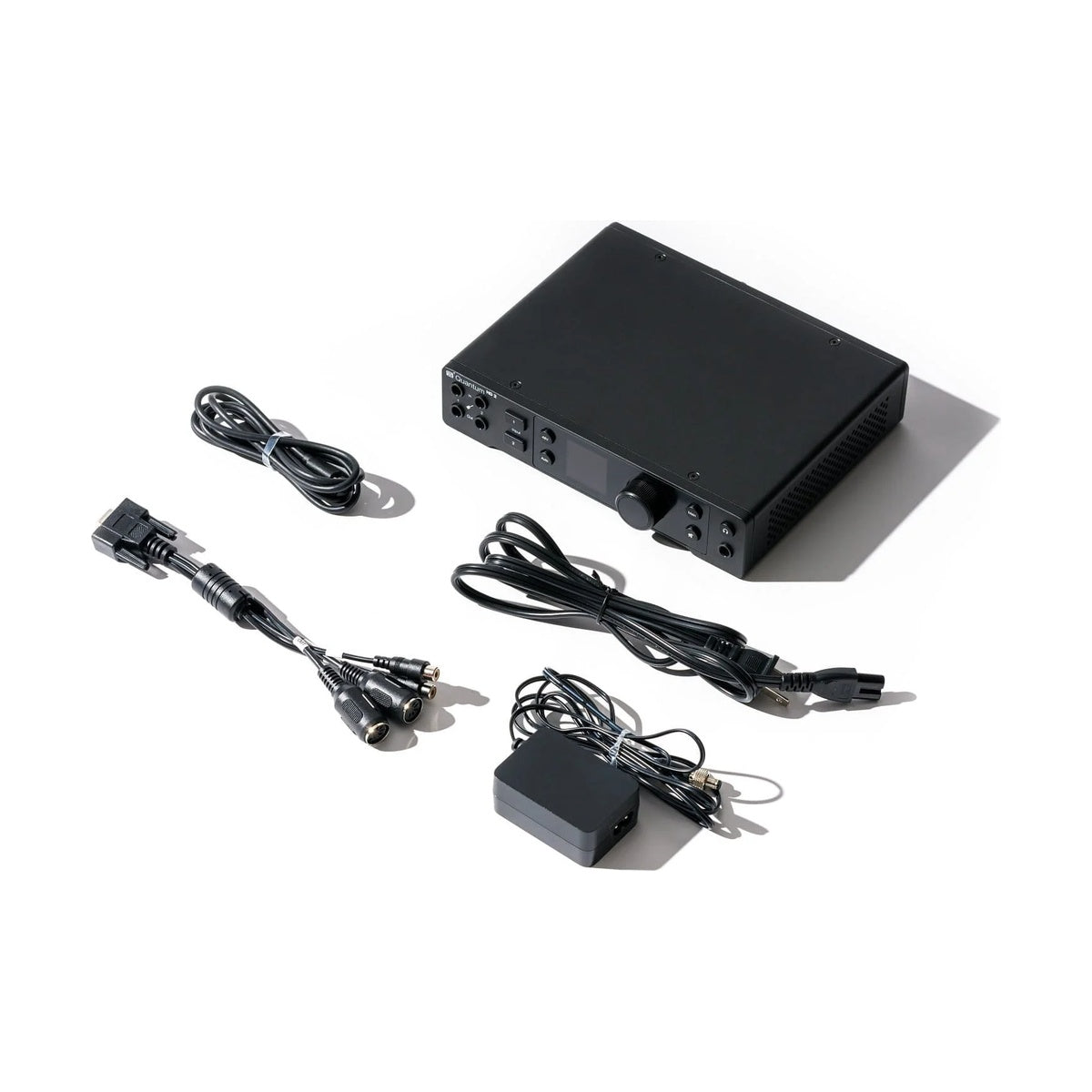

PreSonus Quantum HD 2

PreSonus Quantum HD 2 – compact high-end audio interface with USB-C connectivity, designed for modern production environments. It delivers 32-bit/192 kHz conversion, ultra-low latency performance and a transparent signal path powered by next-generation MAX-HD preamps.

MAX-HD preamps and precise gain control

Two MAX-HD mic preamps provide up to +75 dB of gain, making them suitable for low-output dynamic and ribbon microphones. The digitally controlled analog design ensures low noise and consistent performance. Auto Gain automatically sets optimal input levels, speeding up recording workflow and reducing setup errors.

Guitar workflow and built-in re-amping

Dual instrument inputs are optimized for guitar and bass, delivering proper impedance and tone. Integrated re-amp outputs allow sending recorded tracks back through amplifiers for re-recording, eliminating the need for external reamp boxes and simplifying tone experimentation.

KEY FEATURES

• USB-C audio interface, 32-bit / 192 kHz
• 2 MAX-HD mic preamps (+75 dB gain)
• Up to approx. 124 dB dynamic range
• Auto Gain function
• 2 Hi-Z instrument inputs
• 2 re-amp outputs
• Low-latency drivers and low-noise converters
• Universal Control software integration
• Illuminated encoder for gain and output control
• Studio One software included

TECHNICAL SPECIFICATIONS

• Resolution: 32-bit / 192 kHz
• I/O: 20 inputs / 24 outputs (via ADAT and S/PDIF)
• Mic inputs: 2x XLR/TRS combo
• Instrument inputs: 2x 6.3 mm jack (Hi-Z)
• Line inputs: 2x TRS
• Line outputs: 4x balanced TRS
• Re-amp outputs: 2x TRS
• Headphone output: 1x TRS
• Digital I/O: ADAT, S/PDIF
• MIDI: In/Out
• Phantom power: 48 V
• Frequency response: 20 Hz – 20 kHz
• Connection: USB-C
• Weight: approx. 1.3 kg
