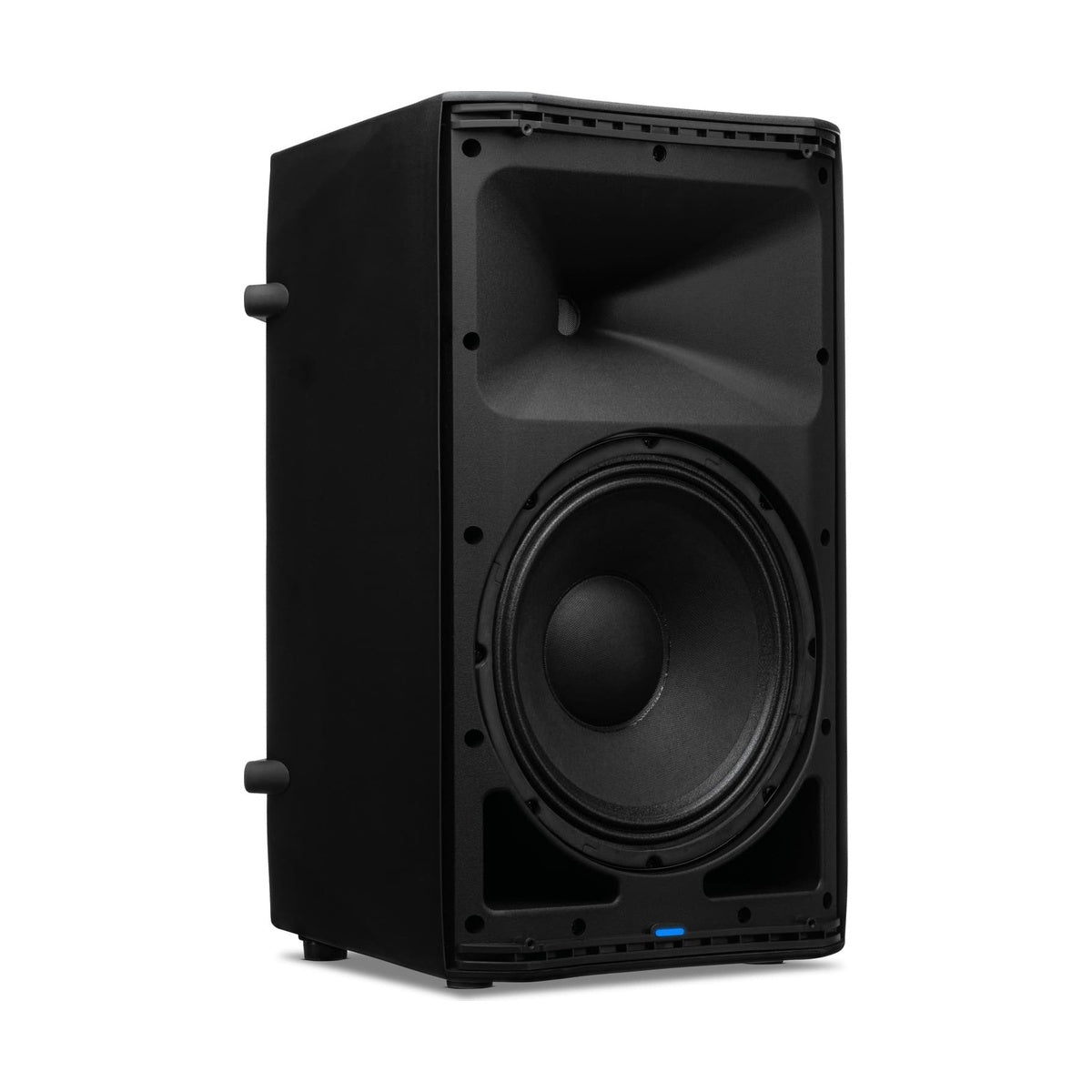

PreSonus AIR XD 10 – a 2-way active PA loudspeaker with a custom 10" LF driver (2.36" voice coil), 1" PEEK-diaphragm compression driver, 1,500 W Class-D bi-amplification (1,060 W LF + 468 W HF), DSP with a 2.6" full-color LCD and Bluetooth TWS Bridge Mode. Maximum SPL: 130 dB. Dispersion: 90° × 60°.
The AIR XD 10 is a compact multi-role loudspeaker designed to work as FOH, stage monitor and permanent install without swapping enclosures or accessories. Delivering 1,500 W and 130 dB SPL in a cabinet weighing approximately 14 kg that fits in a car's backseat, it represents a significant step forward from the previous AIR generation. The PEEK diaphragm in the compression driver provides heat tolerance up to 250°C and fast transient response under prolonged high-output use.
DSP, presets and built-in 3-channel mixer

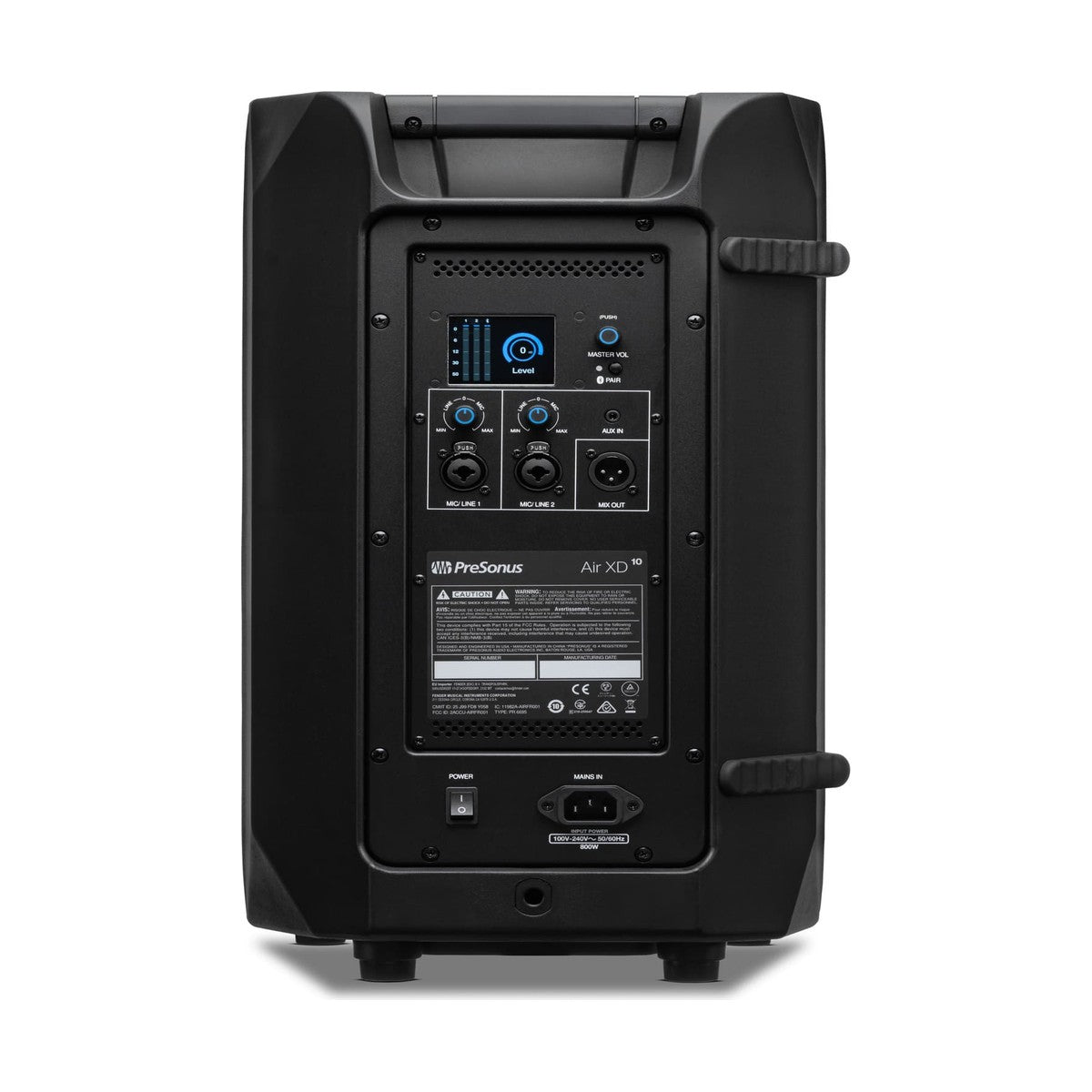

The DSP section with 2.6" full-color LCD provides access to a complete toolkit: application presets (FOH, monitor, music playback, speech, enhanced low-end), ±10 dB EQ for LF and HF independently, and location presets that optimise the frequency response for stand, flown and bracket-mounted configurations. A built-in 3-channel mixer combines two combo XLR/1/4" mic/line inputs with a 1/8" stereo AUX input, with the summed signal available at a Mix Out XLR output for daisy-chaining additional speakers. Bluetooth TWS Bridge Mode enables wireless stereo pairing with a second AIR XD 10 without extra cables or hardware.
Mounting options and portability

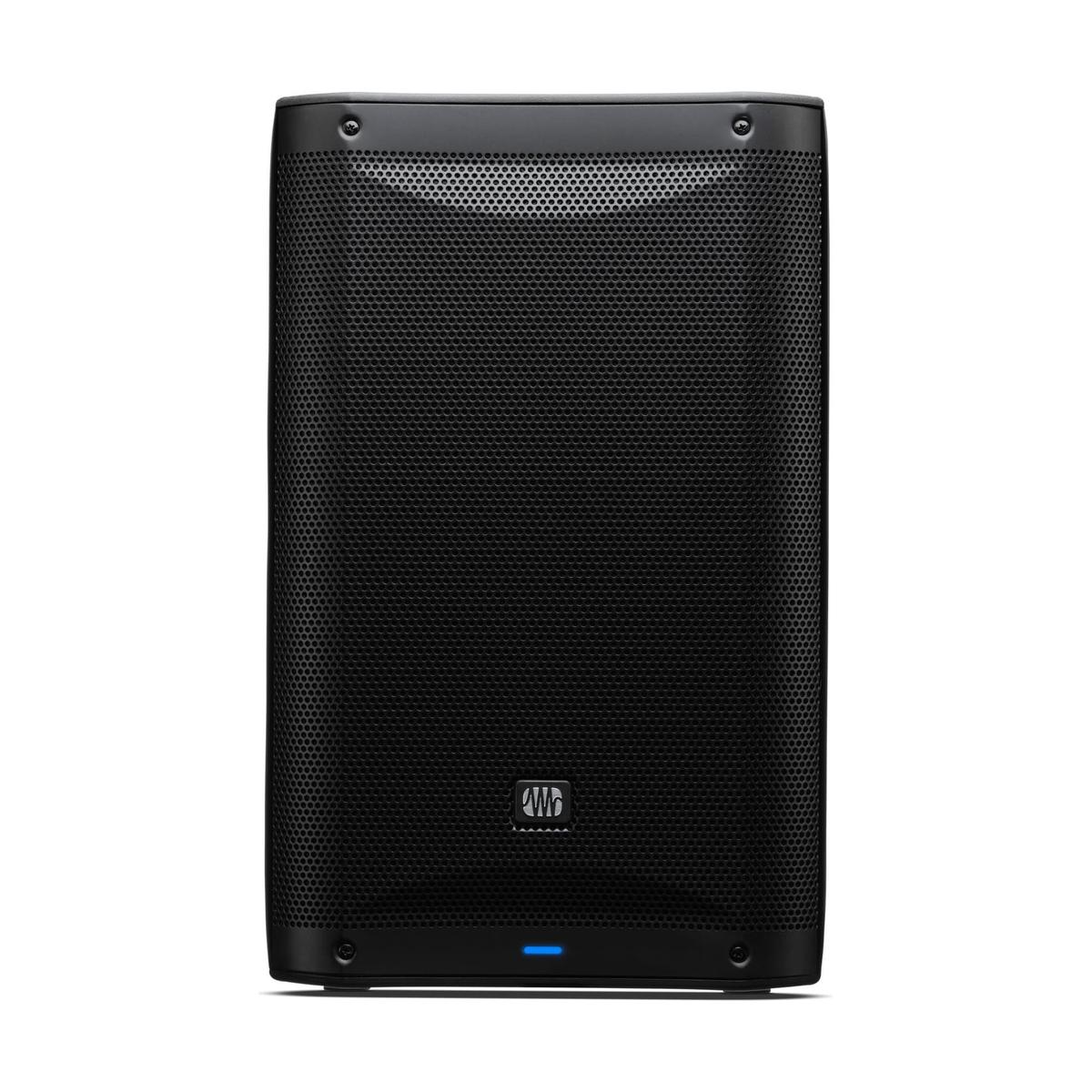

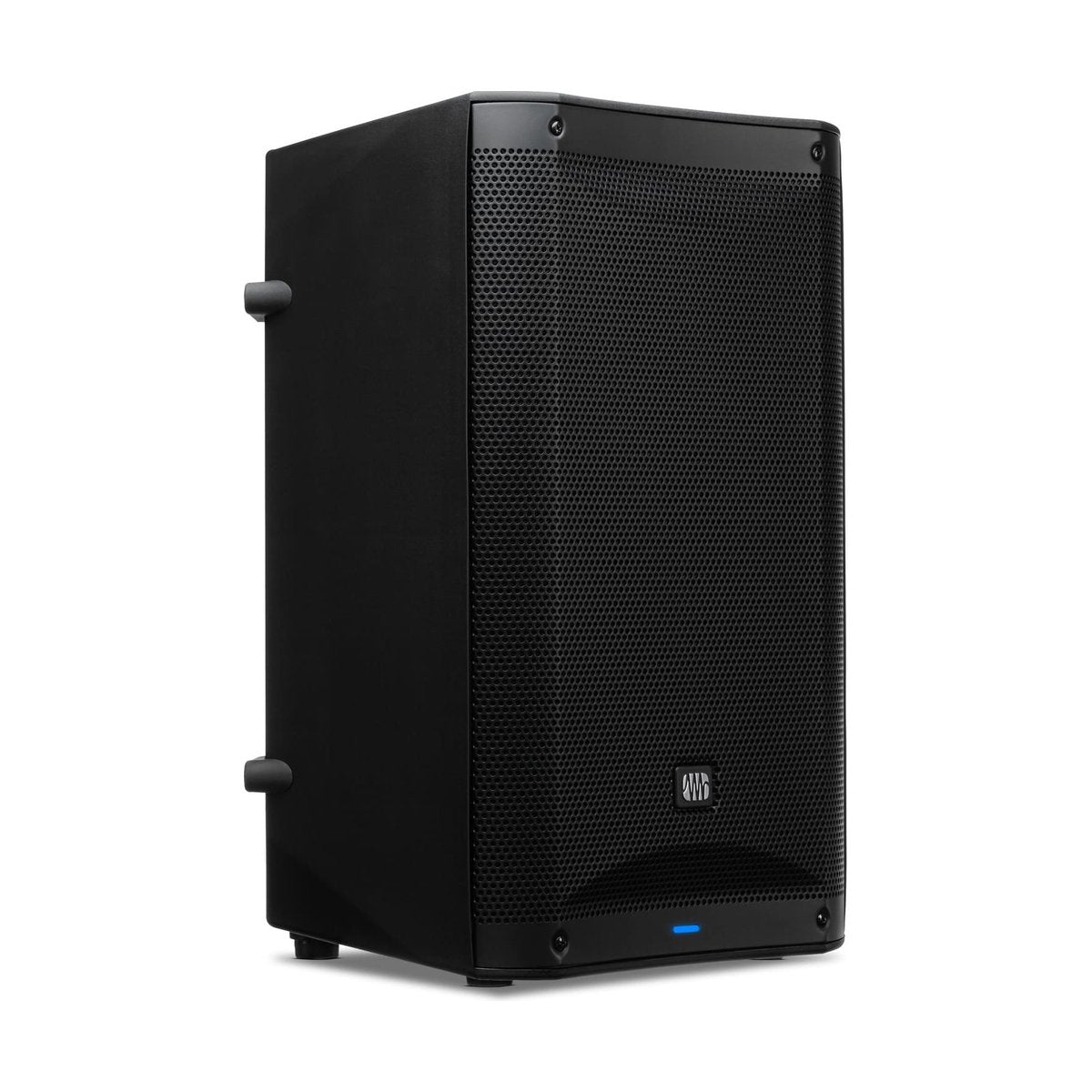

The polypropylene enclosure with 1.2 mm steel grille includes a 35 mm pole socket with dual positions (0° and 7.5° downward tilt), M10 rigging points (2 top, 1 rear), and non-skid rubber feet on both the bottom and side for FOH or wedge monitor placement without additional accessories. A top-mounted carry handle completes the mobile package. Compatible mounting configurations include: AIR XD subwoofer pole, tripod stand, flying via M10 points, wall bracket and floor wedge.
KEY FEATURES
- Custom 10" LF driver, 2.36" voice coil, low-end extension down to 55 Hz
- 1" PEEK-diaphragm HF compression driver – fast transient response, high thermal tolerance
- 1,500 W total Class-D bi-amplification (1,060 W LF + 468 W HF) – 130 dB max SPL
- Dispersion: 90° (horizontal) × 60° (vertical)
- Frequency response: 66 Hz – 20 kHz (–3 dB) / 55 Hz – 20 kHz (–10 dB)
- DSP: FOH/monitor/music/speech/enhanced low-end presets, ±10 dB EQ (HF and LF)
- Location presets: stand, suspend, bracket
- Display: 2.6" full-color LCD
- Built-in 3-channel mixer: 2× combo XLR/1/4" + 1× 1/8" stereo AUX + Mix Out XLR
- Bluetooth TWS Bridge Mode – wireless stereo pairing
- 35 mm pole socket (0°/7.5°), M10 rigging points, non-skid rubber feet for FOH/wedge
- Enclosure: polypropylene moulded, 1.2 mm steel grille
TECHNICAL SPECIFICATIONS
- LF driver: 10", 2.36" voice coil, custom
- HF driver: 1" PEEK diaphragm compression driver
- Amplifier power: 1,500 W total (1,060 W LF + 468 W HF), Class D
- Frequency response (–3 dB): 66 Hz – 20 kHz
- Frequency response (–10 dB): 55 Hz – 20 kHz
- Maximum SPL: 130 dB
- Dispersion: 90° H × 60° V
- Inputs: 2× XLR/1/4" combo mic/line (30 kΩ, max +14 dBu), 1× 1/8" stereo AUX
- Output: 1× Mix Out XLR balanced
- Bluetooth: TWS Bridge Mode (streaming + stereo pairing)
- Mounting: 35 mm pole socket (0°/7.5°), M10 rigging points (2× top, 1× rear)
- Dimensions (H × W × D): 515 × 300 × 292 mm (20.3" × 11.8" × 11.5")
- Weight: ~14.0 kg (30.9 lb)
