PMC IB2S XBD-AII

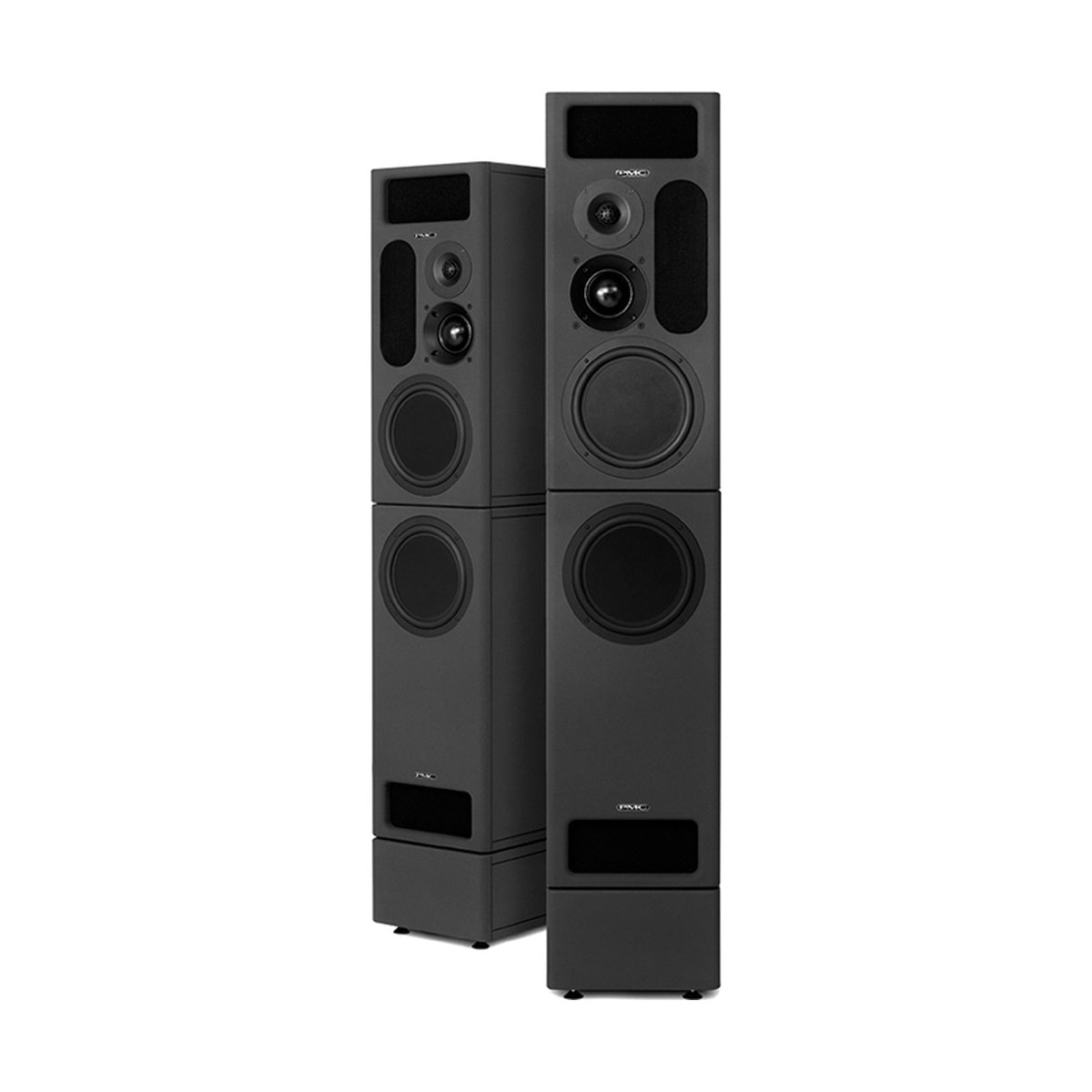

PMC IB2S XBD-AII is a 3-way twin-cabinet active reference monitoring system with ATL™ technology, designed for the most demanding mastering and high-end studio environments. Offering extraordinary detail, high SPL capability, and extended low-frequency headroom down to 25 Hz, the system delivers pristine accuracy across the full frequency range.

The system consists of a main monitor with a dedicated XBD bass extension cabinet, effectively doubling the low-end capability and adding +3 dB of headroom below 380 Hz. This configuration ensures smooth bass response and better room coverage, making the IB2S XBD-AII suitable for large control rooms or soffit-mounted installations. All drivers are PMC’s proprietary designs, including twin 10” carbon-fibre/Nomex™ piston woofers (from the flagship QB1), a 75 mm soft-dome midrange driver, and a 34 mm soft-dome tweeter with an acoustic radiator.

The system includes discrete external electronics for rack mounting, with Class-D amplification providing 3225 W per channel (LF & LFX 2400 W, MF 550 W, HF 275 W). It features both balanced analogue and AES3 digital inputs (up to 96 kHz), user-adjustable EQ filters, ±8 dB level trim, input sensitivity controls (+4 to +16 dB), and remote configuration via RJ45. The included remote allows control of three user presets, EQ adjustments, and input selection.

KEY FEATURES

• 3-way ATL™ active reference monitor with twin-cabinet design
• Dedicated XBD bass unit adds +3 dB LF headroom
• Frequency response: 25 Hz – 25 kHz
• Maximum SPL: 128 dB
• Total amplification: 3225 W per channel (LF & LFX 2400 W, MF 550 W, HF 275 W)
• Twin 10" Carbon Fibre/Nomex™ piston woofers, 75 mm soft dome mid, 34 mm tweeter
• Balanced analogue and AES3 digital inputs (24-bit, 96 kHz)
• External rackmount amps with remote RJ45 control
• ±8 dB input level trim, HF and LF shelving EQ, three user presets
• Configurable for vertical or side-by-side cabinet setup

TECHNICAL SPECIFICATIONS

• Type: 3-way twin cabinet ATL™ active reference monitor
• Frequency Response: 25 Hz – 25 kHz
• Crossover Frequencies: 380 Hz & 3.8 kHz
• Effective ATL™ Length: 2 x 2.4 m (8 ft)
• Drivers:
  • LF – 2 x 10” (250 mm) Carbon Fibre/Nomex™ piston woofers
  • MF – 75 mm hand-built soft dome midrange
  • HF – 34 mm soft dome tweeter with acoustic radiator
• Amplifier Power: LF & LFX 2400 W, MF 550 W, HF 275 W
• Inputs: Balanced analogue and AES3 digital (24-bit, 96 kHz)
• Analog input sensitivity: +4 dB to +16 dB adjustable
• Trim and shelving EQ: ±8 dB
• User Presets: 3 + factory default
• Remote Control: RJ45 (included)
• Dimensions (H x W x D): 1500 mm + 190 mm plinth (+25 mm adjustable feet) x 330 mm x 564 mm
• Weight: 90 kg (198.4 lbs) per unit
• Finish: Studio black
