PMC IB2S-A-CII
This item is available on a custom order basis only. Please contact us for more details. Contact us

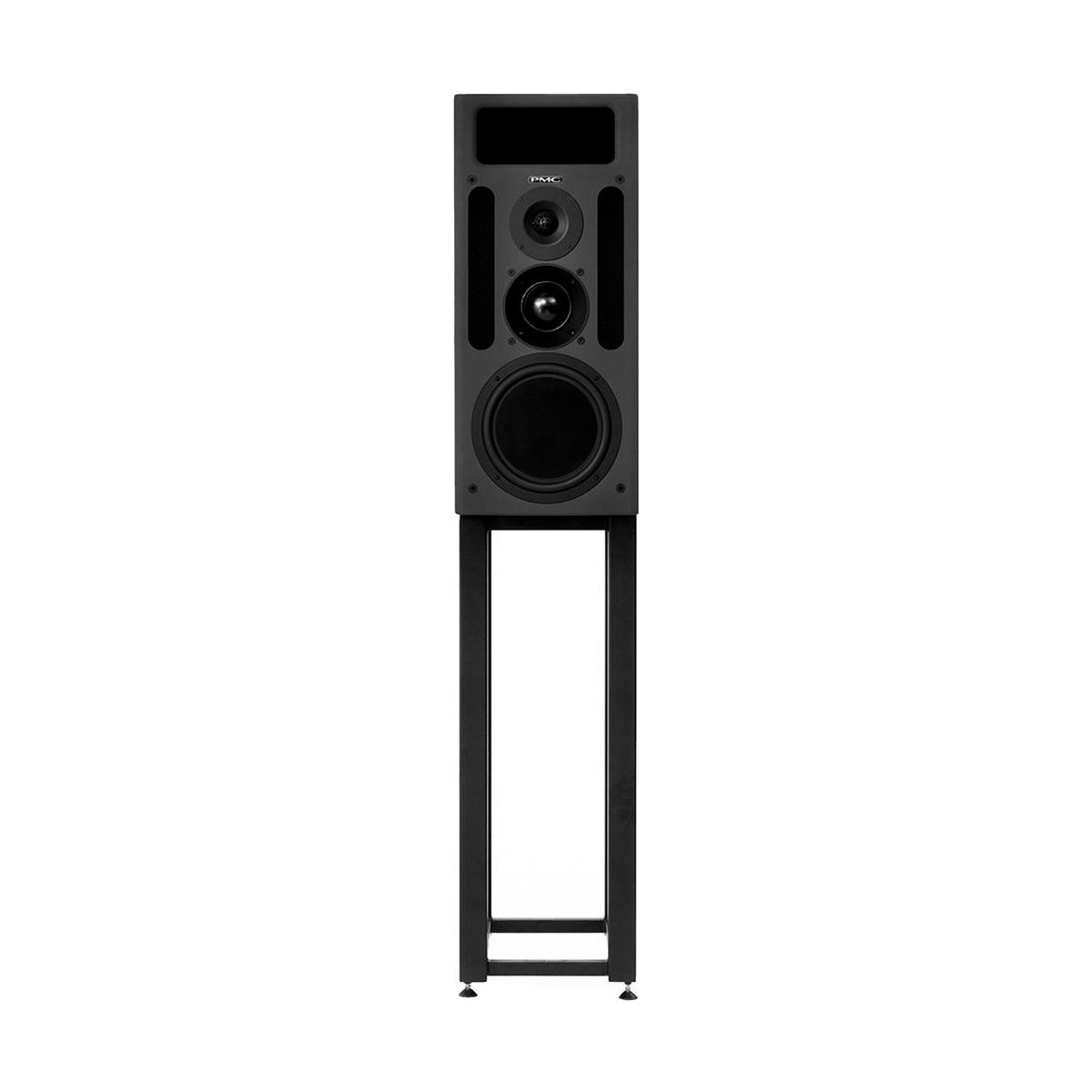

PMC IB2S-A-CII is a professional 3-way active center reference monitor featuring ATL™ technology, designed for high-end stereo and surround monitoring. It offers the full performance of PMC’s large-scale reference monitors in a more compact cabinet, with an extended frequency response from 25 Hz to 25 kHz and a maximum SPL of 125 dB.
The speaker features PMC’s proprietary hand-built drivers: a 10-inch carbon-fibre/Nomex™ piston low-frequency driver, a 75 mm fabric dome midrange, and a 34 mm soft dome tweeter with acoustic radiator. The Advanced Transmission Line (ATL™) design ensures smooth, detailed low-end performance, with an effective line length of 2.4 meters (8 feet).
Amplification is handled by ultra-low distortion Class-D amplifiers, delivering a total of 2025 W (LF 1200 W, MF 550 W, HF 275 W). The monitor supports both analog and digital AES3 inputs (up to 96 kHz), and offers adjustable input sensitivity (+4 to +16 dB), LF/HF shelving filters, and ±8 dB input trim. All settings can be managed remotely via the included RJ45 remote control, ensuring convenient system integration and user personalization with up to three user-defined presets.
KEY FEATURES
- 3-way active reference monitor with ATL™ technology
- Frequency response: 25 Hz – 25 kHz
- Maximum SPL: 125 dB
- Total amplification: 2025 W (LF 1200 W, MF 550 W, HF 275 W)
- 10" carbon fibre/Nomex™ piston woofer, 75 mm midrange dome, 34 mm tweeter with radiator
- Balanced analog and AES3 digital inputs (24-bit, 96 kHz)
- HF and LF shelving filters, ±8 dB input level trim
- Remote control via RJ45 (included)
- Three user presets for individual recall
- Optional vertical and horizontal versions available
TECHNICAL SPECIFICATIONS
- Type: 3-way active ATL™ reference monitor
- Frequency Response: 25 Hz – 25 kHz
- Crossover Frequencies: 380 Hz & 3.8 kHz
- Effective ATL™ Length: 2.4 m (8 ft)
- Drivers:
- LF – 10” (250 mm) Carbon Fibre/Nomex™ piston driver
- MF – 75 mm hand-built soft dome midrange
- HF – 34 mm soft dome tweeter with acoustic radiator
- Amplifier Power: LF 1200 W, MF 550 W, HF 275 W
- Inputs: Balanced analog and AES3 digital (24-bit, 96 kHz)
- Analog input sensitivity: +4 dB to +16 dB adjustable
- Trim and shelving EQ: ±8 dB
- User Presets: 3 + factory default
- Remote Control: RJ45 (included)
- Dimensions (H x W x D): 745 x 330 x 564 mm
- Weight: 46.5 kg (102.5 lbs)
- Finish: Studio black
