PMC 8-2 XBD
Configurer

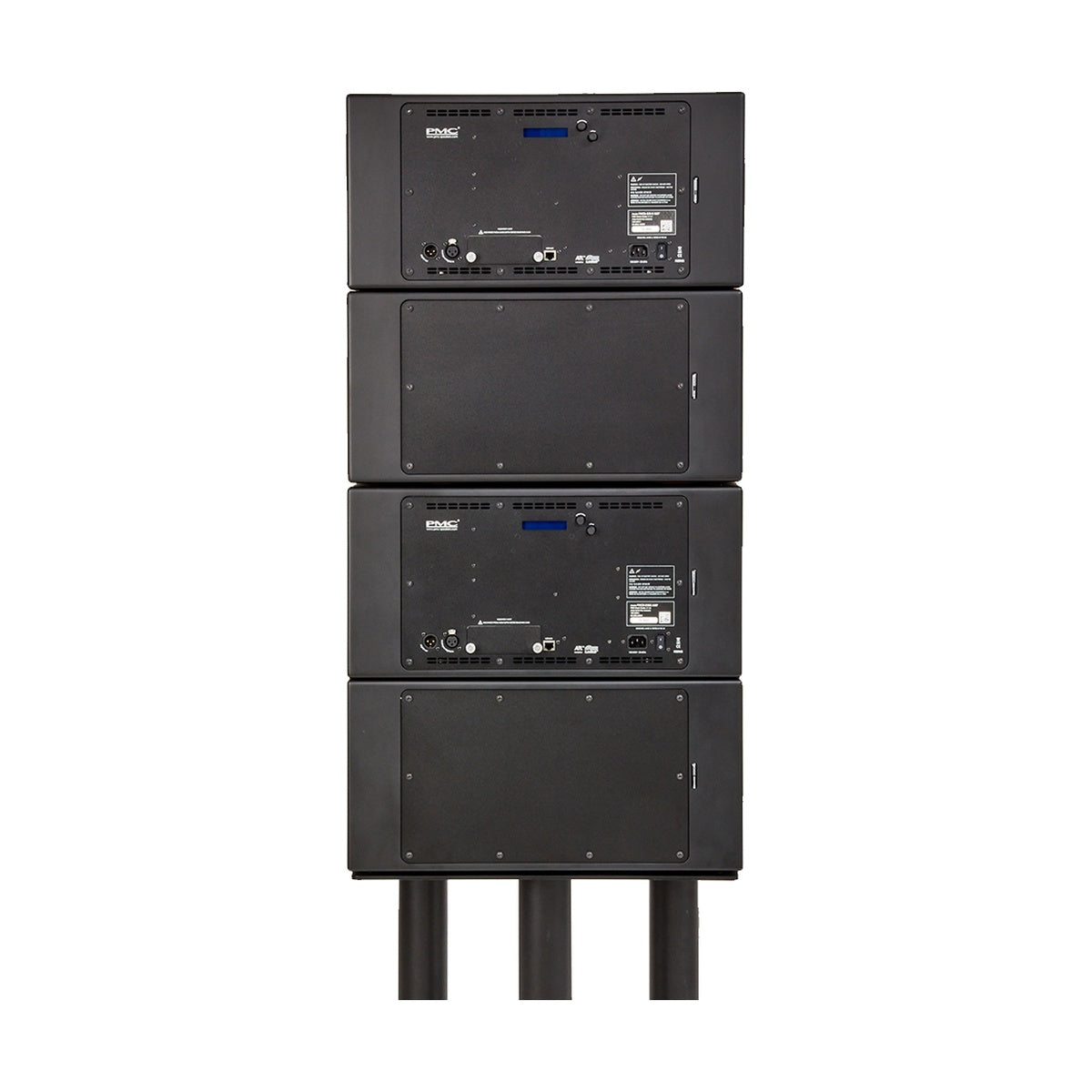

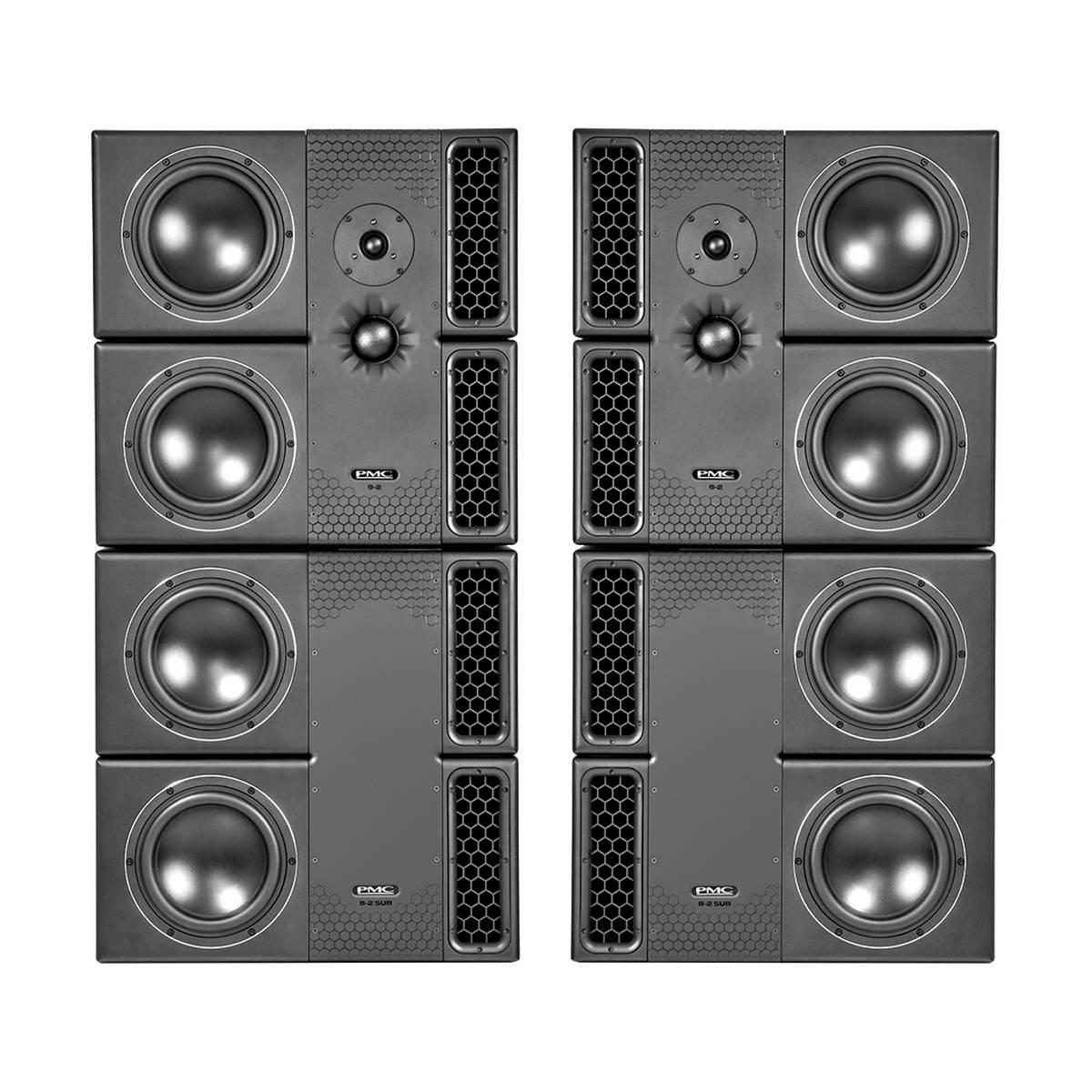

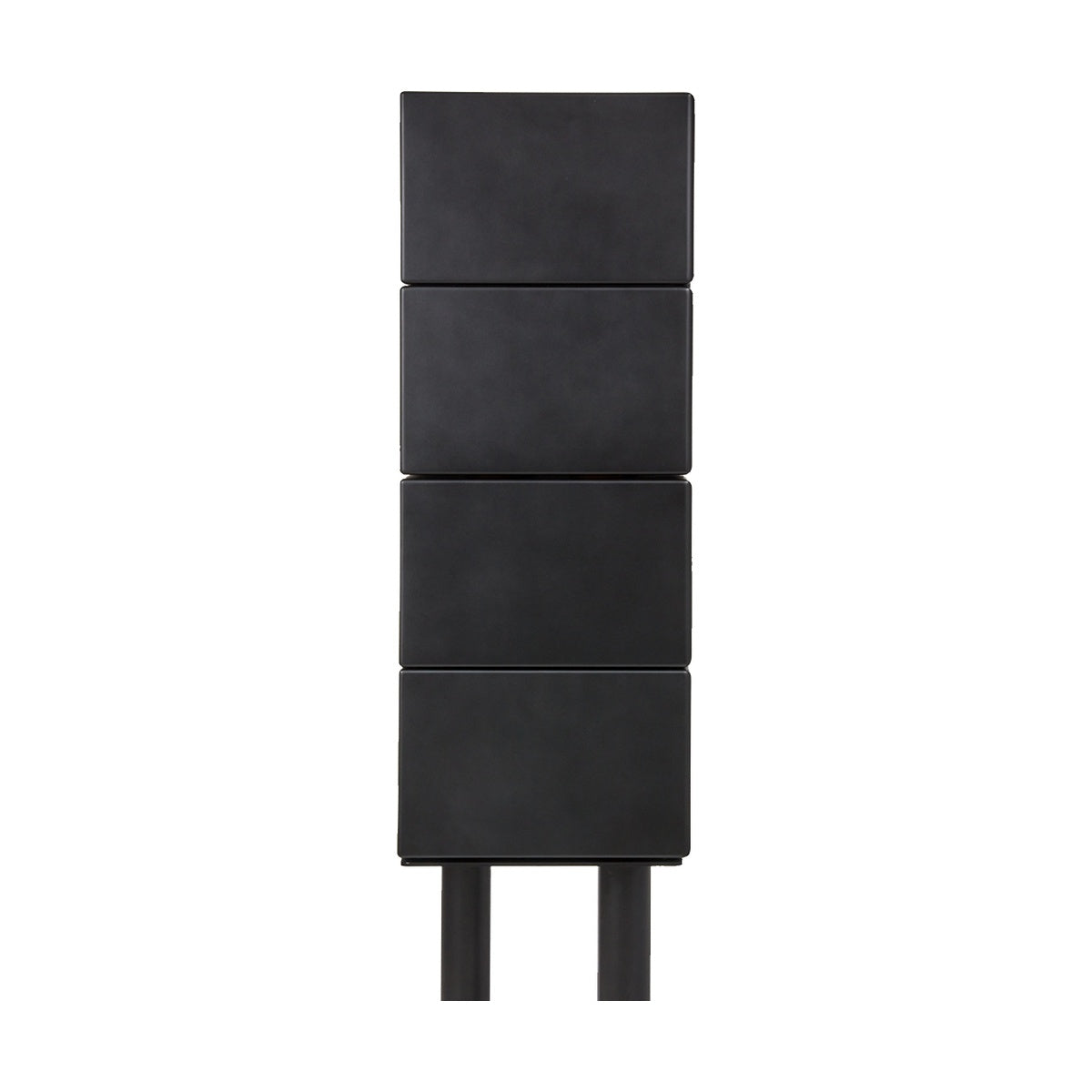

PMC 8-2 XBD – a high-end three-way active midfield reference monitor system from PMC, designed for critical monitoring in larger studio control rooms and immersive audio environments. The “XBD” configuration combines the PMC 8-2 main monitor with a dedicated PMC 8-2 SUB subwoofer, forming a twin-cabinet system that delivers increased bass headroom, extended frequency response and full-range performance.
The system features Advanced Transmission Line (ATL™) bass loading for tight, detailed low-end, paired with state-of-the-art Class D amplification: 400 W for HF, 400 W for MF, 2 × 400 W for LF in the main monitor and 2 × 400 W in the SUB module. The specification lists a frequency response of 25 Hz – 25 kHz (-3dB @1m full space) for the monitor in XBD mode. Inputs include analogue XLR and digital AES3 (16/24-bit, 18-192 kHz), and through output (AES3 24-bit @96kHz) for sub-integration. DSP allow user trim/gain, high-pass filtering, parametric EQ, delay and phase control via network interface.
The PMC 8-2 XBD is built to provide true high-resolution monitoring, delivering excellent spatial imaging, transient response and low-end clarity even in modest to large rooms. It’s suited for mixing, mastering and immersive formats (Dolby Atmos, etc.), where accurate translation and full-bandwidth monitoring are crucial.
KEY FEATURES
- Three-way active monitor system with twin-cabinet XBD configuration (main + SUB)
- Advanced Transmission Line (ATL) bass loading for extended and controlled low-end
- Frequency response: 25 Hz – 25 kHz (-3dB @1m, full space) in XBD mode
- Class D amplification: HF 400 W, MF 400 W, LF 2×400 W (main) + SUB 2×400 W
- Analogue and AES3 digital inputs; AES3 through output for subwoofer
- On-board DSP with level trim, parametric EQ, high-pass filter, delay, phase and network control via SoundAlign® web interface
- Massive peak SPL capability, ultra-wide dispersion, optimized sweet-spot and minimal distortion
TECHNICAL SPECIFICATIONS
- Frequency response: 25 Hz – 25 kHz (-3 dB @1m, full space, on-axis)
- Max continuous SPL: ~113 dB @1m (half-space +3 dB) for main monitor
- Max peak SPL: ~125 dB @1m for main monitor
- Driver complement (main): 2 × 200 mm woofers, 55 mm mid dome, 27 mm tweeter
- Dimensions (main): H ~534 mm, W ~551 mm, D ~440 mm; Weight ~39 kg each
- Subwoofer module: similar size, weight ~37.5 kg. Frequency response ~25 Hz – 500 Hz (-3dB) for SUB
- Power: 100-240 V AC auto-switching; Idle ~50 W; Max ~1500 W
