Ensemble Neumann U 67
Configurer
Neumann U 67 Set is a legendary large-diaphragm tube condenser microphone, reissued to the exact specifications of the original 1960 model. Designed as a true studio workhorse, the U 67 captures vocals, instruments, and entire ensembles with unmistakable warmth, precision, and depth. It remains one of the most versatile microphones ever built, renowned for its natural tone, rich harmonic detail, and smooth top-end response.
The U 67 features a dual-diaphragm K67 capsule with three selectable polar patterns—cardioid, omni, and figure-eight—making it adaptable to any recording application. Its unique frequency response gently rolls off the highs to compensate for close-miking, while a slight low-end boost adds presence and fullness. The EF86 pentode vacuum tube, operating in triode mode, delivers low self-noise and pleasing harmonic saturation, complemented by a custom BV12 output transformer for classic Neumann coloration.

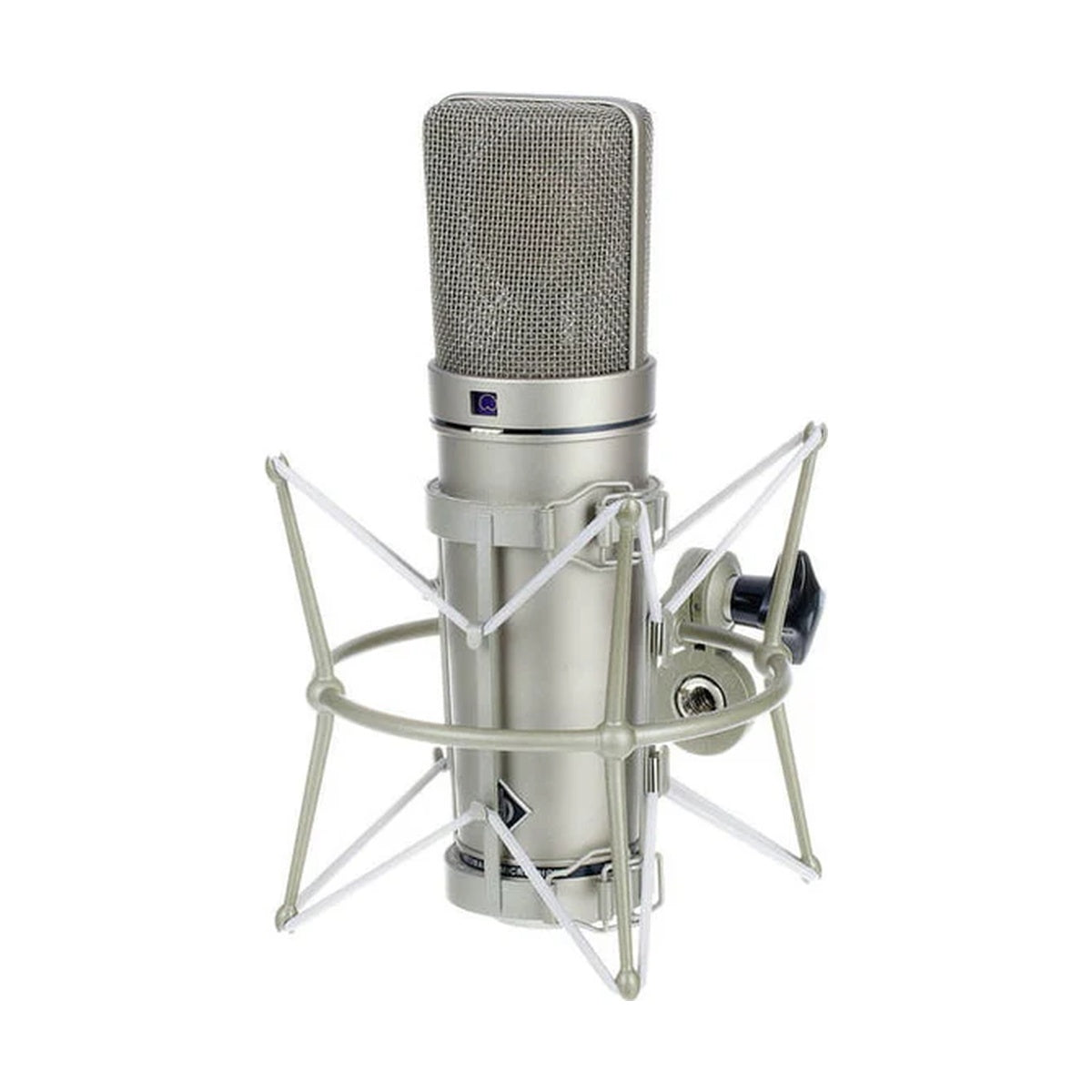

Each U 67 Set includes the microphone, the NU 67 V power supply with selectable voltage (115/230 V), an elastic EA 87 shockmount, and a 10-meter mic cable. Every component, including the capsule, transformer, and tube circuit, is manufactured and assembled in Germany using the original schematics. The result is a faithful recreation of one of the most iconic microphones in recording history—trusted by engineers and artists for over six decades.
KEY FEATURES
- Authentic reissue of the legendary 1960 Neumann U 67
- Handcrafted dual-diaphragm K67 capsule with three polar patterns
- Three selectable patterns: cardioid, omni, and figure-eight
- EF86 pentode tube operating in triode mode for rich harmonic detail
- Custom BV12 output transformer for classic Neumann character
- Built-in high-pass filter and -10 dB pad switch
- Balanced frequency response for both close and distant miking
- Ideal for vocals, acoustic instruments, drums, and orchestral recording
- Includes NU 67 V power supply, EA 87 shockmount, and 10 m cable
- Handmade and tested in Germany to original Neumann specifications
TECHNICAL SPECIFICATIONS
- Type: Tube condenser microphone, large diaphragm
- Capsule: K67 dual-diaphragm, center-terminated
- Polar patterns: Cardioid, Omni, Figure-Eight
- Frequency response: 20 Hz – 20 kHz
- Max SPL: 114 dB (124 dB with -10 dB pad)
- Equivalent noise level: 18 dB-A
- Sensitivity: 24 mV/Pa
- Signal-to-noise ratio: 76 dB (A-weighted)
- Tube: EF86 pentode (triode-connected)
- Output transformer: Neumann BV12
- Impedance: 200 Ω
- Connector: 7-pin Tuchel (to PSU), 3-pin XLR output
- Power supply: NU 67 V external PSU (115 V / 230 V switchable)
- Dimensions: 200 mm × Ø 56 mm
- Weight: 550 g
- Included accessories: NU 67 V power supply, EA 87 shockmount, 10 m cable, wooden box
