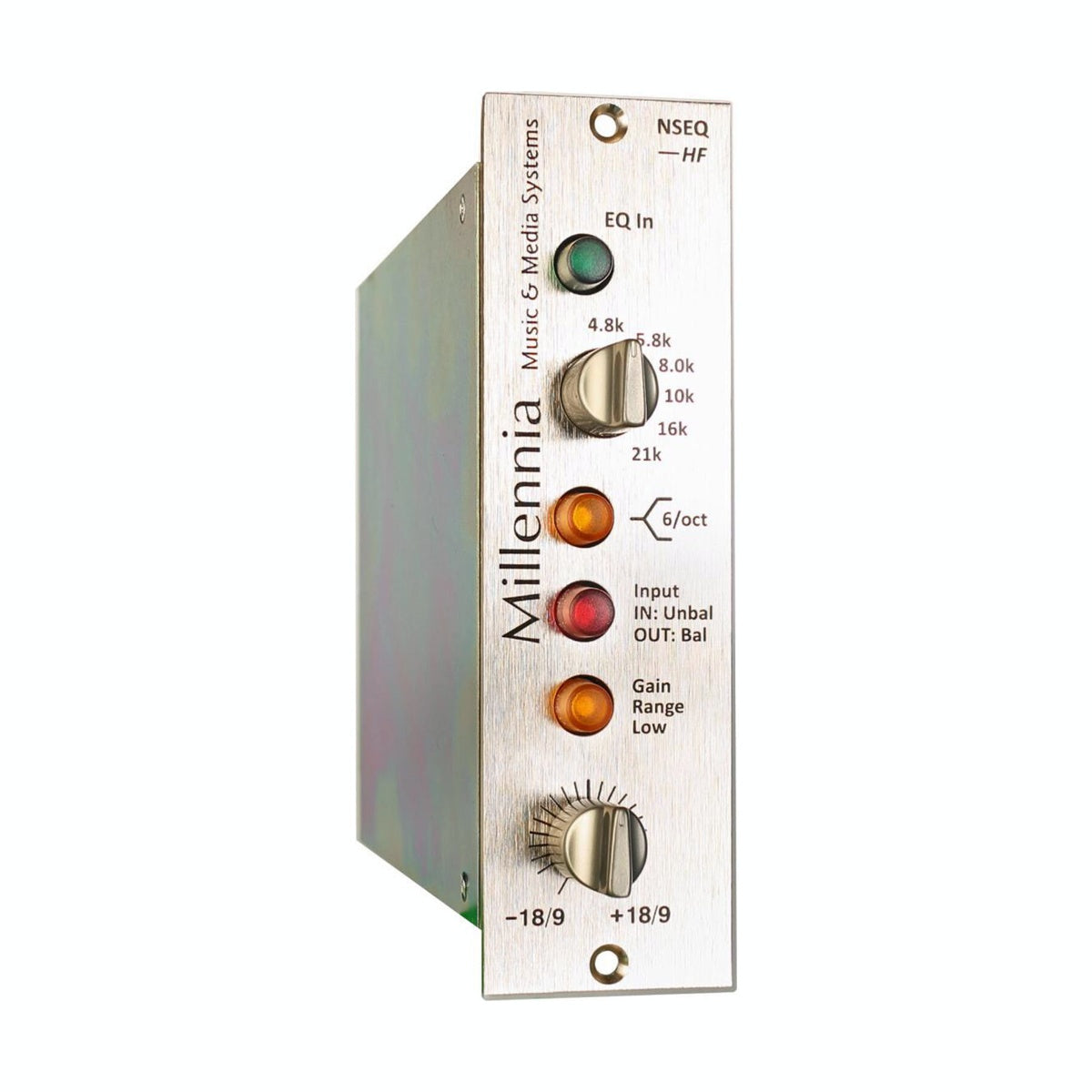

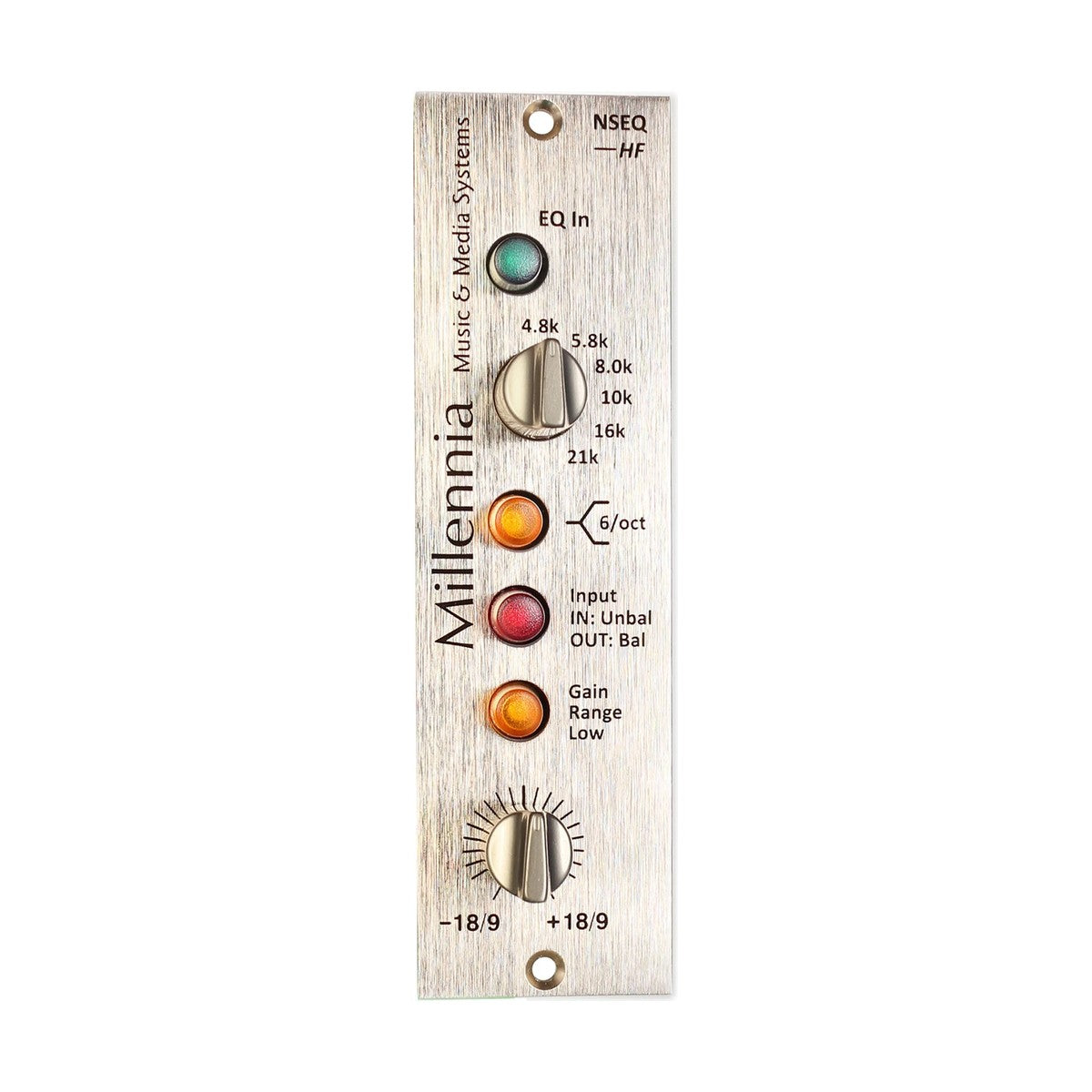

Millennia NSEQ-HF

Millennia NSEQ-HF is a high-frequency equalizer module for 500 Series racks. It uses the same HF section as the NSEQ-4, with Class A discrete J-FET amplifiers, so you can add that top end to a lunchbox without buying a full rack unit.

Air and presence, with a choice of centers

Six switchable frequency centers, 4.8, 5.8, 8, 10, 16 and 21 kHz, can be set to peak or shelf. The gain range is ±18 dB, or ±9 dB with the range switch engaged for finer moves. This covers a mild lift of presence at 5 kHz as well as air above 16 kHz on a vocal, mix bus or acoustic source.

Clean signal path

A selectable balanced/unbalanced input suits both studio and instrument sources, and a true hard-wire bypass switch lets you compare the processed and unprocessed signal without any circuit left in the path. Noise floor is -106 dBu.

KEY FEATURES

• NSEQ-4 high-frequency circuit in 500 Series format
• Six frequency centers, peak or shelf
• Class A discrete J-FET amplifiers
• Balanced/unbalanced input switch
• Hard-wire bypass

TECHNICAL SPECIFICATIONS

• Frequency centers: 4.8, 5.8, 8, 10, 16, 21 kHz
• Gain: ±18 dB (±9 dB with range switch)
• THD+N: below 0.009%, typically below 0.003%
• Frequency response: below 2 Hz to above 300 kHz
• Maximum input: +20 dBu balanced, +14 dBu unbalanced
• Maximum output: +21 dBu
• Power consumption: 210 mA with all LEDs on
