Millennia HV-316-16

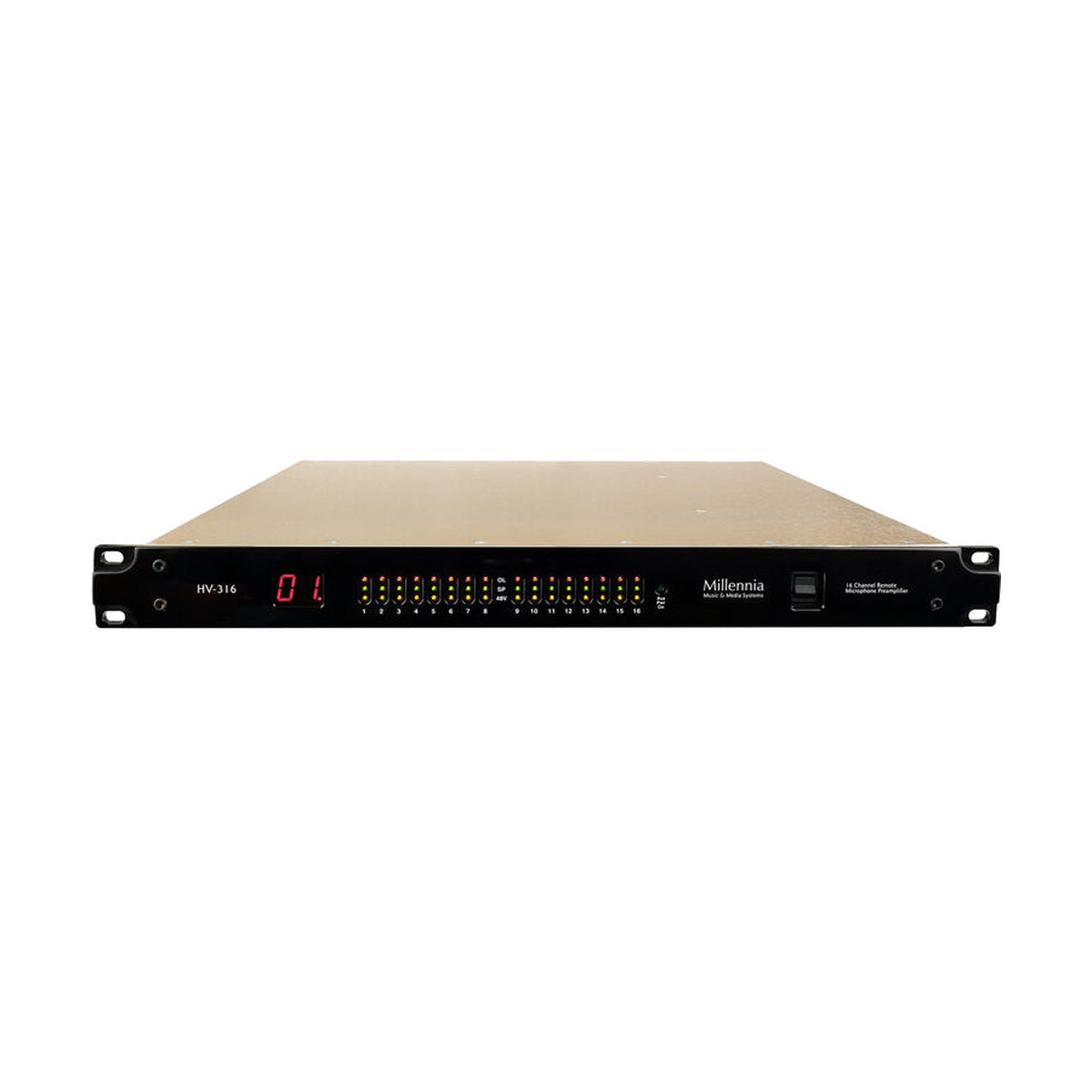

Millennia HV-316-16 is a sixteen-channel, remote-control-only HV-3 microphone preamp in a 1U rack chassis with a Dante network output as standard. It has no gain knobs on the front. Gain and other settings are set over Ethernet from PC software (included) or through MIDI, which suits multitrack live recording, broadcast and installed systems.

Sixteen channels in one rack unit

Sixteen matched HV-3 channels take the space of a single 1U unit, and the redundant power design accepts a 12 V DC battery or universal AC (80 - 264 V). Mic inputs are on DB-25 connectors, one system can address up to 256 channels, and the unit is Yamaha compatible.

Dante at up to 192 kHz

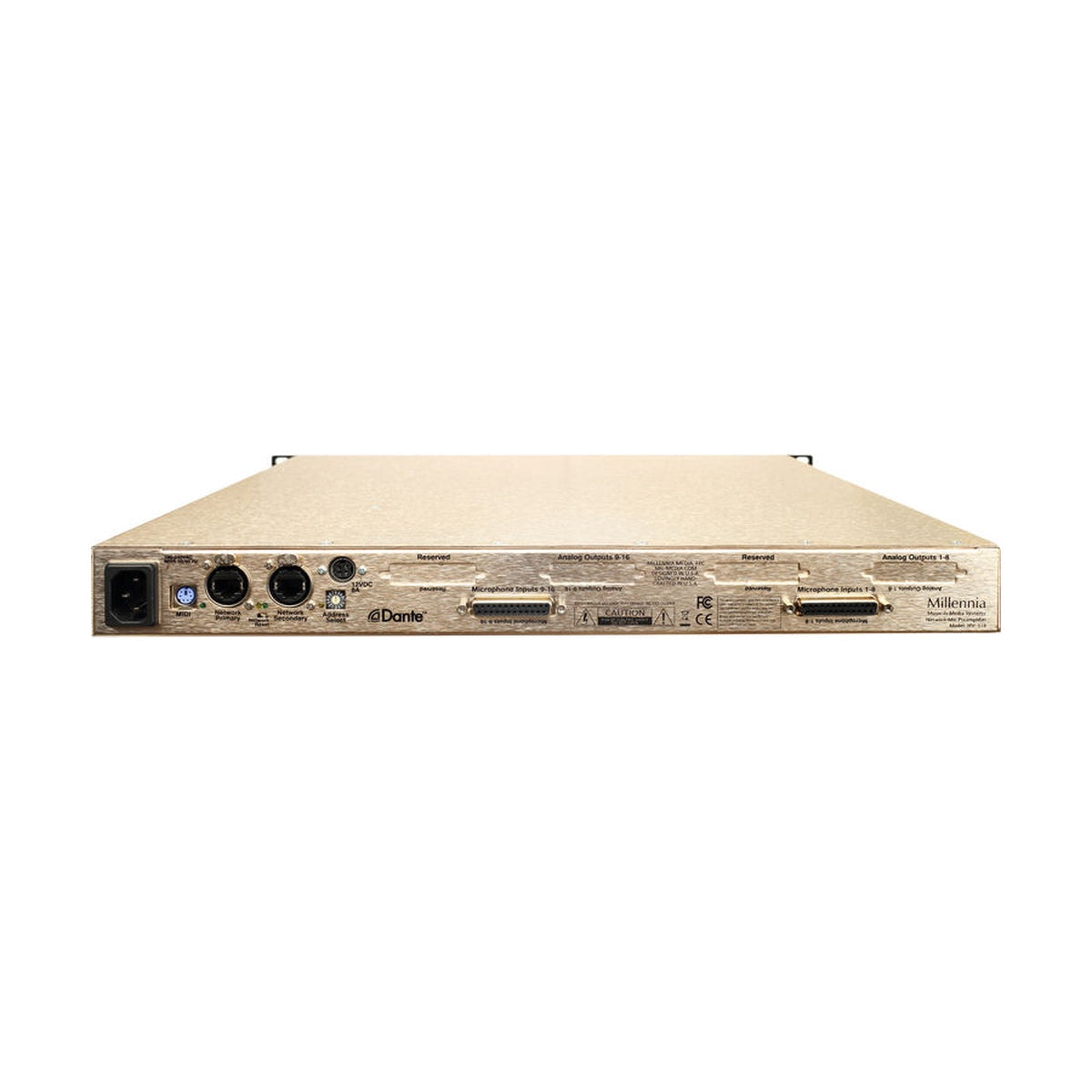

Dual RJ-45 connectors (primary and secondary) carry Dante at 44.1 to 192 kHz over gigabit Ethernet with minimum latency of 250 microseconds. An analog output option (two AOO-316 cards for 16 channels) and MADI are available.

KEY FEATURES

• Sixteen channels of HV-3 preamplification
• Ethernet remote control with PC software included
• Standard Dante output up to 192 kHz
• Dual power: 12 V DC or universal AC
• Options: analog output, MADI

TECHNICAL SPECIFICATIONS

• Gain: 1 - 64 dB in 1 dB steps, -20 dB pad
• EIN: -130 dB at 60 dB gain
• THD+N: below 0.005%, typically below 0.001%
• Frequency response: below 8 Hz to beyond 200 kHz
• Maximum input: +34 dBu
• Dimensions: 19" x 1.75" x 16" (W x H x D), weight 10 lb
