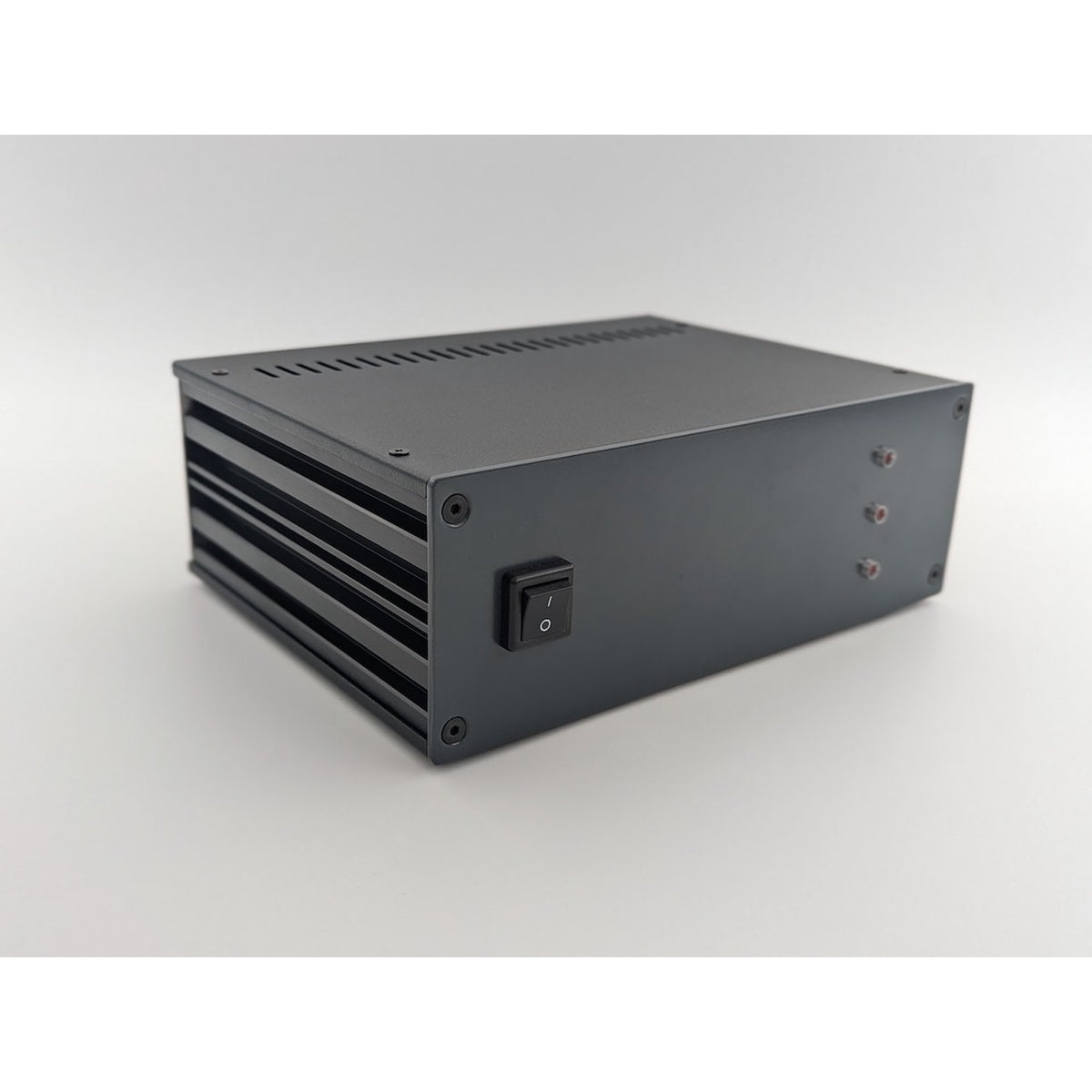

MIAD Audio PS230 Linear Power Supply is a three-rail linear power supply that runs two LCPQ 4040 MK2 or LCPQ 4040 equalizers. It delivers ±28 V DC for the audio circuit and a separate +24 V DC for the relays and the bypass indicator, in a rugged enclosure with 115/230 V mains input.
Quiet where it matters

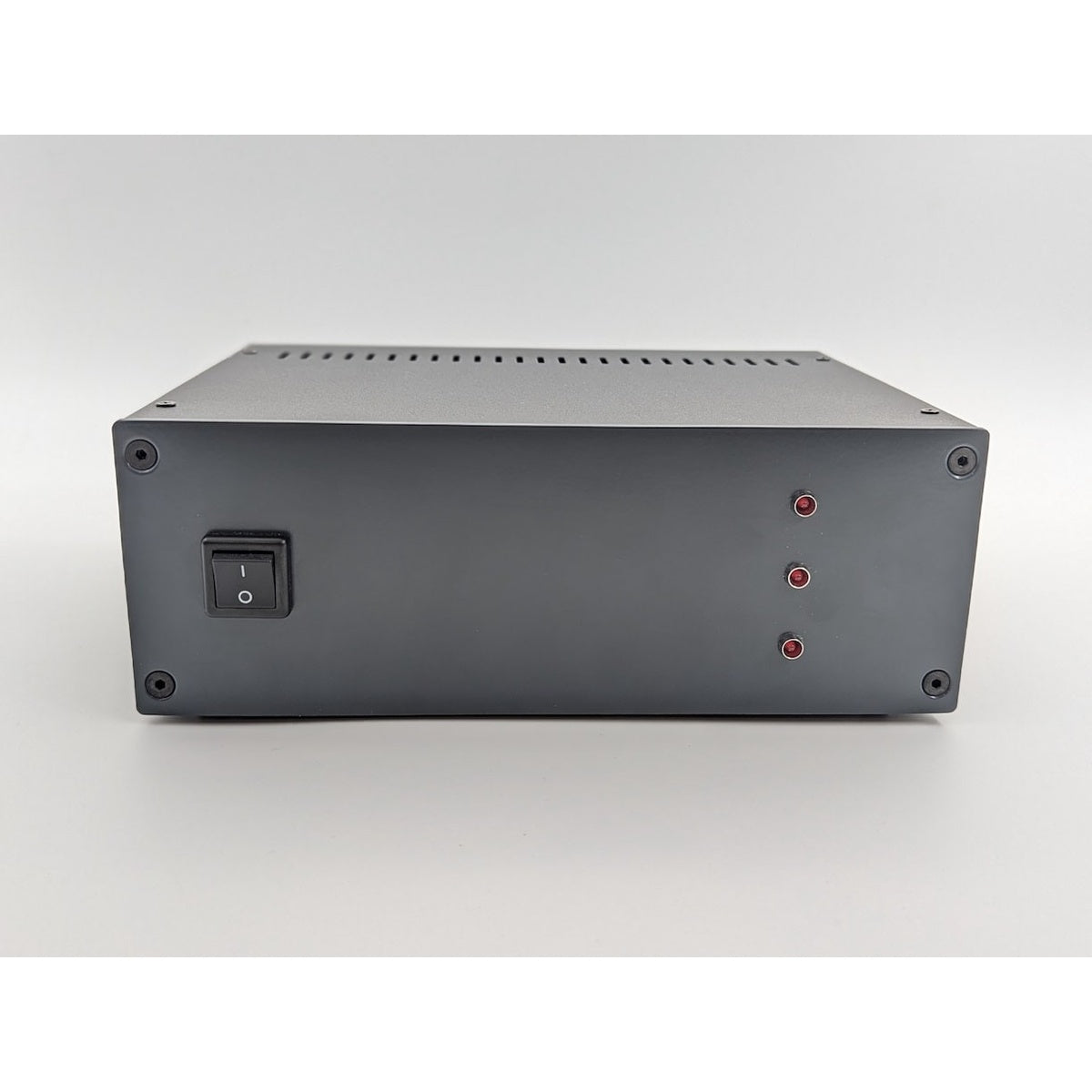

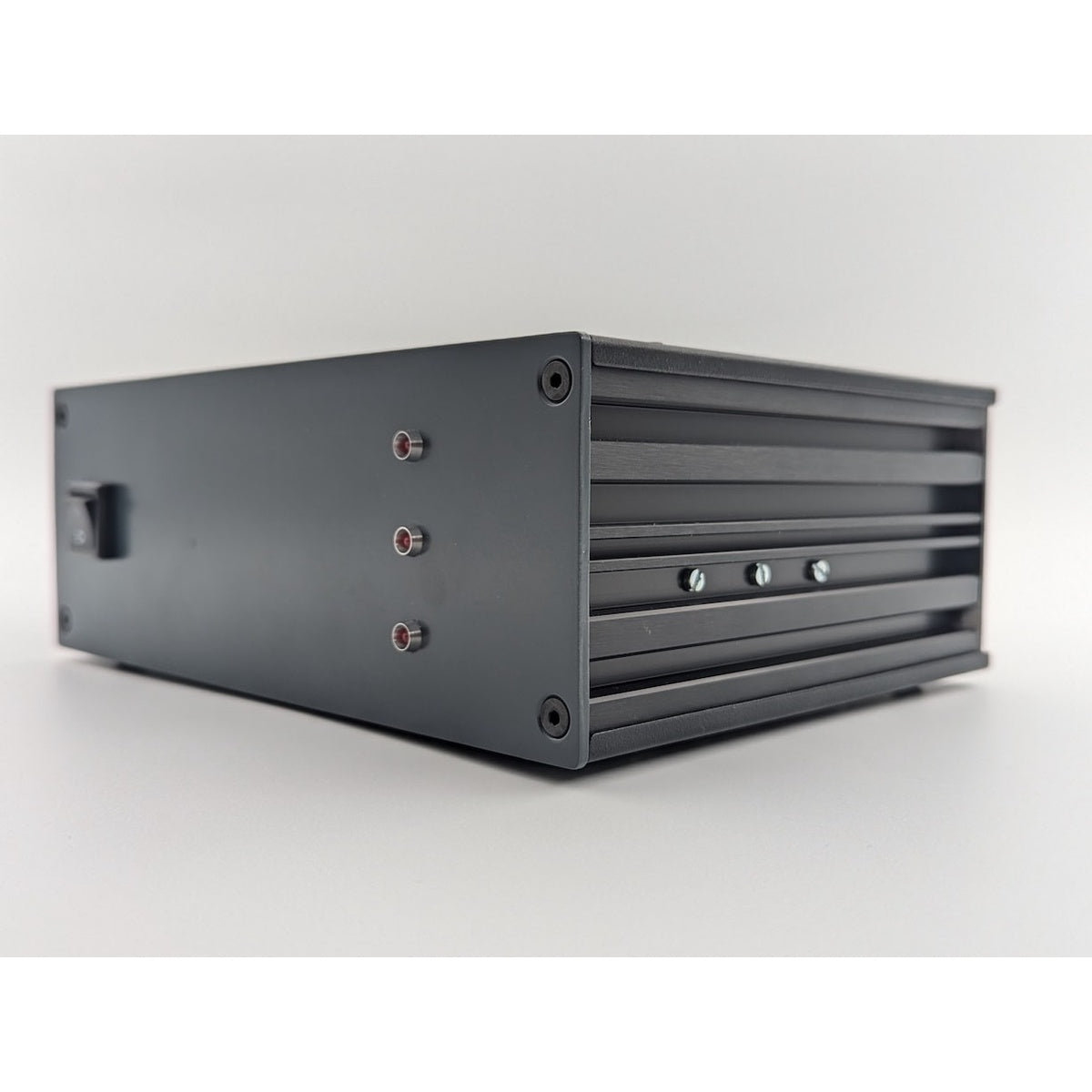

The bypass relays and the indicator lamp have their own +24 V rail, so their current never mixes with the ±28 V that feeds the discrete audio circuit. The supply is linear and sits outside the equalizer, which keeps magnetic coupling away from the inductors in the EQ bands. Three front-panel LEDs show the state of each rail, so a glance before the session tells you everything is running.
One supply, two equalizers

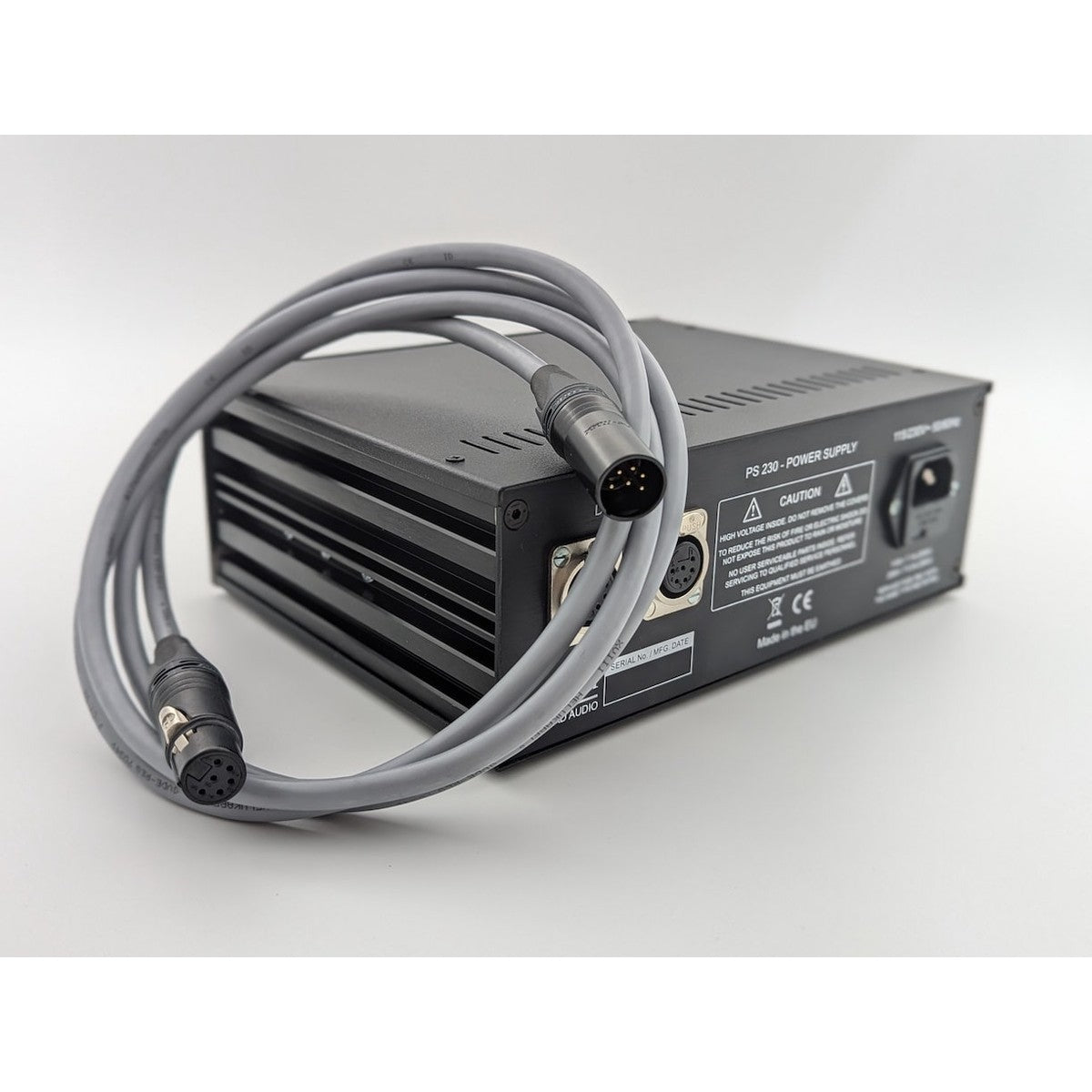

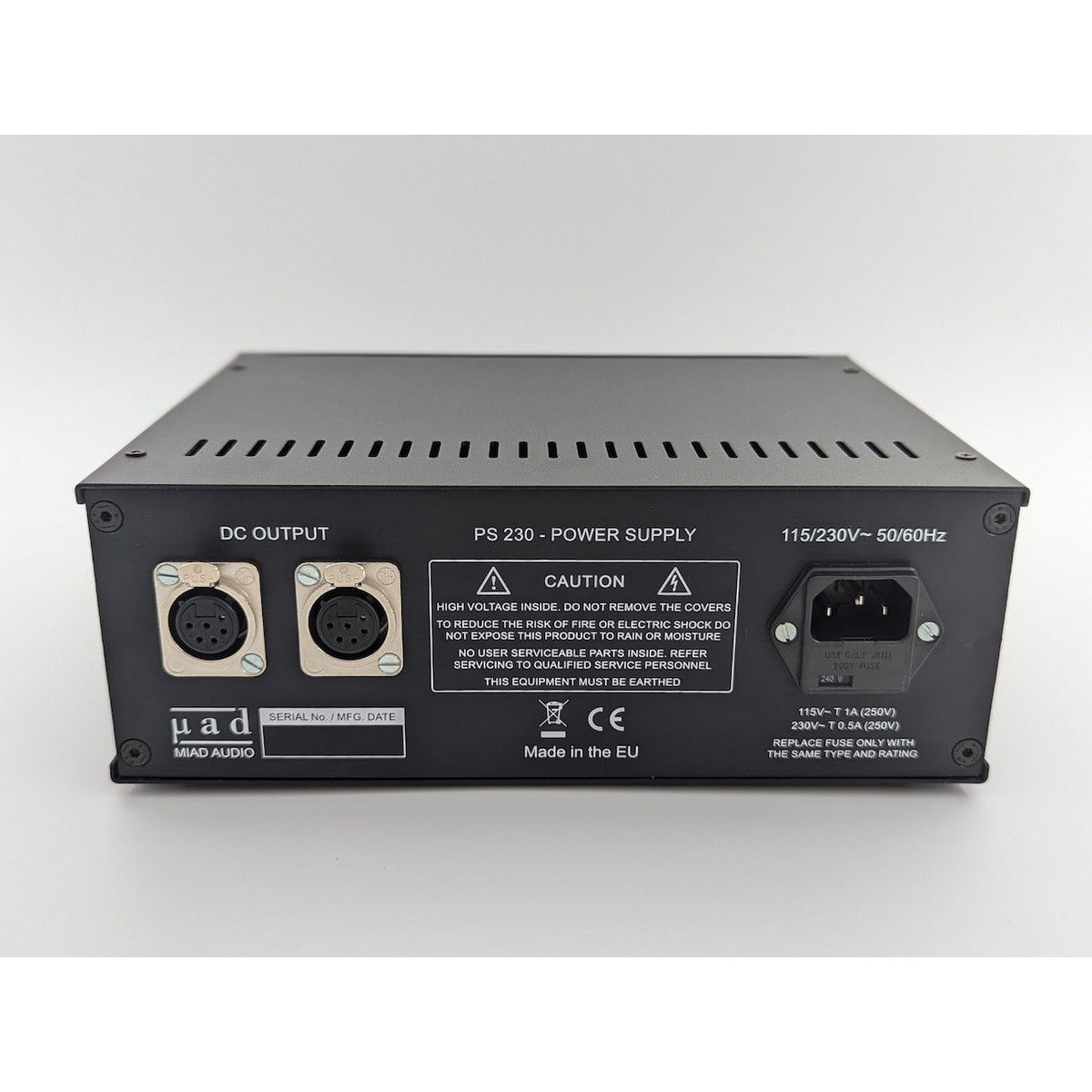

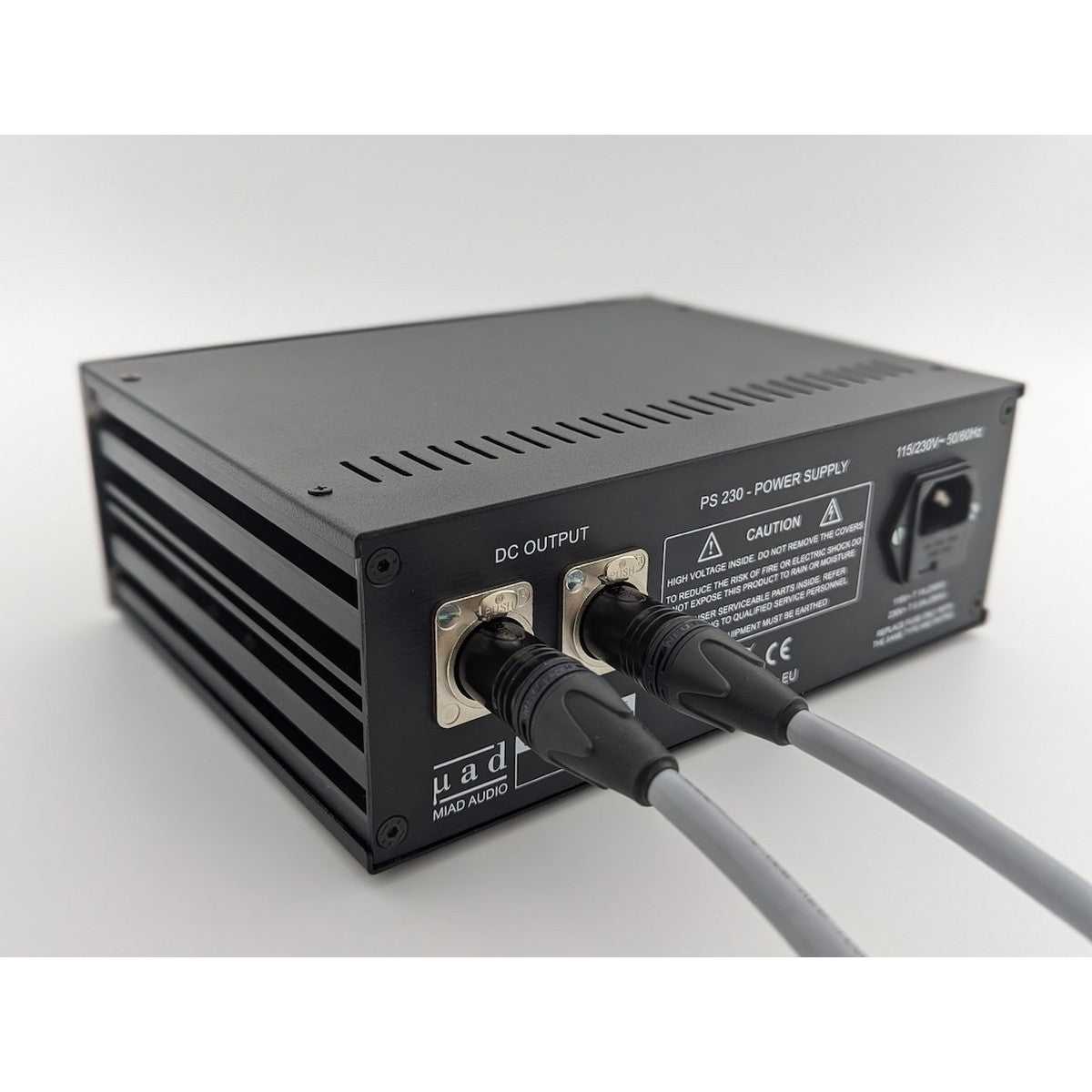

The PS230 handles a pair of LCPQ 4040 MK2 units for stereo work, and the 115/230 V switch and fuse on the rear panel make it usable in any country. Outputs are six-pin Neutrik connectors, matching the cable supplied with the equalizer. See other power supplies in the shop and visit our Warsaw showroom.
KEY FEATURES
- Three rails: ±28 V DC (audio) and +24 V DC (relays, indicator)
- Powers two LCPQ 4040 MK2 or LCPQ 4040 units
- Linear, low-noise design
- 115/230 V AC switch and fuse on the rear panel
- Three front-panel LEDs showing rail status
- 6-pin Neutrik connectors
- Hand-built and hand-wired
- 3-year warranty
TECHNICAL SPECIFICATIONS
- Output voltages: ±28 V DC, +24 V DC
- Input voltage: 115/230 V AC, 50/60 Hz
- Dimensions: 230 x 170 x 80 mm (W x D x H)
- Weight: approx. 2 kg
- Output connectors: 6-pin Neutrik
- Warranty: 3 years (parts and labour)
