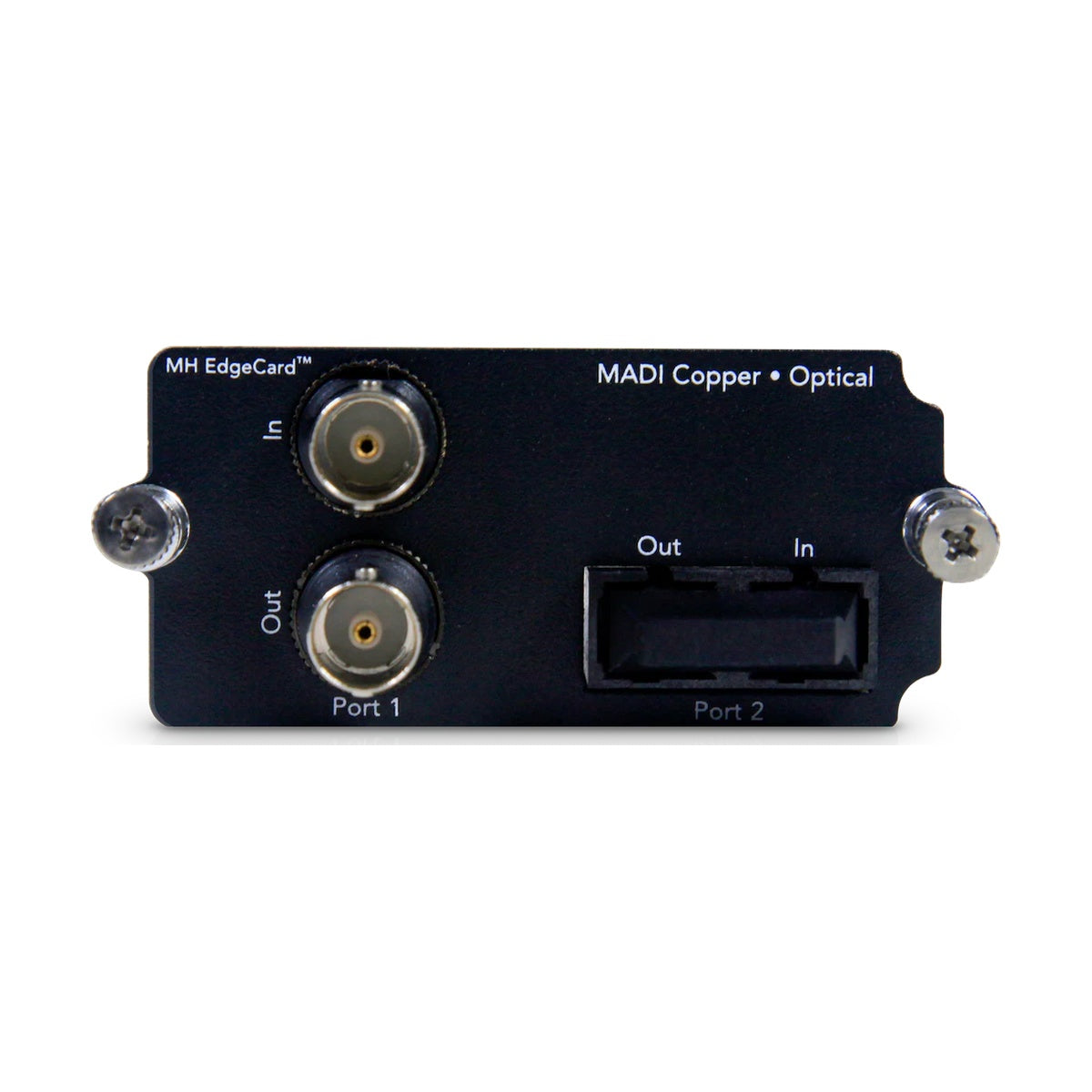

Metric Halo MH EdgeCard - MADI (1x Copper/1x Optical)
Quantité:
Delivery within 8-12 weeks
Configurer
Quantité:
Delivery within 8-12 weeks
Quantité:
Delivery within 8-12 weeks
Metric Halo MH EdgeCard - MADI (1x Copper/1x Optical) — an EdgeBus expansion card combining one copper MADI port and one optical MADI port, delivering 128 channels of I/O total.
The card occupies the single EdgeBus slot present on every 3d-based unit and puts both transmission media on one module, instead of forcing a choice between a purely copper or purely optical variant. It's a hybrid solution for systems where one device connects locally over copper while another sits farther away and needs an isolated fiber link.
Two Different MADI Systems From One 3d Unit
Studios working simultaneously with local MADI gear — a console in the same room, say — and a remote system connected over greater distance usually need two separate expansion cards or two intermediary devices. The 1x Copper/1x Optical card solves this with a single EdgeBus slot — the copper port handles the nearby connection without needing optical conversion, while the fiber port simultaneously carries a second link over longer distance or to a system requiring galvanic isolation, both running independently and at the same time.Routing Flexibility Without a Channel-Count Compromise
Despite combining two different transmission media, the card retains the full 128 channels of I/O found on the single-medium variants, so the hybrid choice doesn't mean giving up bandwidth. All EdgeCard channels are treated by the 3d unit's routing matrix just like built-in I/O — available alongside the unit's mic and line channels — which lets a ULN-8 mkIV, for instance, function as a remote-controlled headamp or an additional tracking path for a digital console without routing limitations.KEY FEATURES
- 1 MADI Copper port and 1 MADI Optical port on one card
- 128 audio channels of I/O total
- Both ports operate independently and simultaneously
- Tool-free installation into the EdgeBus slot
- Full access to the unit's audio clocks and power rails
TECHNICAL SPECIFICATIONS
- Model number: 000-50036
- MADI ports: 1x Copper (BNC), 1x Optical
- Audio channel I/O: 128 (128 in / 128 out)
- Compatibility: all 3d Core-based units (ULN-8, LIO-8)
- Upgrade type: field-swappable EdgeBus card
- Card detection: automatic by the 3d hardware
