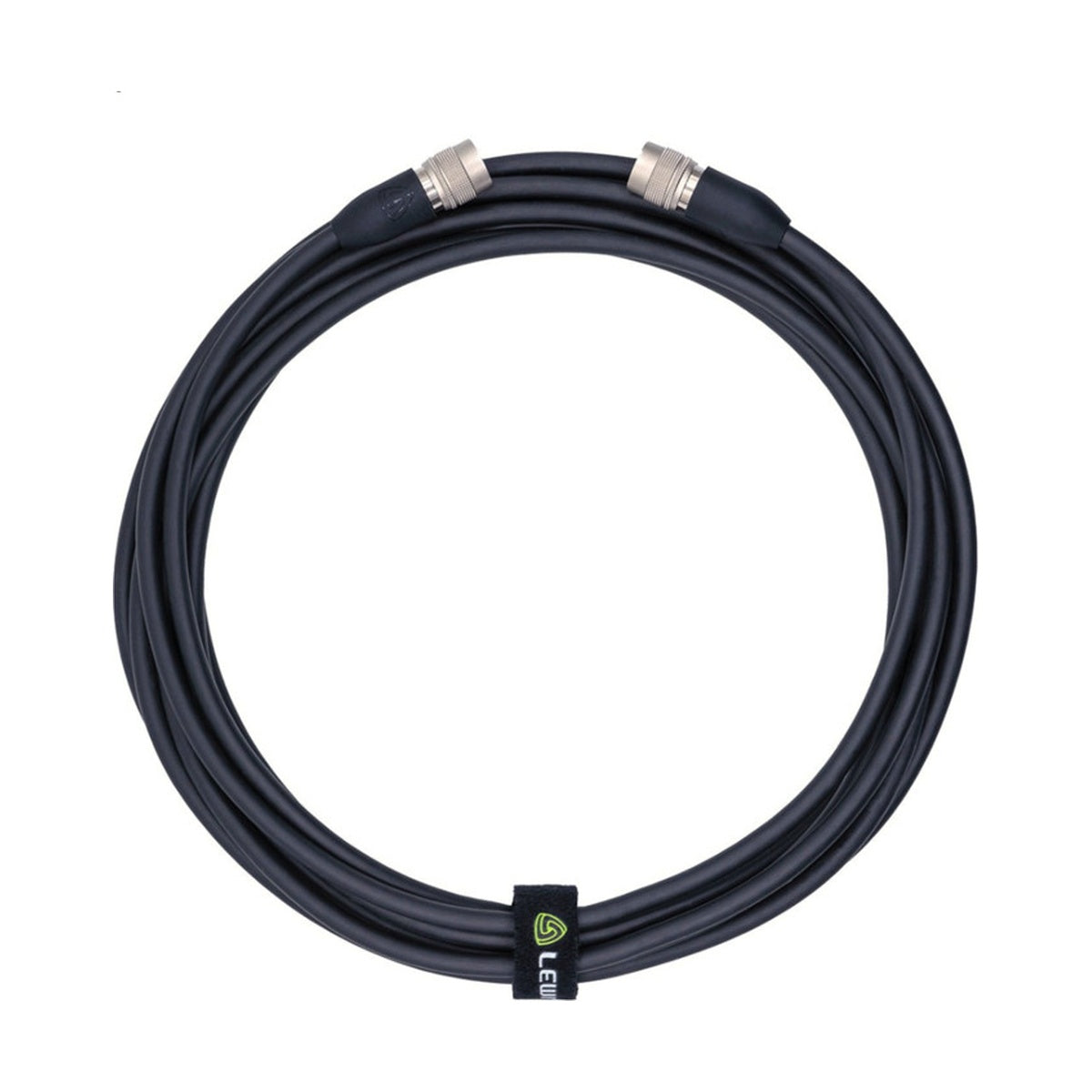

LEWITT LCT 1040 CBL5 is a dedicated 10-pin microphone cable measuring 5 m (16.4 ft), designed exclusively for the LEWITT LCT 1040 microphone system accessory. It connects the microphone body to the PSU and detachable remote controller. A factory-spec cable built for the LCT 1040's proprietary 10-pin connectors – not compatible with standard XLR microphones.
The Cable's Role in the LCT 1040 System
The LCT 1040 is a complete microphone system comprising a tube/FET large-diaphragm condenser, an external PSU, and a detachable remote controller. The CBL5 cable is the link between the microphone and the PSU – the 10-pin connection carries both the audio signal and the power supply for the tube and internal electronics. Without this cable the system cannot operate. The CBL5 is the 5-metre variant, suited to standard studio layouts where the distance between the recording booth and the engineer's position doesn't exceed the cable's reach. Hirose 10-pin connectors at both ends provide a mechanically secure, stable connection that won't accidentally disengage mid-session.
KEY FEATURES
- Dedicated 10-pin cable for the LEWITT LCT 1040 system
- Length: 5 m (16.4 ft)
- Connectors: 10-pin Hirose at both ends
- High-purity copper conductors and shielded design – no signal degradation
- Carries both audio signal and system power supply
- Not compatible with standard XLR microphones
- Replacement or spare cable for the LCT 1040 system
TECHNICAL SPECIFICATIONS
- Product type: accessory microphone cable
- Compatibility: LEWITT LCT 1040 only
- Length: 5 m (16.4 ft)
- Connector: 10-pin Hirose (both ends)
- Conductors: high-purity copper
- Shielding: yes
