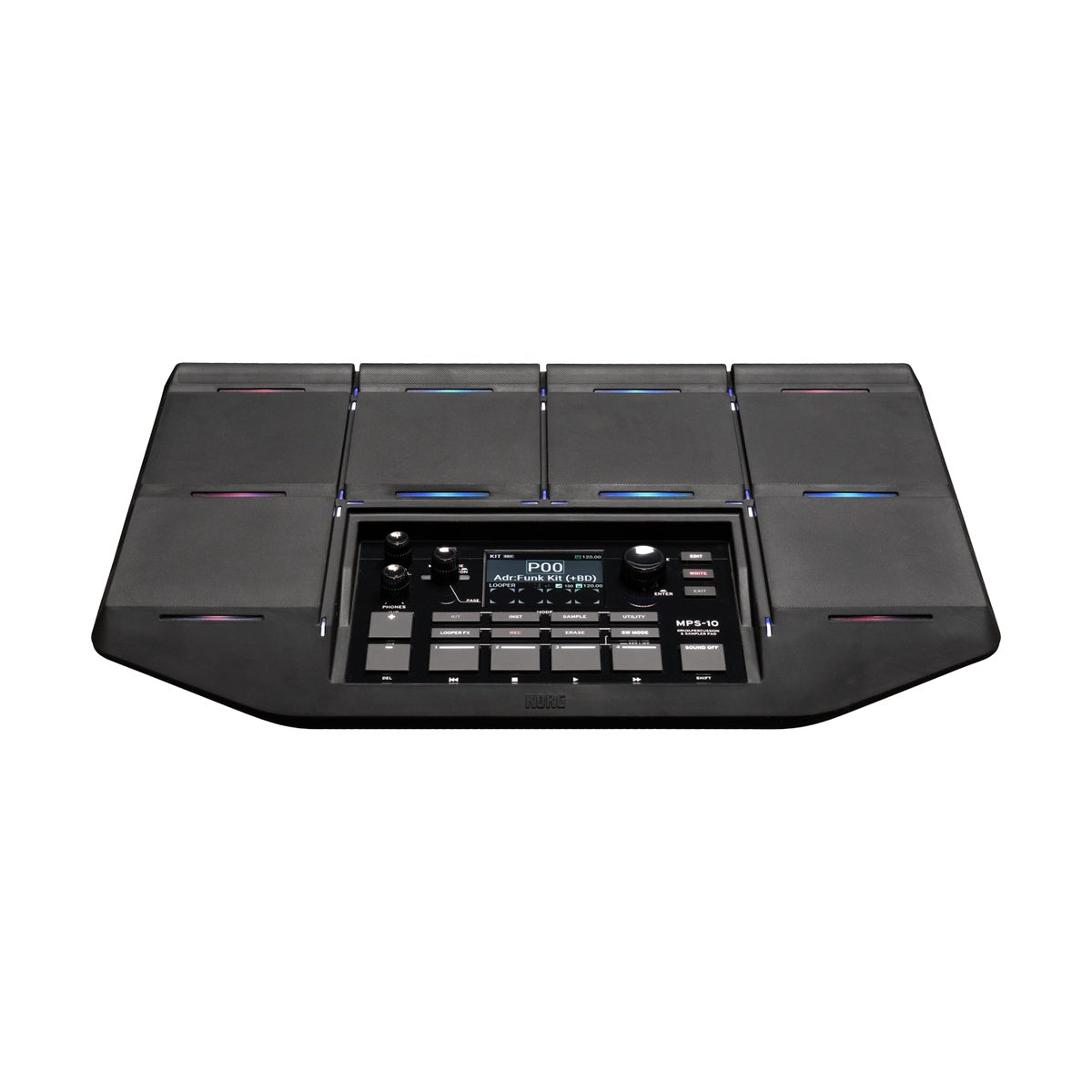

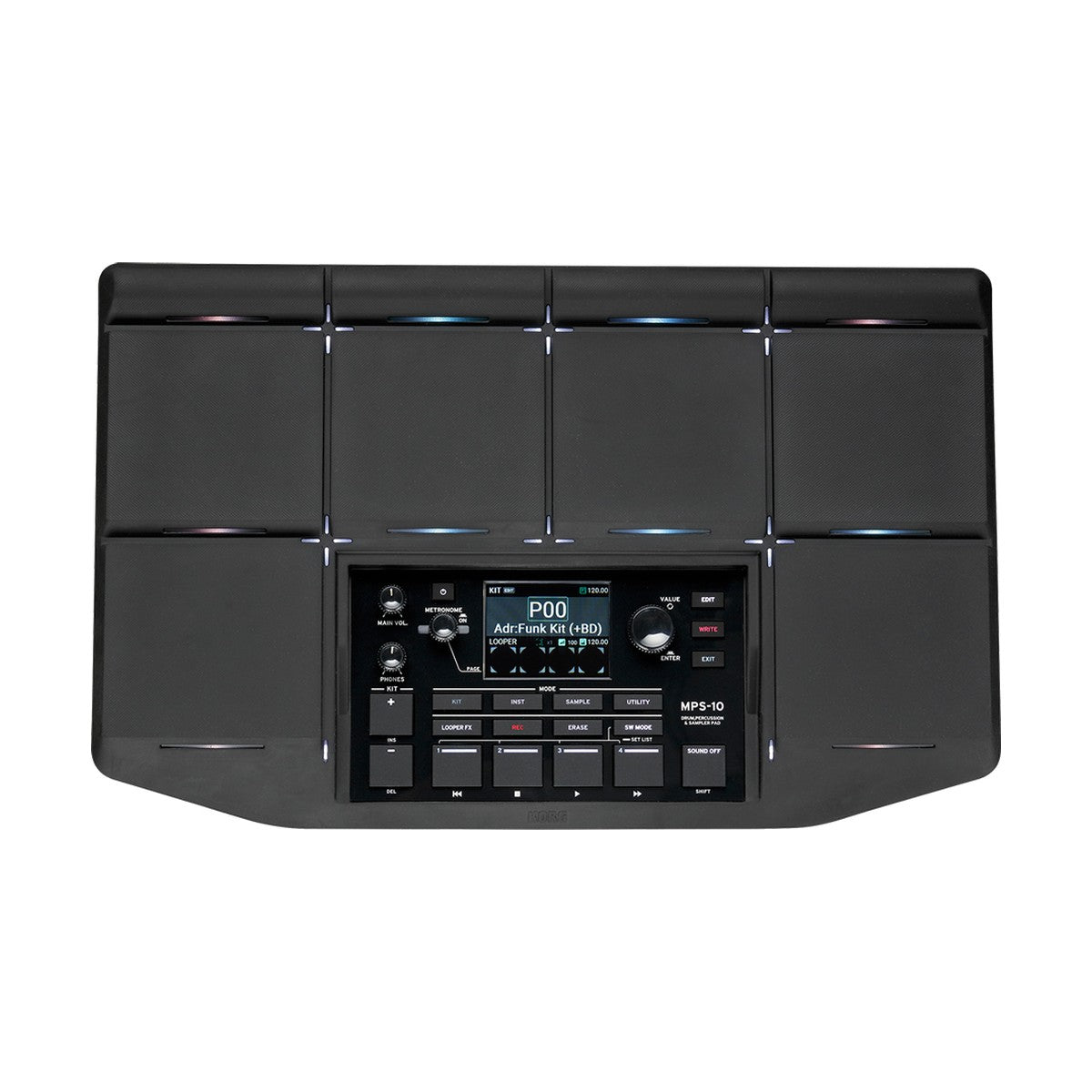

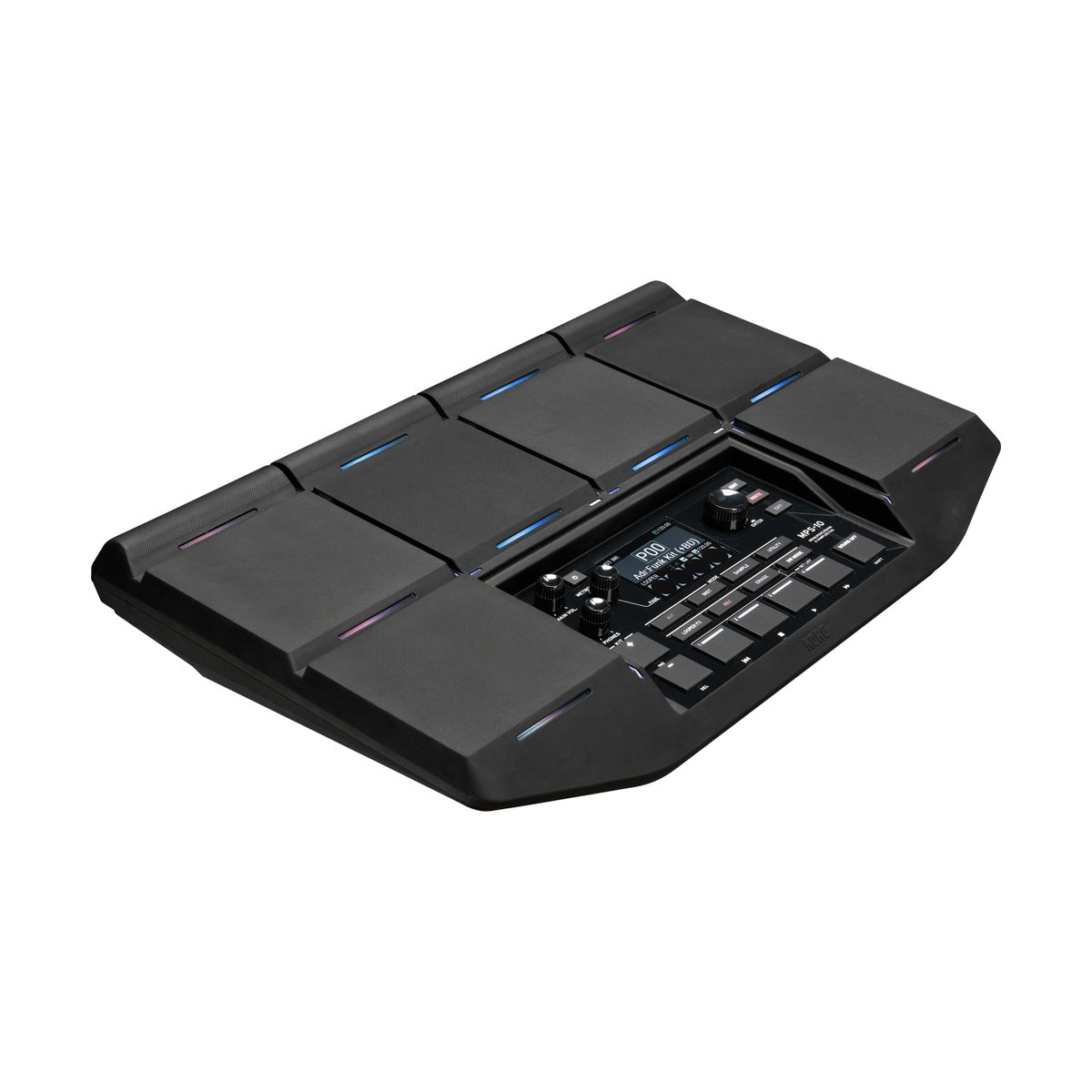

KORG MPS-10 is a drum, percussion and sampler pad with ten pads, 2,350 instruments, more than 3,000 samples and a 4-track looper. The top four pads work as CC pads that detect the strike position, and a color display runs it all. Check out the MPS-10 in our Warsaw showroom.
A whole drum kit on one pad
A drummer with an electronic setup or a percussionist needs sounds from acoustic drums to SFX and loops, and that usually means a laptop or several modules. The MPS-10 holds 100 curated kits, each with 10 INST pads, plus 100 slots for your own, and you choose sounds from 2,350 instruments and more than 3,000 samples. You import your own samples from a USB drive, assign them to any pad and replace part of a kit.
Looper, effects and connections to the rest of the kit

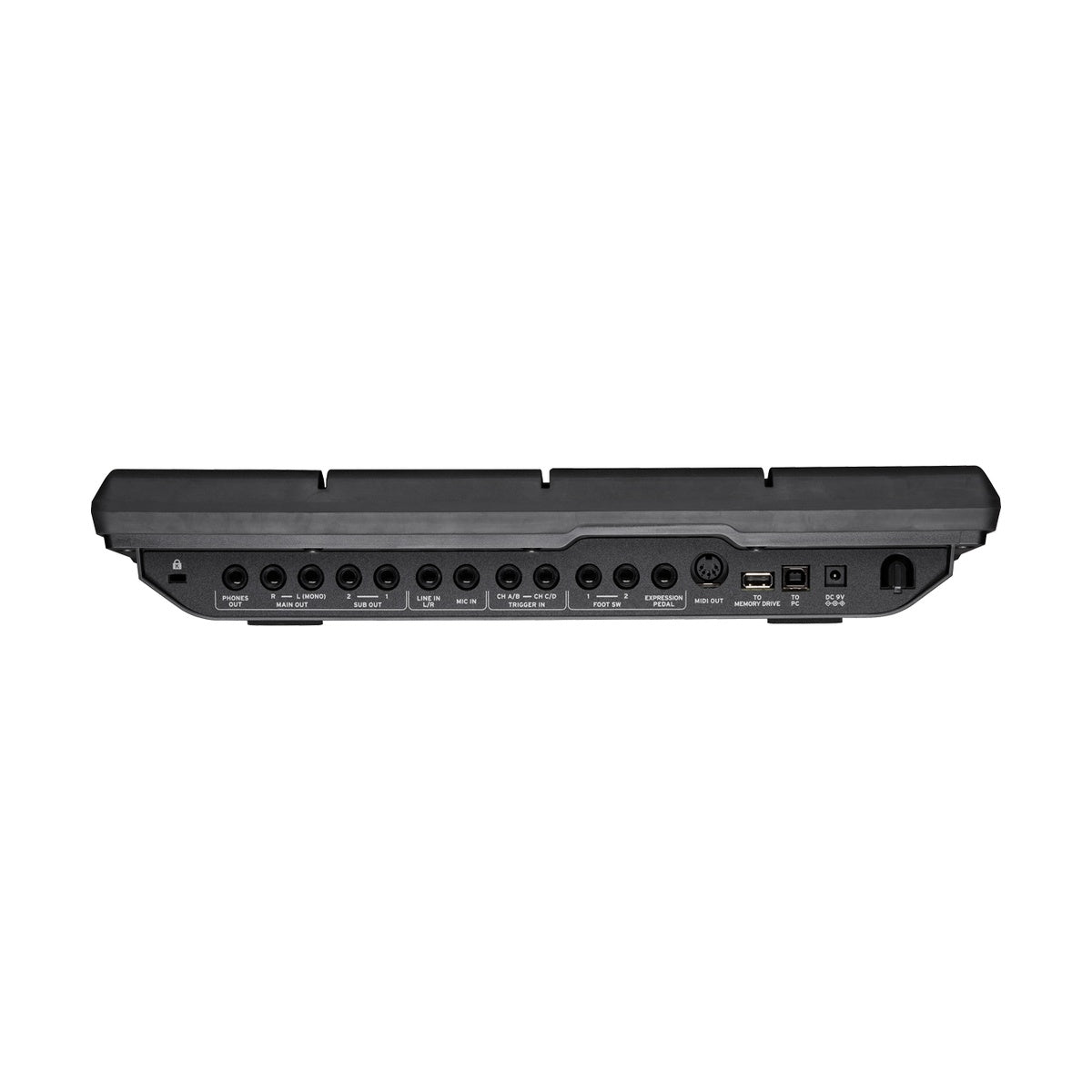

The looper has four tracks, its own effects and WAV export of each track. Effects include master reverb and filter, two inserts, a master system and MFX, 80 effects in total. The back panel has trigger inputs for external pads, two pedal inputs, an expression input, line and microphone inputs and four 6.3 mm outputs, MIDI OUT and two USB ports. There is also the MPS-10 Editor web app.
KEY FEATURES
- 10 pads, including 4 CC pads that detect the strike position
- 2,350 INST instruments and more than 3,000 samples
- 100 curated kits and 100 user slots
- 4-track looper with WAV export of each track
- 80 effects: reverb, filter, insert, master, MFX
- Trigger, pedal, expression, line, mic, MIDI OUT, USB-A and USB-B
- Color display, three-color pad LEDs, MPS-10 Editor web app
TECHNICAL SPECIFICATIONS
- Type: drum, percussion and sampler pad
- Maximum polyphony: 48 voices
- Kits: 200 (including user kits)
- INST: 2,350, SAMPLE: 3,002, effects: 80
- Internal memory: 32 GB (including preset data)
- Audio outputs: MAIN OUT L (MONO), R, SUB OUT 1 and 2 (6.3 mm TS), headphones 6.3 mm TRS
- Inputs: LINE IN L/R and MIC IN (6.3 mm TRS), trigger CH A/B and C/D (6.3 mm stereo)
- Foot pedals 1 and 2 and expression pedal: 6.3 mm TRS
- MIDI: OUT, USB-A and USB-B (USB 2.0 Hi-Speed)
- Power: AC adapter (DC 9 V)
- Dimensions: 424 x 264 x 75 mm / 16.69 x 10.39 x 2.95 in
- Weight: 2.3 kg / 5.07 lb
- Included: AC adapter, Quick Start Guide
