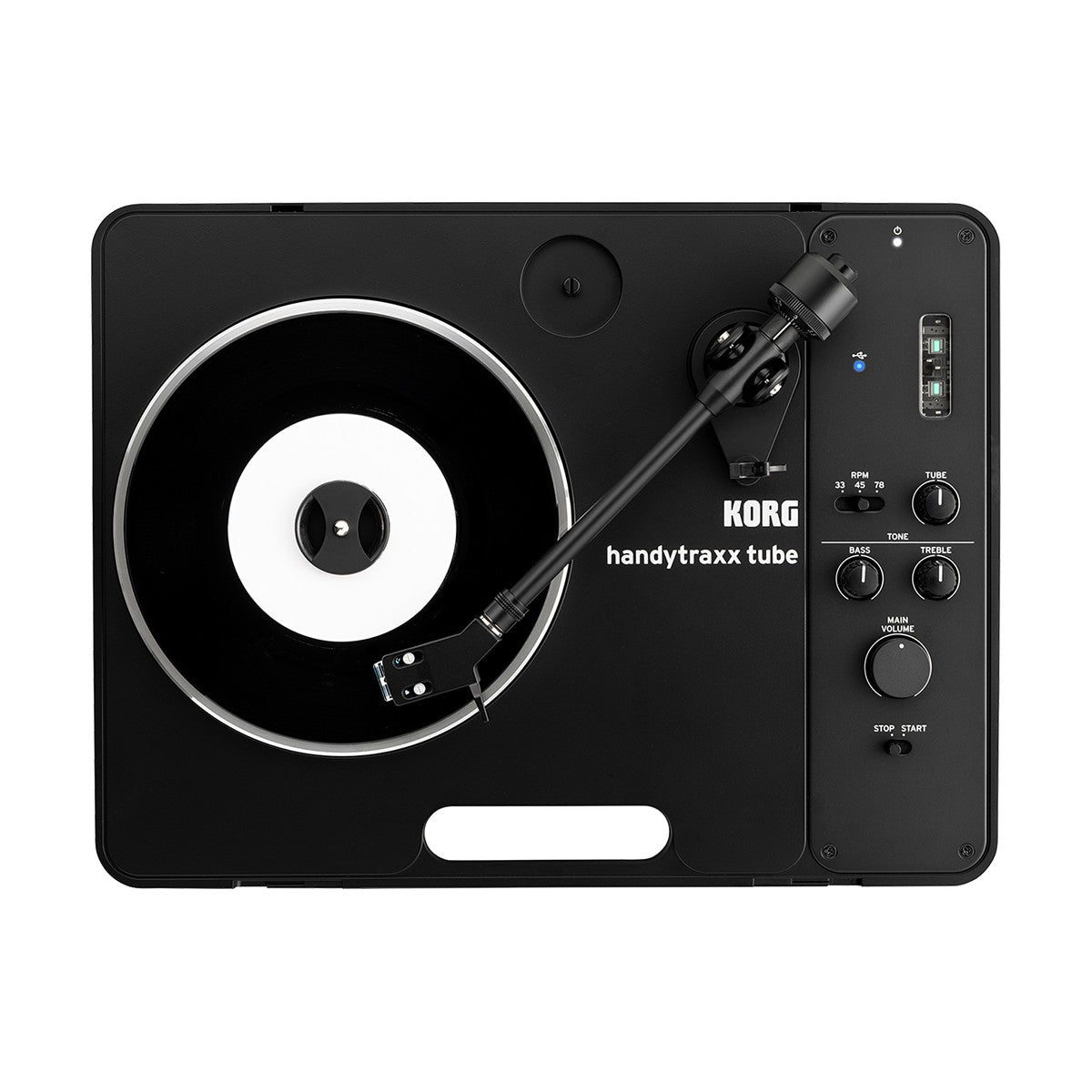

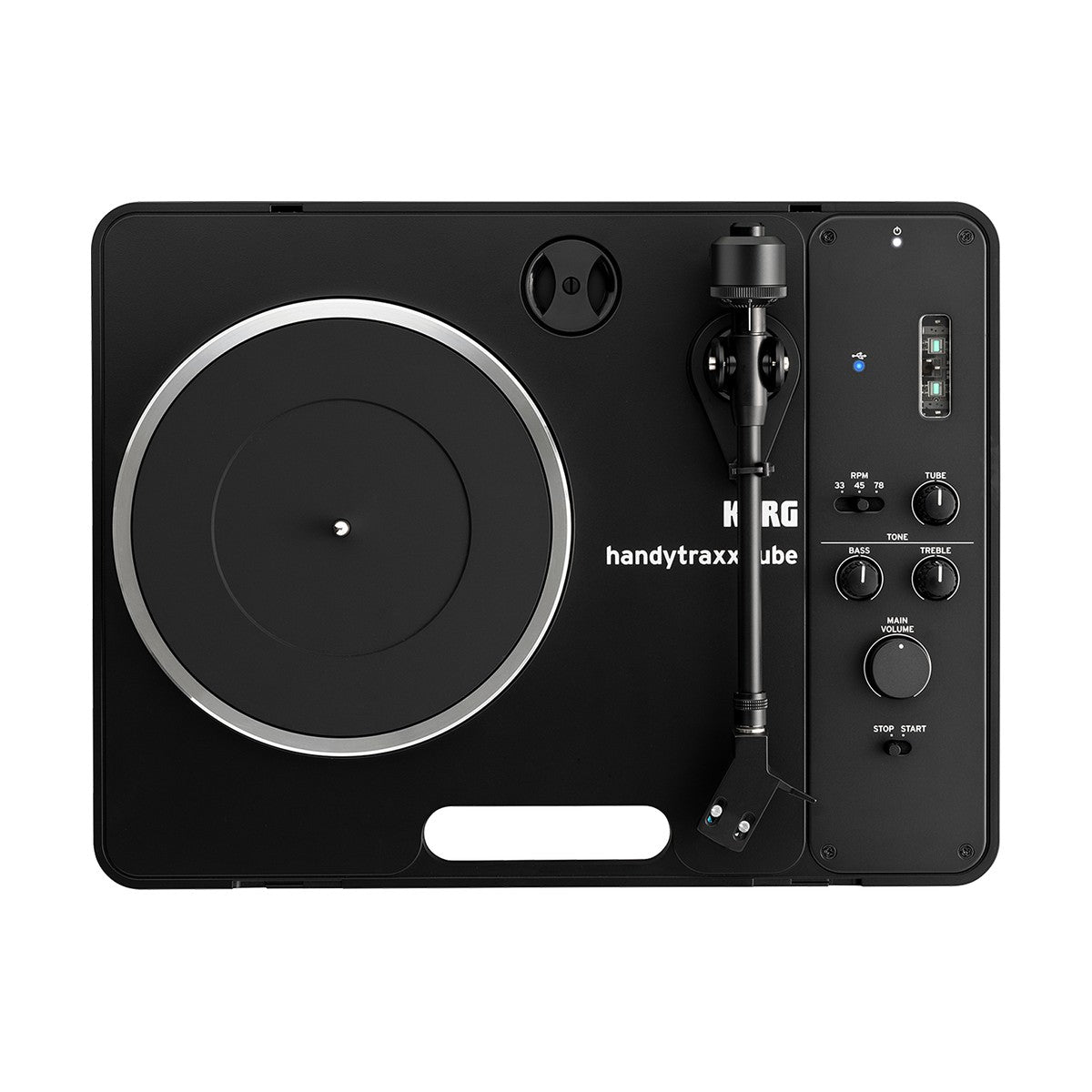

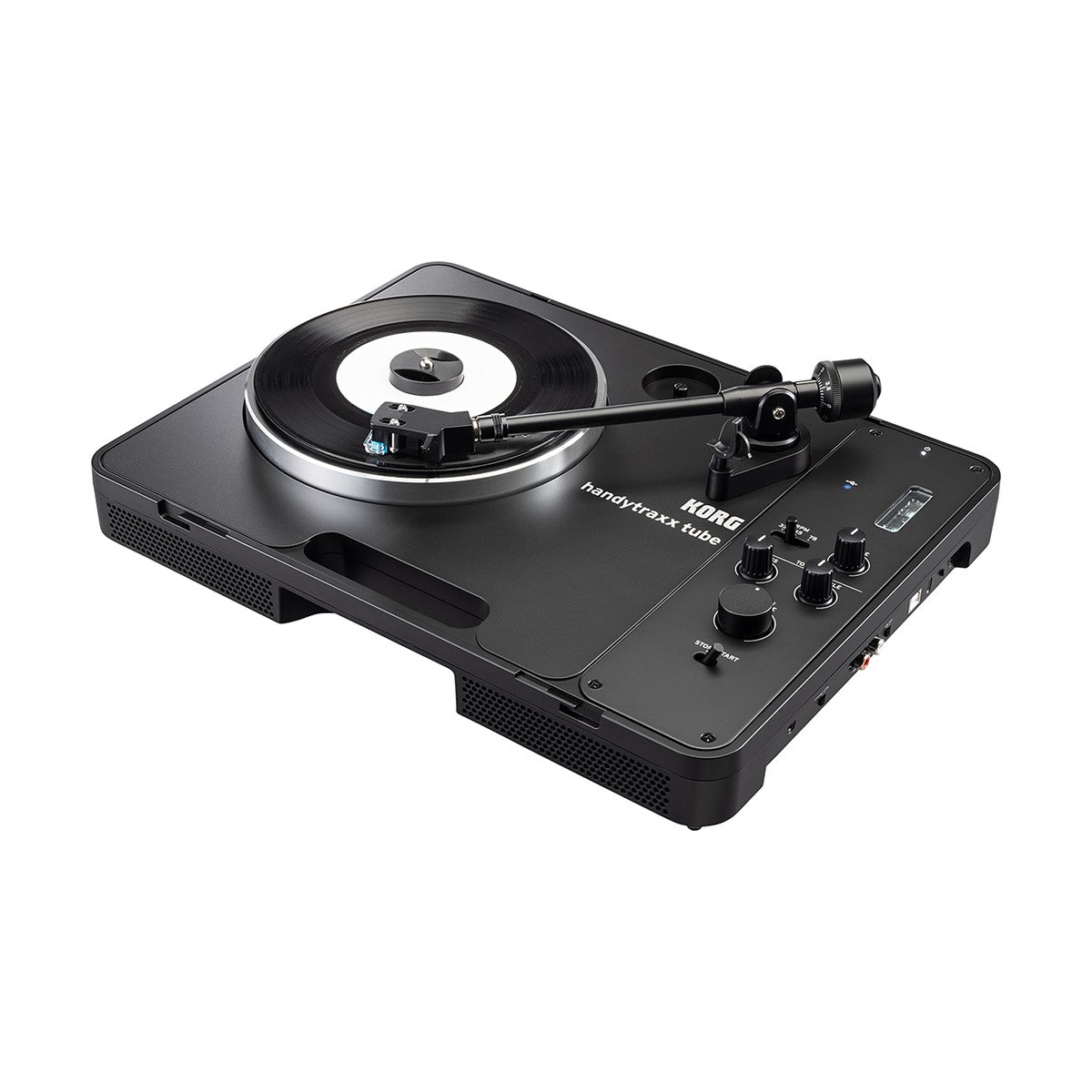

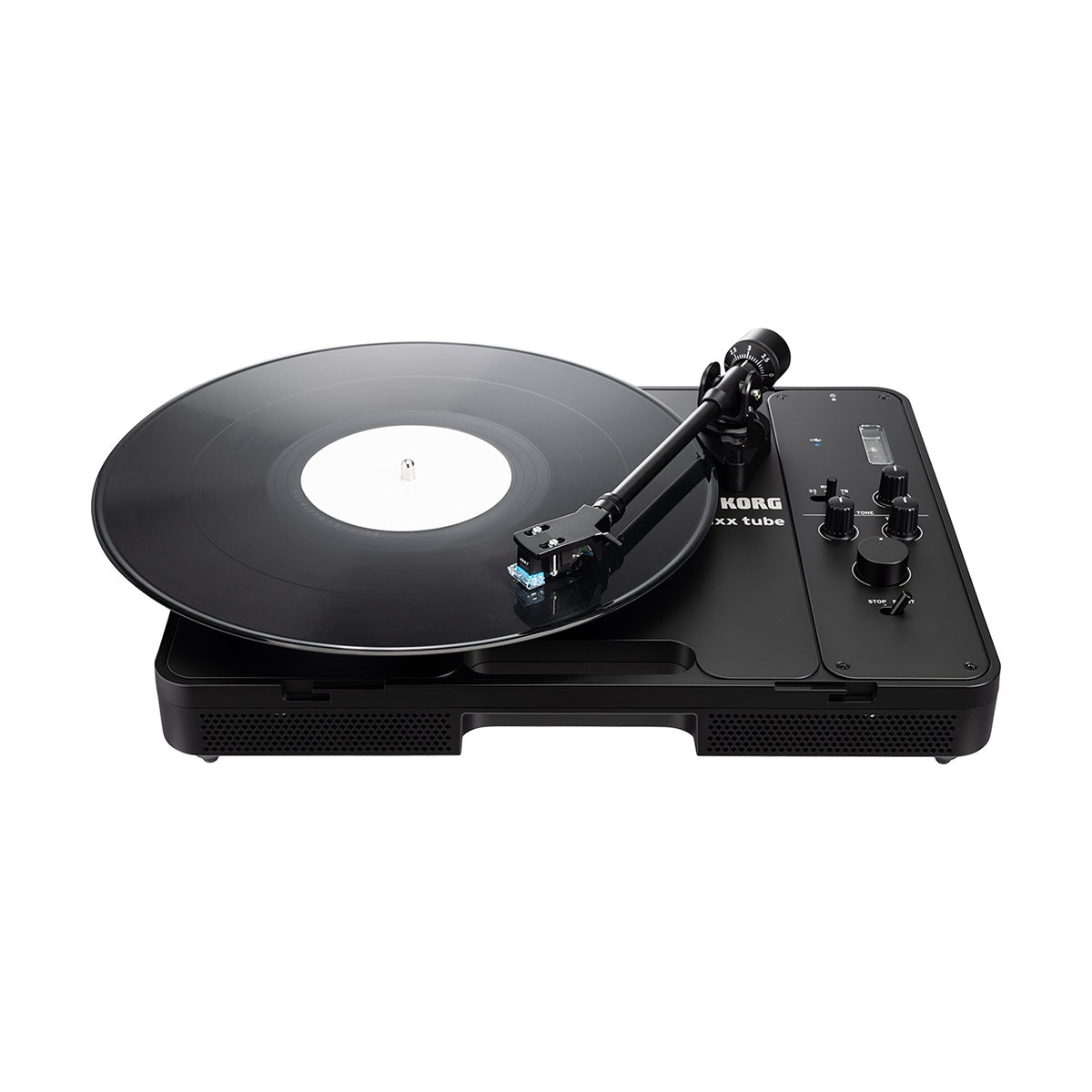

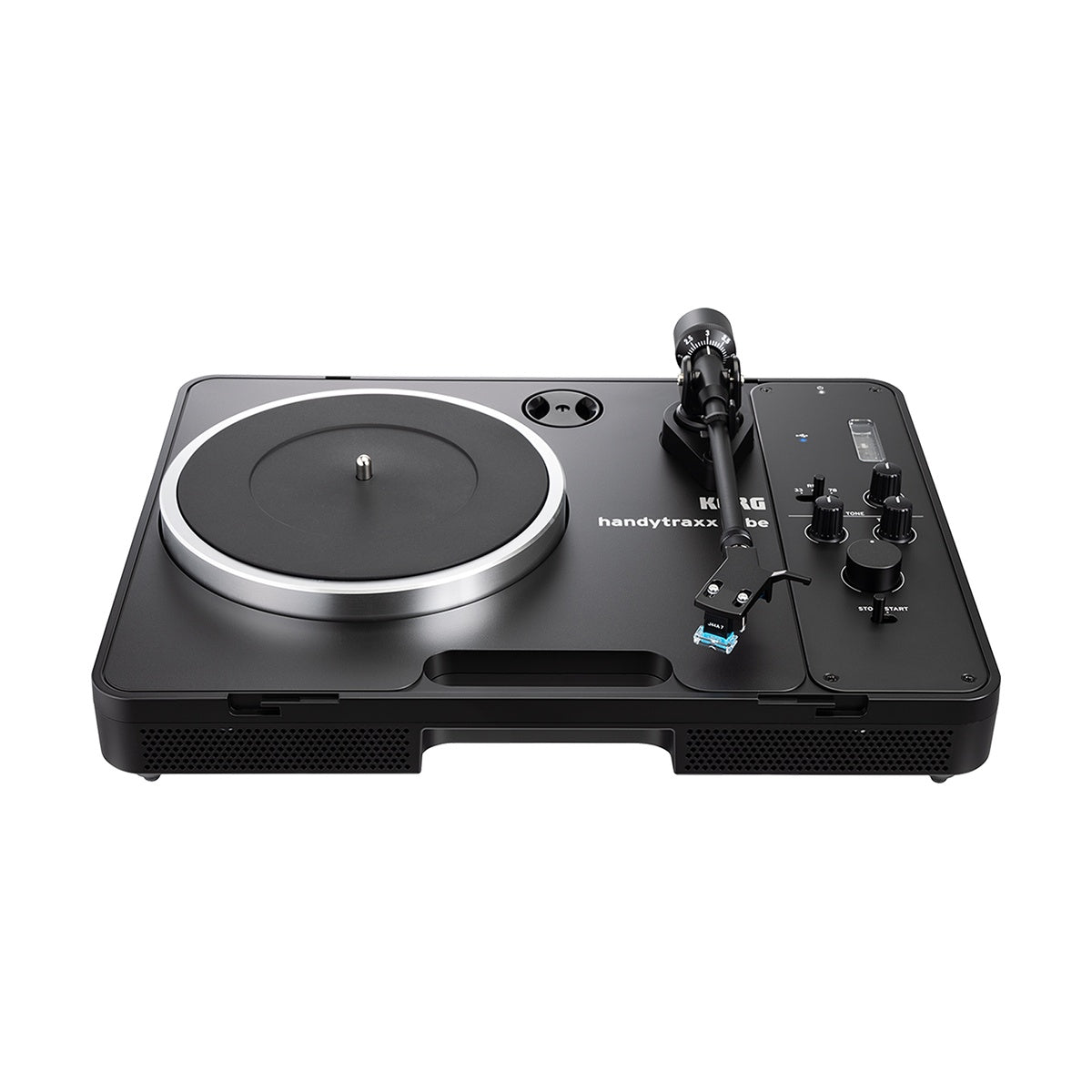

Korg Handytraxx Tube

The Korg Handytraxx Tube is a portable record player featuring Nutube vacuum tube technology, delivering the warm, rich sound of vinyl anywhere. Equipped with an aluminum die-cast platter, Nutube phono preamp, and built-in stereo speakers, it plays 33⅓, 45, and 78 RPM records with exceptional audio quality. Perfect for vinyl enthusiasts seeking authentic listening experiences beyond the home – from picnics to studio sessions.

The belt-drive system with CPU-controlled speed stabilization ensures precise rotation and minimal vibration. Adjustable bass (±8dB @130Hz), treble (±8dB @5.5kHz), and tube control (0-6dB gain) knobs allow precise sound shaping. Battery power (up to 11 hours) and USB output for digitizing collections make it a complete solution for modern audiophiles.

KEY FEATURES

• Nutube vacuum tube phono preamp for warm, harmonic analog sound.
• Aluminum die-cast platter with belt-drive and CPU speed stabilization.
• Built-in stereo speakers 2.5W x2 (4Ω) with flat response.
• Adjustable tonearm with interchangeable headshell and JICO J44A7 MM cartridge.
• USB Audio output (PCM 44.1/48kHz, 16-bit) for record digitization.

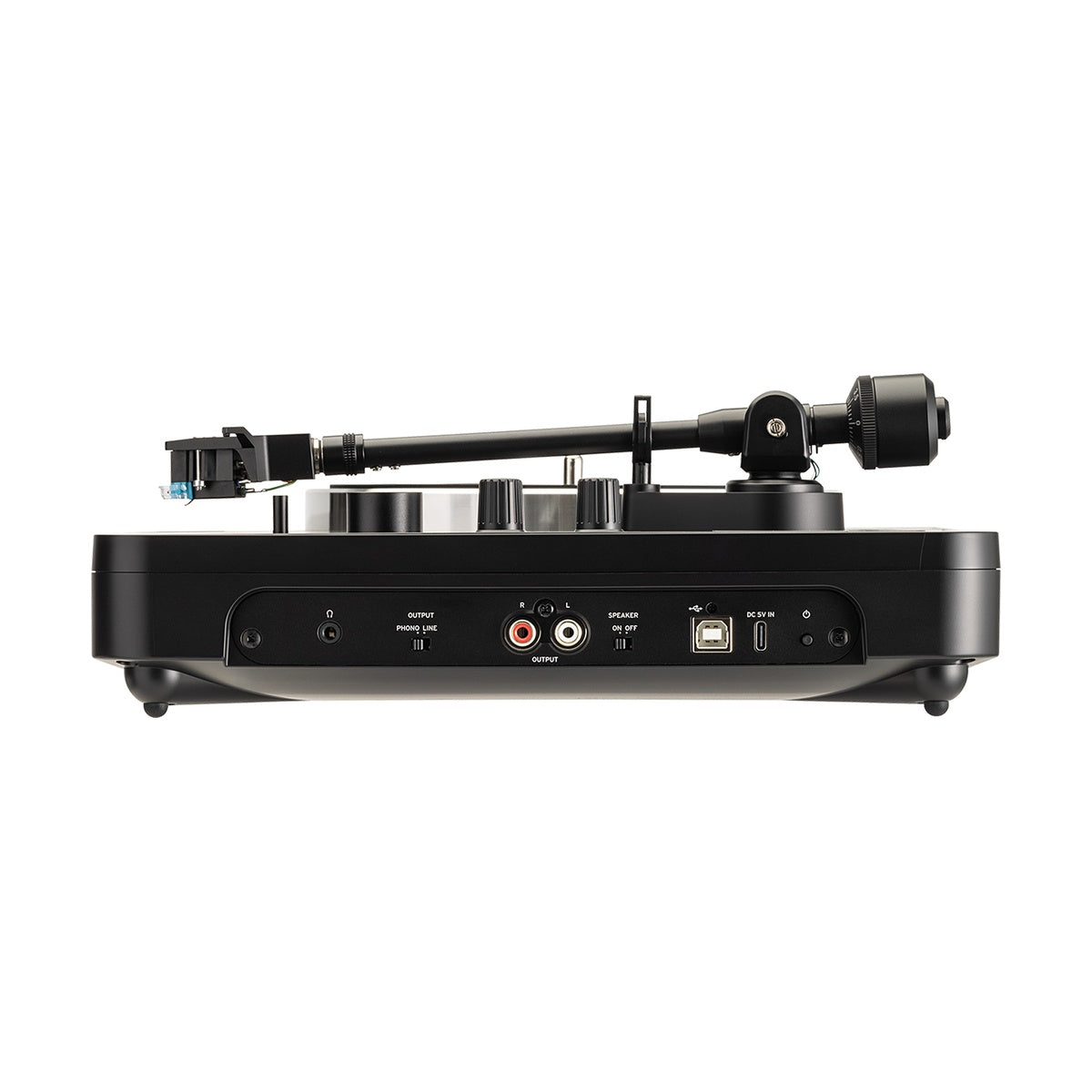

• LINE/PHONO/Headphone outputs with TONE/TUBE controls.
• 6xAA battery power (11 hours) or AC adapter.

TECHNICAL SPECIFICATIONS

• Rotation Speeds: 33-1/3, 45, 78 RPM
• Drive: Belt-drive with DC Servo Motor + CPU compensation
• Cartridge: MM JICO J44A7 (1.5-3.0g tracking force)
• PHONO Preamp: 38dB gain, RIAA equalization
• Wow & Flutter: <0.15% (WTD) @3kHz
• S/N Ratio: >70dB (DIN-B)
• Outputs: PHONO 230mV / LINE Max 2.3Vp-p / HP 80mW@32Ω
• USB: 2ch PCM 44.1/48kHz 16-bit
• Power: 6xAA (11hrs) / AC Adapter 2.35W

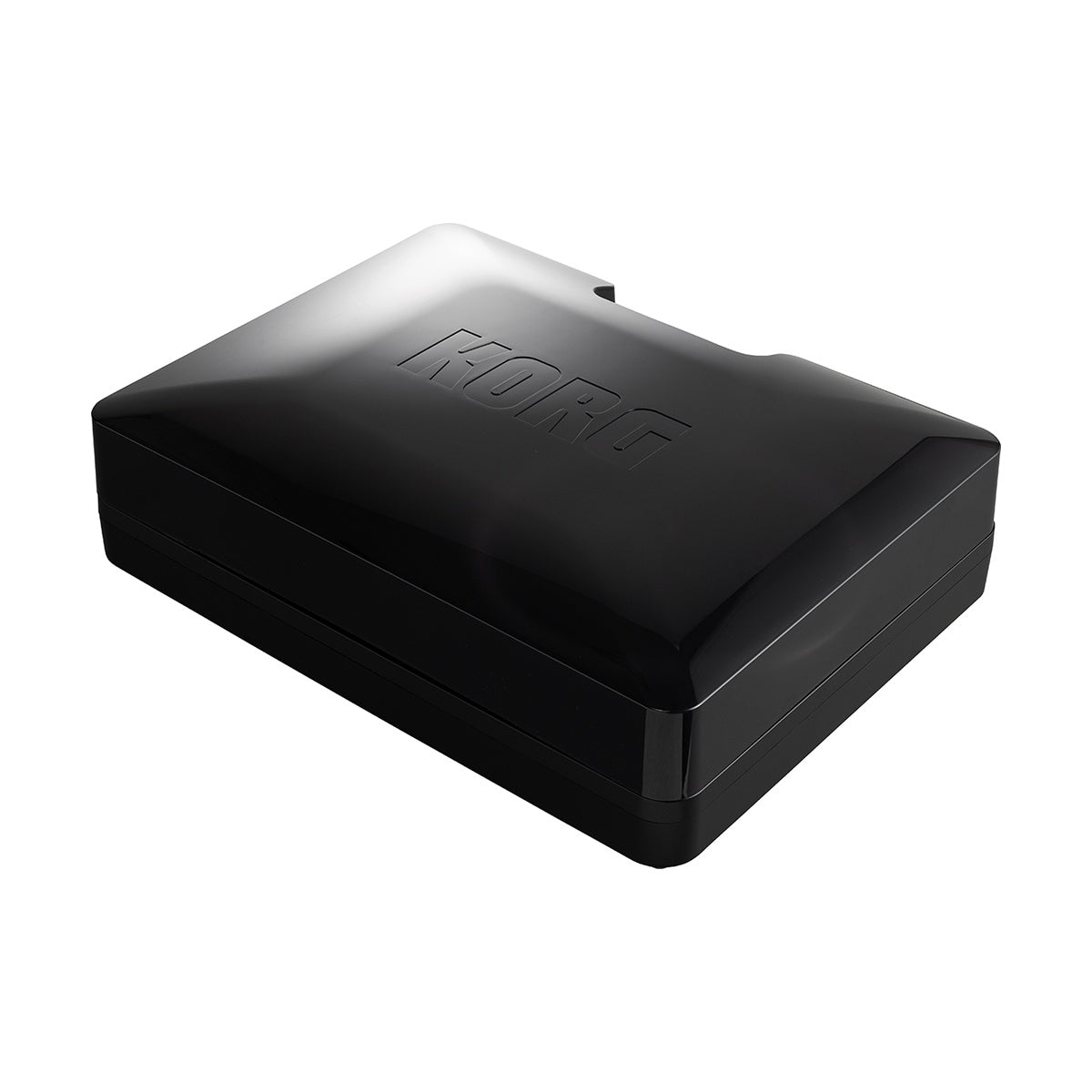

• Dimensions: 370 x 280 x 118 mm (with lid: 370 x 286 x 118 mm)
• Weight: 2.8 kg (with dust cover, excl. batteries)
