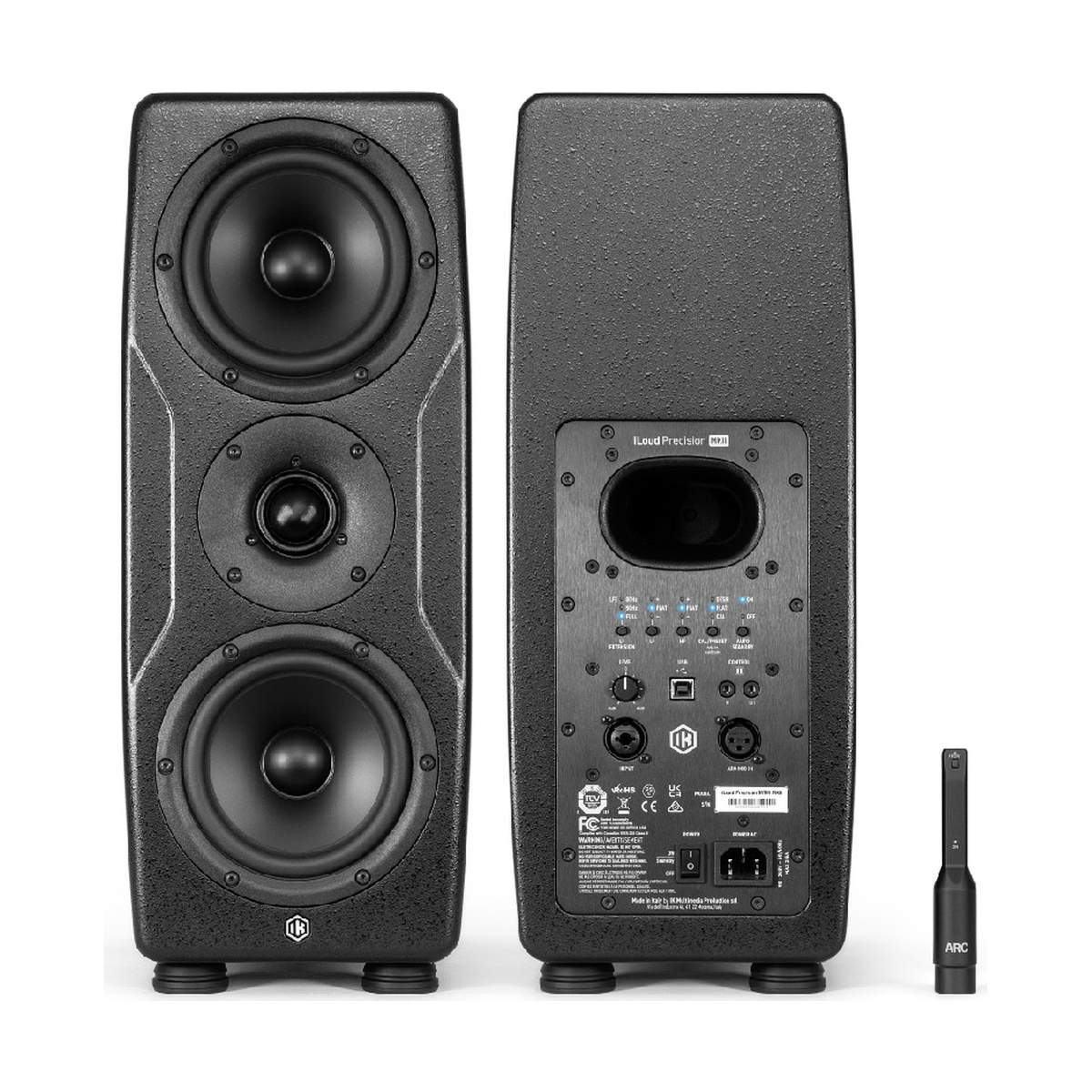

IK Multimedia iLoud Precision MTM MKII

IK Multimedia iLoud Precision MTM MKII – active MTM studio monitor with dual 5-inch coated paper woofers and a 1.5-inch graphene-reinforced tweeter; linear phase (±20° from 150 Hz), frequency response 45 Hz–30 kHz (±1 dB) with extension to 37 Hz (–4 dB); built-in ARC X calibration with MEMS microphone and monitor emulation; Class D amplifiers 175 W RMS, peak SPL 117 dB; 96 kHz internal DSP; adjustable LF extension (35/50/65/80 Hz); optional remote control and new mounting system.

iLoud Precision MTM MKII is designed for accurate, uncolored monitoring in stereo, surround, and immersive setups. The symmetrical MTM design minimizes vertical dispersion and improves phase alignment, delivering a stable and controlled sweet spot for critical evaluation of stereo imaging, depth, and transients. Linear phase and time coherence preserve spatial cues even in larger control rooms, supporting both nearfield and midfield applications.

The integrated ARC X room correction with the included MEMS measurement microphone automatically adjusts frequency response, delay, and level to match the acoustic environment and speaker placement. ARC X also provides emulations of popular reference monitors, allowing instant mix checks across different “profiles” without changing monitoring systems. Firmware updates ensure future-ready features and ongoing improvements over time.

The redesigned low-resonance MDF cabinet reduces reflections and coloration, while the internal Class D amplifiers deliver 175 W RMS with high dynamic headroom. Adjustable low-frequency extension simplifies integration with subwoofers and multichannel setups such as Dolby Atmos, while the optional remote enables quick switching between ARC X profiles and real-time adjustments. Auto standby reduces power consumption, and the 96 kHz DSP processing ensures consistent clarity at all times.

KEY FEATURES

• Symmetrical MTM (Midwoofer–Tweeter–Midwoofer) design with controlled vertical dispersion
• Dual 5″ ultralight coated paper woofers and 1.5″ graphene-reinforced textile tweeter
• Ultra-flat response 45 Hz–30 kHz (±1 dB), extended to 37 Hz (–4 dB)
• Linear phase and time coherence; phase consistency ±20° from 150 Hz upward
• Built-in ARC X room calibration with included MEMS microphone
• Reference monitor emulations for quick mix translation checks
• Class D amplification with 175 W RMS; peak SPL 117 dB
• Low-resonance MDF cabinet for improved clarity and stereo imaging
• Selectable LF extension: 35 / 50 / 65 / 80 Hz
• Optional remote control for profile switching and quick adjustments
• New mounting system with precise angle adjustment for multichannel setups
• Auto standby function and internal 96 kHz DSP processing

TECHNICAL SPECIFICATIONS

• Total power RMS: 175 W (Class D)
• Frequency response: 45 Hz – 30 kHz (±1 dB)
• Low-frequency extension: 37 Hz (–4 dB)
• Max SPL (continuous): 105.5 dB; Max SPL (peak): 117.0 dB
• Drivers: 2 × 5″ ultralight coated paper woofers, 1 × 1.5″ graphene-reinforced textile tweeter
• Phase response: ±20° from 150 Hz upward; time coherent across the spectrum
• Calibration: ARC X with MEMS microphone; reference monitor emulations
• Production consistency: individually calibrated; unit-to-unit sensitivity tolerance ±0.5 dB
• Internal processing: 96 kHz DSP
• LF extension settings: 35 / 50 / 65 / 80 Hz
• Dimensions (H × W × D): 45.9 cm × 18.5 cm × 28.2 cm (18.1″ × 7.28″ × 11.1″)
• Included: iLoud Precision MTM MKII, MEMS measurement microphone, iLoud isolation stands
• Product code: MON-PREMMKII-MTM-IN
