IK MULTIMEDIA
IK Multimedia ARC Studio+
This item is available on a custom order basis only
Please contact us for more details.
Nous contacterConfigurer
This item is available on a custom order basis only
Please contact us for more details.
Nous contacterThis item is available on a custom order basis only
Please contact us for more details.

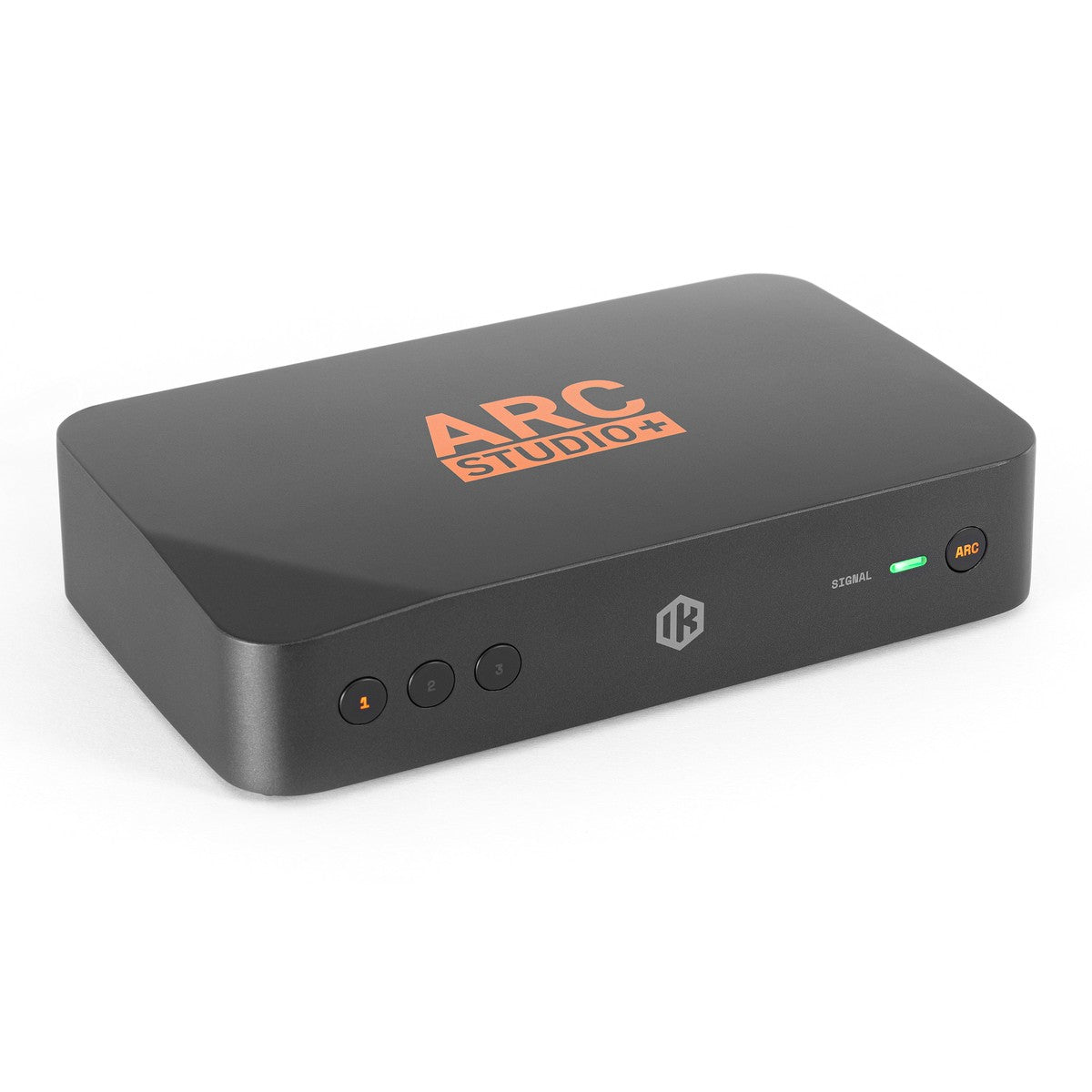

Nous contacterIK Multimedia ARC Studio+ is a hardware room correction processor that sits between your source and your monitors and works independently of the DAW. It brings computer-free calibration, automatic subwoofer integration, and digital inputs to the ARC platform, and it ships with the ARC measurement microphone and the ARC X software.
Calibrate the room without a computer
Plug in the ARC microphone and run a one-point or three-point measurement straight from the front panel, with no computer, DAW or audio interface involved. When you want a closer look, ARC X adds seven-point and 21-point measurements of the listening area, target curve editing and profile management. The profiles live inside the processor, so the correction keeps working after the software is closed.
Subwoofer, scenes and digital sources
The dedicated subwoofer output is detected automatically during calibration, and the processor aligns gain, crossover, phase and delay between the sub and the main monitors. Three front-panel Scene buttons recall a calibration profile together with speaker routing, subwoofer on/off and input selection, so a mix position, a couch position and a translation check are one press apart. Balanced XLR/TRS inputs, USB-C and optical S/PDIF cover analog and digital sources. See how it differs from the original ARC Studio, browse more monitor controllers or hear it in our Warsaw showroom.
KEY FEATURES
- Hardware room correction, independent of the DAW
- Standalone 1-point and 3-point calibration from the front panel
- ARC X software: 7-point and 21-point measurement, target curves, profile management
- Profiles stored in the hardware, correction stays active after closing the software
- Automatic subwoofer detection with gain, crossover, phase and delay alignment

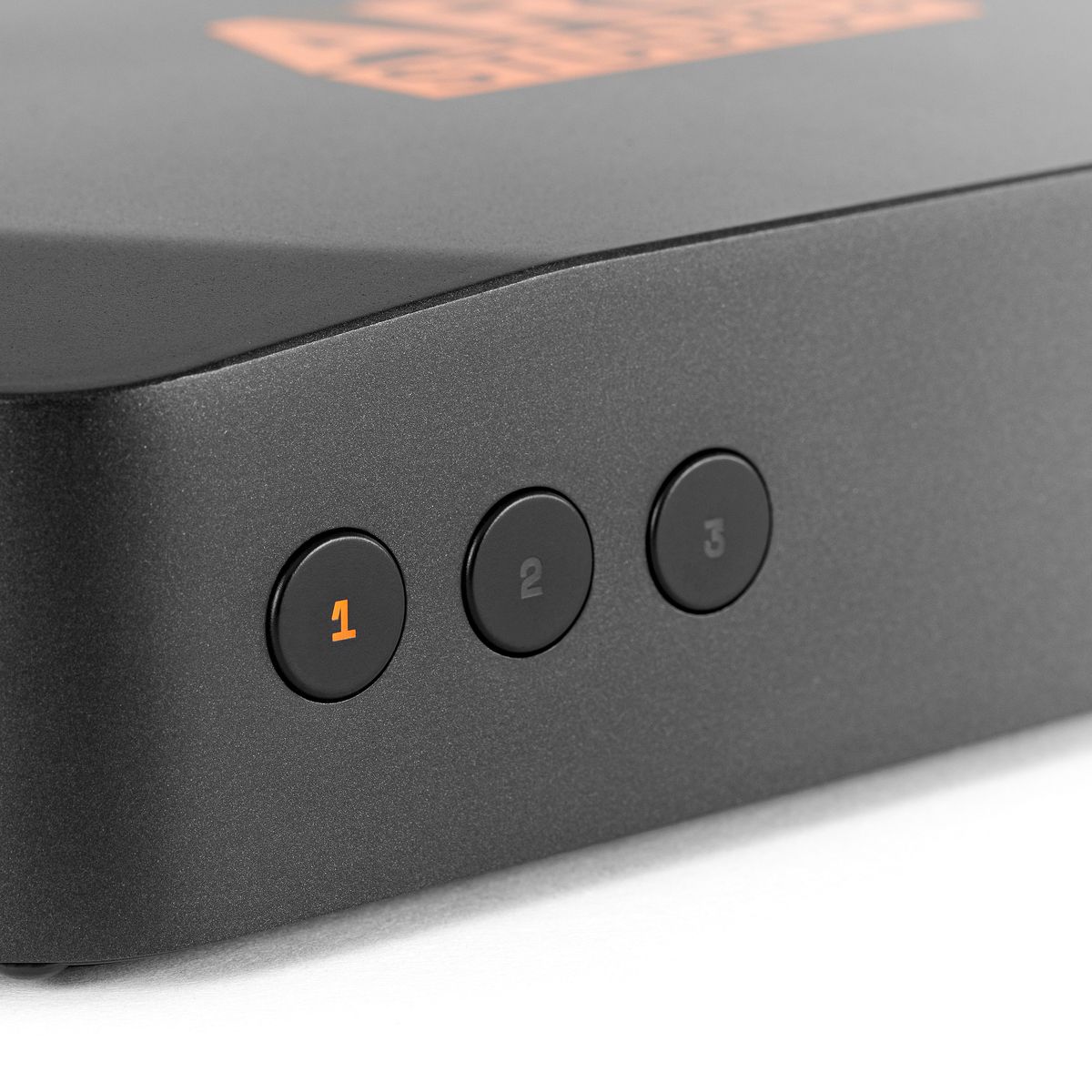

- Three Scene memories: profile, routing, subwoofer on/off, input

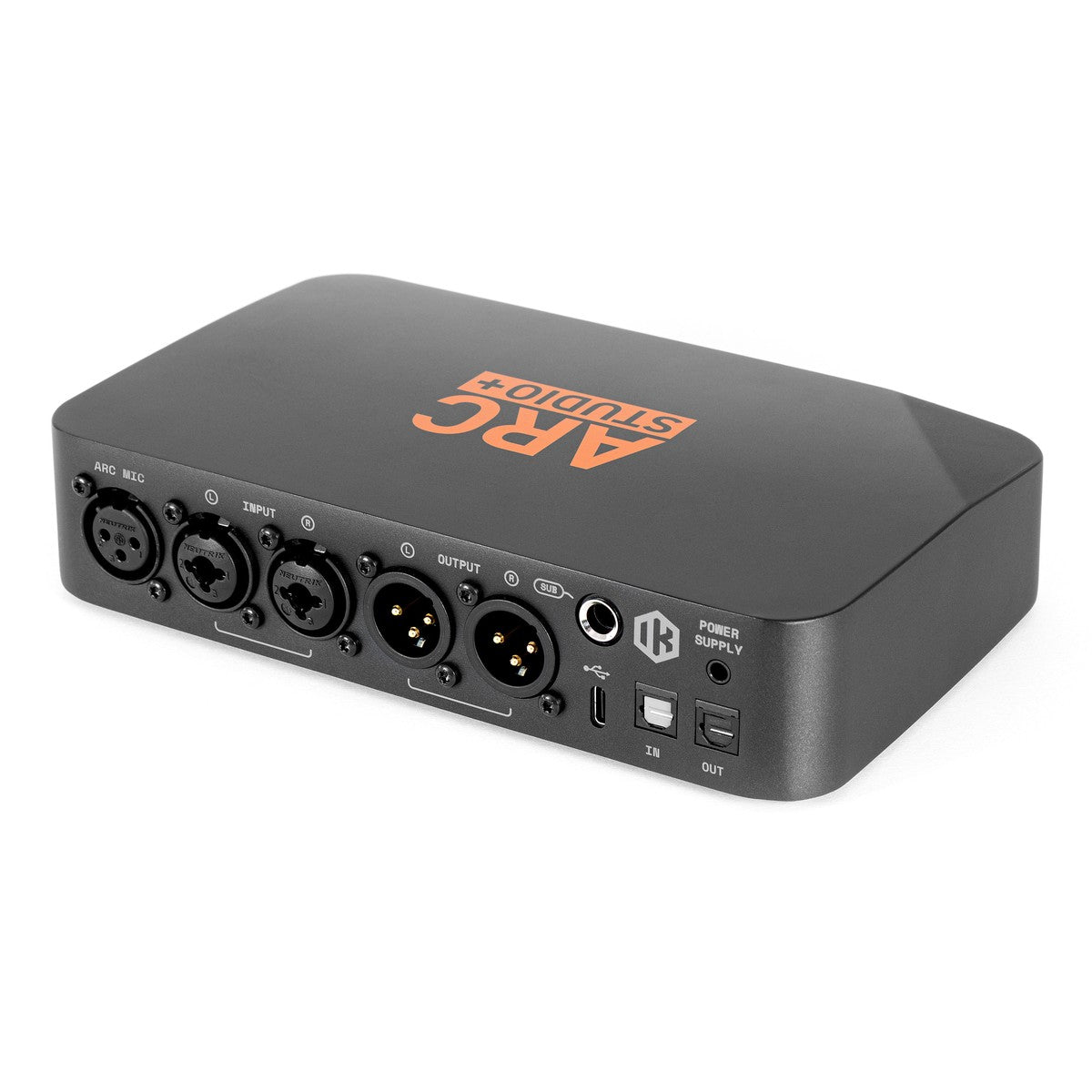

- Balanced combo XLR/TRS inputs, balanced XLR monitor outputs, subwoofer output
- USB-C digital audio, optical S/PDIF input and output, dedicated ARC MIC input
- Natural phase (1.4 ms) and linear phase (42 ms) modes
- Included: ARC measurement microphone, mic clamp, mic pouch, USB cable, power supply
TECHNICAL SPECIFICATIONS
- Sample rates: 44.1 kHz to 192 kHz
- Conversion resolution: 32-bit
- Frequency response: 2 Hz to 87 kHz (-2 dB)
- Dynamic range: 120 dB (A-weighted)
- THD (1 kHz at -1 dBFS): 0.00011%
- THD+N (1 kHz at -1 dBFS): 0.00023%
- Channel crosstalk (1 kHz): -134 dB
- Input impedance (balanced): 20 kΩ; output impedance: 50 Ω
- Maximum input and output level: +18 dBu
- Latency: 1.4 ms (natural phase), 42 ms (linear phase)
- Power: 5 V DC, 2.5 A, center positive
- Dimensions: 19.7 x 12.2 x 4.4 cm (7.8 x 4.8 x 1.7 in)
- Weight: 625 g (1.38 lb)
- Software compatibility: Windows (Intel, AMD, Arm64) and macOS (Apple Silicon, Intel)
