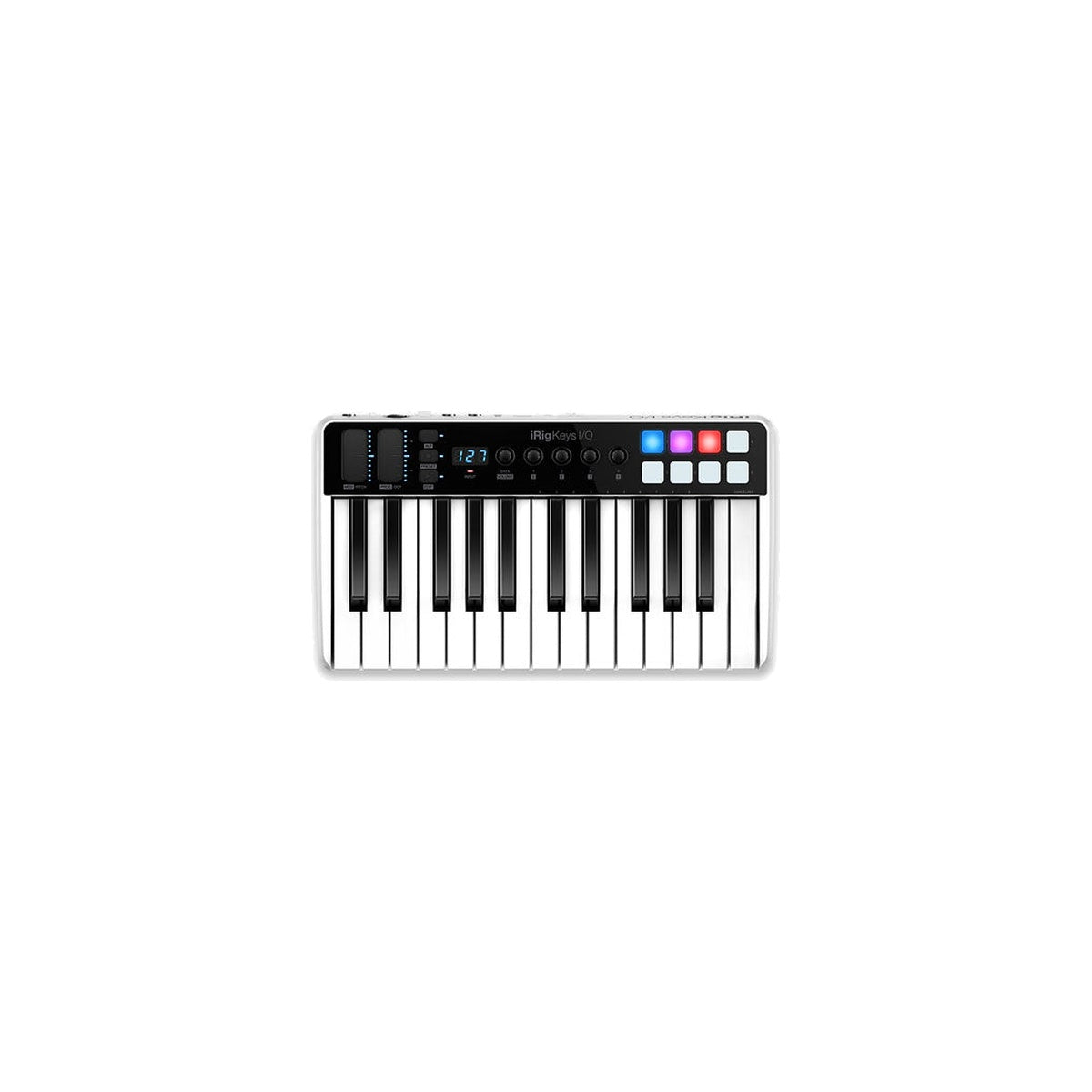

IK Multimedia iRig Keys I/O 25
Configurer
IK Multimedia iRig Keys I/O 25 is a MIDI controller with 25 full-size velocity-sensitive keys joined with a professional 24-bit up to 96 kHz audio interface. It has 8 multicolor pads, balanced stereo outputs and a headphone output, plus a combo input for line, instrument or microphone with phantom power. See controllers in our Warsaw showroom.
A keyboard and an interface in one unit
A small control keyboard plus a separate interface means two devices and two cables on the desk. The iRig Keys I/O 25 joins them in one: an XLR microphone input with 46 dB gain and +48 V phantom, a Hi-Z instrument input (1 MOhm, 27 dB gain), two balanced 6.35 mm TRS line outputs and a 3.5 mm headphone output (100 mW into 50 ohms). The output dynamic range is 102 dB(A), and conversion is 16 or 24-bit at 44.1 to 96 kHz.
Controls and power
Eight velocity-sensitive multicolor pads, programmable touch slider strips for pitch and modulation, octave, program and transport buttons and five programmable touch-sensitive encoders run your DAW and apps. Power comes from USB on a computer, from four AA batteries (included) with an iOS device, or from the iRig PSU 3A adapter (sold separately). There is also a 6.35 mm pedal input. The package includes mini-DIN cables to Lightning, USB-A and USB-C and a stand for an iPhone or iPad.
KEY FEATURES
- 25 full-size velocity-sensitive keys
- 24-bit up to 96 kHz audio interface with a combo input: microphone with phantom, Hi-Z instrument, line
- 2 balanced TRS line outputs and a headphone output
- 8 multicolor pads, pitch and modulation strips, 5 touch encoders
- USB power, 4 AA batteries or the iRig PSU 3A adapter (sold separately)
- Lightning, USB-A and USB-C cables and an iPhone or iPad stand included
TECHNICAL SPECIFICATIONS
- Keyboard: 25 full-size keys with velocity
- Pads: 8 multicolor, velocity-sensitive
- Microphone input: XLR, 6 mVpp to 1.4 Vpp, 3.2 kOhm, gain 46 dB, phantom +48 V
- Instrument input: Hi-Z, 1/4 in TS, 30 mVpp to 6.9 Vpp, 1 MOhm, gain 27 dB
- Line outputs: 2 x balanced 1/4 in TRS, max +13 dBu into 600 ohms, 10 Hz to 21 kHz, dynamic range 102 dB(A)
- Headphone output: 1/8 in TRS, 100 mW into 50 ohms
- Other: mini-DIN device connector, 1/4 in TRS pedal input, DC barrel
- Conversion: 16 or 24-bit A/D and D/A, 44.1, 48, 88.2 and 96 kHz
- Power: USB from a computer, 4 x AA with an iOS device, iRig PSU 3A adapter (sold separately)
- Dimensions: 373 x 208 x 65 mm / 14.7 x 8.2 x 2.6 in, weight: 1.26 kg / 44.5 oz (without batteries)
- Compatibility: iPhone and iPad, macOS 10.6 or later, Windows (iRig driver for low latency)
- Package: iRig Keys I/O 25, Lightning to mini-DIN cable 60 cm, USB-A to mini-DIN cable, USB-C to mini-DIN cable, iPhone/iPad stand, 4 AA batteries
