Heritage Audio

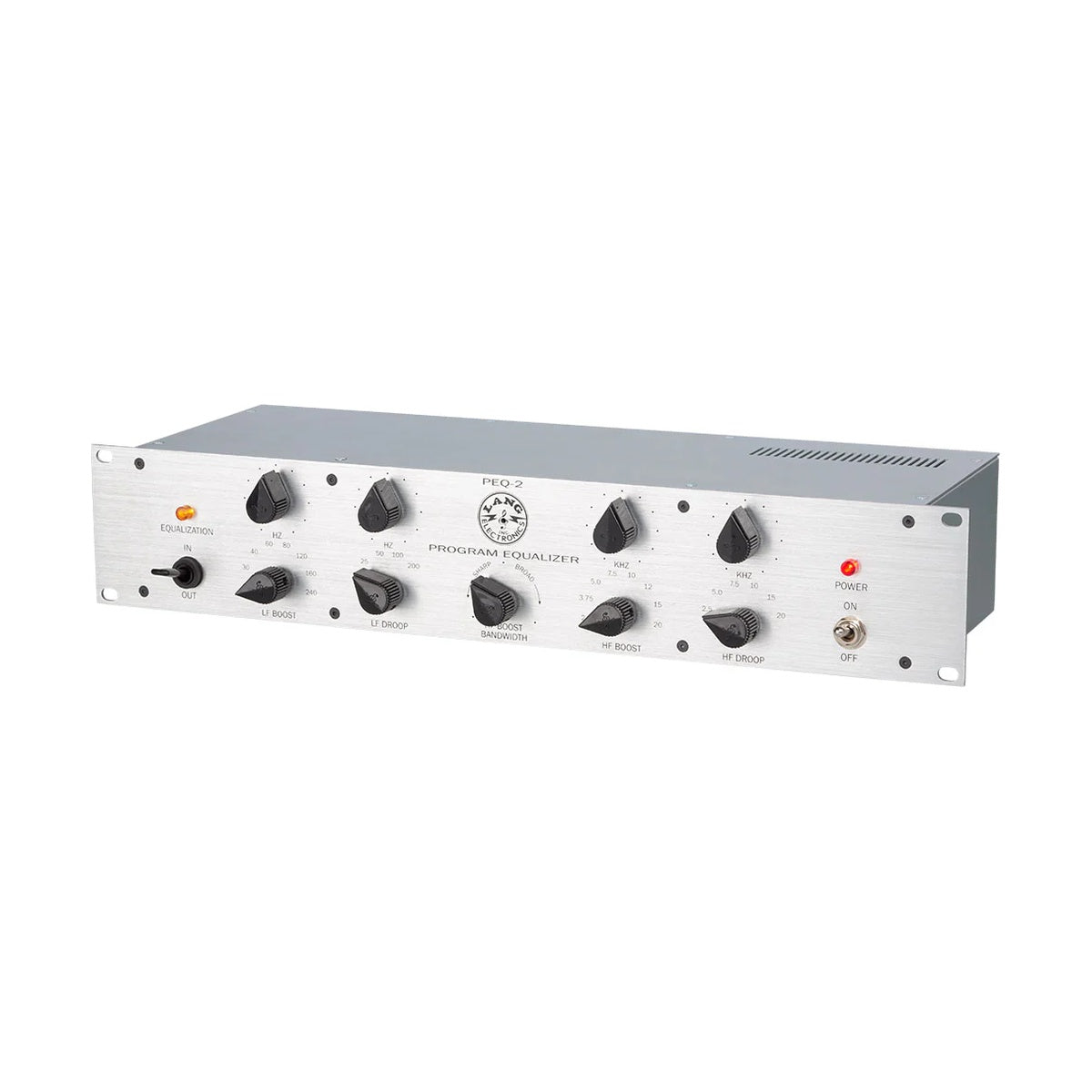

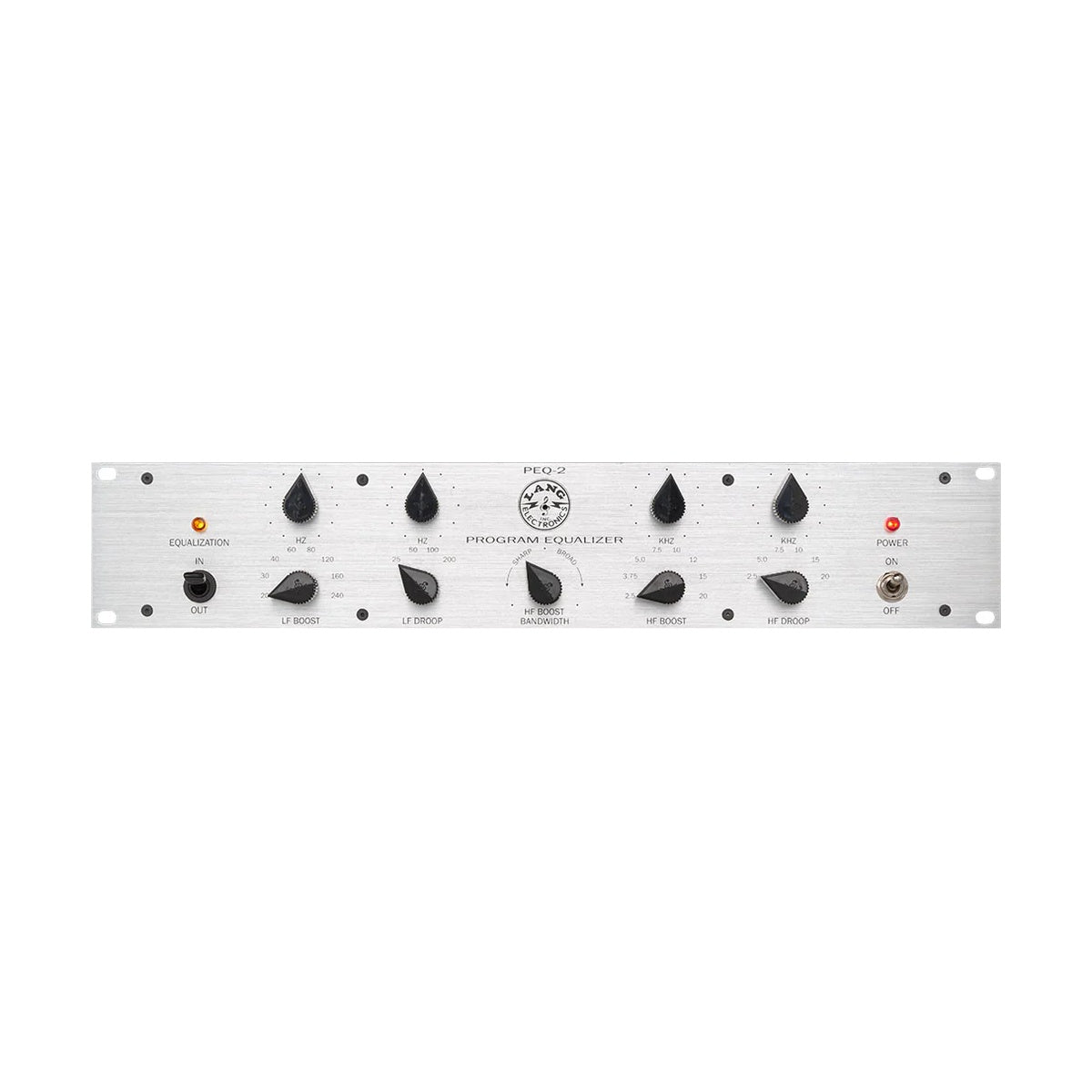

Heritage Audio LANG PEQ-2
Configurer
Heritage Audio LANG PEQ-2 is a program equalizer featuring 8 x Low Shelf Boost, 4 x Low Shelf Droop, 8 x High Peak Boost, 6 x High Shelf Droop, 1 x XLR Input, 1 x XLR Output, and is rack-mountable.
LANG 312L provides up to 90 dB of gain, making it one of the strongest preamps available. This means you can use any microphone you have without needing extra boosts. This is especially helpful for those using Ribbon and Vintage mics, which often require more power to shine.
The LANG PEQ-2 program equalizer offers an attractive, easy-to-use, yet powerful processor for quick frequency adjustment of your material during recording, mixing, or mastering. It allows you to quickly enhance the sound of your tracks while maintaining the natural character of your vocals or instruments. Frequency processing is available in 26 selectable options, with very flexible control over the low-frequency range, along with independent controls for boosting and cutting the high-frequency range. There is also a bandwidth control for the high-frequency boost to adjust the range of frequencies covered by the boost.
LANG PEQ-2 Features
- Rack-mountable Program Equalizer
- LF Boost from 0 to 16 dB
- LF Droop from 0 to 18 dB
- Gain Adjustment Trimmer from -12 dB to +1.6 dB
- HF Boost from 21 to 12.5 dB depending on the Bandwidth setting
- HF Boost Bandwidth: Varies the EQ curve between SHARP and BROAD for the HF Boost
- HF Boost frequencies: 2.5 kHz; 3.75 kHz; 5.0 kHz; 7.5 kHz; 10 kHz; 12 kHz; 15 kHz; 20 kHz.
- HF Droop frequencies: 2.5 kHz; 5.0 kHz; 7.5 kHz; 10 kHz; 15 kHz; 20 kHz.
- Female and Male Gold-Plated XLR Connectors
- Made in Spain by Heritage Audio
LANG PEQ-2 Specifications
- Line input impedance: 2400 Ω bridging, transformer balanced and floating
- Output impedance: Transformer balanced and floating, to drive a load of 600 Ω
- Maximum output: Greater than +26.5 dBu into 600 Ω (internally terminated)
- THD+N Ratio: 0.02 % @ 1 kHz 24 dBu, all controls CCW (CCW stands for fully counterclockwise – turn all controls to the left)
- Frequency response: 20 Hz to 20 kHz (± 0.3 dB)
- Noise floor: ≤ -86 dBu
- Power: 48 V DC @ 60 mA
- Dimensions (W x H x L): 482 mm x 88 mm (2 Rack units) x 153 mm
- Weight: 3.088 Kg
