Heritage Audio i73 PRO EDGE
This item is available on a custom order basis only. Please contact us for more details. Contact us

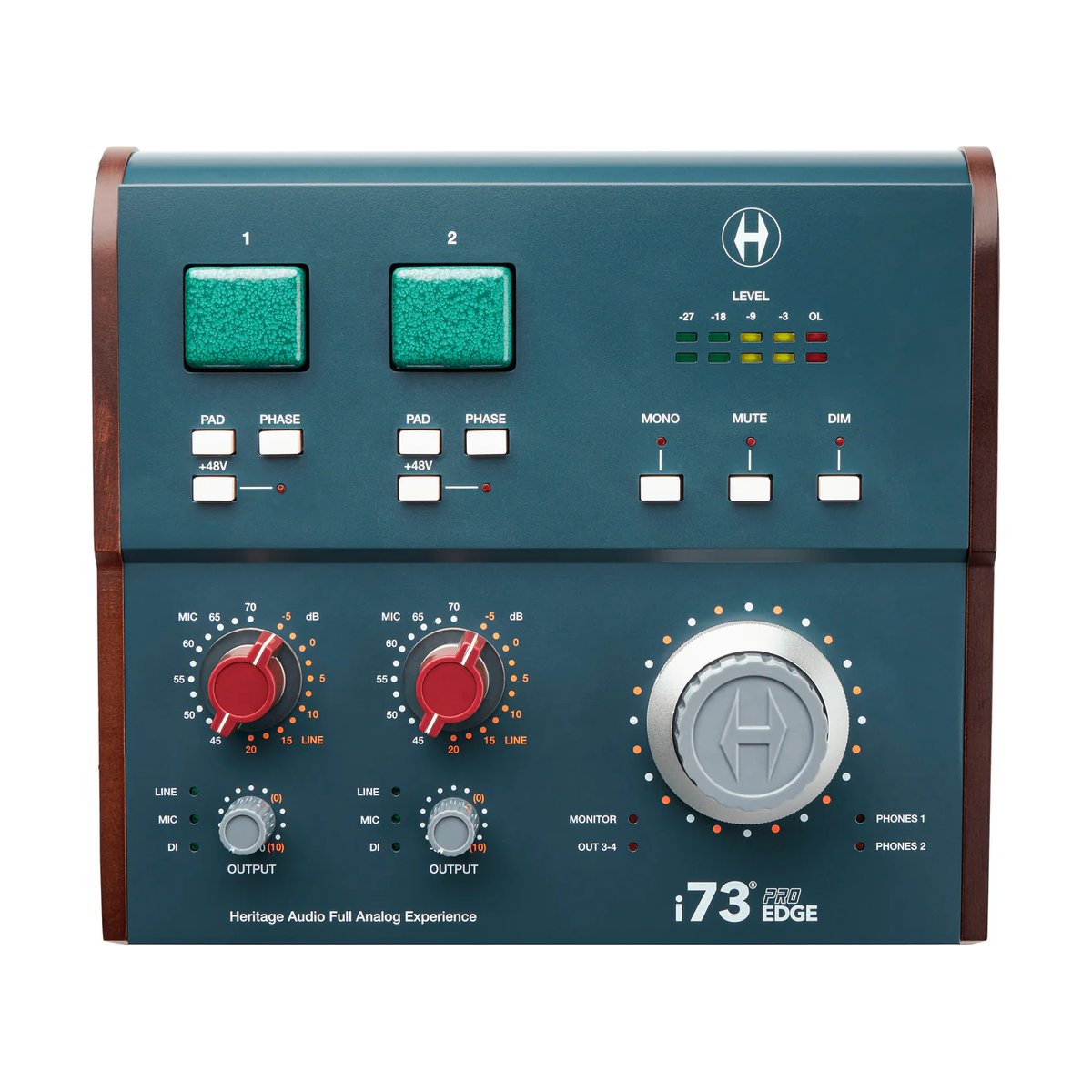

Heritage Audio i73 Pro Edge is a 2-channel USB-C audio interface designed specifically for guitarists and producers. It features 2 x Class A 73-style mic preamps, 2 x JFET Hi-Z DI inputs, 2 x TRS line inputs, 2 x TRS monitor outputs, 2 x TRS line outputs, 2 x headphone outputs, MIDI I/O, ADAT expansion, and a powerful built-in DSP mixer with effects.

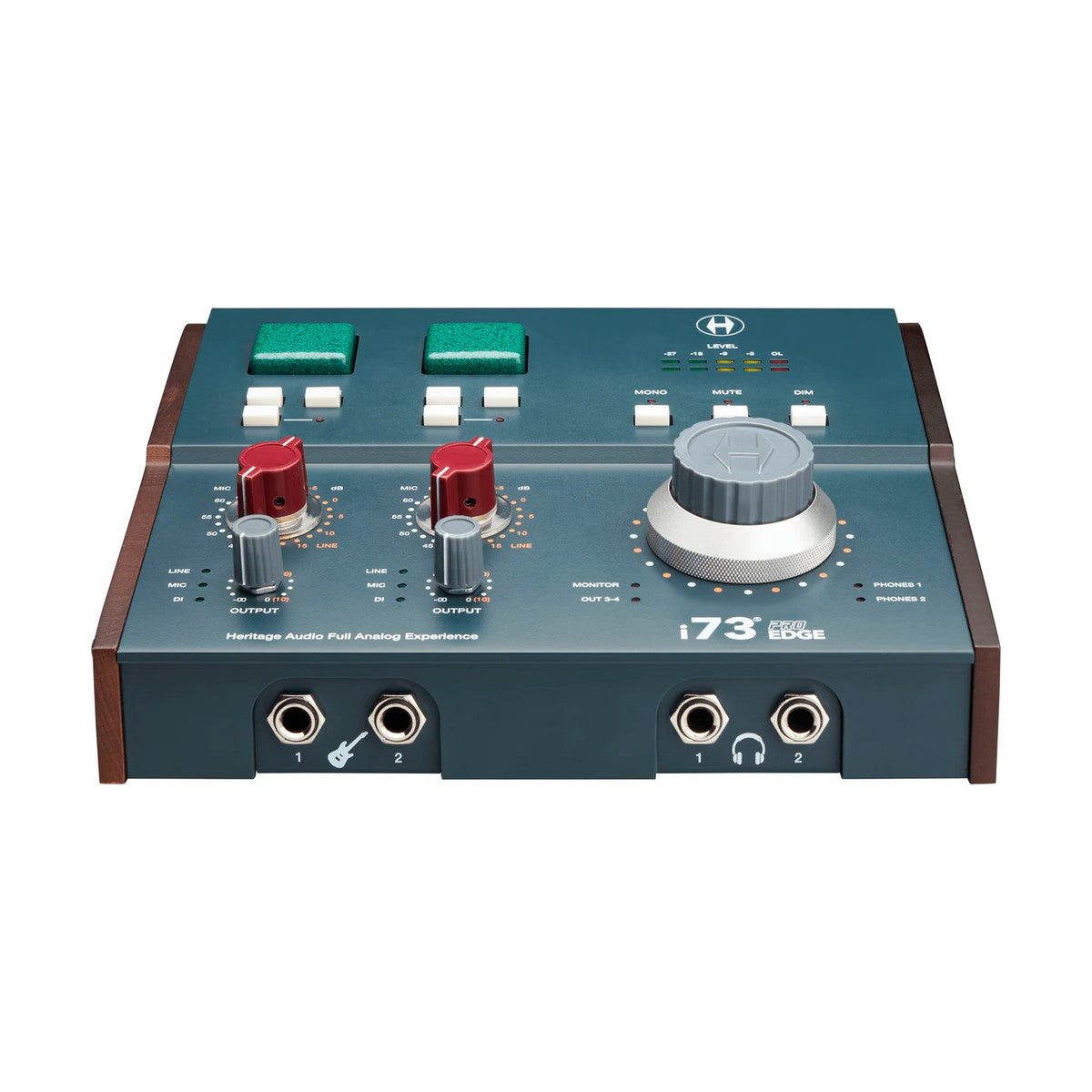

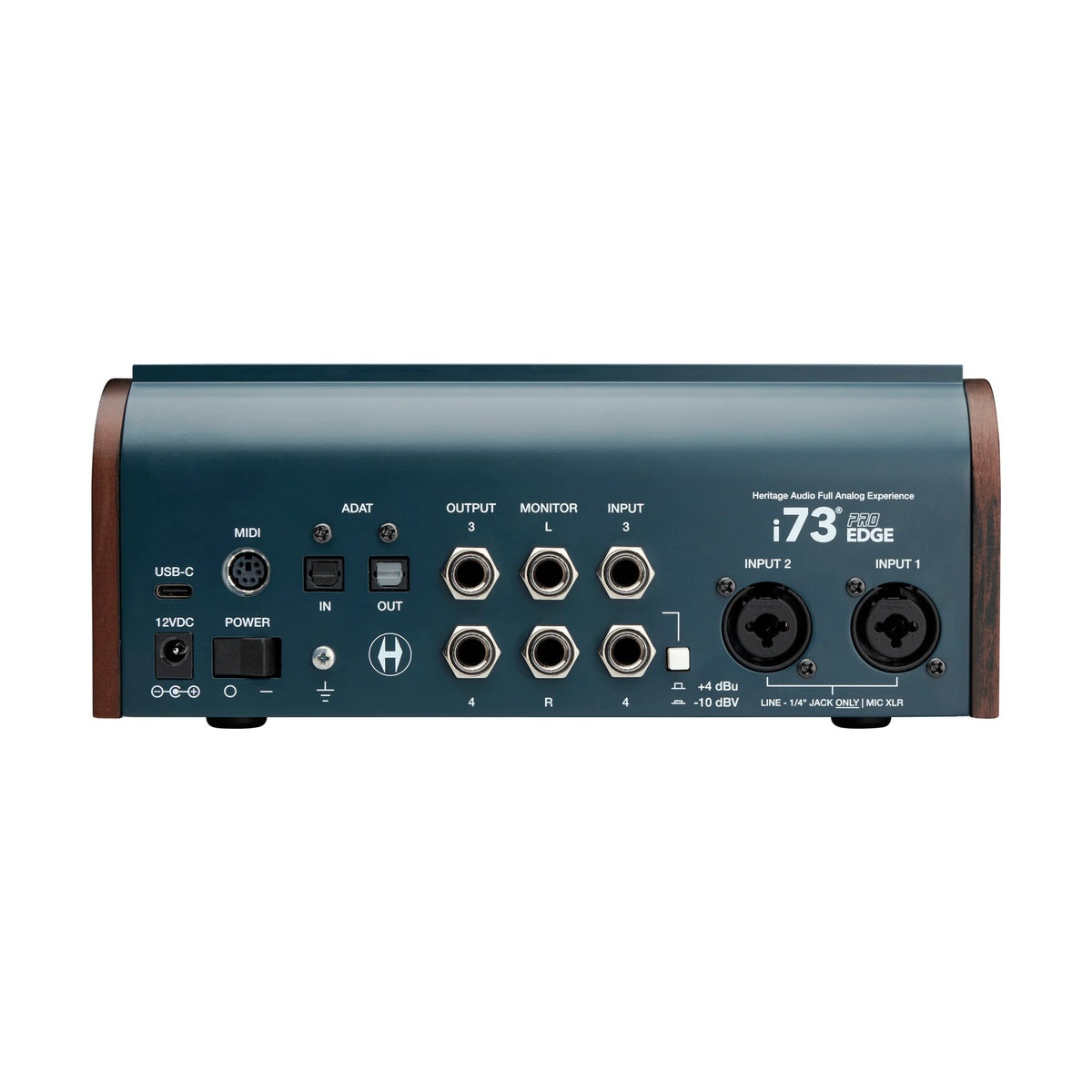

Inspired by the legendary British 73 console module, the i73 Pro Edge uses fully transformer-balanced Class A circuitry to deliver a rich analog tone. With up to 70 dB of gain, it easily handles any microphone, including low-output ribbon mics. The JFET DI inputs on the front are tailored for guitars, basses, and piezo pickups, while the dual headphone outputs allow independent monitoring. Rear panel connections include combo XLR-1/4" inputs, line outputs, ADAT I/O, and MIDI.
The onboard DSP mixer provides ultra-low-latency monitoring with custom cue mixes for monitors and headphones. It allows simultaneous recording of both wet and dry signals directly into your DAW and includes loopback functionality. Included DSP-powered plugins model Heritage Audio's outboard gear, offering studio-grade reverb, EQ, compression, and more — all running inside the interface to save your computer’s CPU resources.
KEY FEATURES
- 2 x Class A transformer-balanced 73-style mic preamps
- 2 x JFET Hi-Z DI instrument inputs on the front panel
- 2 x additional TRS 1/4" line inputs
- 2 x TRS 1/4" monitor outputs with independent control
- 2 x TRS 1/4" line outputs for external routing
- 2 x independent stereo headphone outputs with dedicated cue
- Real-time DSP mixer with ultra-low latency monitoring
- Simultaneous recording of wet and dry signals
- Loopback and flexible AUX routing options
- DSP-powered Heritage Audio plugins modeled after iconic studio gear
- PAD, PHASE, and PHANTOM (+48V) switches per preamp channel
- MONO, MUTE, and DIM functions with LED VU metering
- Marconi-style knobs and dual encoder for monitor/headphone levels
- MIDI I/O via mini DIN
- USB-C connection to computer (cable included)
- ADAT input/output for up to 8 channels of digital expansion
- Compatible with macOS 10.15.7+ and Windows 10/11
TECHNICAL SPECIFICATIONS
- Type: USB-C Audio Interface, 12-In / 16-Out
- Preamps: 2 x 73-style Class A with up to 70 dB gain
- Mic/Line Inputs: 2 x combo XLR/TRS
- Instrument Inputs: 2 x JFET Hi-Z DI (front panel)
- Line Inputs: 2 x TRS 1/4"
- Monitor Outputs: 2 x TRS 1/4" stereo
- Line Outputs: 2 x TRS 1/4" stereo
- Headphone Outputs: 2 x stereo with independent cue mixes
- Audio Resolution: Up to 32-bit / 192 kHz
- +48V phantom power, PAD, and PHASE controls
- Mic input dynamic range: 116 dB A-weighted
- Line/Instrument input dynamic range: 116 dB A-weighted
- Headphone output dynamic range: >120 dB A-weighted
- Monitor output dynamic range: 122 dB A-weighted
- Maximum output level: +24 dBu (configurable to +12 dBu)
- Equivalent Input Noise (EIN): -125 dB
- ADAT I/O: Up to 8 digital input/output channels
- MIDI: In/Out via mini DIN
