Harrison Audio 32Cpre+ 500 module
Configurer

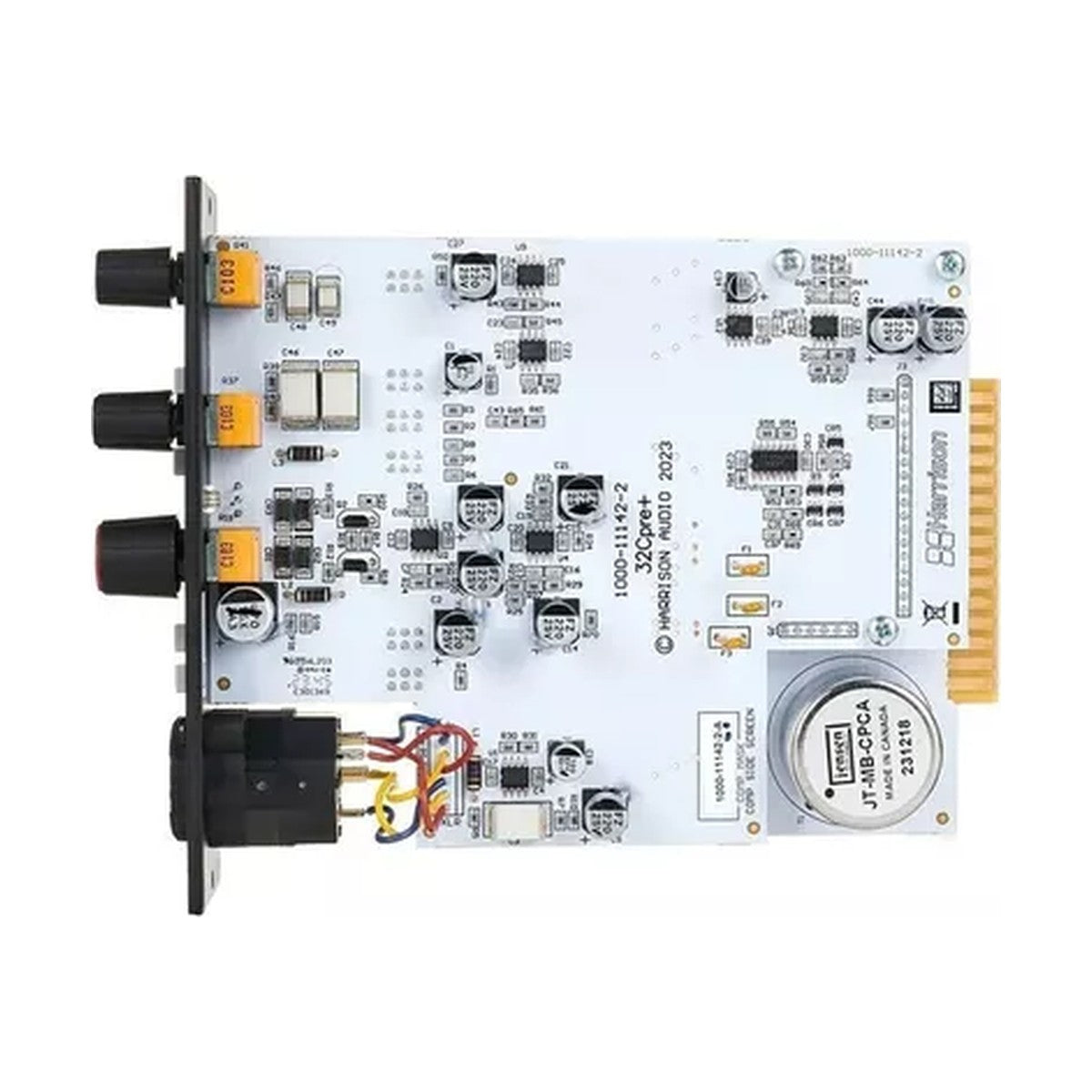

Harrison Audio 32Cpre+ is a high-performance 500-Series microphone preamplifier that evolves the classic input stage of the revered Harrison 32C recording console. Built around a premium Jensen JT-MB-CPCA input transformer, this module delivers the deep, musical tone and massive headroom essential for modern tracking environments.
Transformer Weight and Massive Gain
Modern built-in interface preamps often suffer from clinical sterility and lack the power required to drive gain-hungry microphones. The 32Cpre+ solves this by offering a robust 70 dB of clean, uncolored gain, making it an ideal match for low-output passive ribbon and dynamic microphones. The integration of the Jensen transformer inherently smooths out harsh transients and imparts a subtle, analog weight to the signal. This provides vocals and acoustic instruments with a physical depth and richness before hitting any downstream processing.
Source Sculpting with 32C Filters
Attempting to remove low-end rumble or high-frequency hiss "in the box" can often introduce unwanted phase artifacts. To mitigate this, Harrison included their signature 12 dB/octave High-Pass and Low-Pass filters, lifted directly from the 32C desk. These highly musical, asymmetrical filters allow tracking engineers to sculpt and clean the source material hardware-side, optimizing the signal before A/D conversion. Combined with the front-panel Combo jack and dedicated Hi-Z switch, the unit also serves as a world-class DI box for bass guitars and synthesizers, ensuring maximum punch and clarity.
KEY FEATURES
- Microphone preamplifier circuit driven by a genuine Jensen JT-MB-CPCA input transformer.
- 70 dB of pristine gain, perfectly suited for low-sensitivity ribbon and dynamic microphones.
- 12 dB/octave High-Pass and Low-Pass filters delivering the legendary Harrison 32C console characteristics.
- Front-panel Combo input with a dedicated Hi-Z mode for direct tracking of instruments.
TECHNICAL SPECIFICATIONS
- Format: Single-slot 500 Series module.
- Gain Range: Continuously variable from +20 dB to +70 dB.
- Filter Range: HPF sweeps from 25 Hz to 3.15 kHz; LPF sweeps from 160 Hz to 20 kHz.

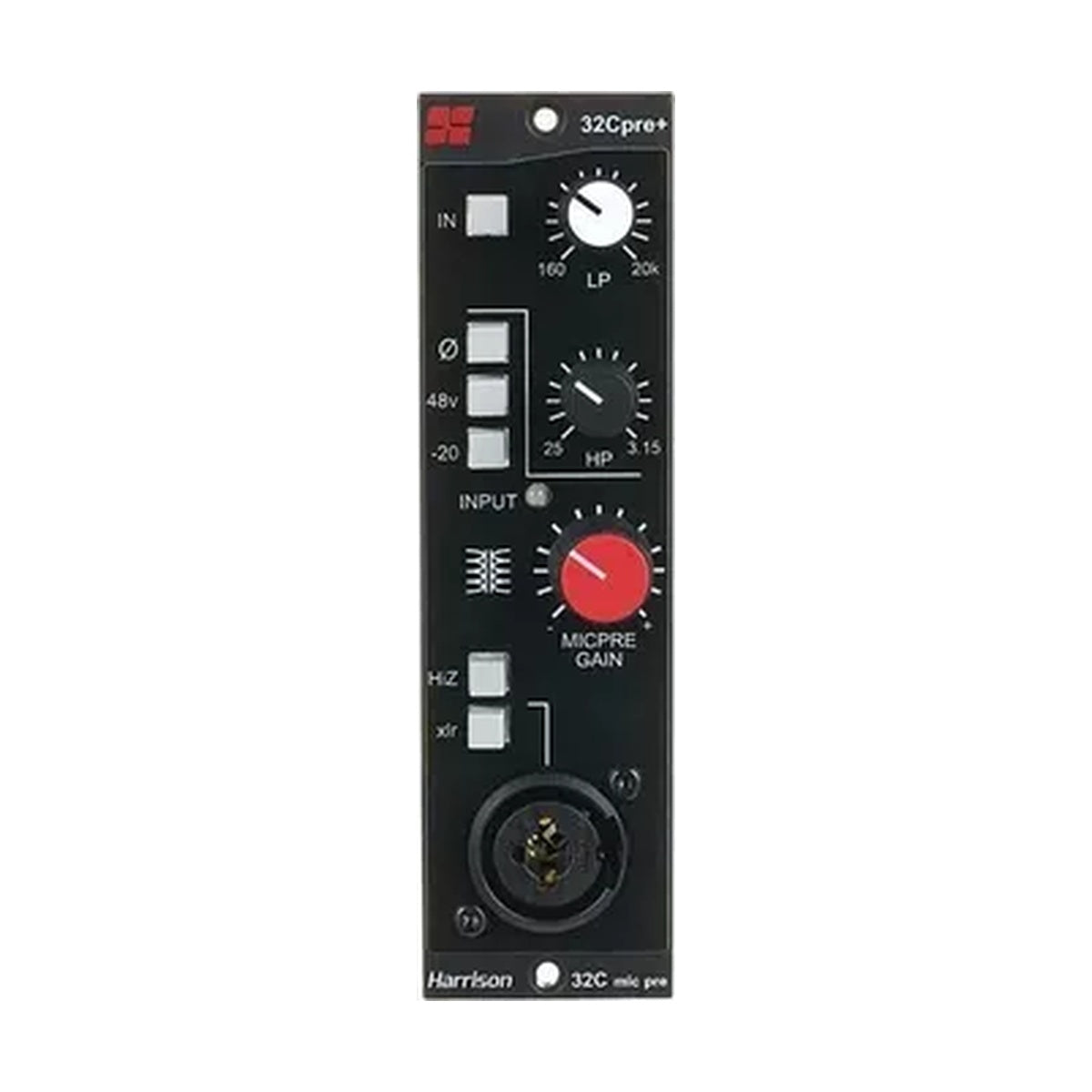

- Panel Controls: +48V Phantom Power, Phase invert, -20 dB Pad, Hi-Z select, and Filter bypass toggle.
