Grace Design FELiX2 is a two-channel, studio-quality preamp, EQ, blender and DI for acoustic instruments and microphone, in a rugged, floor-based chassis of anodized aluminium and steel. Designed for working musicians, engineers and sound companies seeking the highest-quality amplification of stringed instruments, the FELiX2 brings open, musical and nuanced sound from the studio straight to the stage.
Blending two sources with full phase control
Combining a pickup and a microphone on one instrument often causes phase problems and a smeared sound. The FELiX2 has two independent channels with blending capability, and built-in variable phase control on channel 2 lets you bring a mic/pickup system to full phase coherence. Three input impedance settings on each channel (Ch1: 10K, 1M, 10M; Ch2: 332K, 1M, 20M) match the preamp to a wide range of pickups — piezo, magnetic and active — preserving the instrument's natural character.
Precise EQ and extensive I/O on stage
Unruly instruments and difficult room acoustics demand surgical control over the frequency range. Each channel has an independent EQ with Low and High shelving plus a parametric mid in two ranges (70-880 Hz / 670 Hz-8 kHz), and a sweepable high-pass filter 20 Hz-1 kHz at 12 dB/octave, switchable to notch mode, hunts down feedback and rumble. Two transformer-isolated DI outputs can be sent as a mix or separate channels to FOH, a stereo amp output drives a stage rig, and a stereo FX loop plus a tuner output active when muted round out stage needs.
KEY FEATURES
- Two-channel preamp, EQ, blender and DI for instruments and mic
- Studio-quality Grace Design signal path
- Blending of two sources with variable phase control on channel 2
- Three input impedance settings on each channel

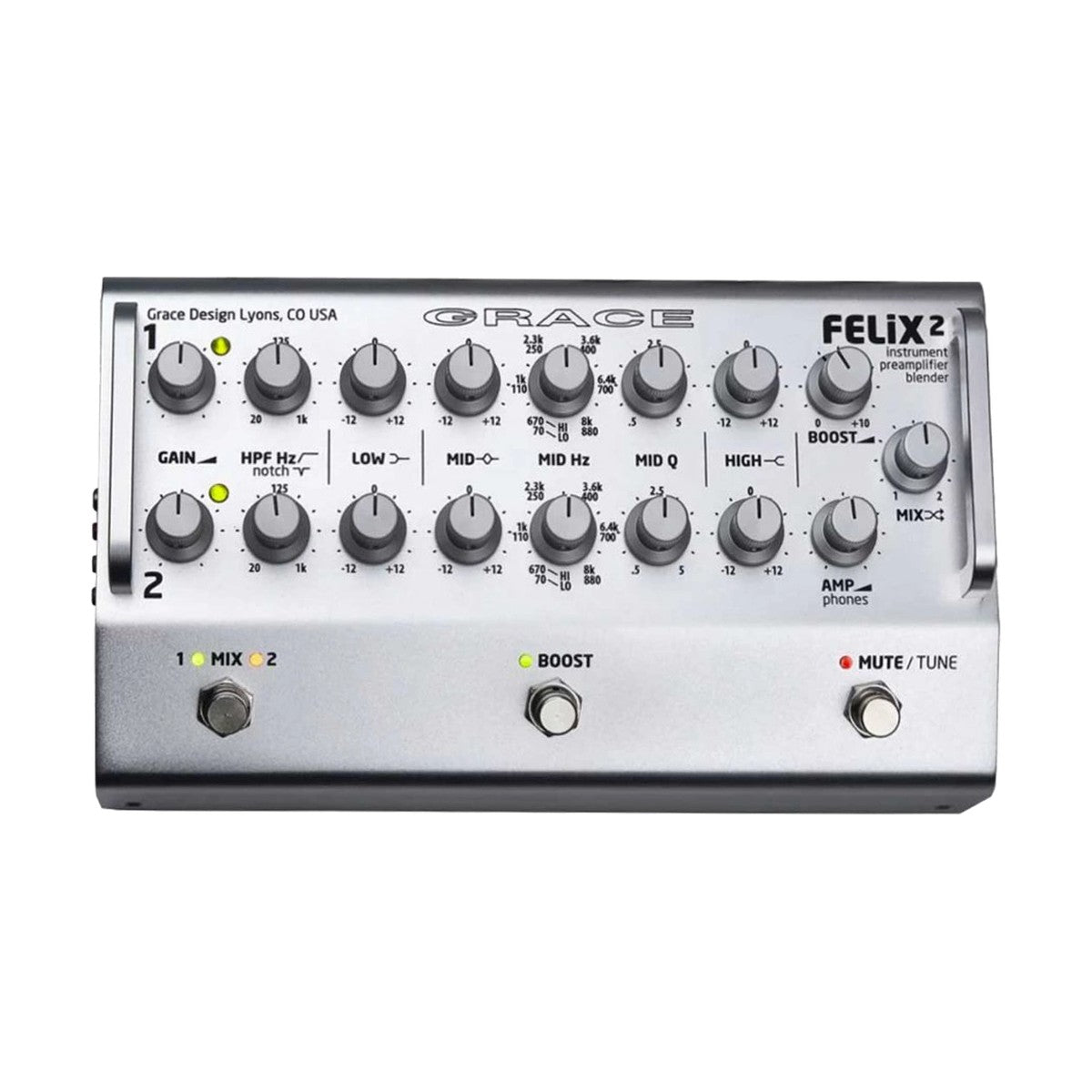

- Independent EQ on both channels: Low and High shelving, parametric mid
- Sweepable filter 20 Hz-1 kHz with notch mode on both channels
- Two transformer-isolated DI outputs (mix or separate channels)
- Stereo amp output and stereo FX loop
- Tuner output active when muted, A/B, Mute/Tune and Boost footswitches
- Universal 100-240 V supply with IEC cable
TECHNICAL SPECIFICATIONS
- Manufacturer: Grace Design
- Type: two-channel preamp / EQ / blender / DI for acoustic instruments and mic
- Inputs: 1x XLR microphone (48 V), 2x instrument
- Input impedance: Ch1 10K/1M/10M, Ch2 332K/1M/20M
- EQ: Low and High shelving, parametric mid 70-880 Hz / 670 Hz-8 kHz
- Filter: HPF 20 Hz-1 kHz, 12 dB/octave, switchable to notch
- Phase: variable control on channel 2
- Boost: variable up to 10 dB (global)

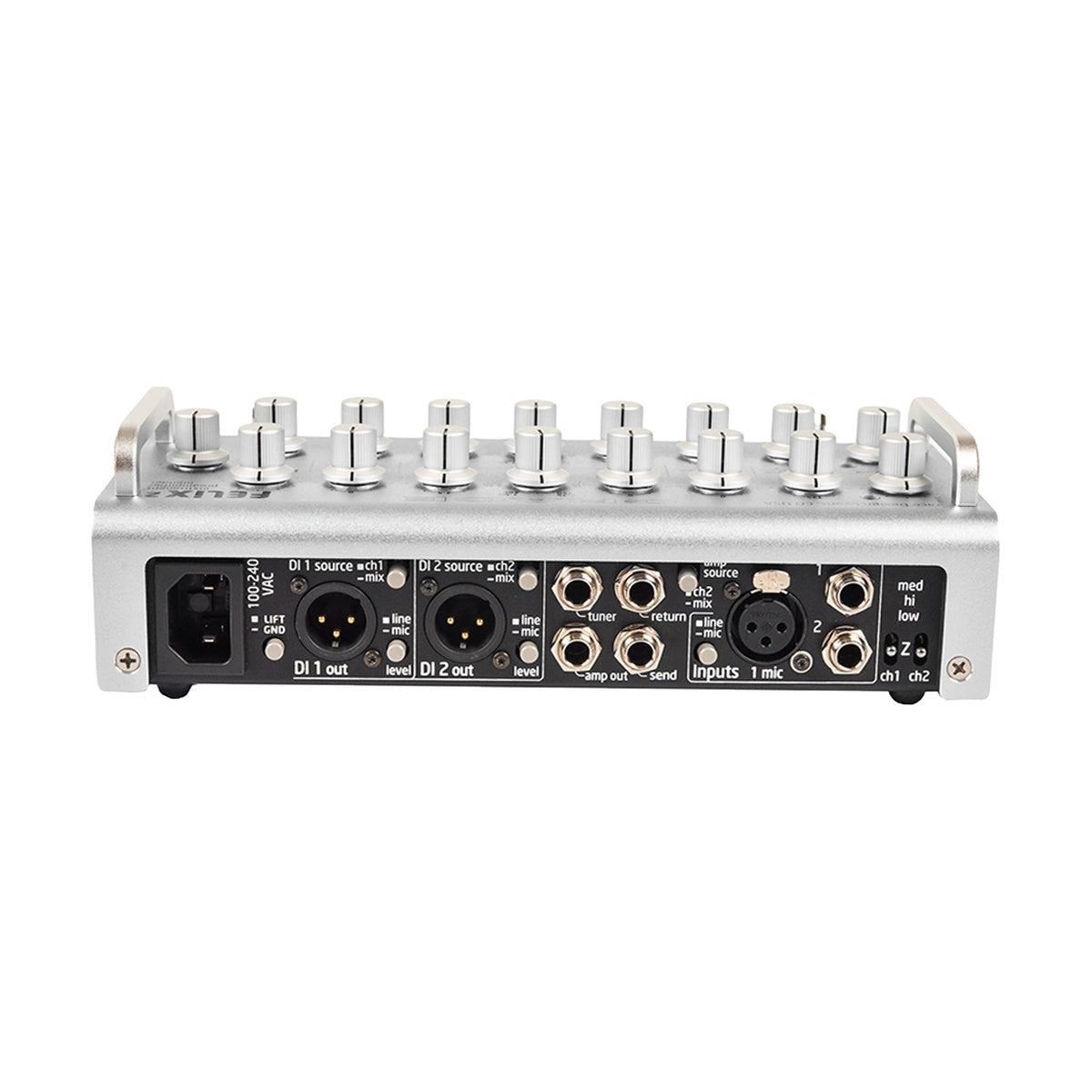

- Outputs: 2x transformer-isolated DI (XLR), stereo amp output, tuner out
- FX loop: stereo or dual-mono, separate send and return TRS
- Headphones: stereo 1/8" output, active when muted

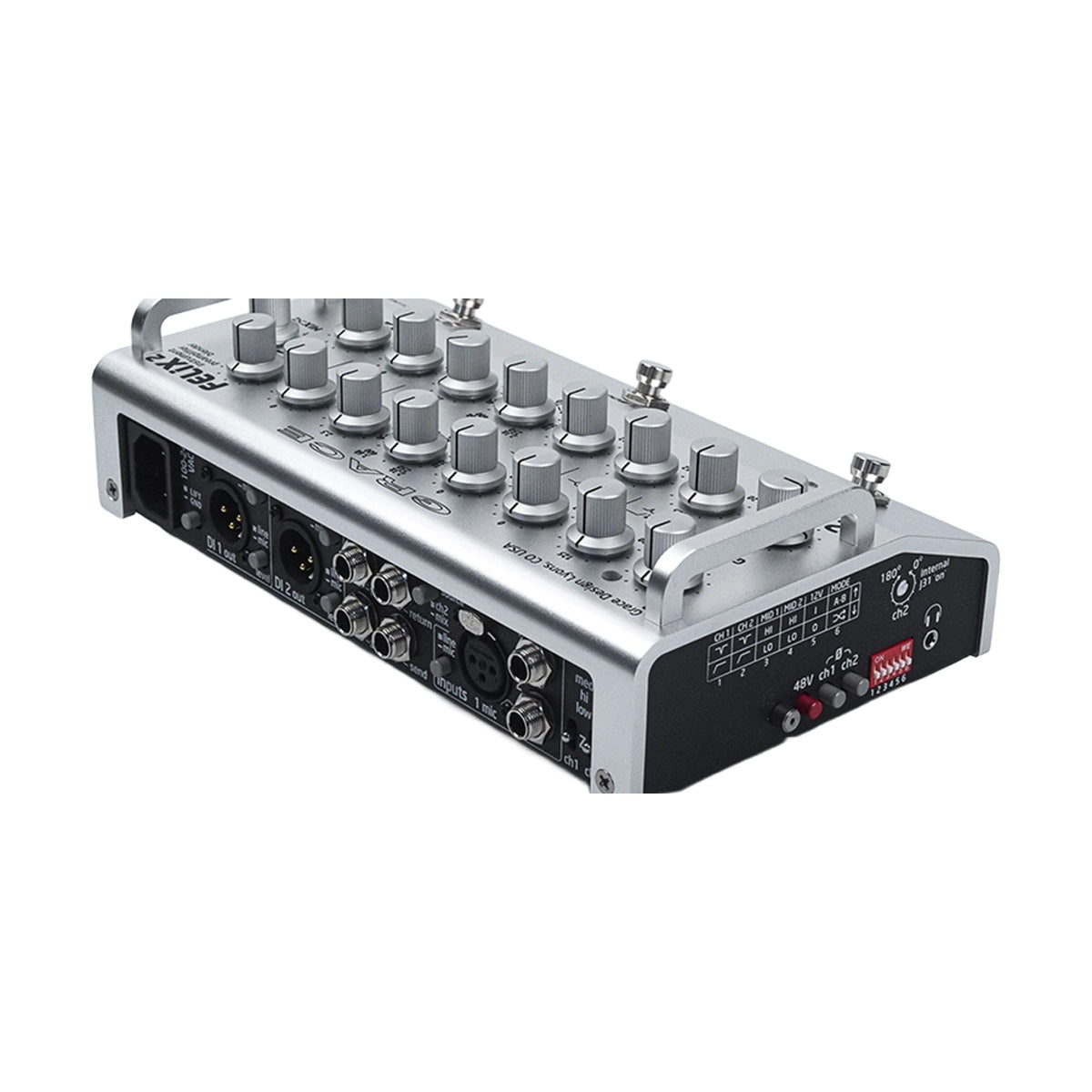

- Side switches: 48 V, phase, mid range, HPF/notch, 12 V, A/B mode
- Mounting: mic stand flange mount holes
- Power: universal 100-240 V AC, IEC cable
- Manufacturer warranty: 5 years (transferable)
