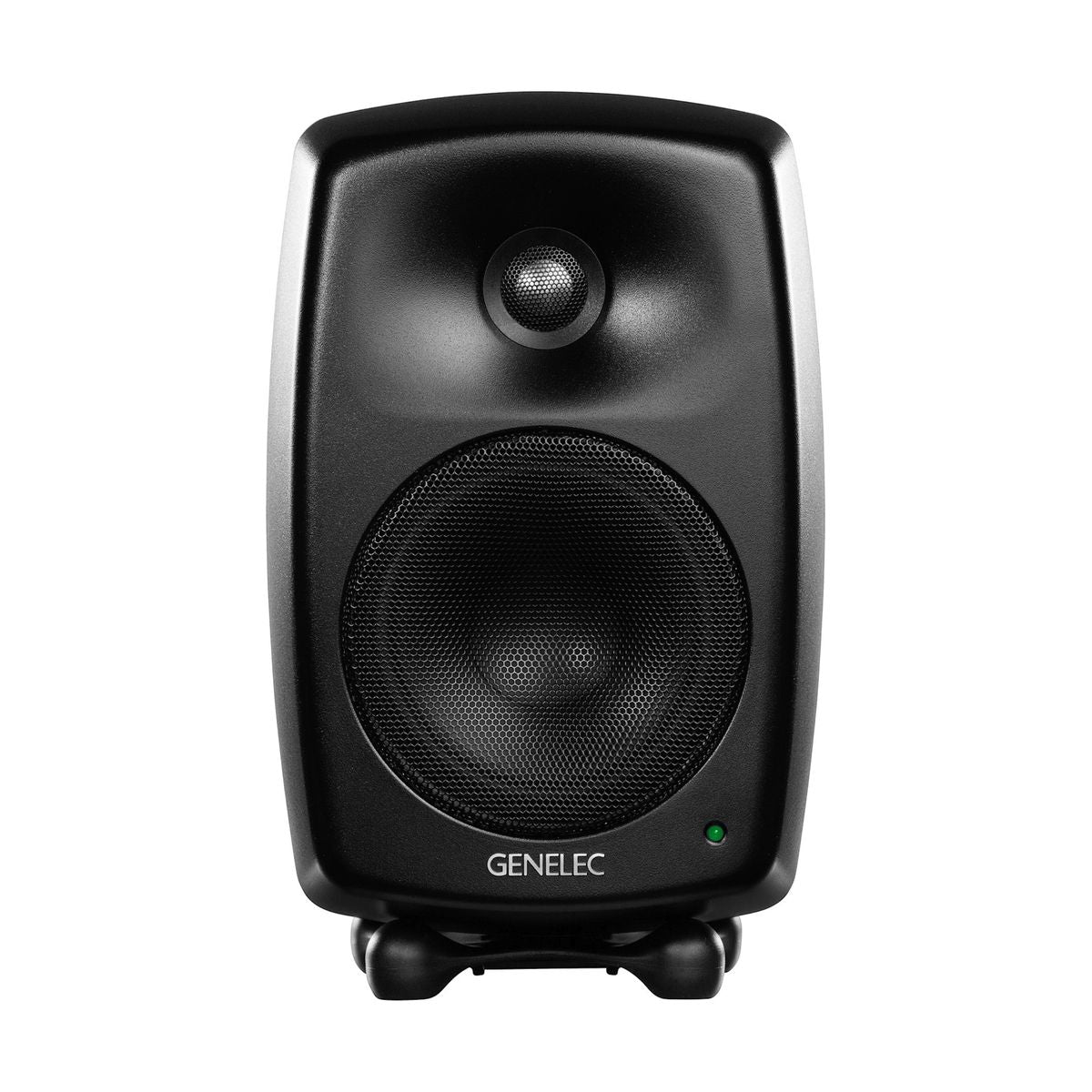

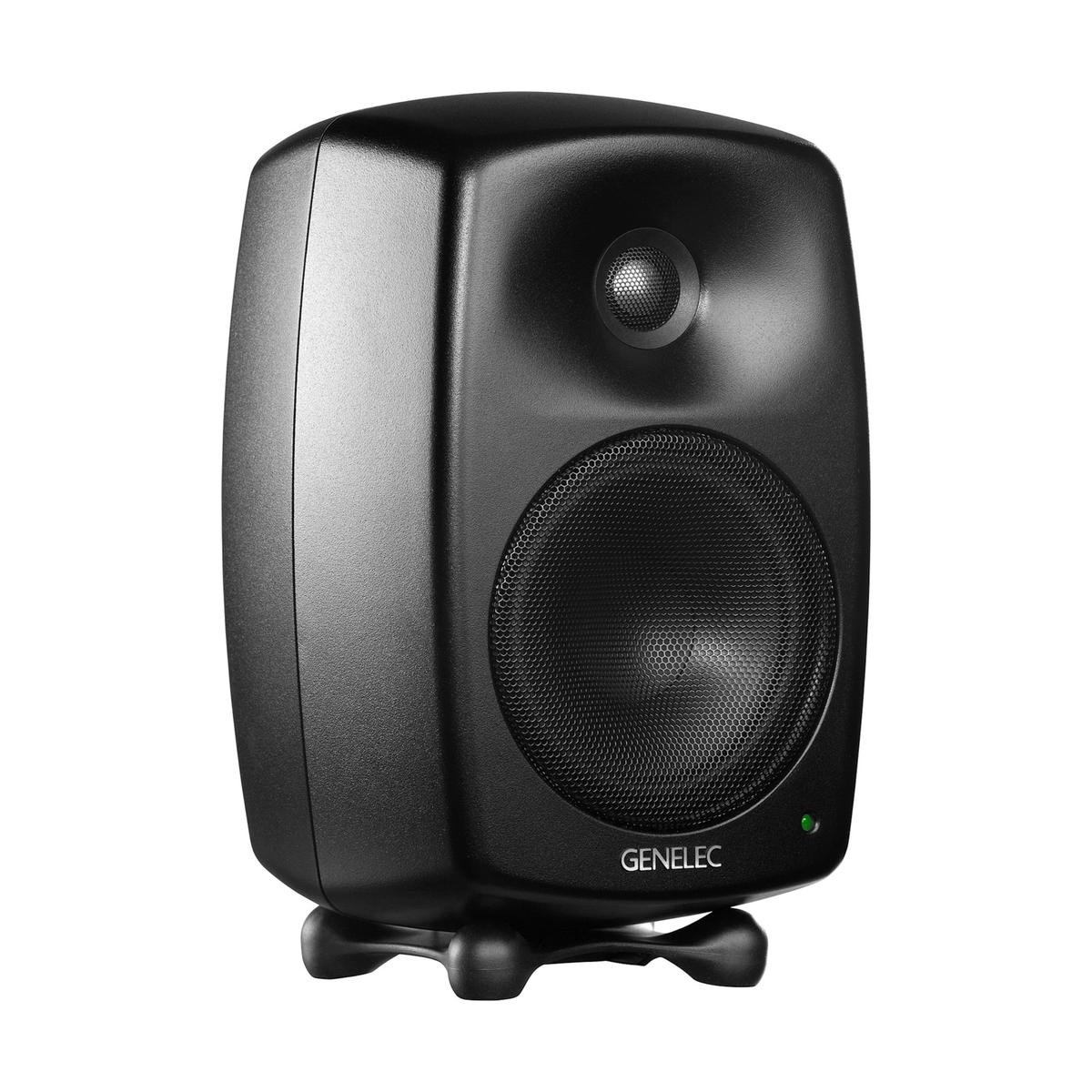

Genelec 8330A SAM™ Black is a compact two-way active studio monitor featuring Smart Active Monitoring (SAM™) technology, setting the benchmark for audio fidelity in challenging acoustic environments. Working seamlessly with GLM™ (Genelec Loudspeaker Manager) software and AutoCal™, it automatically calibrates levels, timing, and phase to precisely adapt to your room's acoustics, neutralizing detrimental room anomalies for a strictly reference monitoring experience. The die-cast aluminum Minimum Diffraction Enclosure (MDE™) ensures uncolored sound by minimizing edge diffraction and cabinet resonance.
The 8330A delivers transparent, colorless performance across a wide 45 Hz – 23 kHz frequency range, powered by two efficient Class D amplifiers (50 W for woofer and 50 W for tweeter). The advanced Directivity Control Waveguide (DCW™) provides a wide, stable sweet spot and precise stereo imaging both on and off-axis. With both analog XLR and digital AES/EBU connectivity, it is the ideal choice for professional music studios, post-production facilities, OB vans, and high-end home setups.
KEY FEATURES
- SAM™ (Smart Active Monitoring) technology with GLM™ calibration
- MDE™ die-cast aluminum enclosure for minimum diffraction
- DCW™ waveguide for wide sweet spot and controlled directivity
- High-efficiency Class D amplification (2 x 50 W)
- AutoCal™ precise room response compensation
- Analog XLR and Digital AES/EBU (In/Out) connectivity
- Iso-Pod™ stand for vibration isolation and tilting
- Compact footprint perfect for space-constrained studios
- ISS™ (Intelligent Signal Sensing) power saving technology
TECHNICAL SPECIFICATIONS
- System: 2-way active, reflex port design
- Frequency Response: 45 Hz – 23 kHz (-6 dB) / 58 Hz – 20 kHz (±1.5 dB)
- Max SPL: 104 dB
- Woofer: 130 mm (5") Cone
- Tweeter: 19 mm (3/4") Metal Dome with DCW™
- Amplifier Power: 50 W (Bass) + 50 W (Treble) Class D

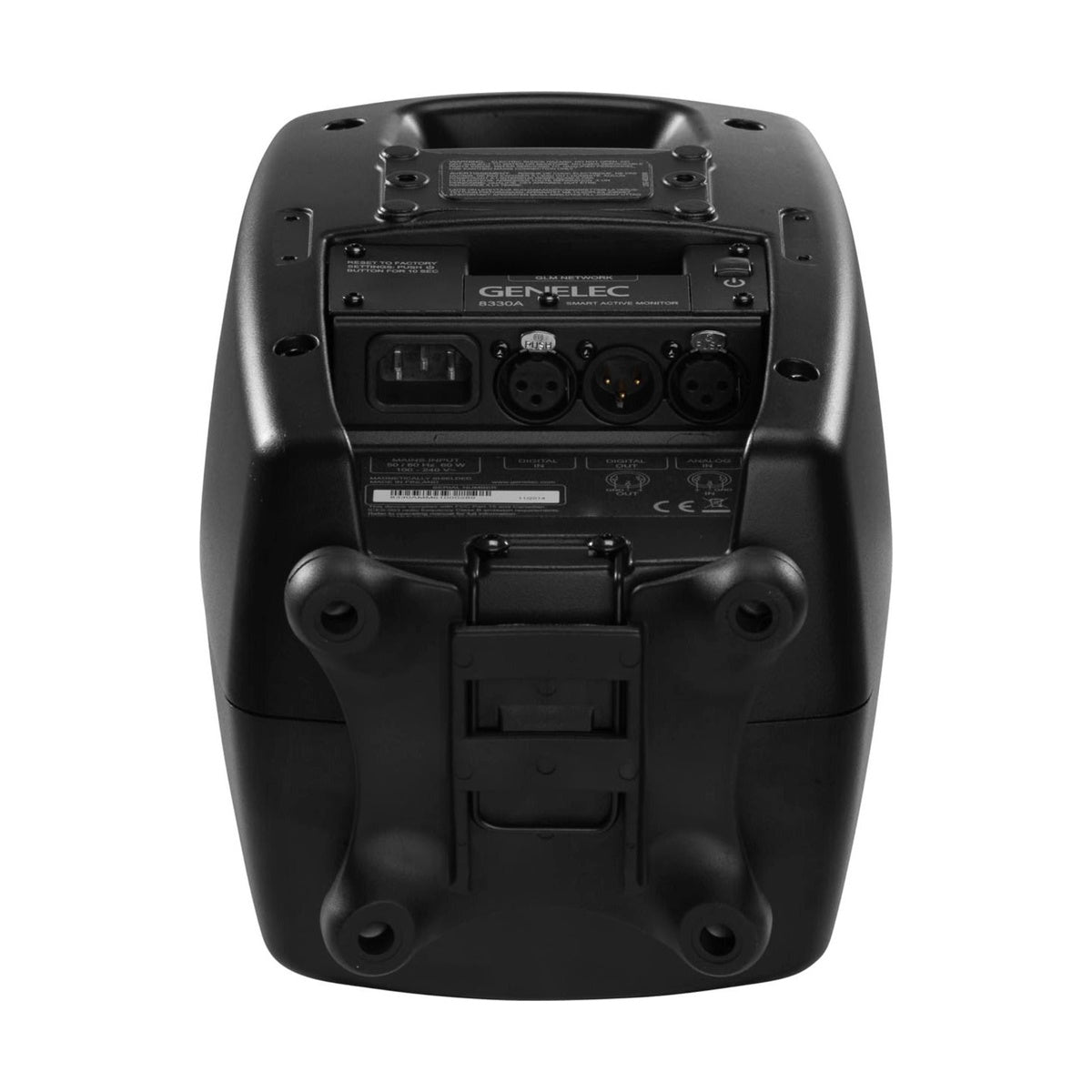

- Inputs: 1 x Analog XLR, 1 x AES/EBU XLR In, 1 x AES/EBU XLR Out
- Control Network: 2 x RJ45 (GLM Network)
- Self-generated noise: ≤ 5 dB SPL (A-weighted, 1m)
- Dimensions: 299 x 189 x 178 mm (with Iso-Pod™)
- Weight: 5.5 kg (12.1 lb)
- Power Supply: 100-240 VAC 50/60Hz
