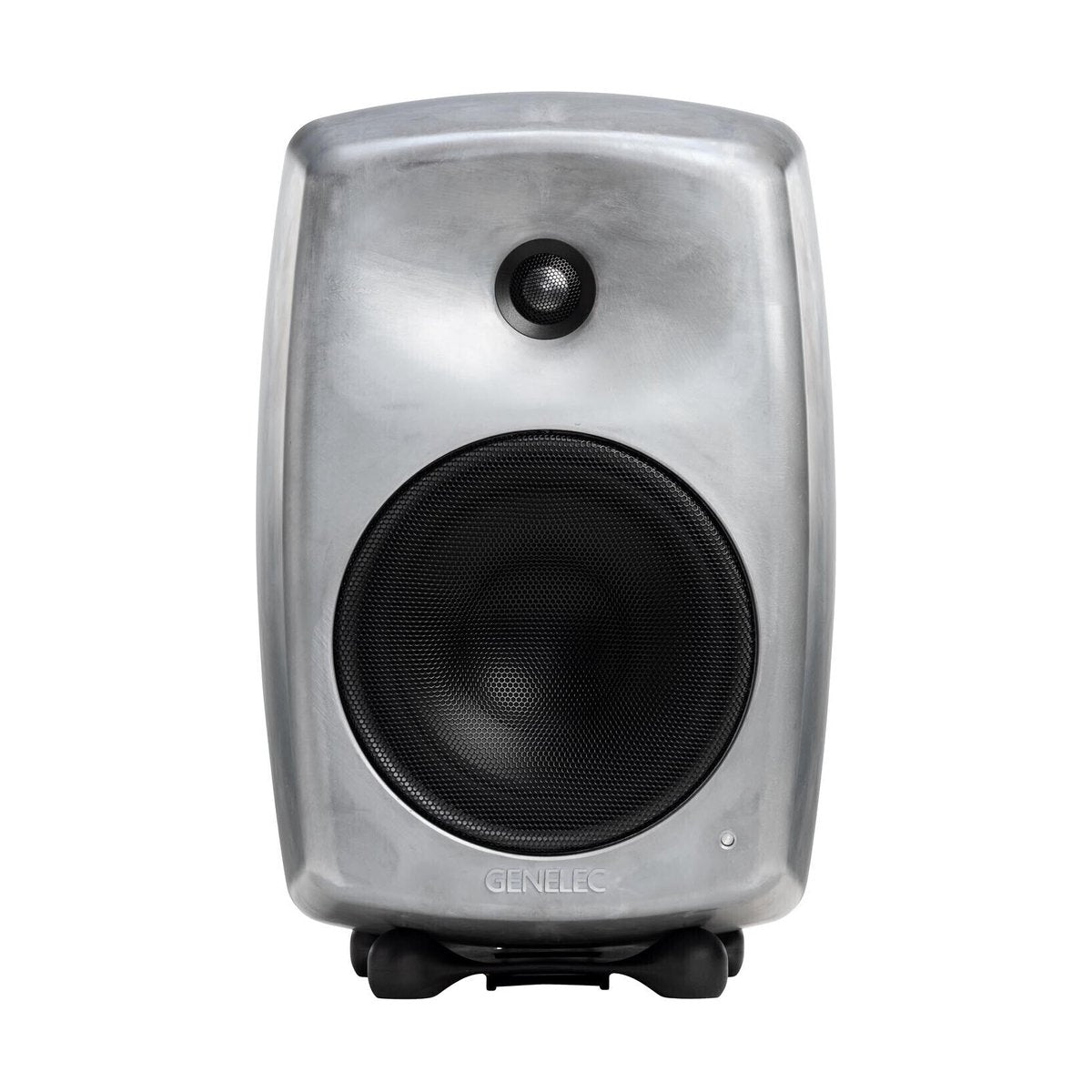

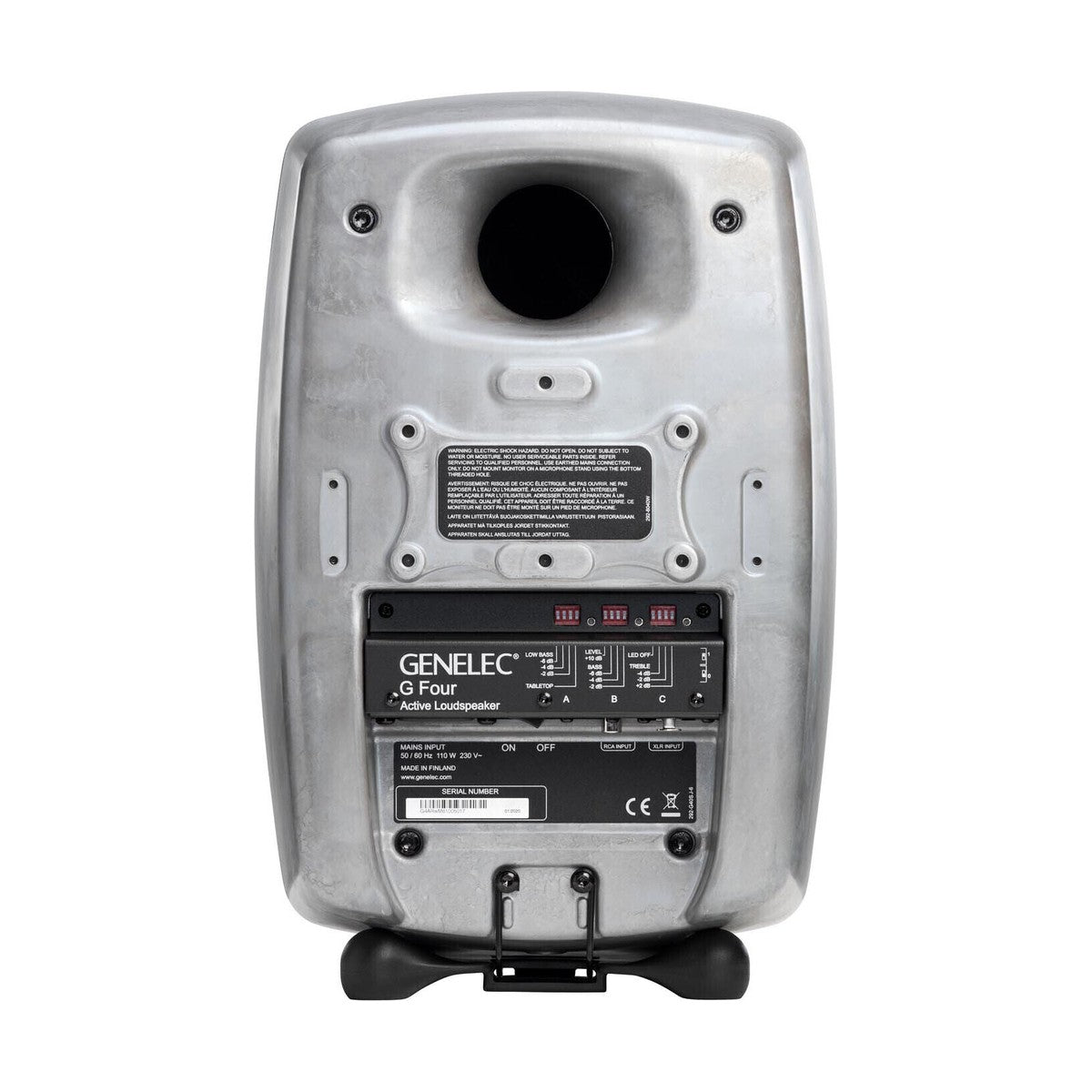

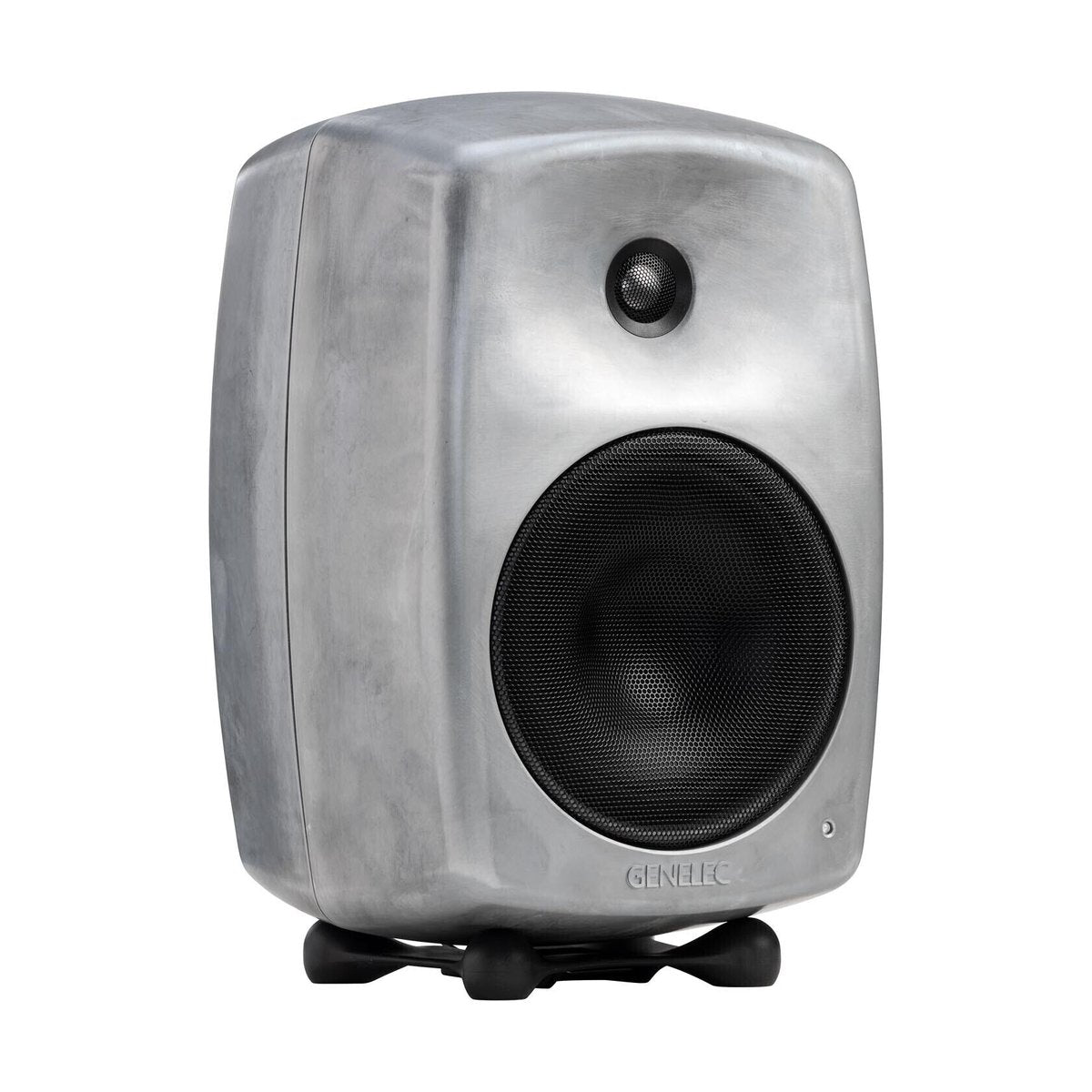

GENELEC G Four RAW (Model G4ARwM) – an active monitor in the Genelec G series finished in RAW (unpainted aluminum), delivering powerful performance and wide frequency extension suited for demanding acoustic environments.
The G Four is a two-way active design with built-in Class AB amplifiers: 90 W for the woofer and 90 W for the tweeter. It offers a frequency response from 41 Hz to 25 kHz (–6 dB), with a response accuracy of ±2.5 dB (48 Hz – 20 kHz). Peak SPL reaches 105 dB.
The enclosure is die-cast aluminum in a bass-reflex layout, equipped with a Directivity Control Waveguide (DCW) for controlled dispersion. Inputs include RCA and XLR, allowing flexible integration with various source gear. The dimensions with Iso-Pod are 365 × 237 × 223 mm, and the weight is approximately 9.9 kg.
KEY FEATURES
- RAW finish – unpainted aluminum
- Active two-way design with integrated amplification
- 90 W amplifier for low frequencies + 90 W for high frequencies (Class AB)
- Frequency response: 41 Hz – 25 kHz (–6 dB)
- Response accuracy: ±2.5 dB (48 Hz – 20 kHz)
- Maximum short-term SPL: 105 dB
- Inputs: 1 × RCA, 1 × XLR analog
- Enclosure: die-cast aluminum, bass-reflex, DCW waveguide
- Dimensions (with Iso-Pod): 365 × 237 × 223 mm
- Weight: ~9.9 kg
TECHNICAL SPECIFICATIONS
- Type: active 2-way monitor
- Drivers: 165 mm woofer + 19 mm metal dome tweeter
- Amplifier power: 90 W (LF) + 90 W (HF), Class AB
- Frequency response (–6 dB): 41 Hz – 25 kHz
- Response accuracy: ±2.5 dB (48 Hz – 20 kHz)
- Maximum SPL: 105 dB (short-term)
- Crossover frequency: ~3000 Hz
- Enclosure: die-cast aluminum, bass-reflex, DCW waveguide
- Inputs: 1 × RCA, 1 × XLR (10 kΩ each)
- Power supply: 100–240 VAC, 50/60 Hz
- Power consumption: max ~110 W; idle ≤10 W; ISS ≤0.5 W
- Dimensions: 365 × 237 × 223 mm (H × W × D, with Iso-Pod)
- Weight: 9.9 kg
- Included: G Four RAW monitor, power cable, Iso-Pod stand, manual
