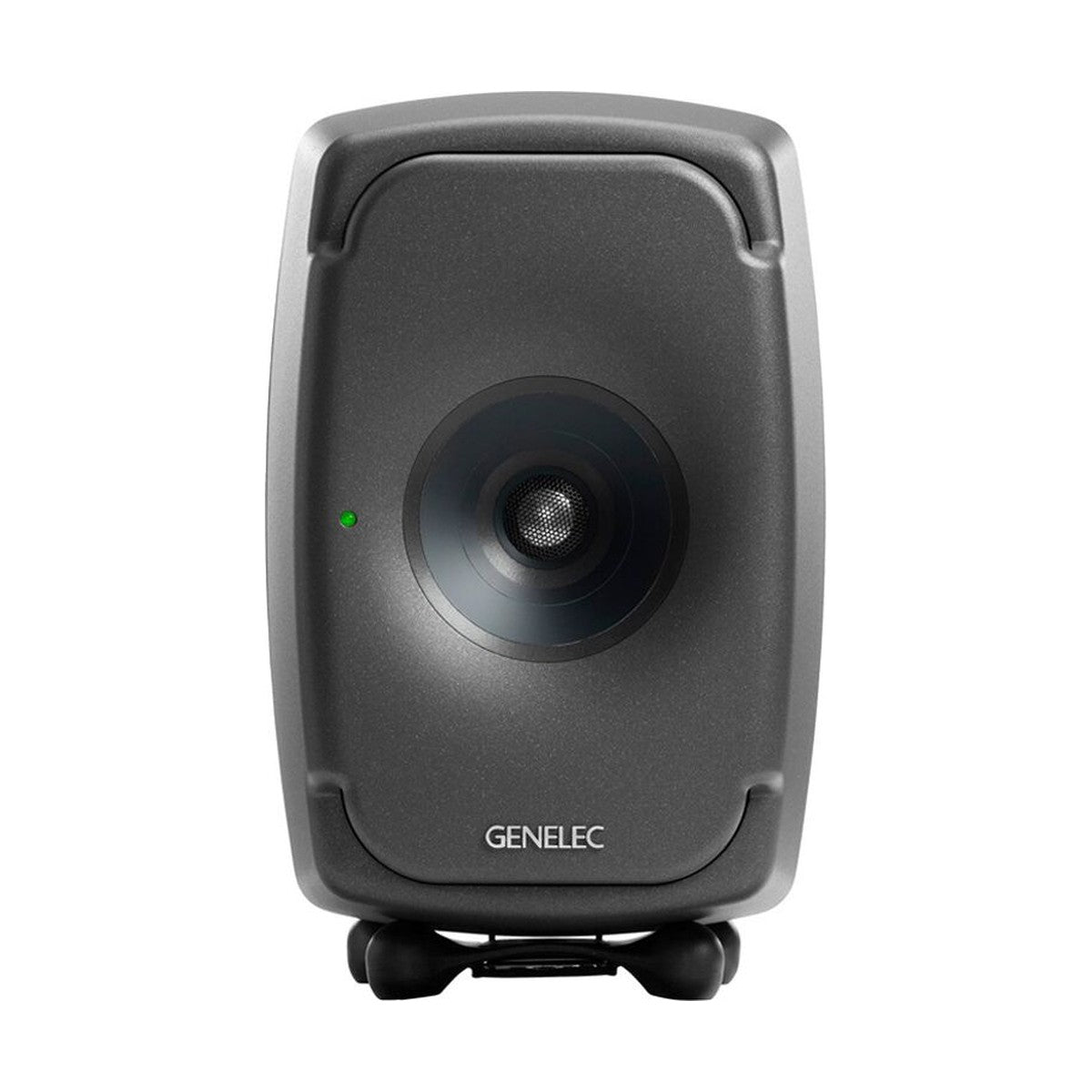

Genelec 8331AP SAM 3-Way Active Nearfield Studio Monitor – Dark Grey – Premium three-way point-source monitor offering extended frequency response, precise imaging, and fatigue-free long-term listening. Part of The Ones series (8331, 8341, 8351), deployable horizontally or vertically.
The 8331AP features a die-cast aluminum Minimum Diffraction Enclosure (MDE™) for minimal cabinet coloration and Iso-Pod™ stand for vibration isolation. Dual hidden oval woofers (ACW™) and a co-axial mid/tweeter (MDC™) sit behind Genelec’s Directivity Control Waveguide (DCW™) for consistent dispersion. Tri-amped Class-D power (72 W LF, 36 W MF, 36 W HF) and Smart Active Monitoring (SAM™) with AutoCal via GLM™ 2.0 deliver automatic level, timing, and EQ calibration in any room.
KEY FEATURES
- The Ones Series: Ultimate point-source monitors (8331, 8341, 8351).
- Tri-Amp Power: 72 W low + 36 W mid + 36 W high frequency Class-D amplifiers.
- ACW™ Woofers: Dual hidden 5 1/8″×2 5/8″ oval woofers for controlled bass directivity.
- MDC™ Coaxial: 3 ½″ midrange & ¾″ tweeter on one axis for perfect phase coherence.
- DCW™ Waveguide: Large integrated waveguide for linear dispersion across a wide bandwidth.
- MDE™ Enclosure: Die-cast aluminum with rounded edges for minimal diffraction.
- SAM™ Technology: Smart Active Monitoring with AutoCal, managed via GLM™ 2.0 software.
- ISS™ Standby: Intelligent Signal Sensing auto-standby with front-panel switch.
- Magnetic Shielding & Active Crossover.
TECHNICAL SPECIFICATIONS
- Acoustic Design: Rear-ported bass reflex
- Frequency Response: 45 Hz–37 kHz (–6 dB)
- Crossover Frequencies: 500 Hz & 3 kHz
- Drivers: 2× 5 1/8″×2 5/8″ ACW™ woofers; 3 ½″ + ¾″ MDC™ coaxial mid/tweeter
- Amplification: 72 W LF, 36 W MF, 36 W HF Class-D
- Inputs: 1× XLR analog; ISS standby switch
- Dimensions (H×W×D): 305 × 189 × 212 mm
- Weight: 6.7 kg
- Country of Design: Finland
