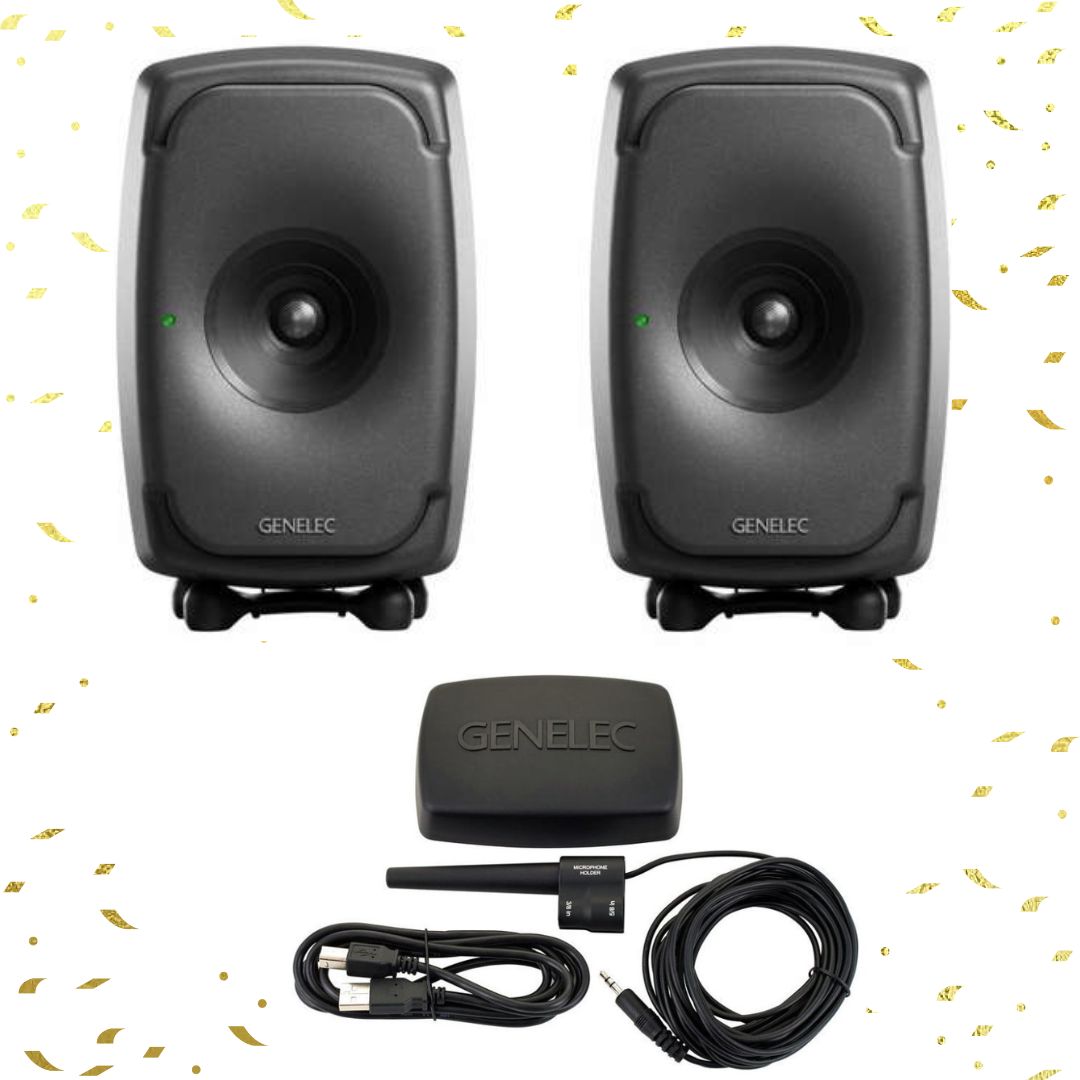

Genelec 8331AP 2 pcs + Genelec GLM KIT 8300-601-PACK pairs two three-way coaxial monitors from The Ones range in producer finish with the GLM measurement kit. Without the GLM kit a SAM monitor still plays, but its most important function stays switched off: automatic compensation for room acoustics. This bundle closes that gap immediately and lets the system be calibrated on installation day.
A point source instead of a stereo image that shifts
In a conventional two-way cabinet the drivers are separated vertically, so the stereo image changes with head height and listening distance. The 8331A solves this structurally: Minimum Diffraction Coaxial technology places a 19 mm dome inside a 90 mm midrange driver, with two 130 x 65 mm racetrack woofers concealed behind the enclosure surface. The result is a practical point source covering 45 Hz to 37 kHz with plus or minus 1.5 dB accuracy from 58 Hz to 20 kHz, holding the same imaging well off axis.
Calibrating the room rather than fighting its resonances

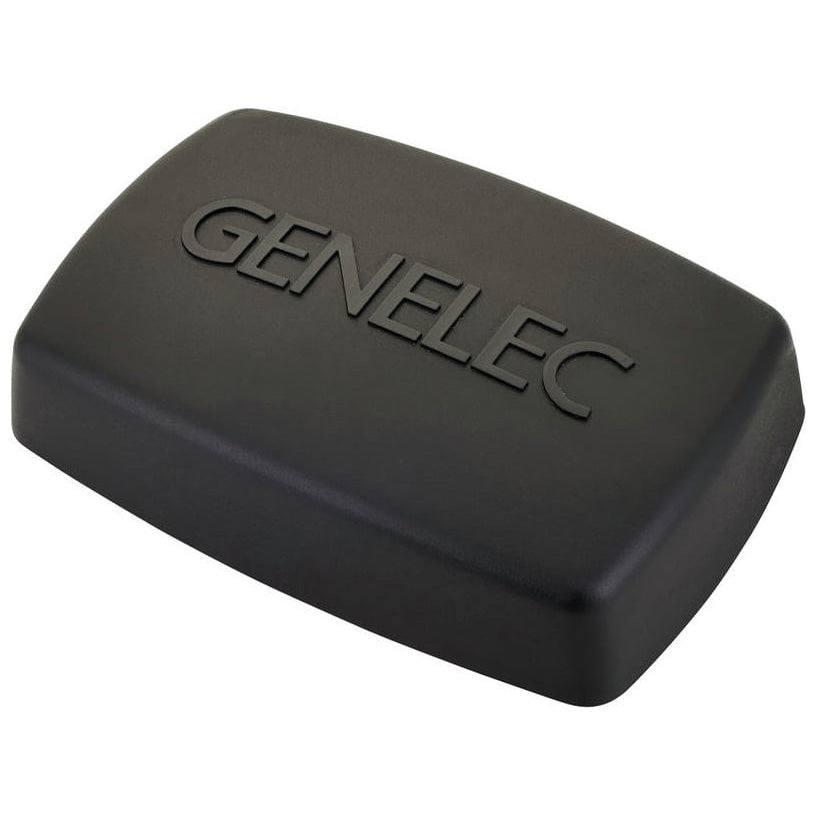

The GLM 8300-601 kit contains the network adaptor, the 8300A measurement microphone with holder, a 1.8 m USB cable and a quick connection guide. GLM software measures the response at the listening position and automatically corrects frequency response, levels and delays for each monitor, which removes the most common cause of mixes that do not translate: bass build-up from the wall behind the speakers and asymmetric placement. The adaptor connects to the computer over USB and to the monitors over CAT5, forming a control network across the whole system.
KEY FEATURES
- Two Genelec 8331A three-way coaxial monitors in producer finish
- Minimum Diffraction Coaxial technology, a practical point source
- Smart Active Monitoring with full GLM software support
- GLM 8300-601 kit with 8300A measurement microphone included
- Automatic correction of response, levels and delays at the listening position
- Analogue XLR and AES/EBU digital inputs with through output
- Die-cast aluminium enclosure with Iso-Pod stand
TECHNICAL SPECIFICATIONS
- Frequency response: 45 Hz to 37 kHz at minus 6 dB, plus or minus 1.5 dB from 58 Hz to 20 kHz
- Drivers: 2 x 130 x 65 mm racetrack woofers, 1 x 90 mm coaxial midrange, 1 x 19 mm metal dome tweeter
- Class D amplifiers: 72 W bass, 36 W midrange, 36 W treble
- Maximum SPL: at least 104 dB short term, at least 110 dB peak
- Monitor connectors: 1 x balanced analogue XLR 10 kilohm, 1 x XLR AES/EBU input, 1 x XLR AES/EBU output, 2 x RJ45 CAT5 for the GLM network
- Monitor dimensions: 305 x 189 x 212 mm with Iso-Pod
- Monitor weight: 6.7 kg
- GLM 8300-601 kit contents: network adaptor, 8300A measurement microphone with holder, 1.8 m USB cable, quick connection guide
