Erica Synths Razornator
Erica Synths Razornator
Warsaw Showroom
Nowogrodzka 6
102
00-513 Warszawa
Pologne
Configurer

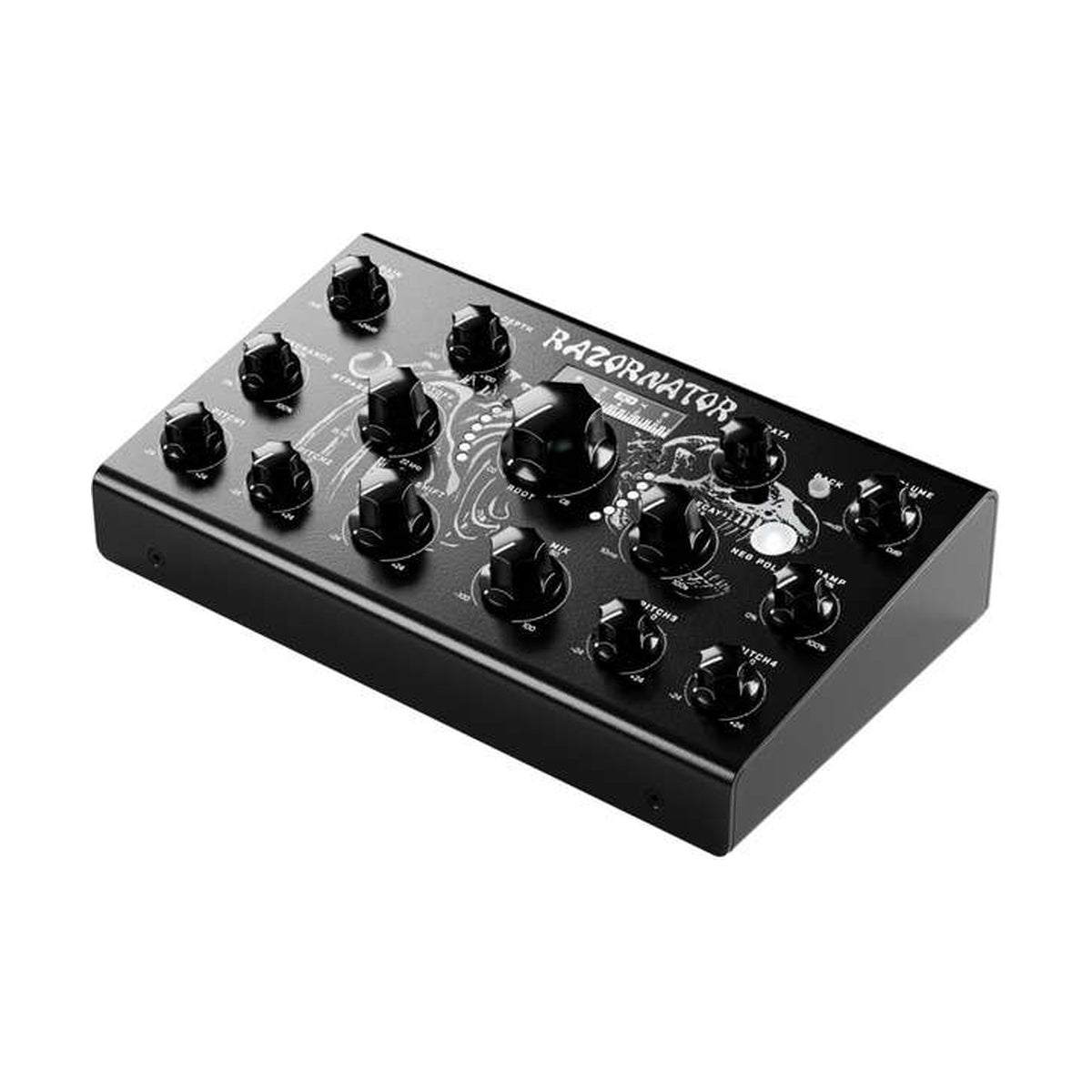

Erica Synths Razornator is a stereo effects unit built around five chromatically tuned resonating delay lines, with an algorithm developed together with the Dutch company 112dB. It does not add reverb or modulation; it alters the harmonic content of the incoming signal, emulating the resonance of physical objects such as instrument bodies, rooms and structures.
Resonance that tunes to the track
The usual problem with resonators and comb filter effects is that their peaks land at pitches unrelated to the key of the material, so the effect turns sour quickly and ends up usable only on experimental sounds. The Razornator uses chromatic tuning, so the five delay lines can be aligned in chord-like intervals and work inside the key of the track. The same processor therefore covers both a subtle thickening of a drum loop and a full rebuild of a sound into a drone.
Dynamics instead of a static filter
A built-in envelope follower can take over the resonators, so the effect tracks input dynamics rather than settling into fixed colouration. The signal path is laid out as a chain of considered stages: a gain stage boosting up to plus 24 dB that also works as an overdrive, a lowpass filter with resonance, the five resonators, a compressor limiting the summed signal, a dry blend, an equaliser and a balanced output. All 12 parameters can be saved and recalled, presets can be morphed, every parameter responds to MIDI, and a configurable footswitch input allows hands-free changes on stage.
KEY FEATURES
- Five chromatically tuned resonating delay lines
- Algorithm developed together with 112dB
- Built-in envelope follower driving the resonators

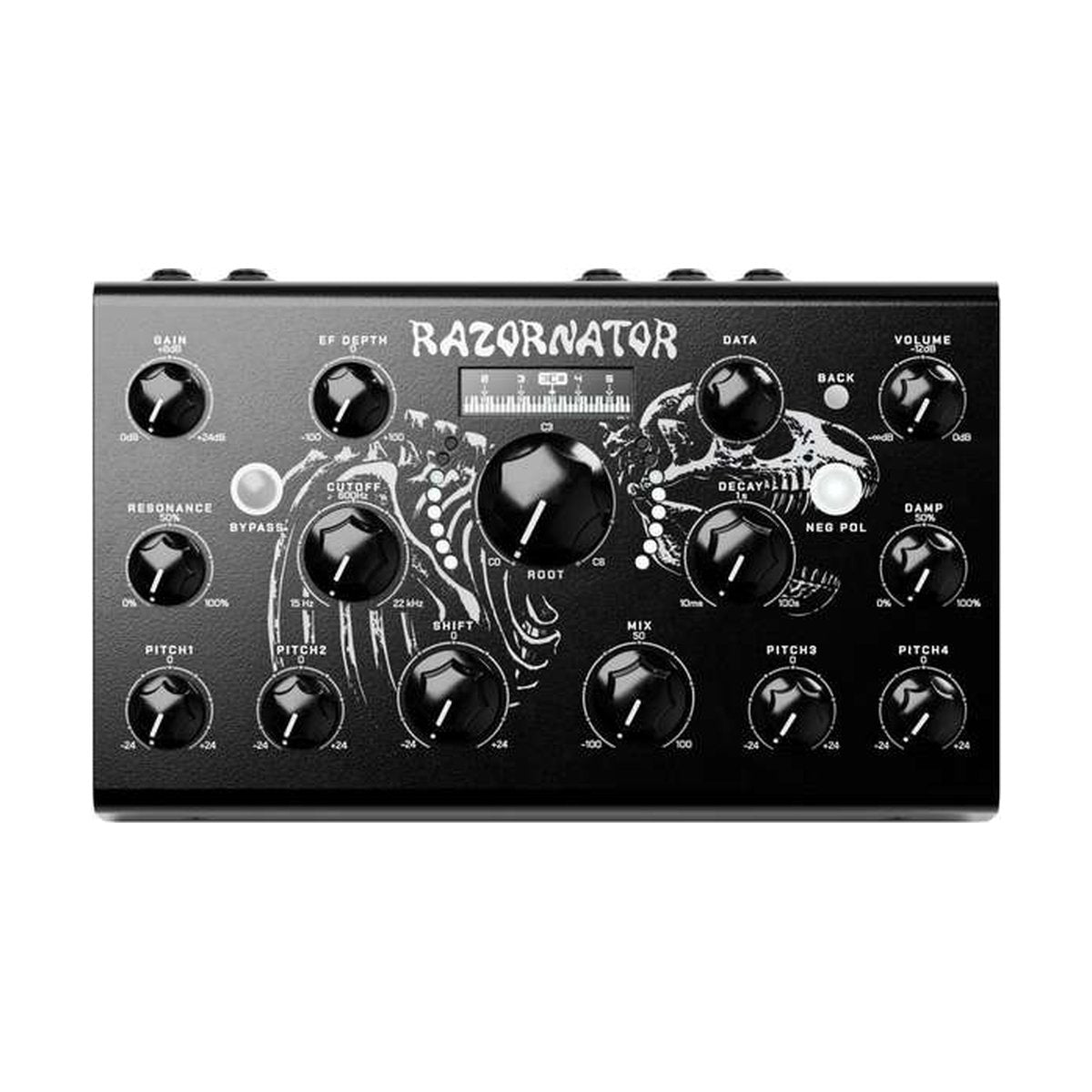

- Save and recall for all 12 parameters plus preset morphing
- Resonator tunings playable over MIDI
- Gain stage up to plus 24 dB working as an analogue overdrive
- Lowpass filter with resonance, compressor and equaliser in the chain
- Configurable footswitch input
- True stereo signal path with balanced output
- Aluminium enclosure matching the Erica Synths compact desktop range
TECHNICAL SPECIFICATIONS
- Type: stereo resonator effects processor, desktop format
- Resonators: 5 chromatically tuned delay lines
- Signal path: gain, lowpass filter with resonance, resonators, compressor, dry blend, equaliser, balanced output
- Gain stage range: up to plus 24 dB
- Saveable parameters: 12

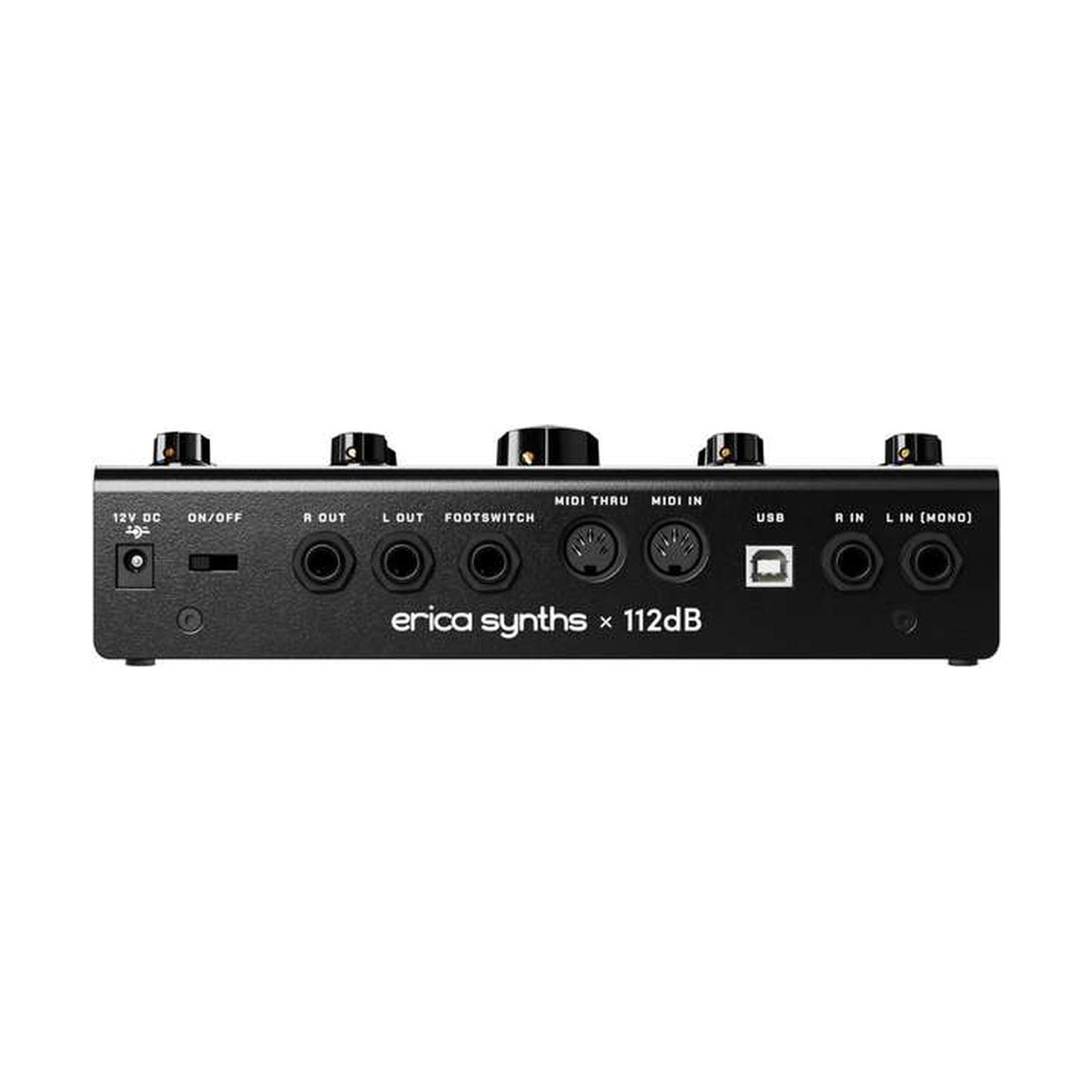

- Control: MIDI over all parameters, configurable footswitch input
- Enclosure: aluminium
- Manufacturer: Erica Synths
