Black Lion Audio PG-1 mkII Power Conditioner is a professional 1U rackmount power conditioner designed to deliver exceptionally clean power to your studio gear while providing robust surge protection. With PG-99 Filtering Technology and premium Panasonic and Wima capacitors, it dramatically reduces high-frequency noise, helping your equipment perform with greater clarity, punch and reliability.
PG-1 mkII provides a total of 10 outlets – 8 switched outlets on the rear panel and 2 convenient, always‑on outlets on the front – arranged in groups optimised for digital audio, analog audio and high‑current devices like power amps and active monitors. The high‑current outlets are time‑delayed so your speakers and amps always turn on last and power down first, preventing dangerous pops when powering your system. A front‑panel LED voltage meter, status indicators, audio alarm, USB charging port and XLR lamp connector make the PG‑1 mkII a powerful central hub for monitoring and controlling your studio’s power.
KEY FEATURES
- Professional 1U rackmount power conditioner for studio and live rigs
- PG‑99 Filtering Technology providing an average of around 99.7% noise reduction compared to typical conditioners
- Premium Panasonic and Wima capacitors to filter performance‑robbing high‑frequency noise
- 10 total outlets: 8 switched rear outlets and 2 unswitched, filtered front‑panel convenience outlets
- Four optimised rear outlet banks: 2 × Digital Audio, 1 × Analog Audio, 1 × High Current for amps and speakers
- Time‑delayed high‑current outlets with sequenced power‑up/power‑down to protect monitors from pops

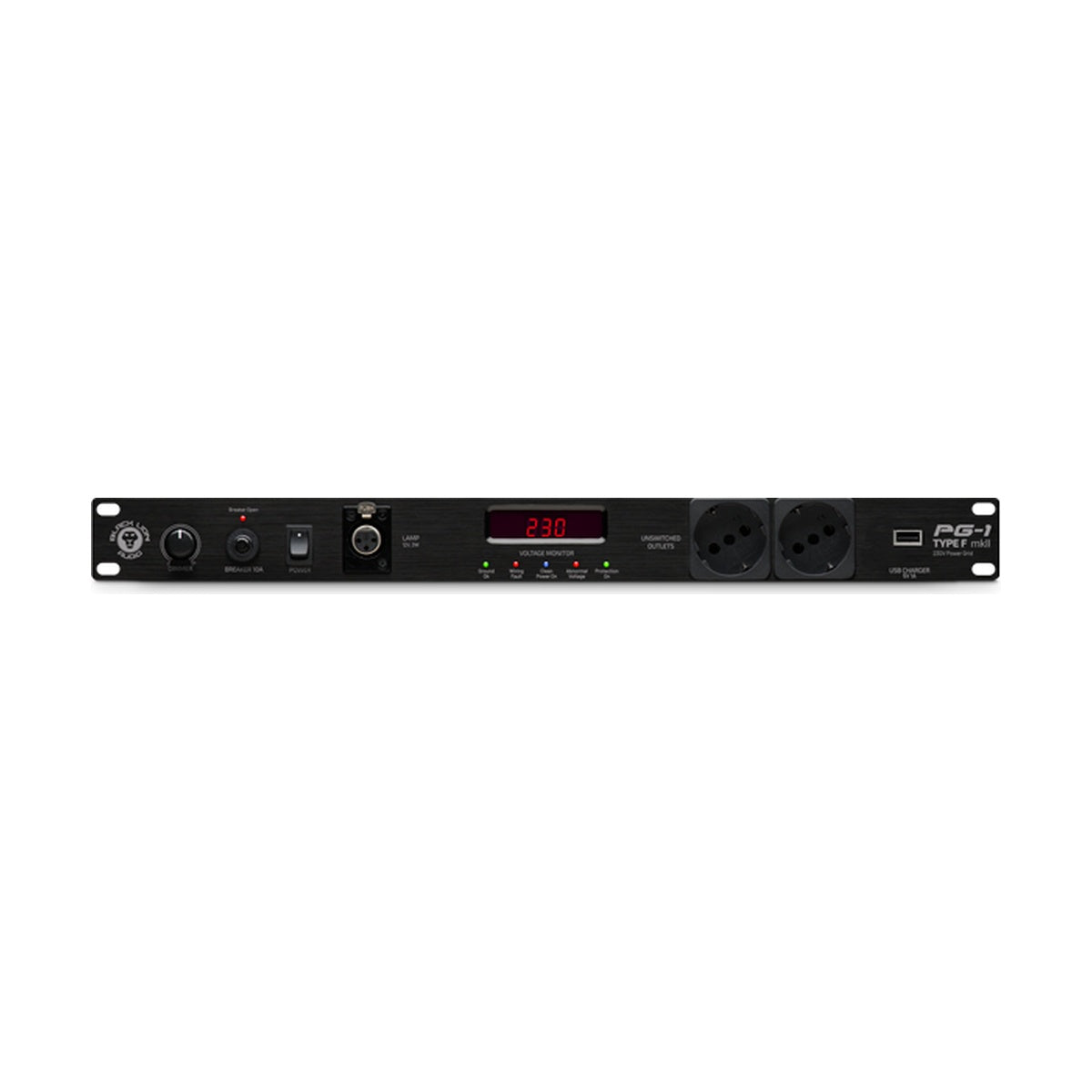

- Front‑panel LED voltage meter for real‑time line voltage monitoring
- Status LEDs for grounding, polarity, noise filtering, abnormal voltage and surge protection
- Audio alarm to warn of unsafe voltage conditions
- Front‑panel USB charging port and XLR connector for a rack light
- Surge protection with an energy absorption rating of approx. 2775 joules
TECHNICAL SPECIFICATIONS
- Type: rackmount power conditioner
- Number of outlets: 2 × front (unswitched, filtered), 8 × rear (switched, filtered and surge protected)
- Rear outlet groups: 2 × Digital Audio, 1 × Analog Audio, 1 × High Current (time‑delayed)
- Maximum output current: approx. 15 A (120 V version; region‑specific variants available)
- Surge energy rating: approx. 2775 joules
- Display: LED voltage meter plus status LEDs
- Lamp connector: front‑panel XLR lamp output
- Additional I/O: front‑panel USB‑A charging port
- Form factor: 19" rackmount, 1U height
- Depth: approx. 9.8" (about 25 cm)
- Weight: approx. 10.6 lbs (around 4.8 kg)
- Power source: fixed AC cable, typical operating voltage around 90–130 V AC (version dependent)
