Black Box Analog Design HG-Q – stereo analog EQ featuring unique proprietary topology, six interactive bands, a versatile tube saturation circuit, stereo, mid-side, dual-mono, and mono modes, with comprehensive plug-in integration.
The Black Box HG-Q is a sophisticated analog equalizer offering six interactive bands, each with independent boost and cut controls, gain, Q, and frequency selection. This unique design allows for complex and musical interactions unmatched by traditional EQs. A distinctive tube saturation circuit enriches audio signals with harmonic richness, adding depth, density, and analog character without compromising clarity or transient response. The HG-Q’s 2X mode enables dramatic ±16 dB boosts and cuts, intensifying harmonic details and delivering cohesive, engaging sound even at aggressive settings. Ideal for tracking, mixing, and mastering, the HG-Q integrates seamlessly with an included plug-in for digital control, spectrum analysis, and remote workflow flexibility.
KEY FEATURES
- 6-band analog equalizer
- Integrated tube saturation circuit
- Independent boost and cut controls per band
- 2X mode with ±16 dB boost/cut and enhanced saturation
- Modes: Stereo, mid-side, dual-mono, mono
- Included control plug-in with spectrum analyzer
- Robust 3U rackmount chassis
TECHNICAL SPECIFICATIONS
- Type: Solid State with tube saturation
- Number of Bands: 6
- Boost/Cut Range: ±16 dB (2X mode)
- High Frequency Range: 2 kHz – 15 kHz
- Mid Frequency Range: 220 Hz – 2.5 kHz
- Low Frequency Range: 30 Hz – 400 Hz

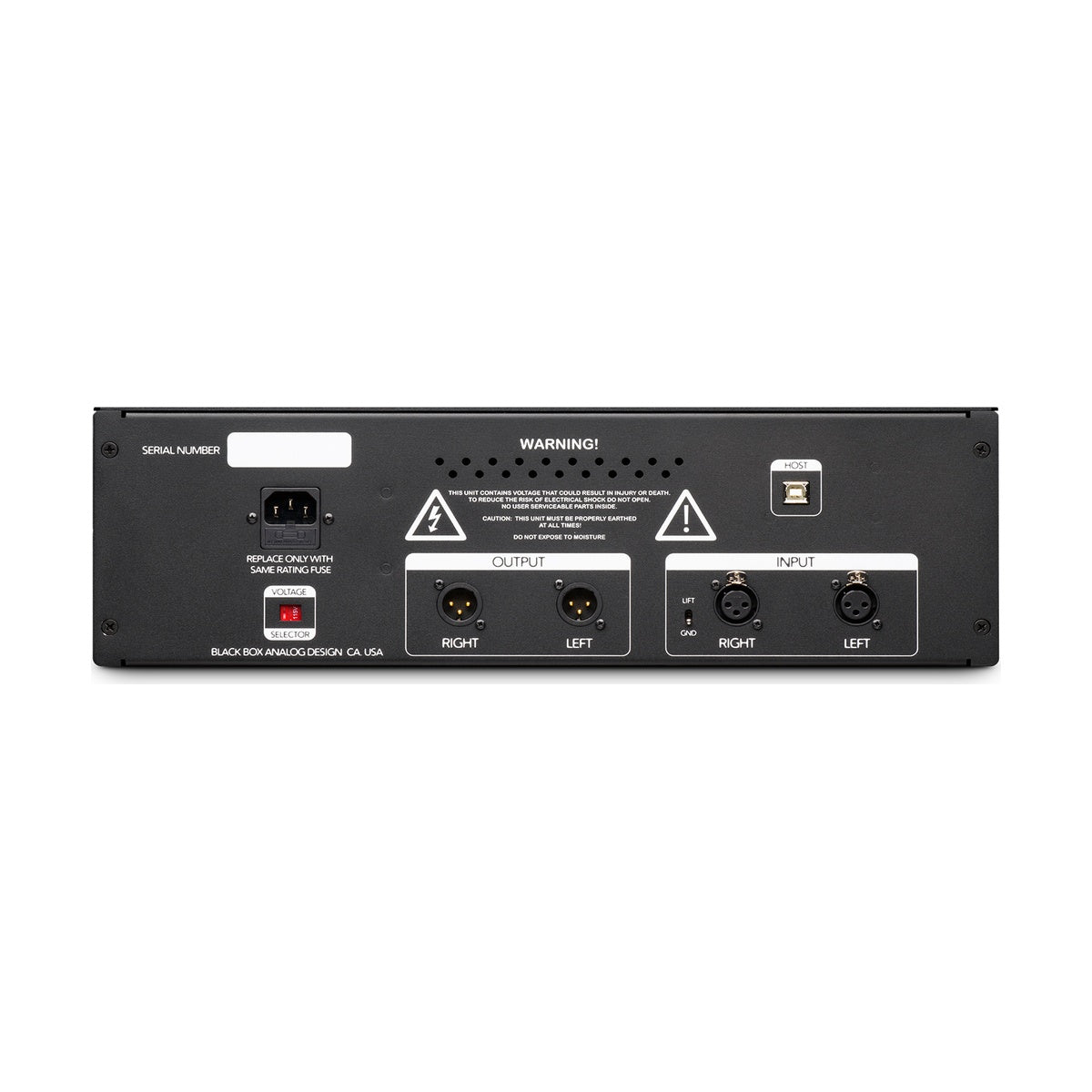

- Inputs: 2 x XLR
- Outputs: 2 x XLR
- USB Connection: 1 x Type B (Host)
- Rack Spaces: 3U
- Power Supply: Standard IEC AC cable
- Manufacturer Part Number: HG-Q
