The B-Stock IK Multimedia UNO Synth Pro X is an advanced, paraphonic analog synthesizer that upgrades its predecessor with a completely redesigned, hands-on user interface. As a B-Stock unit, it provides uncompromised technical functionality and massive analog tone at a reduced price point. The core of the instrument features three discrete wave-morphing oscillators and a versatile dual-filter architecture, making it a formidable tool for designing everything from earth-shattering basses to aggressive leads and complex, cinematic textures.
Tactile Sound Design Without Menu Diving

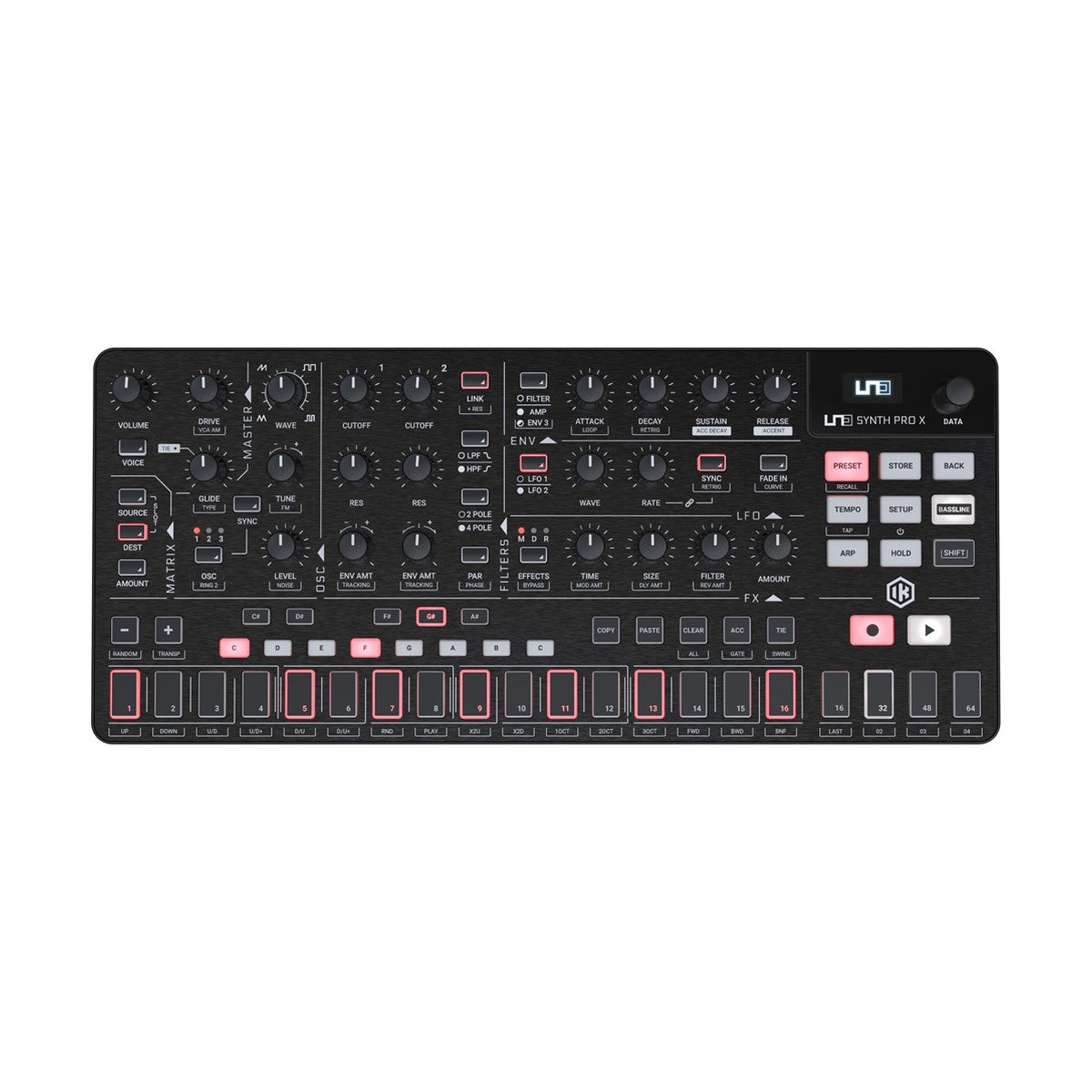

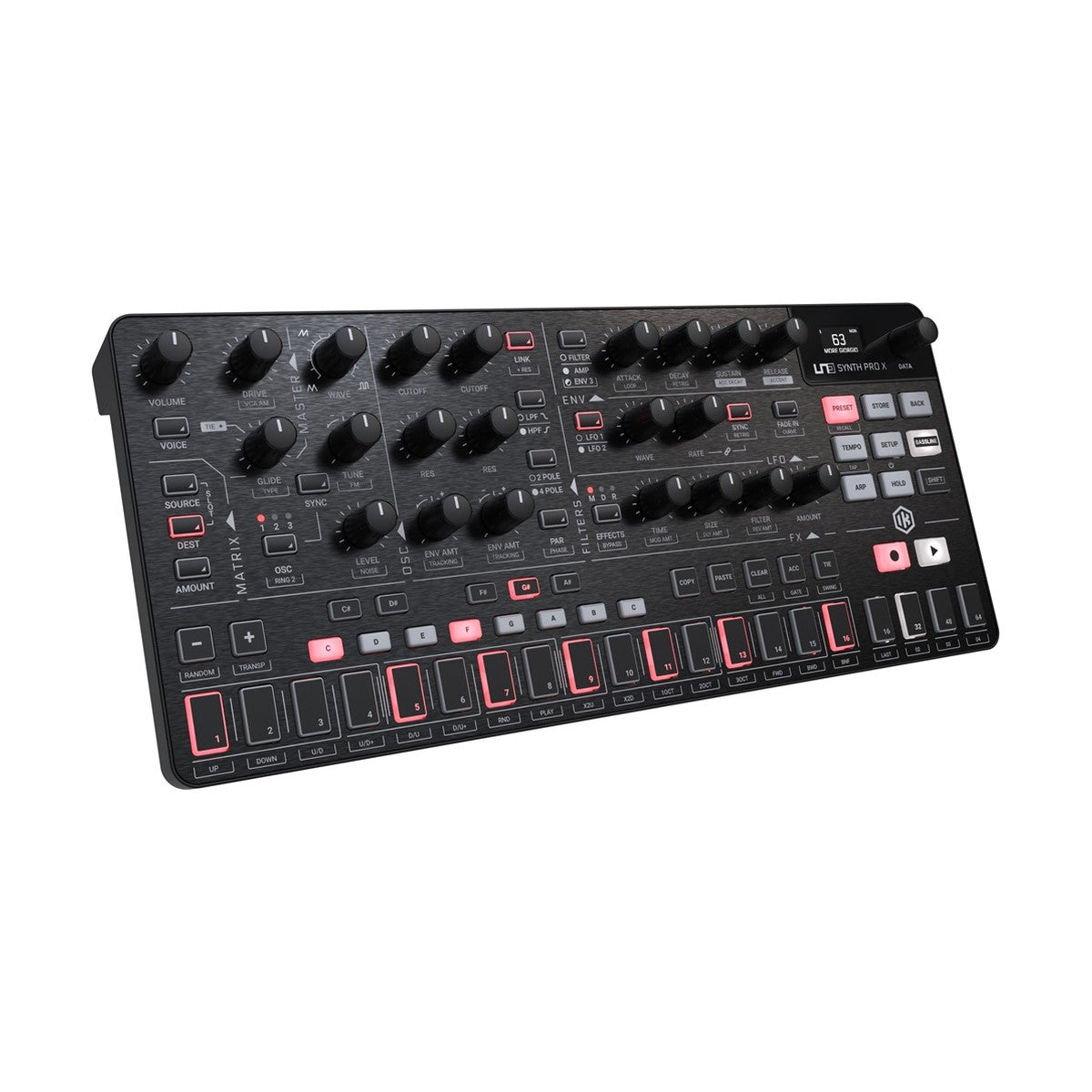

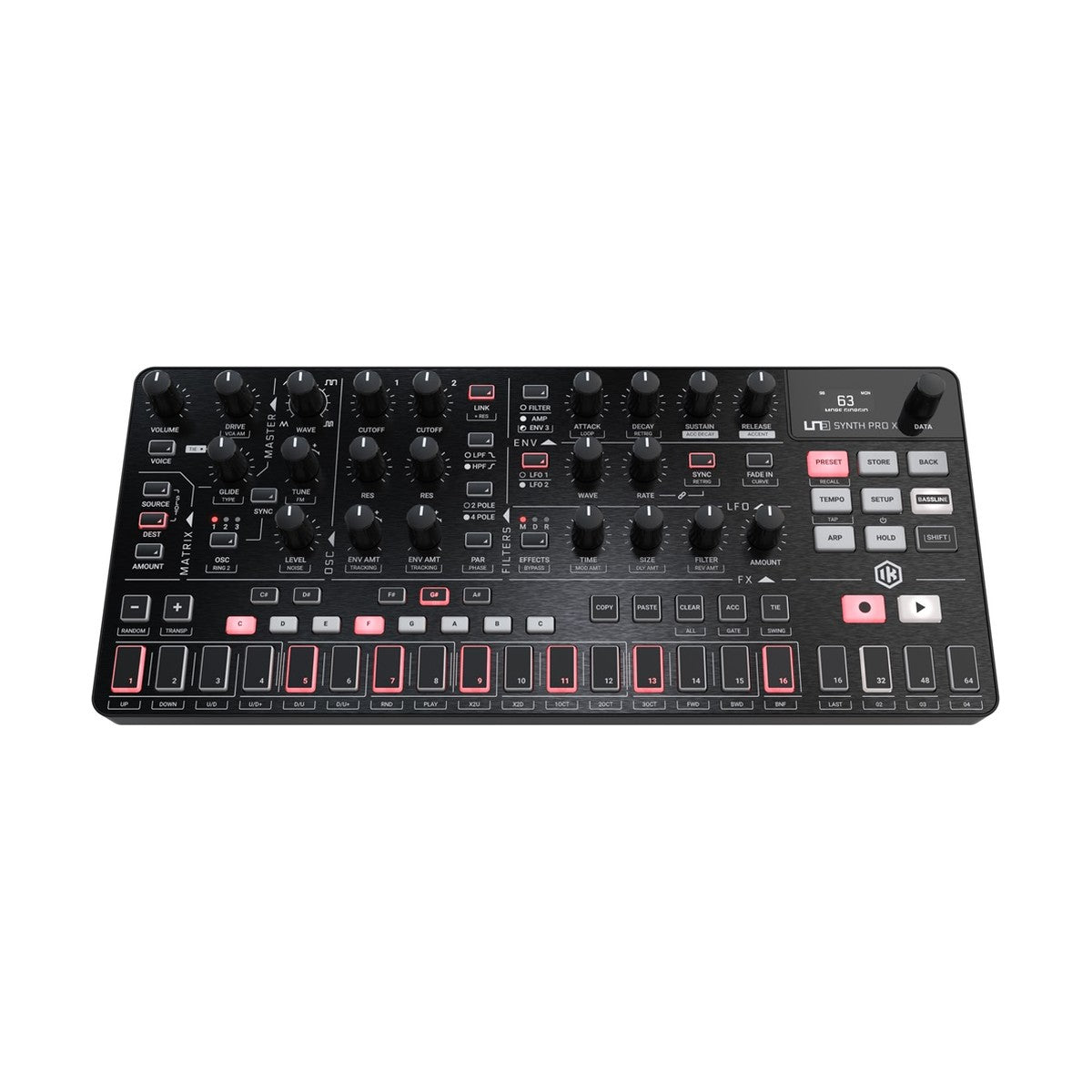

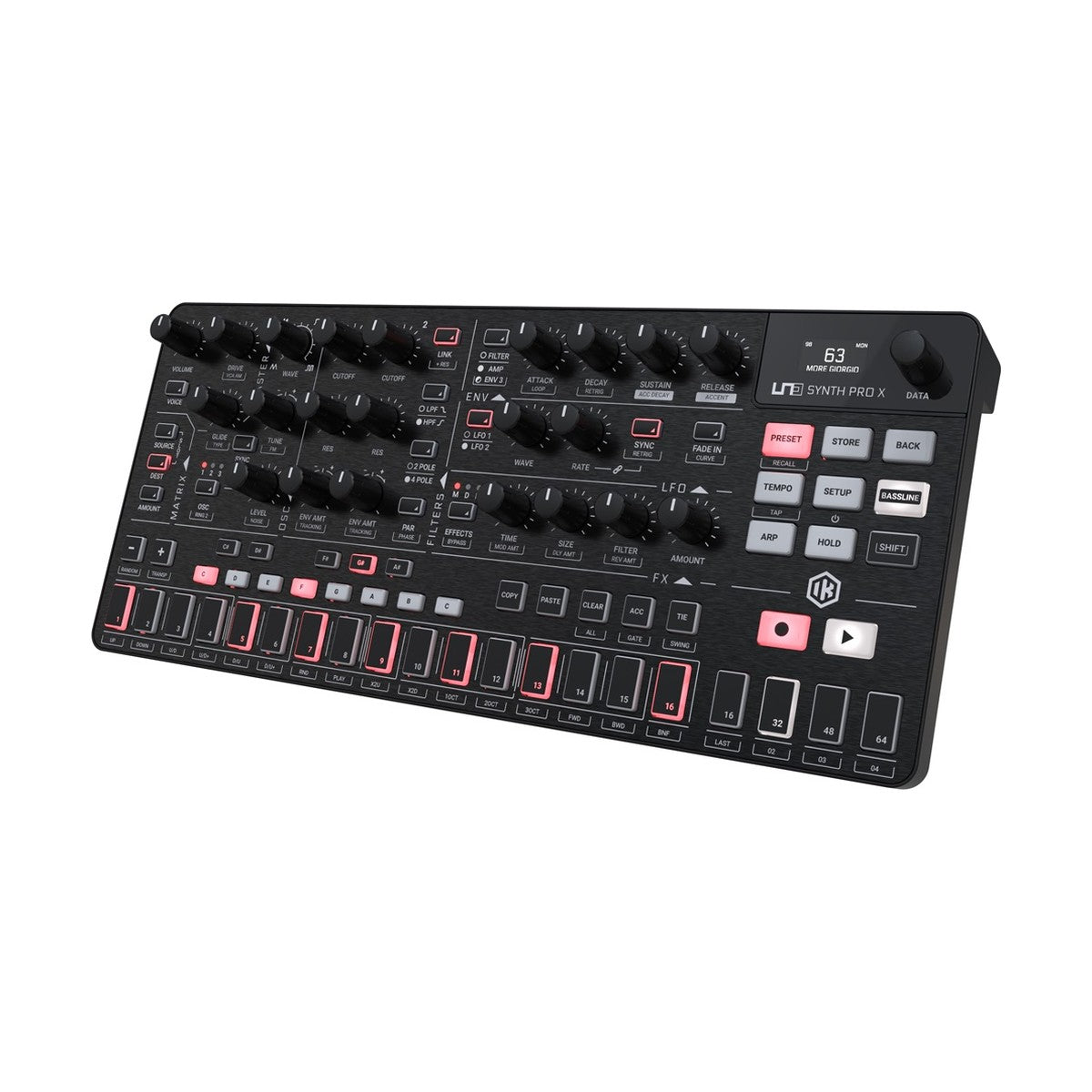

Operating compact desktop synthesizers often involves tedious menu diving and screen navigation, killing the creative flow. The UNO Synth Pro X eradicates this workflow bottleneck by loading the front panel with over 30 dedicated, high-quality knobs. This layout grants immediate, physical access to oscillator shaping, envelope generation, filter cutoffs, and effect sends. Such tactile immediacy dramatically accelerates the sound design process, ensuring engineers and performers stay focused on patching and playing rather than scrolling through sub-menus.
Extensive Modulation and Hybrid Integration
Bridging the gap between modern DAWs and analog modular gear can require complicated routing and extra conversion hardware. The UNO Synth Pro X acts as a robust centerpiece for your setup, equipped with dedicated CV/Gate I/O for direct control and synchronization with Eurorack systems. Internally, a comprehensive 16-slot modulation matrix allows for vast patching capabilities. Users can easily route anything from basic LFO sweeps to complex parameter shifts triggered per-step by the onboard 64-step paraphonic sequencer.
KEY FEATURES
- Three discrete analog oscillators with continuous wave-morphing capabilities and a dedicated noise generator.
- Dual-filter architecture (OTA multimode and SSI low-pass) allowing for 24 distinct routing configurations.
- Over 30 front-panel knobs delivering immediate, one-to-one control over all critical synthesis parameters.
- Advanced 16-slot modulation matrix for complex internal routing of LFOs, envelopes, and external CV.
- Integrated 64-step paraphonic sequencer featuring parameter locks for up to 48 parameters per step.
- Three powerful digital effect slots (Modulation, Delay, Reverb) paired with a true analog overdrive circuit.

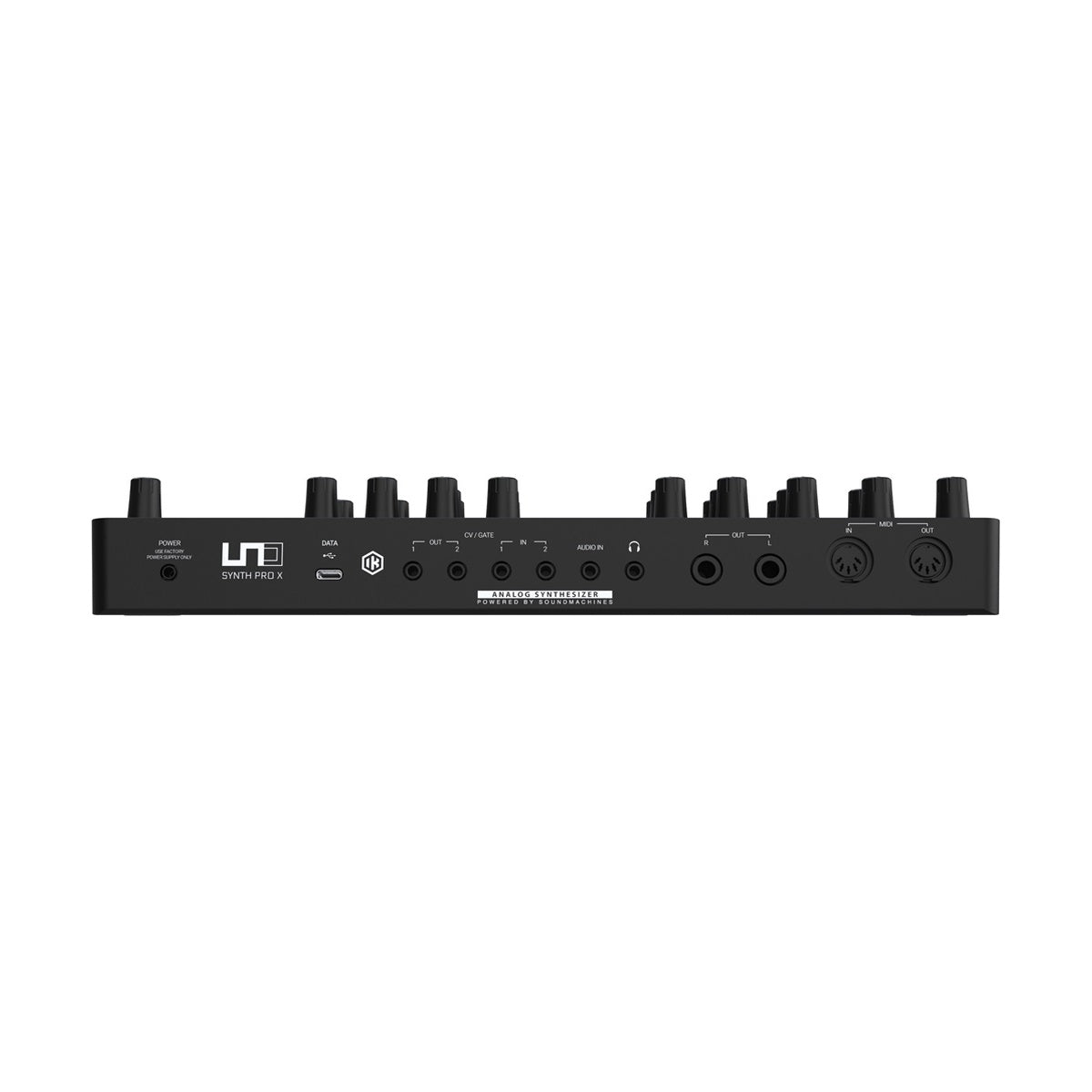

- Comprehensive connectivity including CV/Gate I/O, full-size MIDI DIN, USB, and an external audio input.
TECHNICAL SPECIFICATIONS
- Architecture: Analog, Paraphonic / Monophonic.
- Oscillators: 3x Wave-morphing VCOs, 1x Noise generator.
- Filters: 1x OTA 2-pole multimode filter, 1x SSI 2/4-pole low-pass filter.
- Envelopes & LFOs: 3x ADSR envelopes, 2x wide-range LFOs.
- Audio Connections: 2x 1/4" TRS (Main Out), 1x 1/8" TRS (Headphone Out), 1x 1/8" (Audio In).
- Control Connections: 2x 1/8" CV/Gate In, 2x 1/8" CV/Gate Out, 5-pin MIDI In/Out.
- Power: External PSU (included) or USB bus-powered.
- Dimensions: 333 x 150 x 50 mm.
- Weight: Approx. 0.8 kg.
