The ASM Leviasynth Desktop is an immensely advanced, hybrid algorithmic synthesizer that merges the power of digital oscillators with the organic character of true analog low-pass filters in a sleek, compact enclosure. Designed for sound designers, producers, and live performers, this instrument completely redefines sonic flexibility. The desktop version retains the full power of the 16-voice engine found in the keyboard model, replacing the traditional keybed with 16 expressive Polytouch® pads (featuring polyphonic aftertouch and velocity sensitivity), which enable an exceptionally organic playing experience.
The sound engine inside the Leviasynth is an absolute monster – each of the 16 voices is equipped with 8 oscillators, and each oscillator provides access to over 300 waveforms and 7 synthesis types (including Phase Modulation, FM, PWM, and Phase Distortion). How these oscillators interact is defined by an impressive 144 preset algorithms (plus one fully user-customizable algorithm per patch). Furthermore, the unique "Algorithm Morphing" feature allows for smooth, dynamic transitions between different routing structures in real-time, opening the door to endlessly evolving textures and massive, multi-layered sounds.
The sound-shaping capabilities are completed by a hybrid filter structure, consisting of 18 digital multimode models alongside a fully analog 4-pole low-pass filter with pre-drive and self-oscillation options. A massive modulation section features 5 LFOs, 6 envelopes per voice (plus 5 group envelopes), and an advanced 32-slot modulation matrix. This is all rounded out by a 3-track sequencer with parameter automation recording, an innovative arpeggiator with an "Entropy" function, and a versatile effects section. With a rich array of connections (including CV/Gate outputs) and a multi-color touch screen, the Leviasynth is the perfect centerpiece for any modern studio setup.
KEY FEATURES
- Powerful 16-voice hybrid algorithmic synthesis engine
- 8 oscillators per voice with a selection of over 300 diverse waveforms
- Synthesis combining PM, FM, PWM, HTE Sync, and Phase Distortion algorithms
- 144 preset algorithms alongside a Custom mode for unique routing configurations
- Innovative Algorithm Morphing function for seamless changes to oscillator structures
- Dual filtering: 18 digital filter models and a true analog 4-pole low-pass filter
- 16 velocity-sensitive Polytouch® pads with polyphonic aftertouch and full MPE support
- Massive modulation capabilities: 32-slot matrix, 5 LFOs, and 11 envelopes per voice/group
- 3-track step sequencer with macro automation recording and an advanced arpeggiator
- Quad-effect processor section per part (featuring Inserts, Delays, and Reverbs)

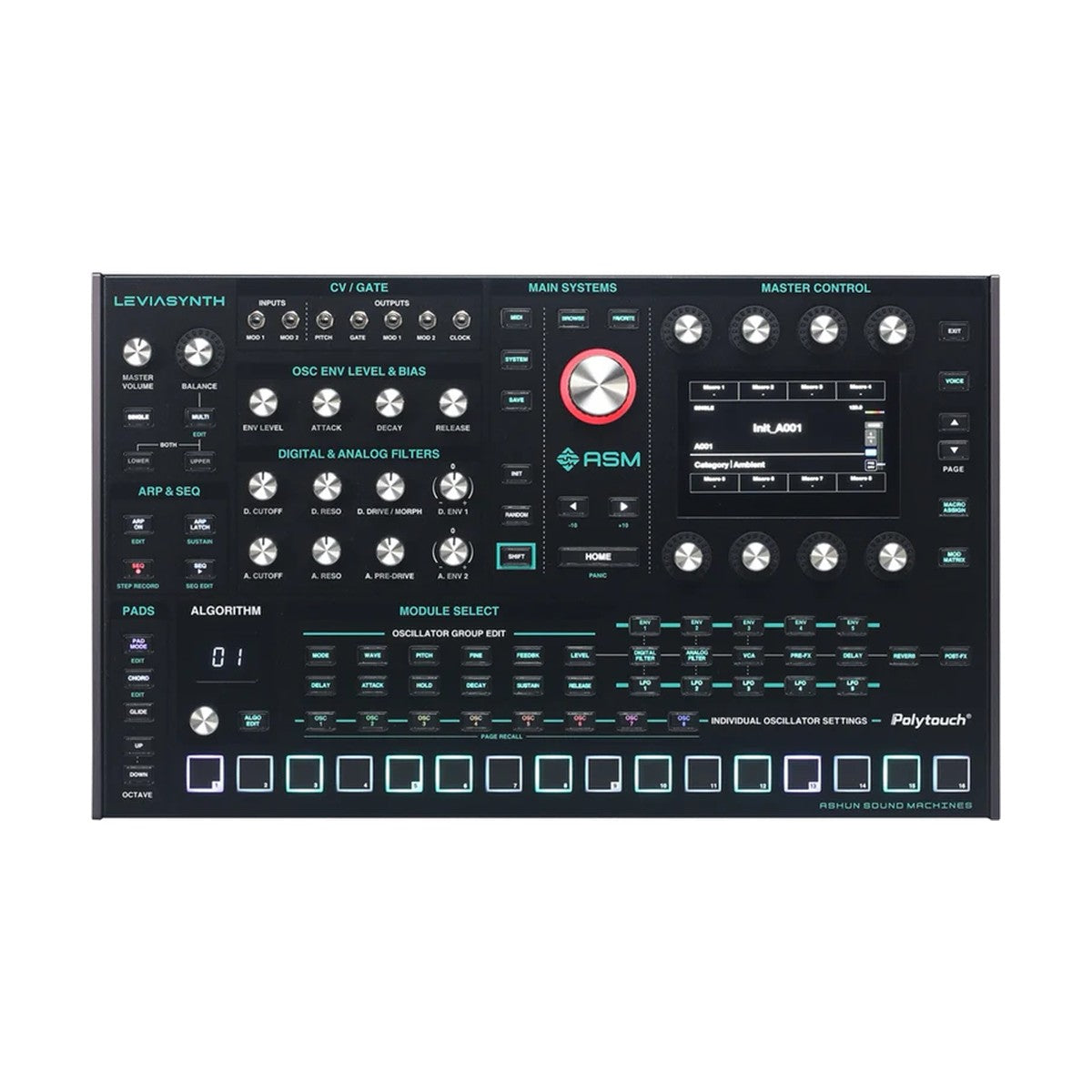

- Intuitive multi-color touch screen interface for streamlined patch programming
- Versatile connectivity: USB, MIDI DIN, and Eurorack integration via CV/Gate
TECHNICAL SPECIFICATIONS
- Instrument Type: Hybrid Algorithmic Synthesizer (Desktop Module)
- Polyphony: 16 voices (Single Mode) or 2 x 8 voices (Multi Mode - Split/Layer)
- Performance Pads: 16 x Polytouch®, velocity-sensitive with polyphonic aftertouch

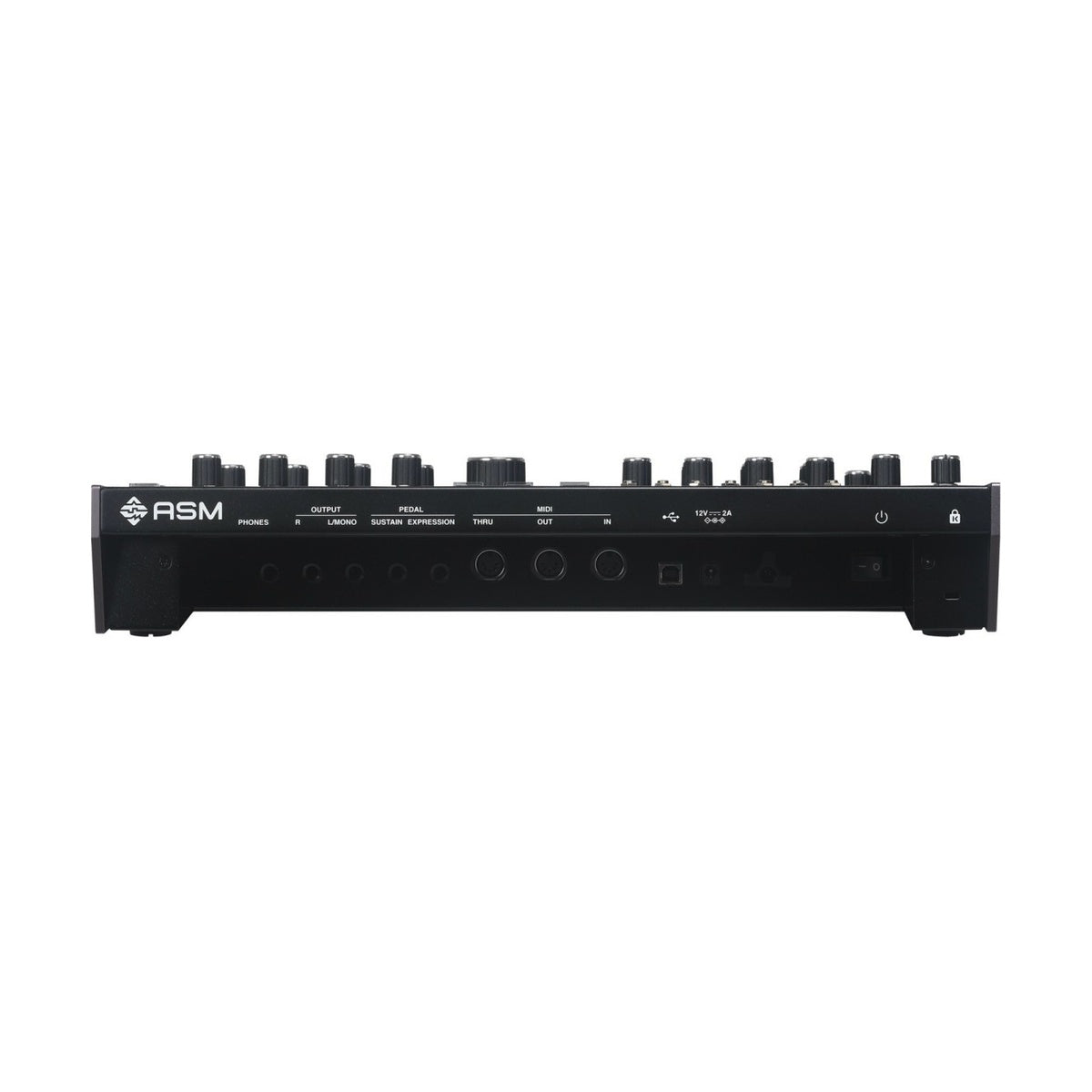

- Audio Outputs: 2 x 1/4" Jack (L/R Out), 1 x 1/4" Jack (Headphone Out)
- Control Connections: 2 x Pedal inputs, 2 x Mod Inputs (3.5 mm)
- Analog Connections: 4 x CV/Gate/Mod outputs (3.5 mm), Clock Out
- MIDI Interface: In / Out / Thru (5-pin DIN) and USB-MIDI
- Memory: 1024 Single patches, 640 Multi patches
- Dimensions (W x D x H): 442 × 267 × 92 mm (17.4" x 10.51" x 3.6")
- Weight: Approx. 4.75 kg (10.47 lbs)
- Power Supply: 12V 2A DC switchable power supply (included)
