API Audio TranZformer GTR

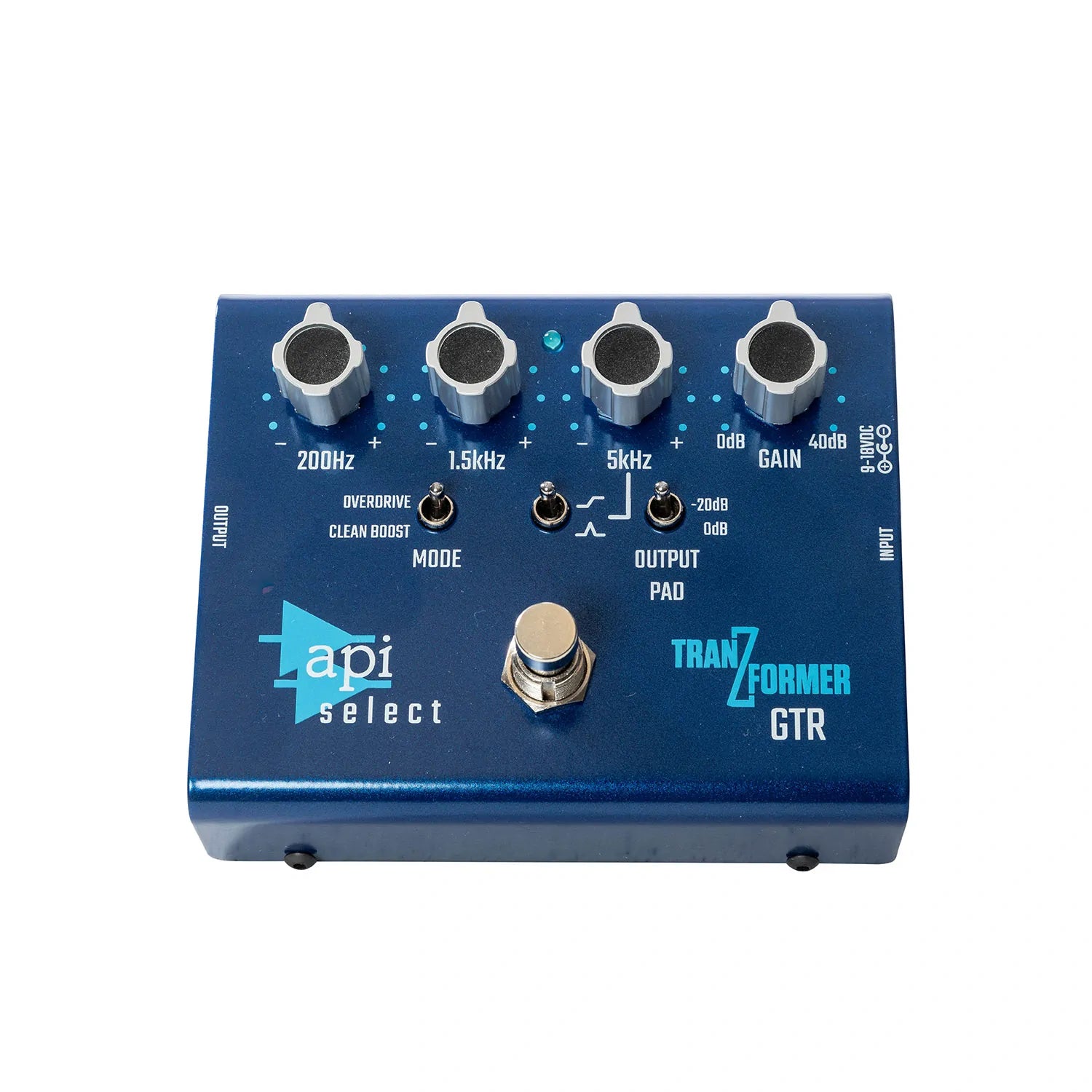

The API Audio TranZformer GTR is a professional EQ pedal that brings the legendary API quality right to your pedalboard. Equipped with a variable-gain preamp and API’s signature transformer output, the API Audio TranZformer GTR delivers classic API sound in a compact form. The pedal’s preamp can be configured either as a pristine clean boost or as an overdrive that uses the 2510 op-amp to add extra signal saturation. The API Audio TranZformer GTR operates on standard 9V power, and its high-quality buffered bypass ensures a stable signal even with long cable runs.

With a three-band EQ designed specifically for guitar and Clean Boost and Overdrive modes, the API Audio TranZformer GTR offers vast tonal shaping potential, meeting the needs of even the most demanding guitarists.

Key Features

• API EQ in a Guitar Pedal: Delivers legendary API sound quality in a compact pedal format.
• Audio Circuit with 2510 Op-Amp and transformer output, providing strong, saturated tones.
• Variable-Gain Preamp: Enables either a clean boost or saturated overdrive.
• Guitar-Optimized 3-Band EQ: Controls for high (5 kHz), mid (1.5 kHz), and low frequencies (200 Hz).
• -20 dB Pad Switch: Ideal for direct connection to a guitar amplifier input.
• High-Quality Buffered Bypass: Ensures stable signal integrity, even with long cables.
• Visible LED Indicator: Shows the pedal's status clearly.

Specifications

• Effect Type: Channel Strip Pedal
• Inputs: 1 x 1/4"
• Outputs: 1 x 1/4"
• Bypass: Buffered
• EQ: 3-Band
• Power Source: 9-18V DC (sold separately)
• Dimensions: Height: 7.6 cm, Width: 11.68 cm, Depth: 9.65 cm
• Weight: 0.68 kg
