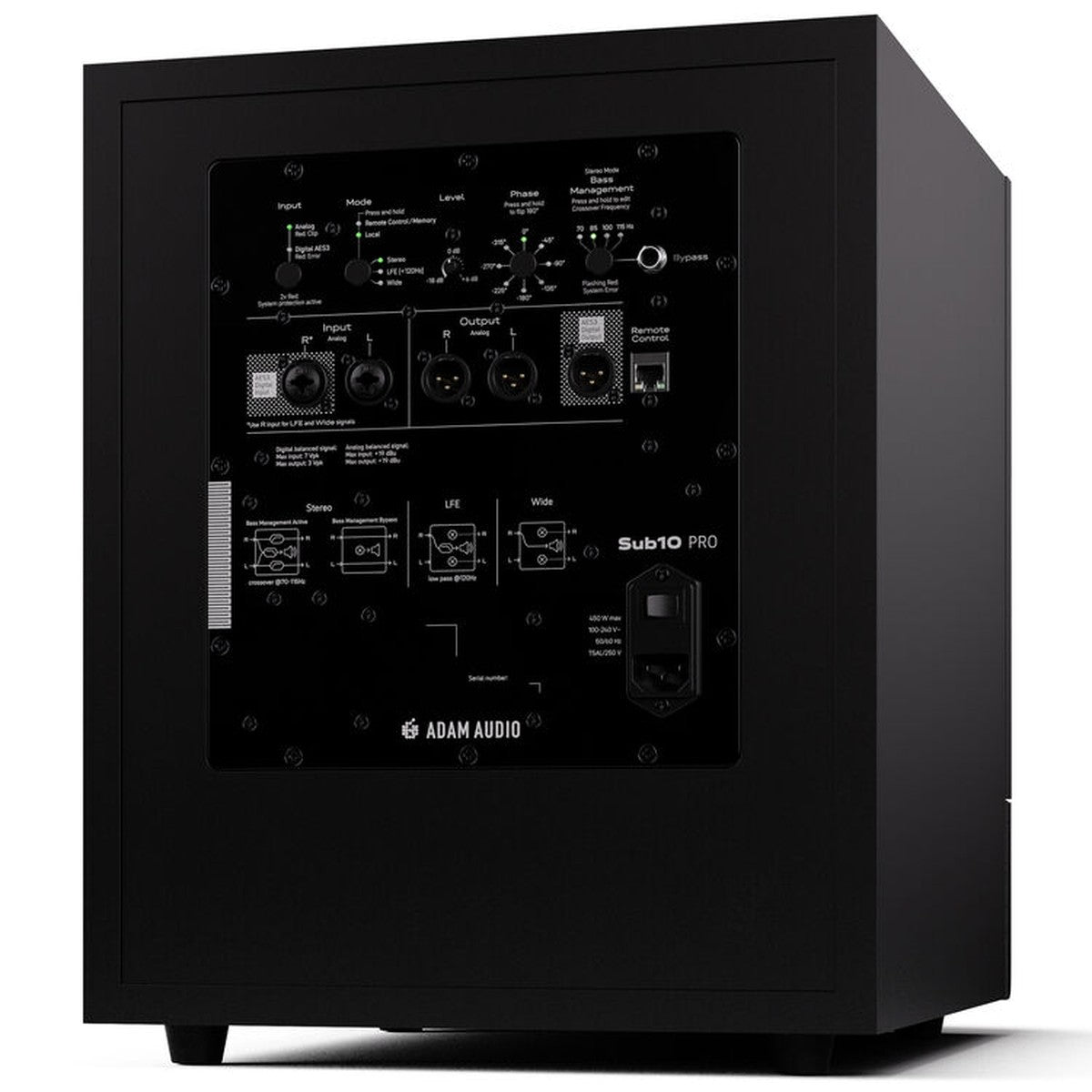

ADAM Sub10 Pro 10 inch Active Studio Subwoofer
This item is available on a custom order basis only
Please contact us for more details.
Nous contacterConfigurer
This item is available on a custom order basis only
Please contact us for more details.
Nous contacterThis item is available on a custom order basis only
Please contact us for more details.
Nous contacterADAM Sub10 Pro is an active studio subwoofer built around a 10 inch woofer, a 200 W RMS amplifier and a full network calibration toolkit. It reaches down to 21 Hz (-6 dB) and works in stereo, 2.1 and multichannel rigs where you need bass you can control, not just bass you can hear.
Bass you can actually tune to the room
Most subwoofer problems are integration problems: room modes, phase against the monitors and a crossover picked by ear. The Sub10 Pro gives you phase in eight steps, crossover at 70, 85, 100 or 115 Hz, 0-10 ms of delay and level from -18 to +6 dB. Over Ethernet, ADAM Control (Windows and macOS) adds a four-band parametric EQ and loads Sonarworks SoundID Reference profiles, so your room measurement lands in the sub instead of being chased with knobs.
One sub for stereo, LFE and picture work
Three operating modes cover the usual jobs. Stereo manages bass for a pair of monitors, LFE handles the low-frequency effects channel in multichannel layouts (below 120 Hz), and Wide adds low end while the mains run full range. The AES3 input takes digital audio up to 24-bit/96 kHz, backed by two XLR/TRS analog inputs and two XLR outputs, so the sub slots into the chain without adapters. A TRS jack accepts a footswitch for a quick bass management bypass (footswitch not included).
KEY FEATURES
- 10 inch woofer, fibre-reinforced paper cone, 45 mm voice coil
- PWM amplifier: 200 W RMS (1% THD, 3 Ohm), 325 W peak
- Frequency response 22-264 Hz (-3 dB) and 21-300 Hz (-6 dB)
- Inputs: 2 x XLR/TRS combo plus AES3 XLR; outputs: 2 x XLR plus AES3 XLR
- Ethernet (RJ45, AES70), ADAM Control, four-band parametric EQ
- Sonarworks SoundID Reference compatible
- Stereo, LFE and Wide modes, phase in eight steps, 0-10 ms delay
- Independent peak and thermal limiters plus over-current, over-temperature and under-voltage protection
- MDF cabinet with metal grille
TECHNICAL SPECIFICATIONS
- Design: active subwoofer, front-firing, front-ported bass reflex
- Driver: 10 inch, 45 mm voice coil, fibre-reinforced paper cone
- Power: 200 W RMS into 3 Ohm (1% THD), 325 W peak (10% THD)
- Max SPL at 1 m (IEC noise, full range): 113 dB SPL peak, 114 dB with 85 Hz bass management
- Crossover: 70, 85, 100, 115 Hz (variable in ADAM Control)
- A/D converter: 24-bit via XLR/TRS inputs, 96 kHz internal sample rate
- Input impedance: analog 25 kOhm, digital 110 Ohm; max input level +19 dBu
- Power: 100-240 V, 50/60 Hz; 450 W max, 2.5 W standby
- Dimensions (H x W x D): 450 x 360 x 450 mm (17 3/4 x 14 1/8 x 17 3/4 in)
- Weight: 22.8 kg (50 lb 4 oz)
- Warranty: 2 years, extendable to 5 years with product registration
- In the box: subwoofer, power cable, Quick Start Guide
