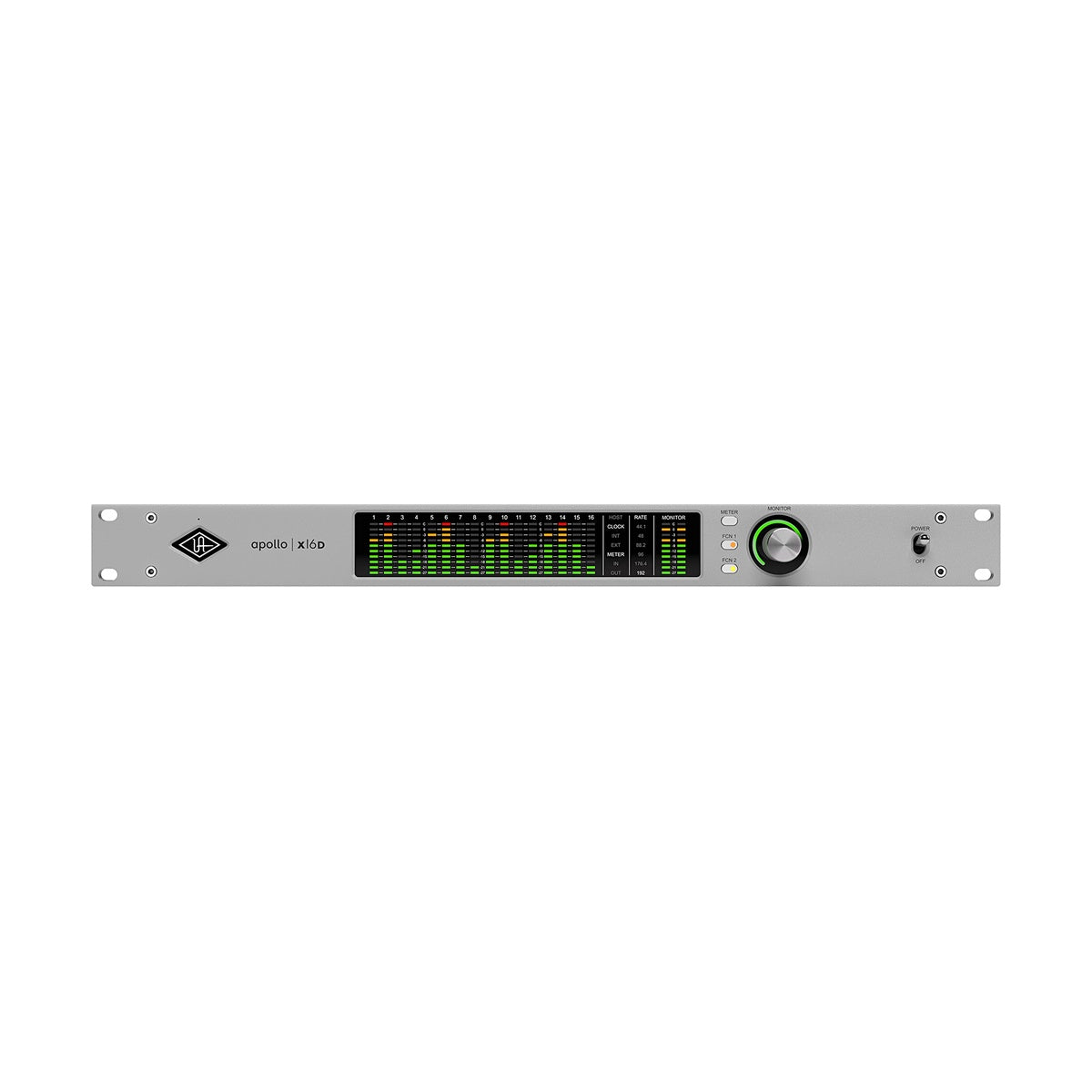

Universal Audio Apollo X16D Essentials
Configurer
Universal Audio Apollo X16D Essentials – reference-grade audio interface with Thunderbolt 3 and Dante networking, designed for live sound systems and networked studio environments. It combines Apollo X-class conversion with real-time UAD processing powered by a HEXA Core DSP engine.
Dante networking with real-time UAD processing
The interface provides 16×16 Dante I/O alongside Thunderbolt connectivity, allowing seamless integration with digital consoles and audio-over-IP systems. The 6-core SHARC DSP enables complex UAD plug-in chains in real time without loading the host CPU, making it suitable for demanding live and studio workflows.
Immersive monitoring and scalable systems
Apollo X16D serves as a monitoring hub for immersive formats up to 9.1.6 and can be expanded by linking multiple units into a larger Dante system. The internal mixer provides full routing control, while instant recall ensures uninterrupted operation in live environments.
KEY FEATURES
- Thunderbolt 3 + Dante audio interface
- 24-bit / 192 kHz conversion
- HEXA Core DSP (6x SHARC) for real-time UAD processing
- 16×16 Dante I/O
- Real-time processing with UAD plug-ins
- Immersive audio support up to 9.1.6
- Expandable Dante system (up to 64 channels)
- Integrated digital mixer with flexible routing
- UAD Essentials+ plug-in bundle included
- 19” / 1U rack format
TECHNICAL SPECIFICATIONS
- Resolution: 24-bit / 192 kHz
- DSP: 6-core SHARC (HEXA Core)
- I/O: 18 inputs / 20 outputs
- Dante: 16×16 channels
- Analog inputs: none

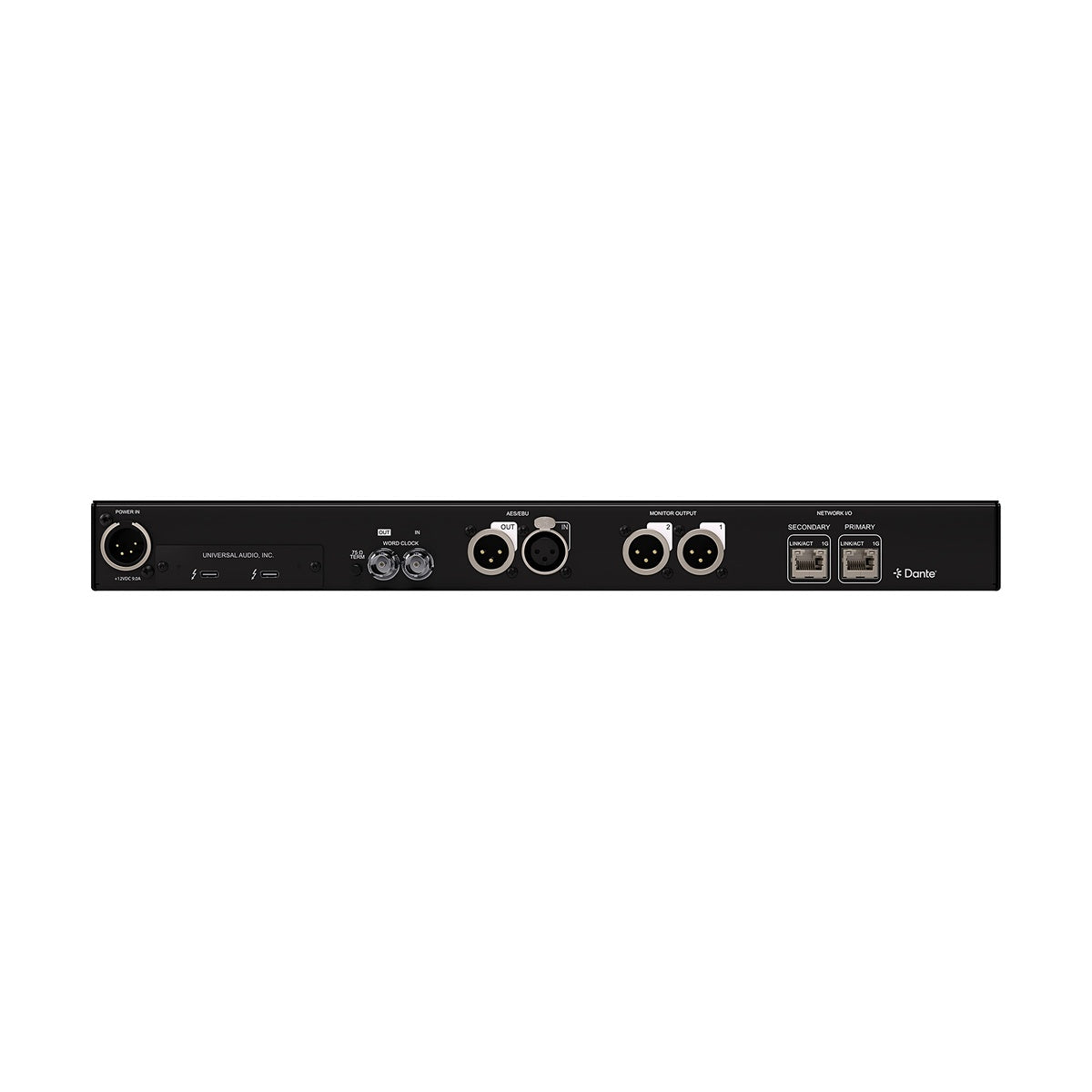

- Analog outputs: 2x XLR (monitor)
- Digital I/O: AES/EBU (XLR), Word Clock (BNC)
- Ethernet: 2x RJ45 (redundant Dante)
- Thunderbolt: 2x TB3
- MIDI: none
- Headphone output: none
- Dynamic range: up to approx. 133 dB
- Form factor: 19” / 1U rack
