Synthétiseur GS e7

GS Music e7 – analog polyphonic synthesizer is a 7‑voice desktop polysynth with a fully analog audio signal path and digitally controlled modulation and effects. Each of its seven voices features two analog VCOs with sub‑oscillators, a white noise source, a mixer, a 4‑pole low‑pass ladder filter and a VCA, delivering classic analog tones with modern flexibility.

The GS e7 offers 2 VCOs per voice with triangle, saw‑tri (triangle+saw), sawtooth and pulse waveforms with PWM, and you can mix the pulse wave with the other shapes. The oscillators support hard sync and an autotuning routine that quickly calibrates all voices, and an external audio input lets you run other signals through the filter. From the mixer, the sound passes into the 4‑pole ladder low‑pass filter with resonance and then into a VCA stage that also provides stereo spread per voice for a wide stereo image.

The modulation section includes 3 LFOs (triangle, ascending ramp, descending ramp, square and sample & hold) plus 2 ADSR envelope generators that can be routed to pitch, filter and more. At the end of the chain there is a stereo digital effects processor with chorus and delay, which can be synced to MIDI clock. The synth is 4‑part multitimbral, supports MPE (MIDI Polyphonic Expression), and provides 512 single presets plus 128 multi presets, all in a compact desktop format that fits easily into both studio and live rigs.

KEY FEATURES

• 7‑voice subtractive analog polyphonic synthesizer
• Fully analog audio path: 2 VCO + sub‑oscillator per voice, noise, mixer, VCF, VCA
• 2 analog VCOs with triangle, saw‑tri, sawtooth and pulse waveforms with PWM
• Pulse wave can be mixed with other waveforms
• Oscillator hard sync and fast global autotuning
• White noise generator and external audio input for filter processing
• 4‑pole ladder low‑pass filter with resonance
• VCA with stereo spread for a wide stereo field
• 3 LFOs (triangle, up ramp, down ramp, square, sample & hold)
• 2 ADSR envelope generators
• Stereo effects: chorus and delay (syncable to MIDI clock)
• 4‑part multitimbral engine for complex layered and split setups
• MPE support for per‑voice pitch bend and filter cutoff
• 512 single presets and 128 multi presets
• Compact desktop enclosure

TECHNICAL SPECIFICATIONS

• Polyphony: 7 voices
• Multitimbrality: 4 parts
• Oscillators: 2 analog VCOs with sub‑oscillators per voice, hard sync
• Oscillator waveforms: triangle, saw‑tri, sawtooth, pulse with PWM
• Modulation: 3 LFOs, 2 ADSR envelope generators
• Effects: stereo chorus and delay
• Presets: 512 programs (single), 128 multi presets

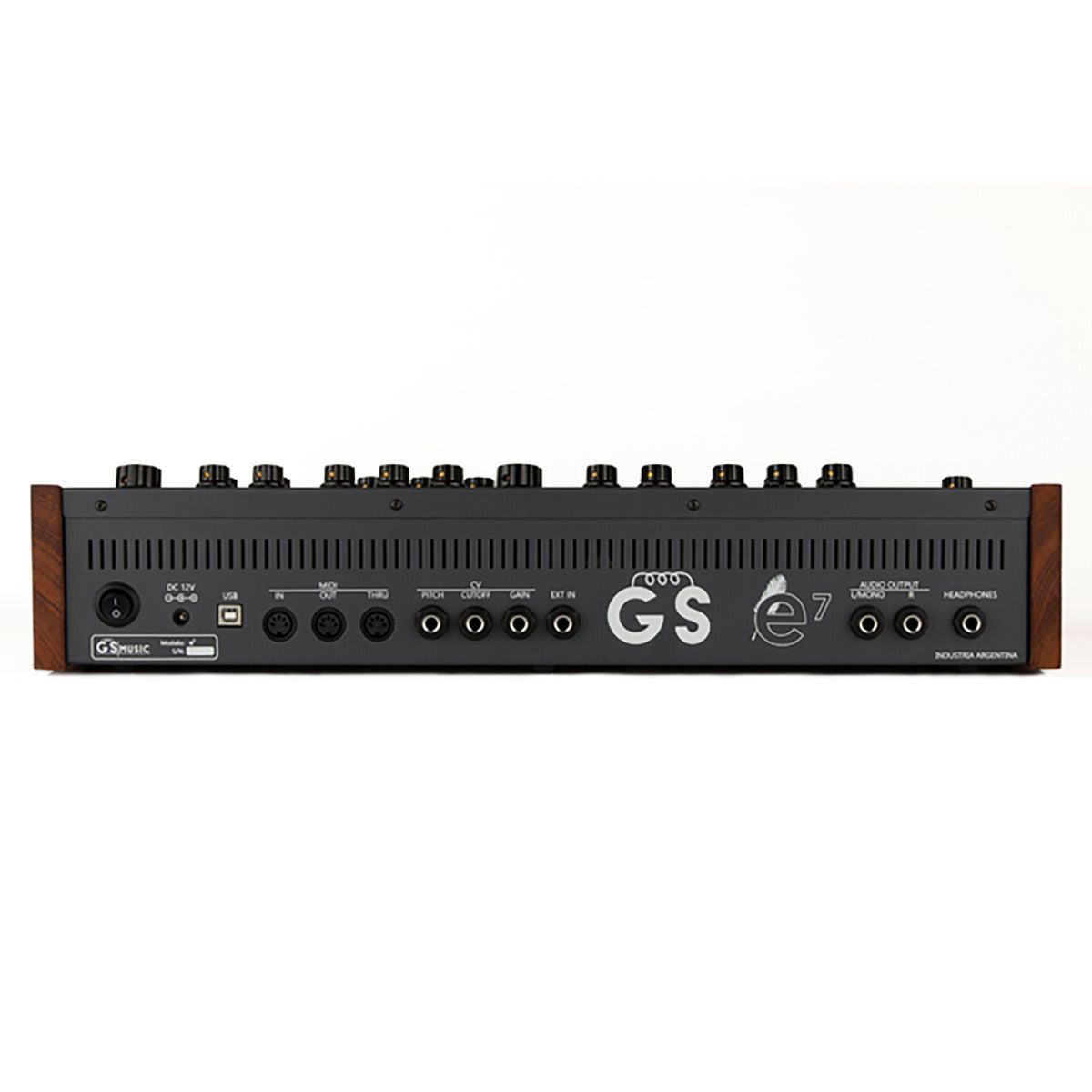

• Connections: MIDI In, MIDI Out, MIDI Thru, USB, Pitch CV, Cutoff CV, Gain CV, External Audio In, Audio Out L/Mono and R (balanced 1/4"), headphones output
• Power: 12 V external PSU (included)
• Dimensions: approx. 520 × 190 × 108 mm
• Weight: approx. 3.8 kg
