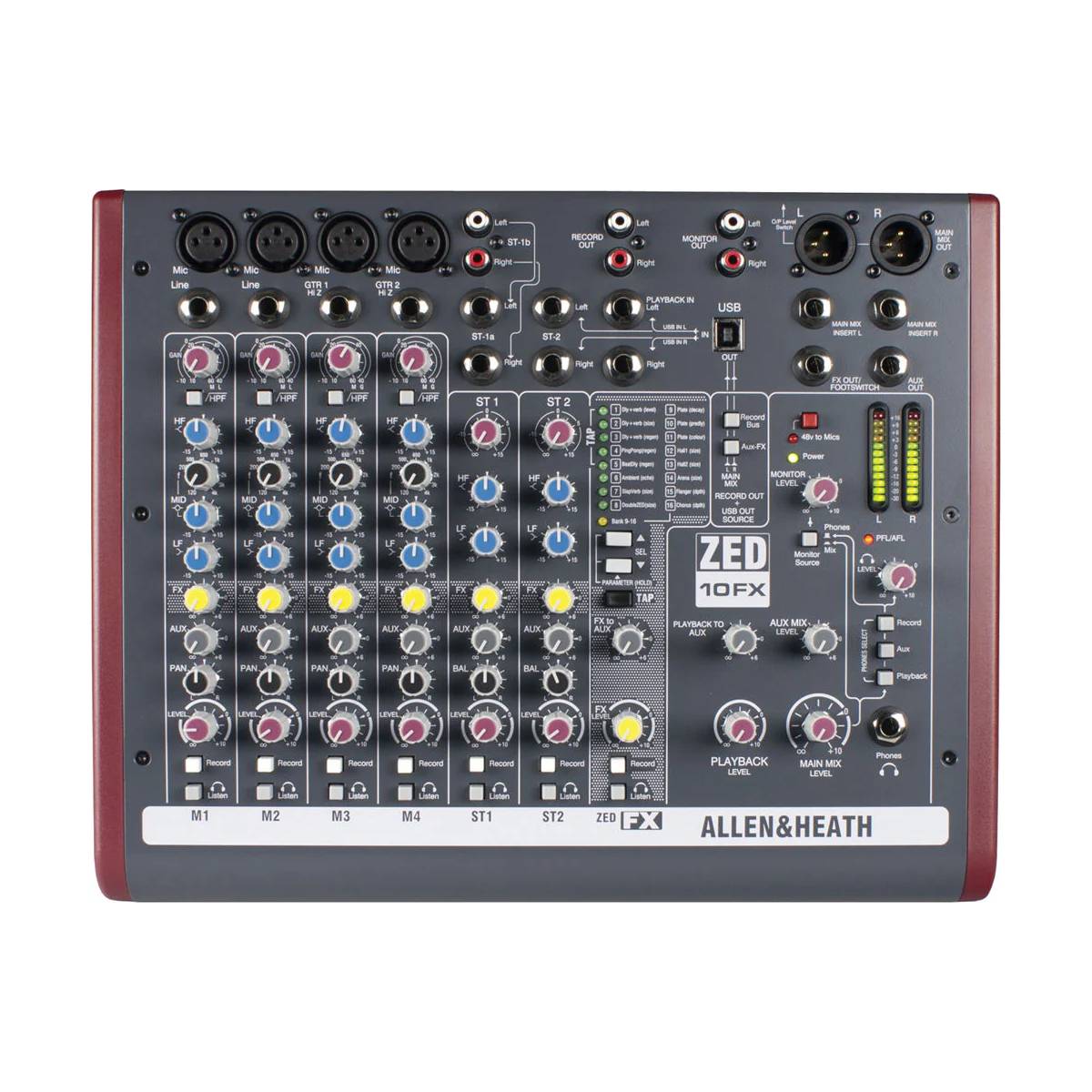

Allen & Heath ZED-10FX – compact 10-channel analogue mixer with built-in effects, designed for live sound, recording, and streaming. Ideal for small bands, solo artists, podcasters, and venues, it combines professional-grade audio with versatile USB connectivity. Features low-noise preamps, MusiQ EQ, and a digital FX engine with reverbs, delays, and more. Rugged and portable for gigs or home studios.
Four mic/line inputs with +48V phantom power, two high-impedance instrument inputs, and two stereo inputs. 3-band EQ with swept mid on mono channels, 2-band EQ on stereo. USB 2x2 interface (24-bit/48kHz) for recording and playback. FX suite includes 16 effects with tap-tempo control. Responsive faders and illuminated controls ensure easy operation in low light.
Balanced XLR main outputs, separate monitor and headphone outputs, and aux send for flexible routing. Includes Cubase LE software for recording. Durable metal chassis suits mobile and fixed setups, delivering clean, dynamic sound for live or studio use.
MAIN FEATURES
- 4 mic/line inputs (XLR/TRS) with +48V phantom power
- 2 high-Z instrument inputs (1MΩ) for direct guitar/bass connection
- 2 stereo inputs (1/4" TRS) for line sources
- MusiQ 3-band EQ on mono channels (swept mid 270Hz-22kHz, HF/LF shelving)
- 2-band EQ on stereo channels (HF/LF shelving)
- 16 digital FX: reverbs, delays, chorus, flanger, with tap-tempo
- USB 2x2 audio interface (24-bit/48kHz) for recording/playback
- Low-noise preamps with up to 69dB gain
- Balanced XLR main outputs, 1/4" monitor, headphone, and aux send
- Includes Cubase LE software
- Rugged metal chassis for portability and durability
TECHNICAL SPECIFICATIONS
- Inputs: 4 x mic/line (XLR/TRS combo), 2 x Hi-Z (1/4" TRS), 4 x stereo line (1/4" TRS)
- Outputs: 2 x XLR main (balanced), 1 x 1/4" monitor, 1 x 1/4" headphone, 1 x 1/4" aux
- EQ: 3-band MusiQ on mono (±15dB, swept MF), 2-band on stereo, 100Hz low-cut filter
- FX: 16 digital effects (reverb, delay, chorus, flanger, combinations)
- USB: 2-in/2-out, 24-bit/48kHz, class-compliant
- Phantom Power: +48V individually switchable on mic channels
- Frequency Response: 20Hz-20kHz ±0.5dB (mic to main)
- THD + Noise: <-100dB @ 1kHz (mic preamp)
- Power Supply: External 100-240V AC, 18V DC, center positive
- Dimensions (H x W x D): 95 x 336 x 275 mm (3.7" x 13.2" x 10.8")
- Weight: 3.3 kg (7.3 lbs)
- Included: ZED-10FX, power supply, USB cable, Cubase LE software
- Product Code: ZED10FX
