Warm Audio

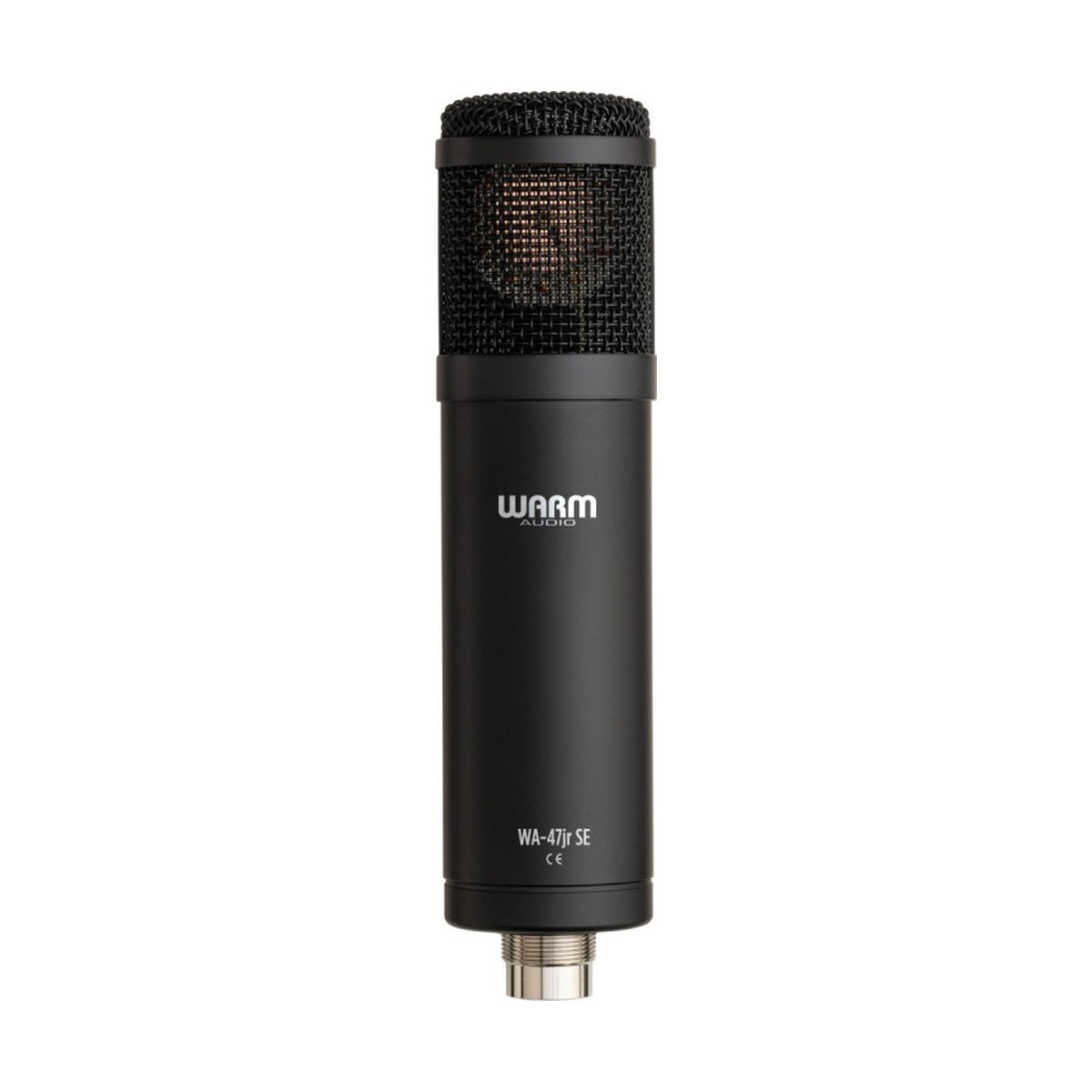

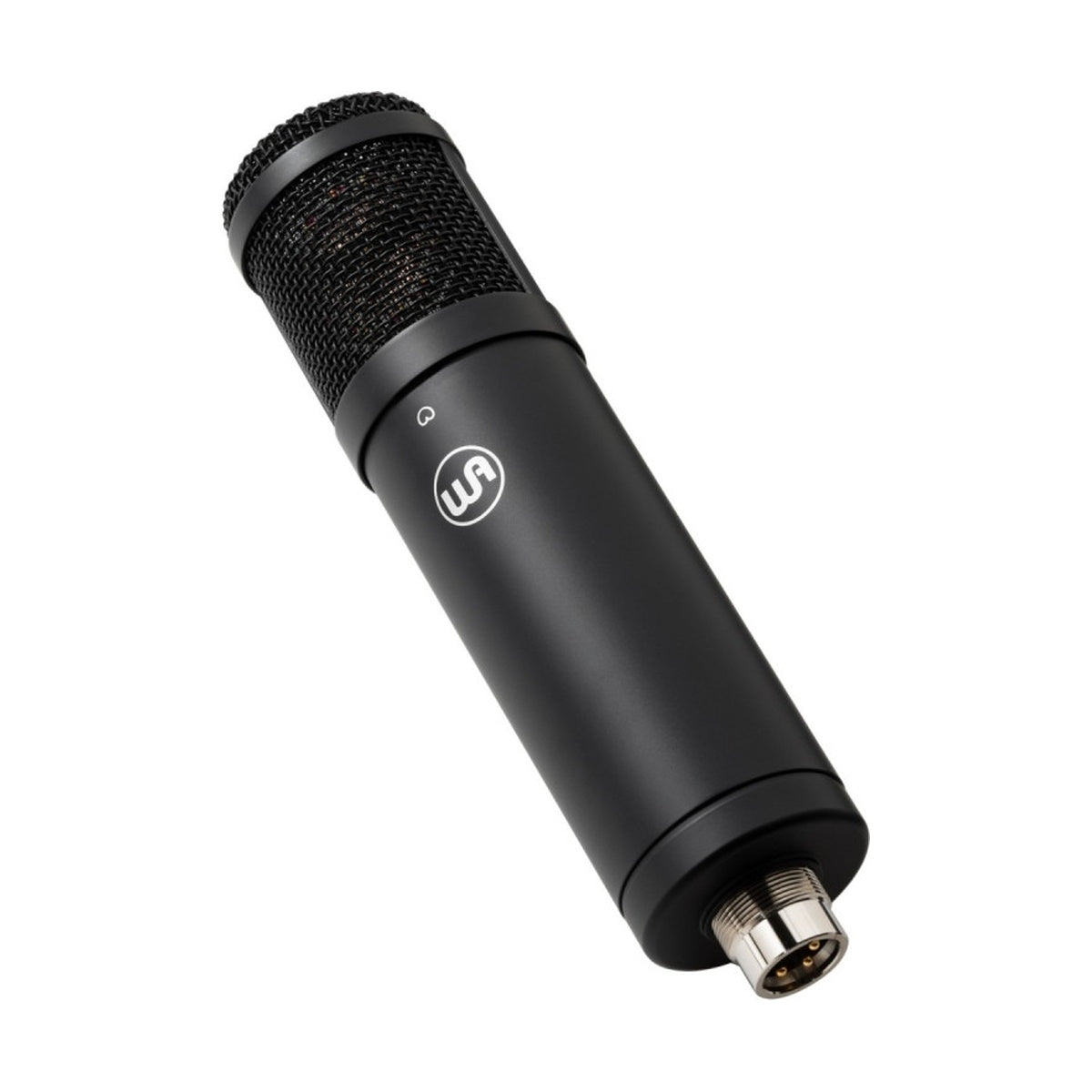

Warm Audio WA-47jr SE Black
Optionen wählen
The Warm Audio WA-47jr SE Black is a transformerless large-diaphragm condenser microphone that distills the iconic '47 sonic profile into a highly efficient, streamlined format. Engineered with a strictly fixed cardioid polar pattern, the Streamlined Edition (SE) delivers a fully discrete signal path and immediate tracking readiness. The non-reflective matte black chassis is specifically designed for modern on-camera applications, broadcasting, and low-profile live tracking where visual discretion is critical.
Precision K47-Style Capsule Engineering
Capturing the rich low-end and forward, smooth midrange associated with vintage '47 designs relies heavily on the transducer. The WA-47jr SE employs a meticulously crafted single-backplate iteration of the legendary K47-style capsule featuring a gold-sputtered Mylar diaphragm. This specific acoustic architecture translates complex harmonic structures from lead vocals, acoustic guitars, and intricate stringed instruments with exceptional detail, ensuring your tracks sit comfortably in a busy mix with minimal reliance on corrective equalization.
Massive Headroom and Discrete FET Path
Close-miking high-SPL sources often leads to unwanted distortion or capsule clipping. The discrete, transformerless FET circuitry inside the WA-47jr SE is built to handle an immense sound pressure level of up to 147 dB SPL. This robust capability allows tracking engineers to confidently place the microphone directly against cranked guitar cabinets, brass sections, or heavy drum shells while maintaining crystal-clear transient response and the low self-noise required for intimate voice-over work.
KEY FEATURES
- Custom gold-sputtered K47-style single-backplate capsule for a rich, vintage-inspired tone profile.
- Fixed cardioid polar pattern providing maximum rejection of off-axis bleed and untreated room reflections.
- Fully discrete, transformerless FET circuitry designed to maintain exceptionally low self-noise.
- Massive headroom capability, safely handling extreme sound pressure levels up to 147 dB SPL without distortion.
- Matte black chassis delivering a rugged build and a professional, non-reflective aesthetic for video production.
TECHNICAL SPECIFICATIONS
- Microphone Type: Large-diaphragm condenser (Transformerless FET)
- Polar Pattern: Cardioid (fixed)
- Capsule: K47-style, single-backplate, gold-sputtered
- Frequency Response: 20 Hz – 20 kHz
- Maximum SPL: 147 dB
- Output Impedance: 100 Ohms
- Sensitivity: 14 mV/Pa (-37 dBV)
- Connector: 3-pin XLR
- Power Requirement: +48V phantom power
- Included Accessories: Hard mount, protective leather storage pouch
