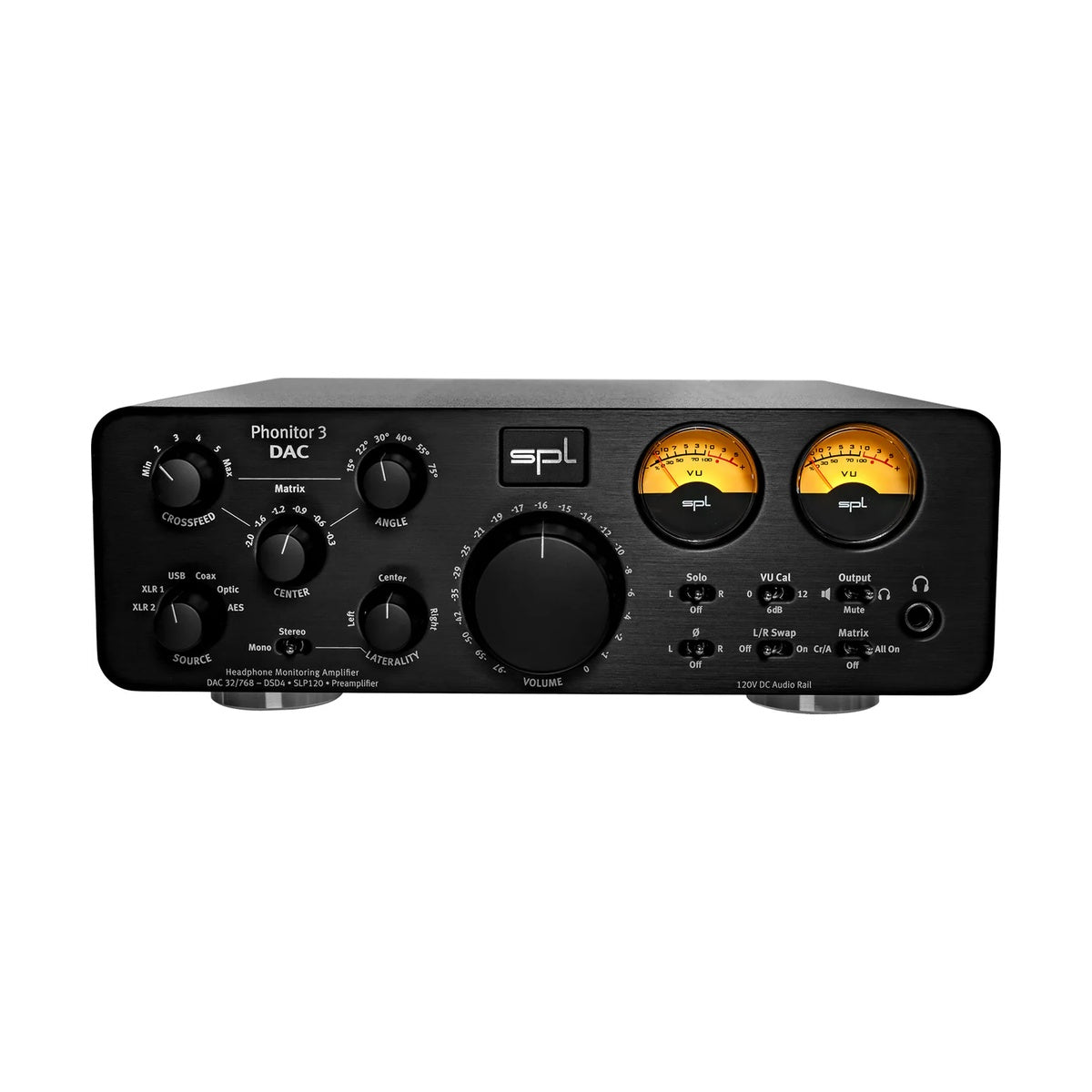

SPL Phonitor 3 DAC

SPL Phonitor 3 DAC – premium headphone amp, monitor controller, and DAC with 120V technology for studio reference. Phonitor Matrix simulates speaker crosstalk for natural stereo imaging. High-power amp drives up to 600Ω headphones. Integrated DAC supports PCM 32-bit/768kHz, DSD256 via AKM AK4490 chip.

Three analog inputs (XLR balanced, TRS balanced, RCA unbalanced). Digital: USB, AES/EBU, S/PDIF. VU meters, laterality control, mono mode. Optional Expansion Rack adds speaker outputs. Handcrafted in Germany for low distortion, high headroom.

MAIN FEATURES

• Phonitor Matrix with adjustable crossfeed
• High-power headphone amp (3.7W @ 600Ω)
• AKM AK4490 DAC: 32-bit/768kHz PCM, DSD256
• 120V rails for dynamic range
• Three analog + three digital inputs
• VU metering, laterality/mono controls
• Optional Expansion Rack for speakers
• IR remote compatible
• Balanced XLR outputs
• All-metal chassis

TECHNICAL SPECIFICATIONS

• Inputs: 1 x XLR/TRS stereo balanced, 1 x RCA stereo unbalanced, USB, AES/EBU, S/PDIF
• Outputs: 1 x 1/4" headphone, XLR preamp/speaker
• Output Power: 3.7W into 600Ω
• DAC: AKM AK4490, 32-bit/768kHz PCM, DSD256
• Frequency Response: 10Hz-100kHz ±0.5dB
• THD + Noise: <0.0006% @1kHz/+22dBu
• Power Supply: Internal linear, 100-240V AC
• Dimensions (W x D x H): 278 x 300 x 57 mm
• Weight: 2.8 kg
• Included: Phonitor 3 DAC, power cord
• Product Code: PHONITOR3DAC
