Wes Audio ngOmniBox Analog Mix Master Processor

Wes Audio ngOmniBox is a fully analogue stereo mix and mastering processor that combines EQ, bus compression, saturation, clipping and stereo width control in a single unit — with complete digital recall of every setting.

Analogue tone without losing repeatability

The EQ section offers two passive shelving bands with adjustable frequency, feeding into a VCA bus compressor with continuous threshold, make-up gain and dry/wet mix control, selectable attack/release and a sidechain high-pass filter. From there the signal runs through saturation with a Drive control and parallel-processing Mix knob, then a clipper for transient control. Even though the whole signal path stays analogue, every setting is captured digitally and recalled instantly — no re-matching knob positions session after session.

Three settings, one button away

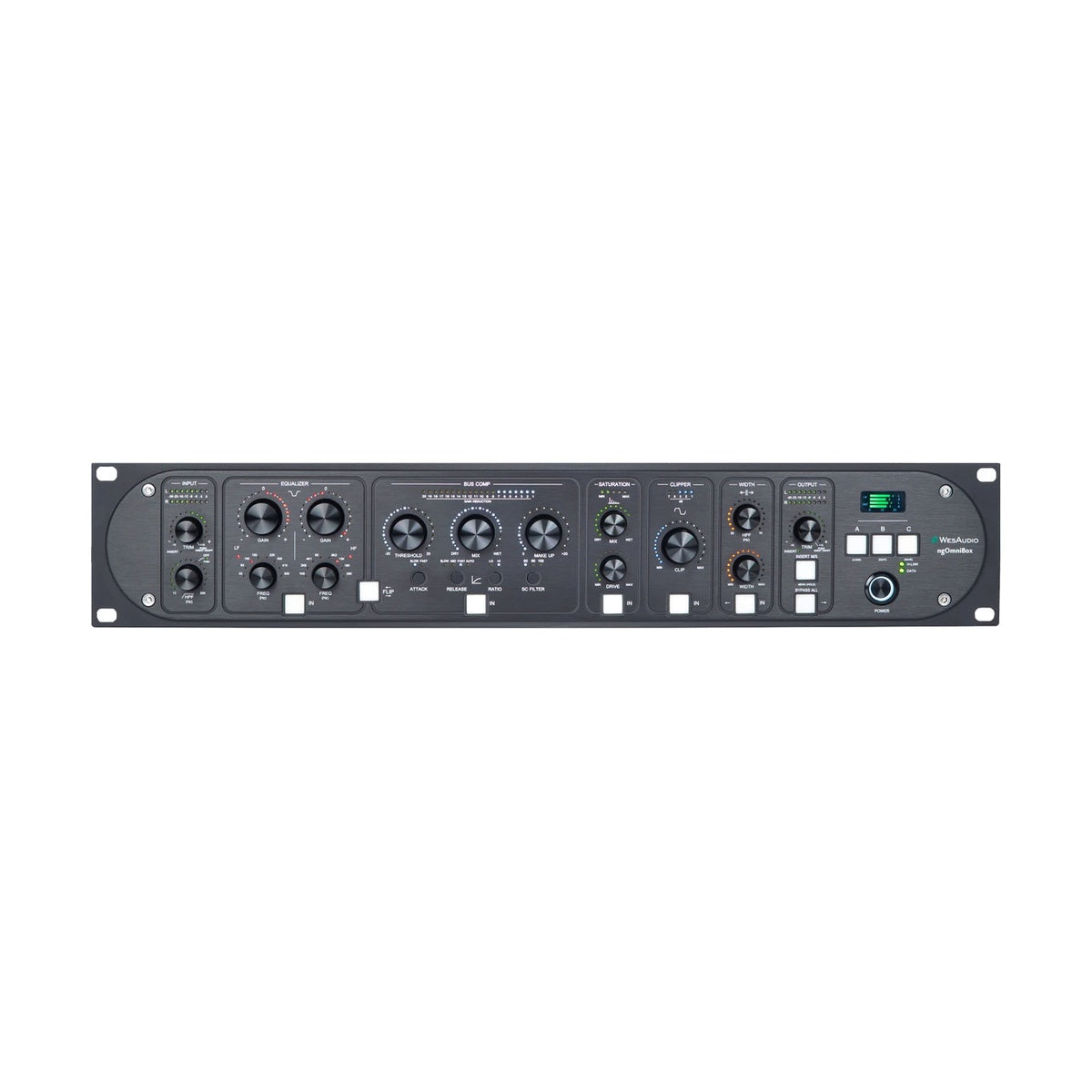

Front-panel A/B/C buttons let you instantly compare three different processing settings on the same mix, while the companion plug-in gives full control and automation from inside the DAW. Insert points on the input and on the stereo or mid-side output make it easy to patch outboard gear exactly where the chain needs it.

KEY FEATURES

• 2-band passive EQ (low/high shelf, adjustable frequency)
• VCA bus compressor with threshold, make-up gain and dry/wet mix control
• Selectable attack and release, sidechain high-pass filter
• Saturation with Drive and Mix controls for parallel processing
• Clipper for transient control
• Continuous Width control with high-pass filter to keep the low end intact
• Full digital recall of every setting
• A/B/C buttons for instant comparison of three settings
• Companion plug-in for DAW control and automation

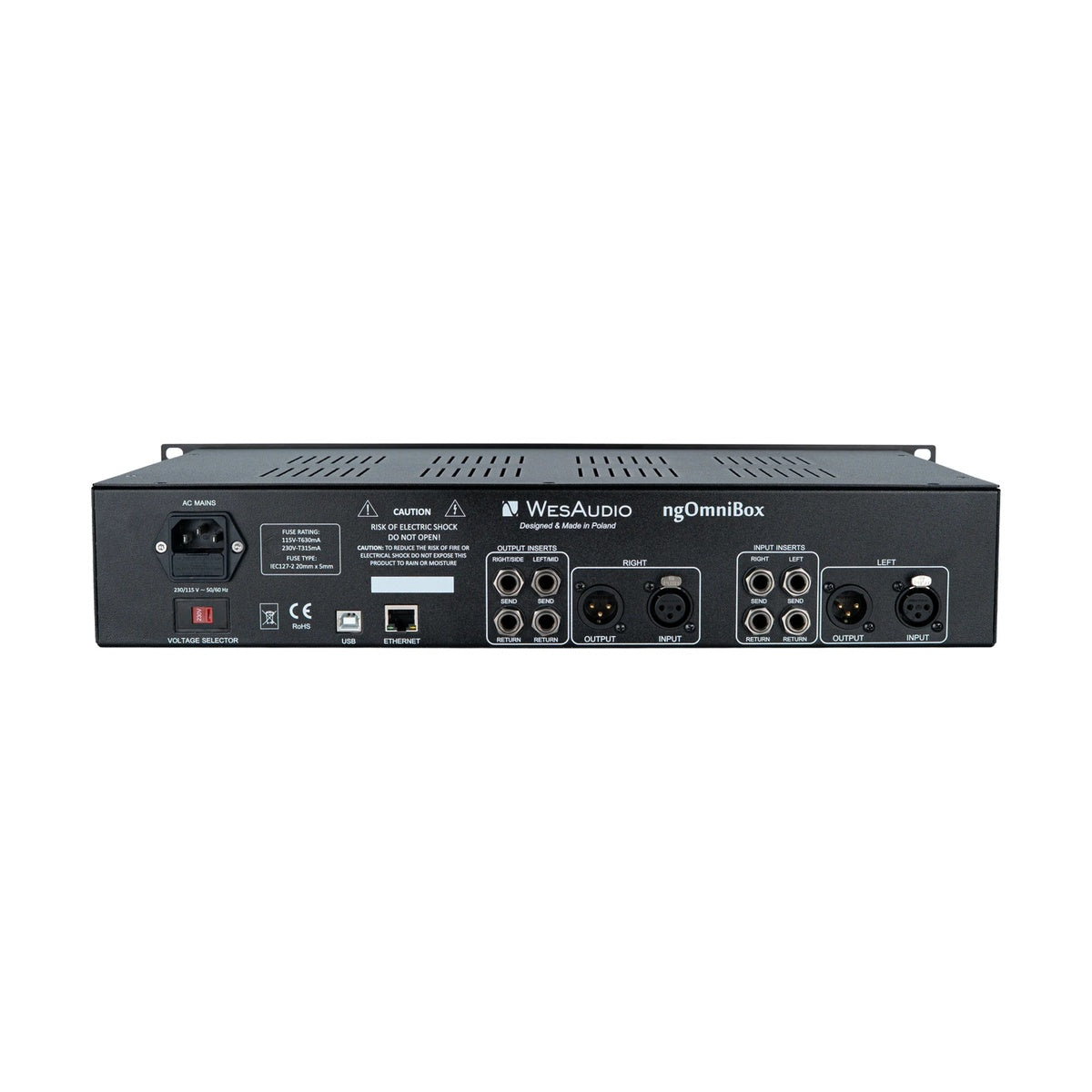

• Input insert plus stereo/mid-side output insert

TECHNICAL SPECIFICATIONS

• Maximum input level: +26 dBu
• Maximum output level: +26 dBu
• Power consumption (MAX): 22 W
• Compressor attack – FAST: 0.1 ms
• Compressor attack – SLOW: 30 ms
• Signal path: fully analogue, stereo
