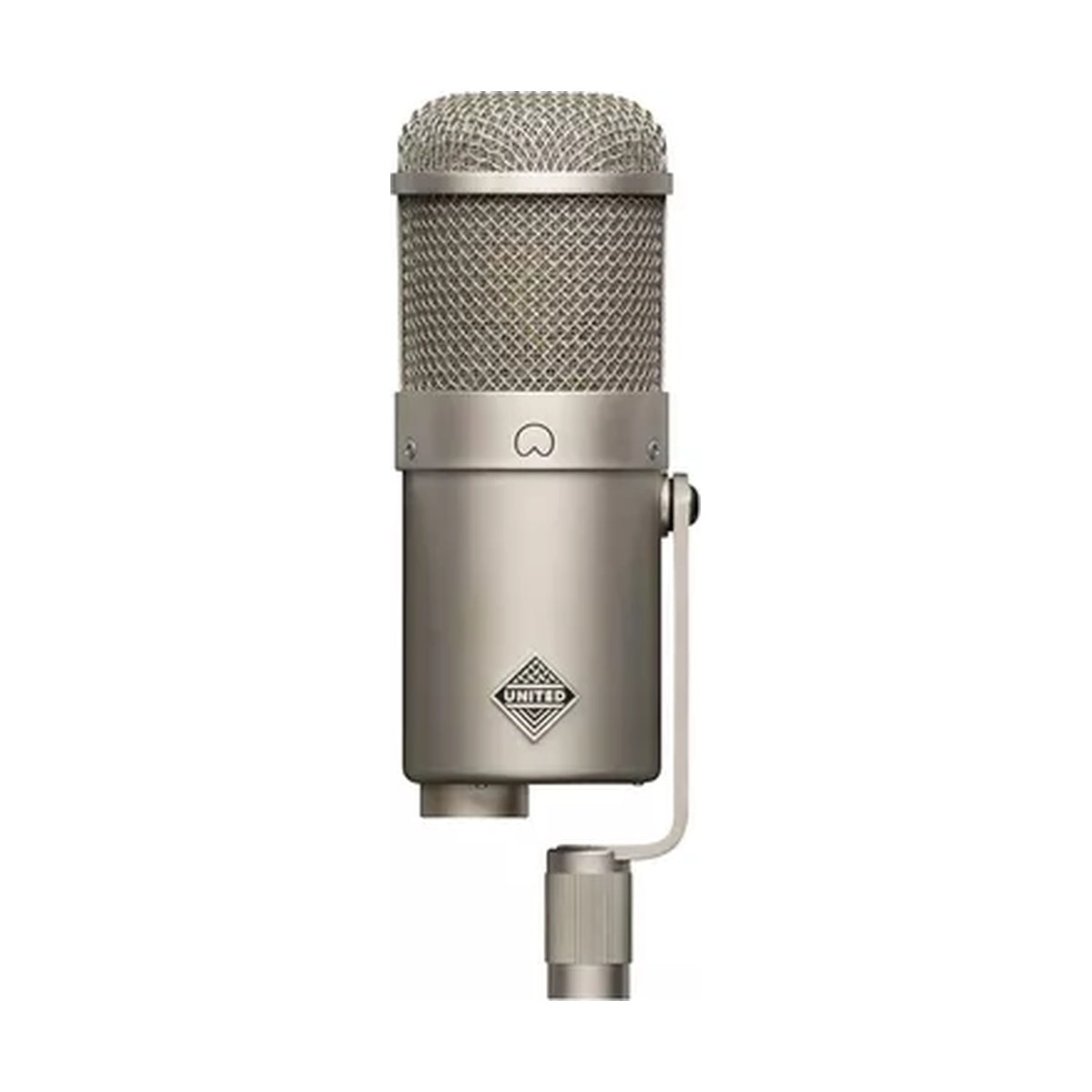

United Studio Technologies FET47
Optionen wählen
United Studio Technologies FET47 – large-diaphragm FET condenser microphone, inspired by classic Neumann U47 FET. Features custom HZ-Series Heiserman capsule (34 mm, dual-diaphragm, 6-micron gold-sputtered Mylar), Cinemag transformer, and NOS FETs with polystyrene capacitors. Cardioid pattern, 75 Hz HPF, -10 dB pad. Response 20 Hz–20 kHz, SPL up to 136 dB (146 dB with pad), low noise. Ideal for vocals, drums, and instruments, with warm, detailed tone and high headroom. Handbuilt in USA.
The microphone excels in authentic vintage sound, low distortion, and value, hand-calibrated.
MAIN FEATURES
- Custom HZ-Series Heiserman capsule for realism
- Cinemag transformer and NOS FETs
- Cardioid pattern, 75 Hz HPF, -10 dB pad
- Polystyrene capacitors for warmth
- High SPL and headroom for loud sources
- Metal body, swivel mount
- 48V phantom power, XLR connection
- Hand-tested in USA
TECHNICAL SPECIFICATIONS
- Type: Large-diaphragm FET condenser
- Capsule: HZ-Series, 34 mm dual-diaphragm, gold-sputtered Mylar
- Polar Pattern: Cardioid
- Frequency Response: 20 Hz–20 kHz
- Sensitivity: Approx. 14 mV/Pa
- Max SPL: 136 dB (146 dB with pad)
- SNR: 77 dB-A
- Impedance: 200 Ohm
- Power: 48V phantom
- Dimensions (DxL): 70 x 200 mm
- Weight: 0.6 kg
- Included: Swivel mount, wooden box
