GENELEC

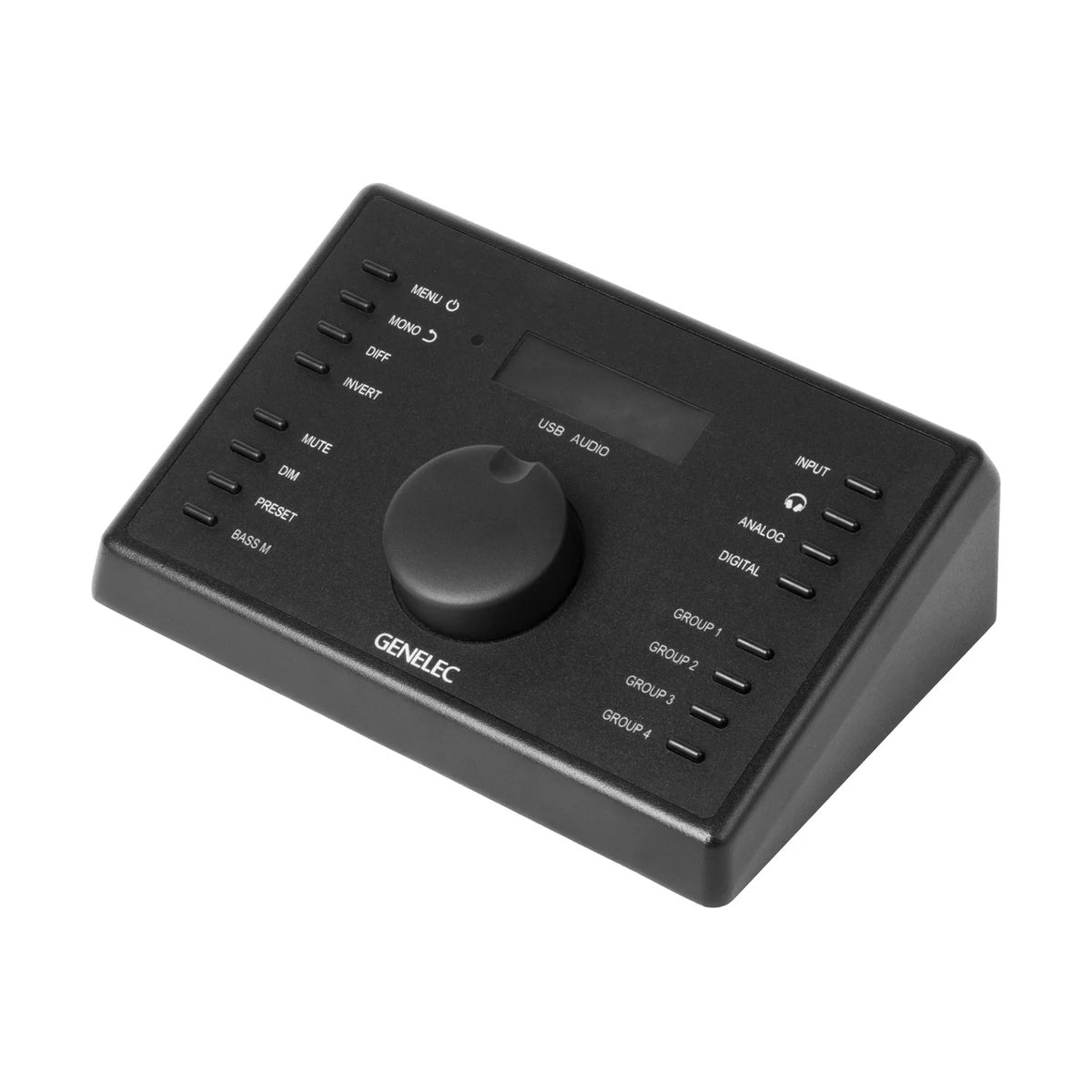

Genelec 9320A Reference Monitor Controller
Genelec 9320A Reference Monitor Controller is the central element of the UNIO audio monitoring system from Genelec, which combines room monitoring and headphone monitoring into a unified reliable workflow with full personalization options for maximum accuracy.
Genelec 9320A is designed for professional audio monitoring in studios, broadcast, and post-production. It provides smooth control of SAM monitoring systems, from stereo to immersive, as well as direct connection of analog and digital stereo sources for monitoring through speakers and headphones.
Key features:
1. Tactile monitoring control from stereo to immersive:
- Physical interface for controlling Genelec SAM active monitoring systems via GLM software
- Quick switching between different SAM monitoring and stereo system options in one room
- Intelligent switching with level alignment between speaker and headphone monitoring at the touch of a button
2. AES/EBU connection for the cleanest signal path:
- Direct analog and AES/EBU inputs/outputs for stereo systems and subwoofers
- USB input for computer connection
- High-quality DAC/ADC conversion between analog/digital inputs and outputs
3. Reference-class headphone output:
- Support for 16-600 Ohm headphones, dynamic range of 126 dB
- Integration with Aural ID technology for virtual channel positioning
4. Monitor calibration with GLM and reference listening level:
- Automatic GLM AutoCal calibration with measurement microphone
- Level alignment between all monitoring options
5. Safe listening - noise exposure assessment:
- Real-time SPL display
- Monitoring and warnings of dangerous noise levels

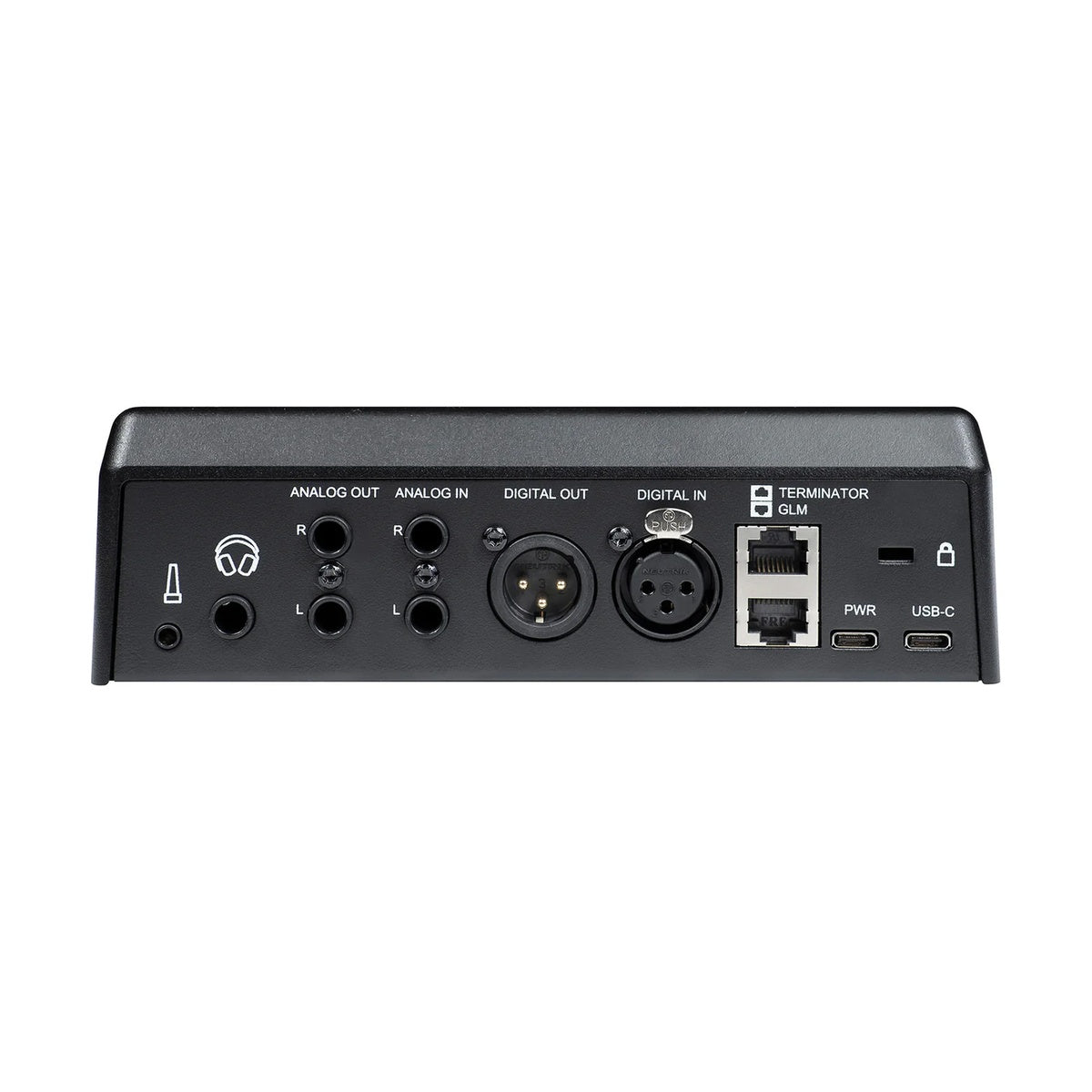

- Number of monitoring outputs (stereo): 3
- 2 line inputs: 6.3 mm jack
- 2 line outputs: 6.3 mm jack
- Headphone output: 6.3 mm jack
- Includes a reference microphone and microphone holder
- Dimensions: 190 x 139 x 60 mm
- Weight: 0.9 kg
