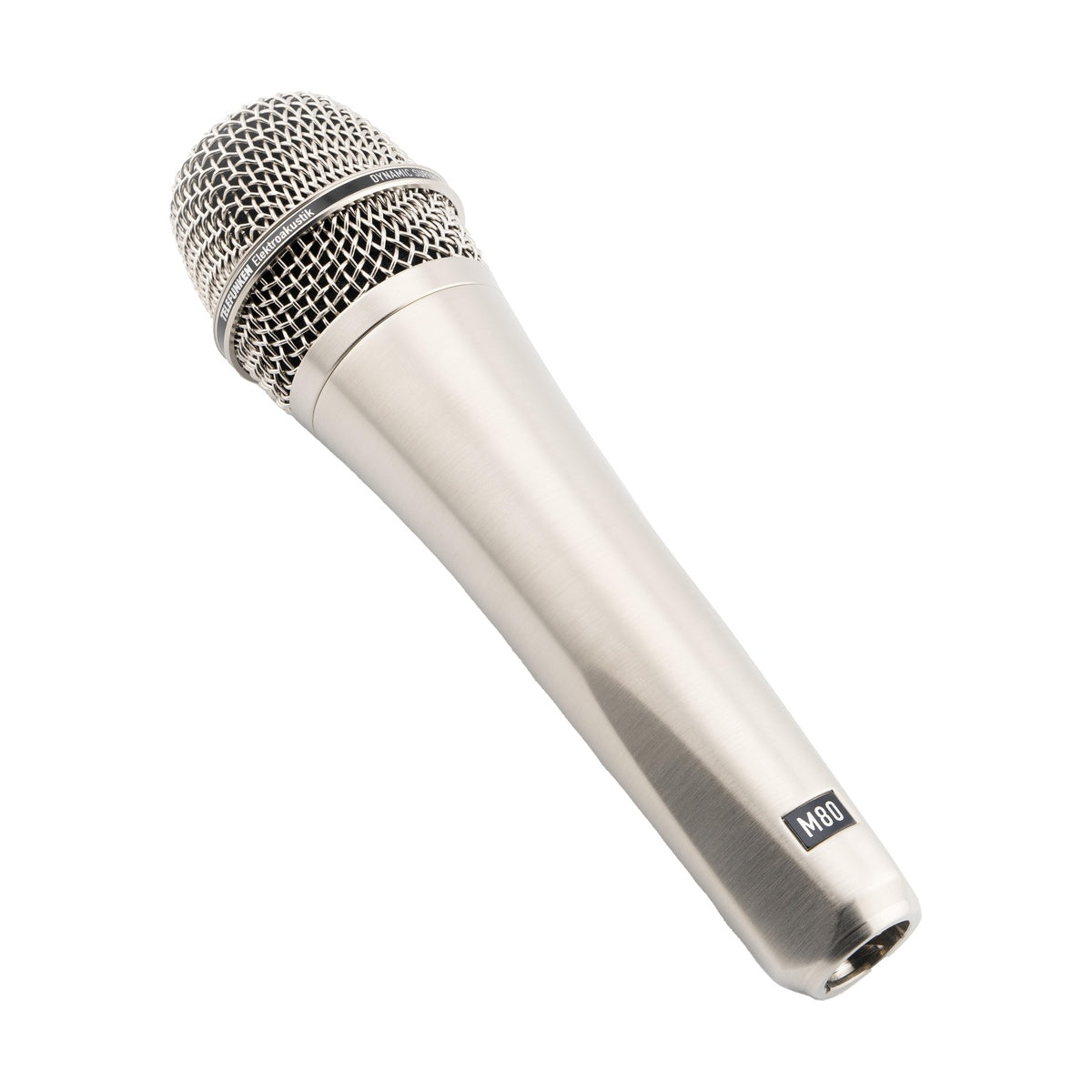

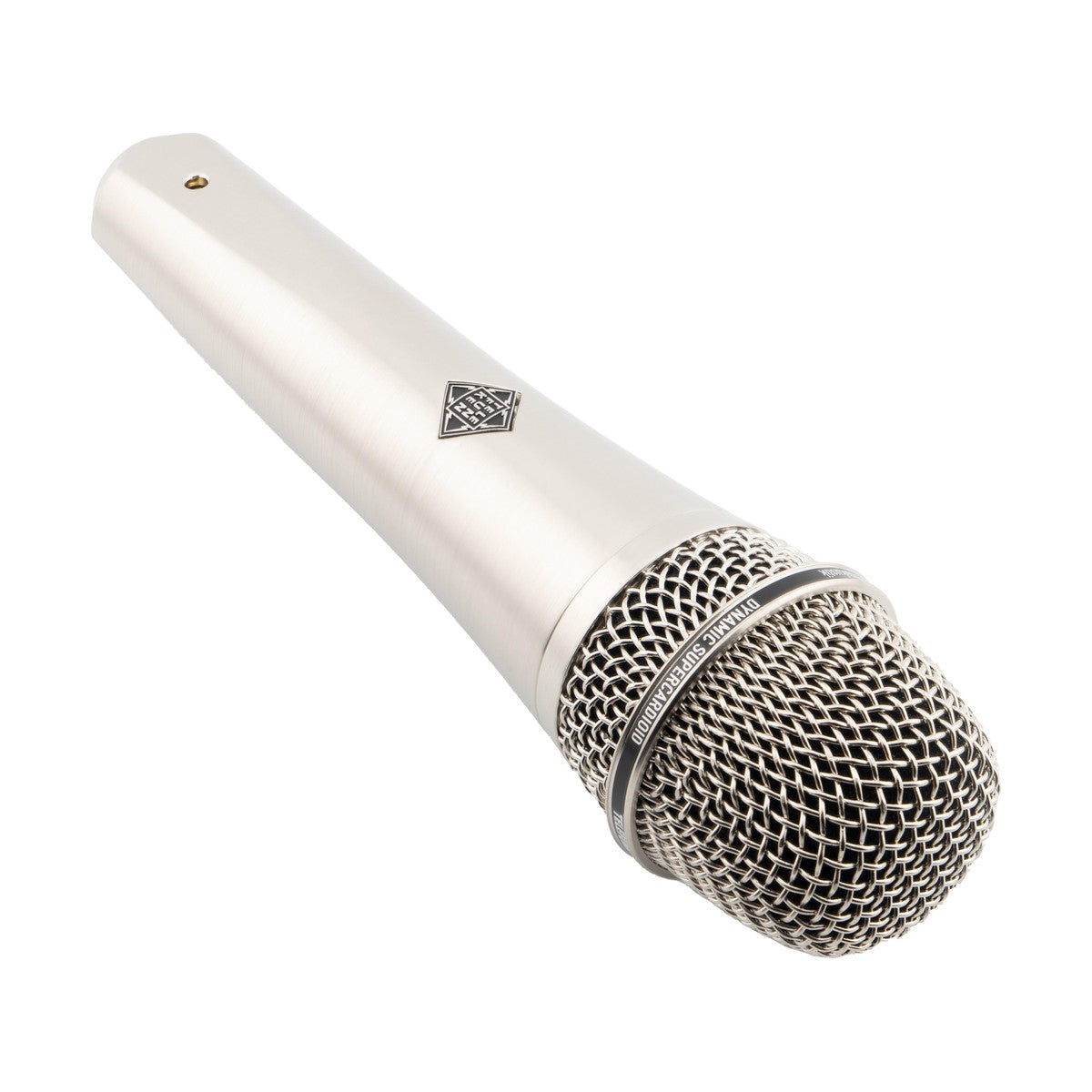

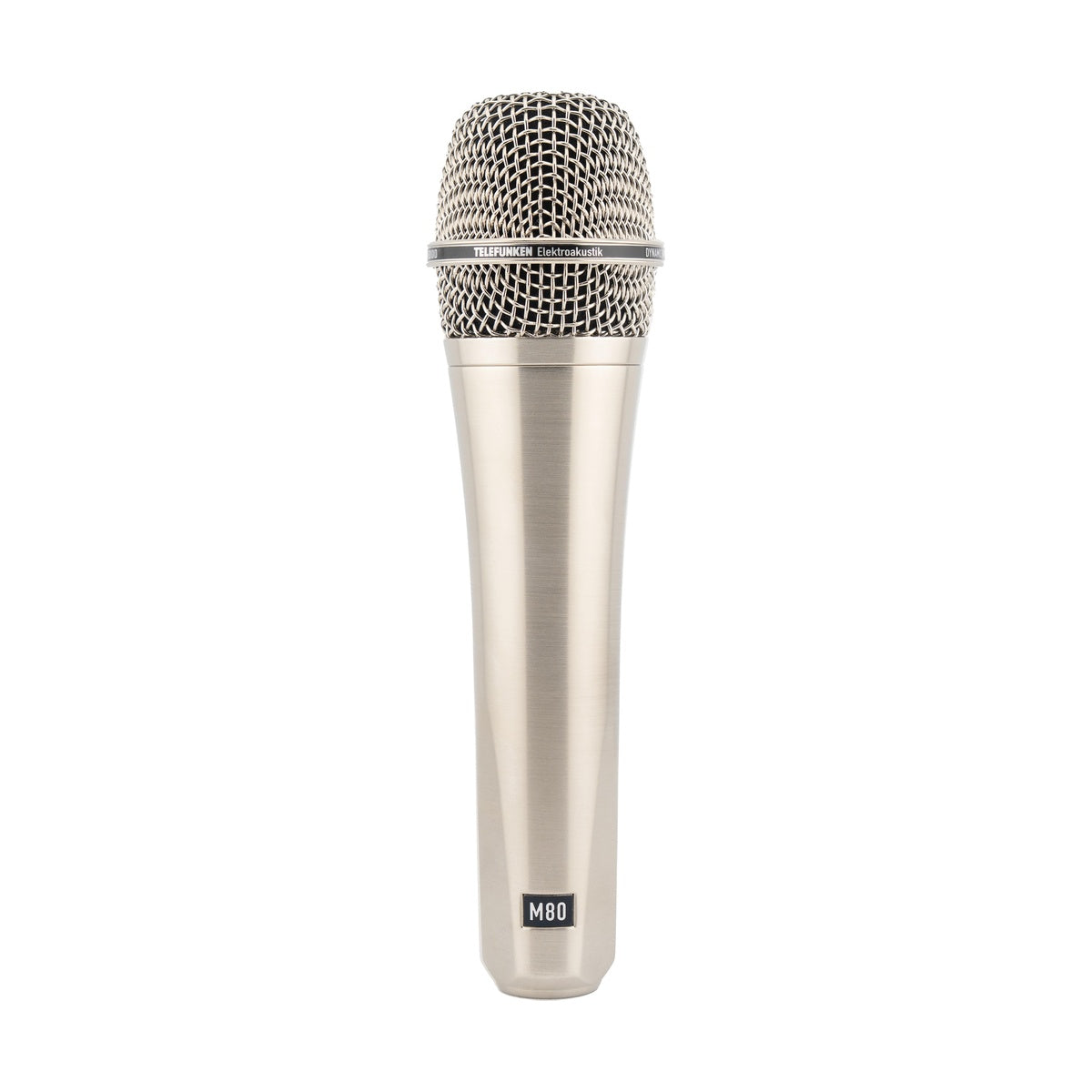

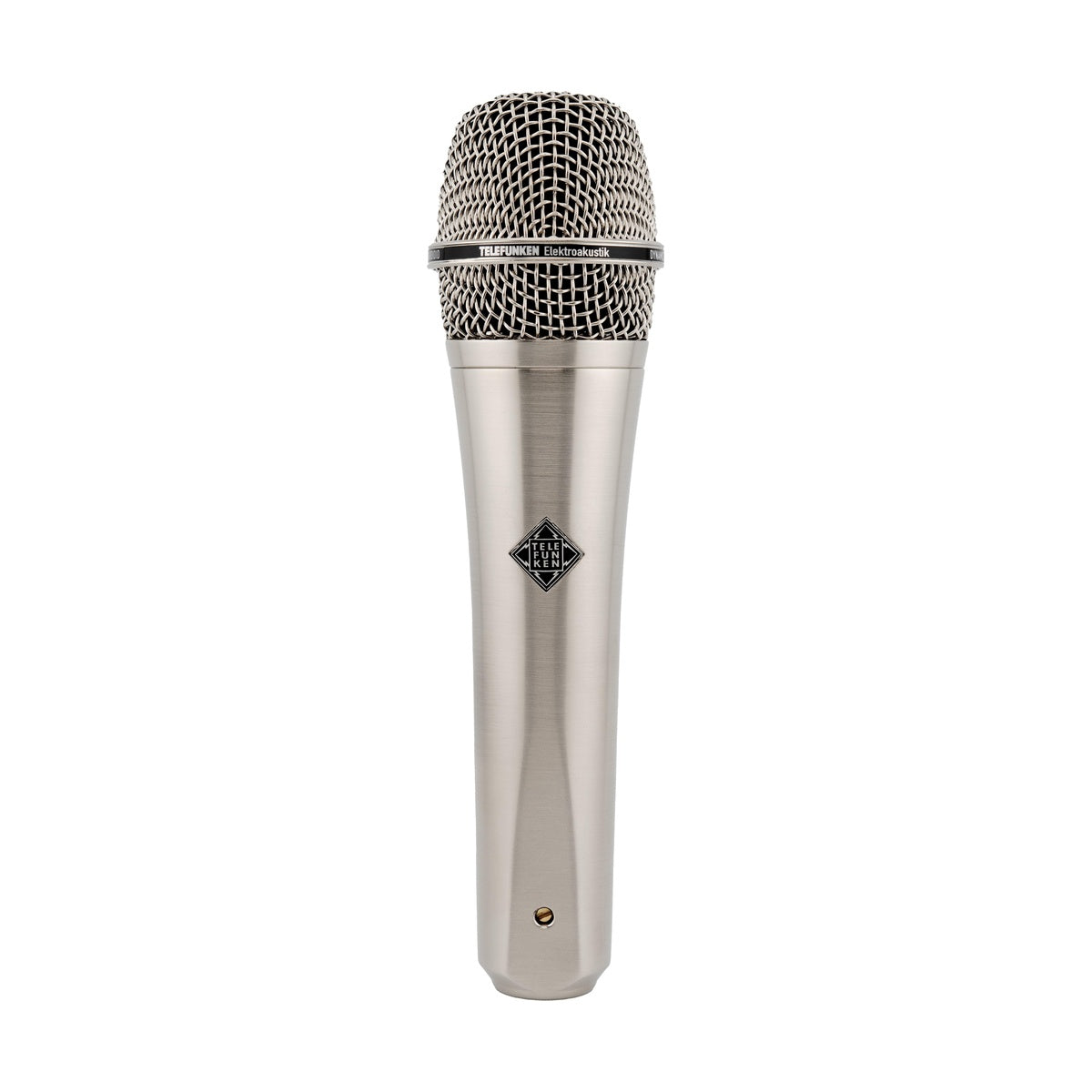

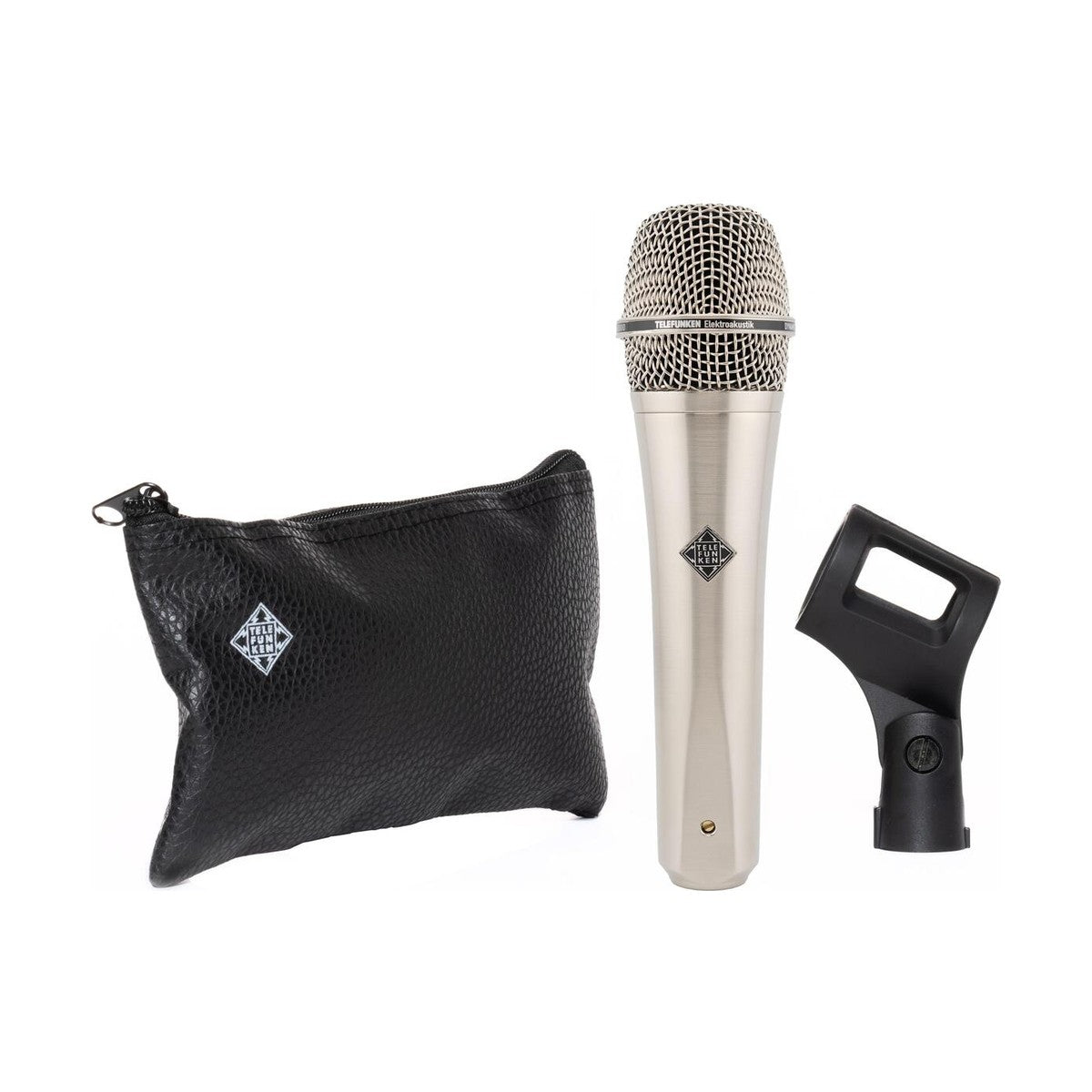

TELEFUNKEN Elektroakustik M80 Satin Chrome
Optionen wählen
TELEFUNKEN Elektroakustik M80 Satin Chrome is a premium dynamic microphone engineered to challenge the established industry standards in live sound reinforcement and studio tracking. Built around an exceptionally low-mass capsule and a custom-wound impedance-matching transformer, this model delivers a condenser-like sonic performance while retaining the rugged mechanical reliability demanded of a dynamic chassis. The exclusive Satin Chrome finish provides an elegant, non-reflective aesthetic that looks exceptional under aggressive stage lighting and on camera.
Condenser-like top end without the proximity mud
A persistent pain point with standard dynamic microphones is a heavy, muddy midrange and an overwhelming proximity effect that artificially clouds a vocal mix. The M80 combats this physical limitation through its ultra-thin, low-mass diaphragm design. This specialized capsule reacts to audio transients with remarkable speed, resulting in an open, airy high-frequency response and pristine vocal articulation. This exceptionally flat and wide frequency profile means track signals require significantly less destructive EQ manipulation at the FOH console to cut through dense, modern instrumentation.
Surgical source isolation in high-SPL environments
Cymbal bleed and direct wedge monitor spill can quickly ruin the integrity of a lead vocal track. The M80 features a tightly controlled supercardioid polar pattern that enforces superior off-axis rejection. Paired with its custom American-made transformer, the microphone delivers a hot, articulate output signal combined with massive gain before feedback. This level of acoustic isolation makes it an uncompromising choice for high-SPL stage environments, loud rock tours, and demanding broadcast applications where signal purity is critical.
KEY FEATURES
- Low-mass capsule design delivering extremely fast transient response and a condenser-like top end.
- Custom-wound American-made impedance-matching transformer for robust signal output.
- Tight supercardioid polar pattern ensuring superior off-axis noise rejection.
- High SPL handling capabilities, making it ideal for both vocals and heavy snare drum impacts.
- Significantly reduced proximity effect, preventing low-end muddiness during close-miking.
- Durable, fingerprint-resistant Satin Chrome exterior finish.
TECHNICAL SPECIFICATIONS
- Transducer Type: Moving coil dynamic.
- Polar Pattern: Supercardioid.
- Frequency Response: 50 Hz - 18 kHz.
- Maximum SPL: > 135 dB.
- Output Impedance: 325 Ohms.
- Connector: 3-pin Male XLR.
- Weight: 430 g (15.2 oz).
