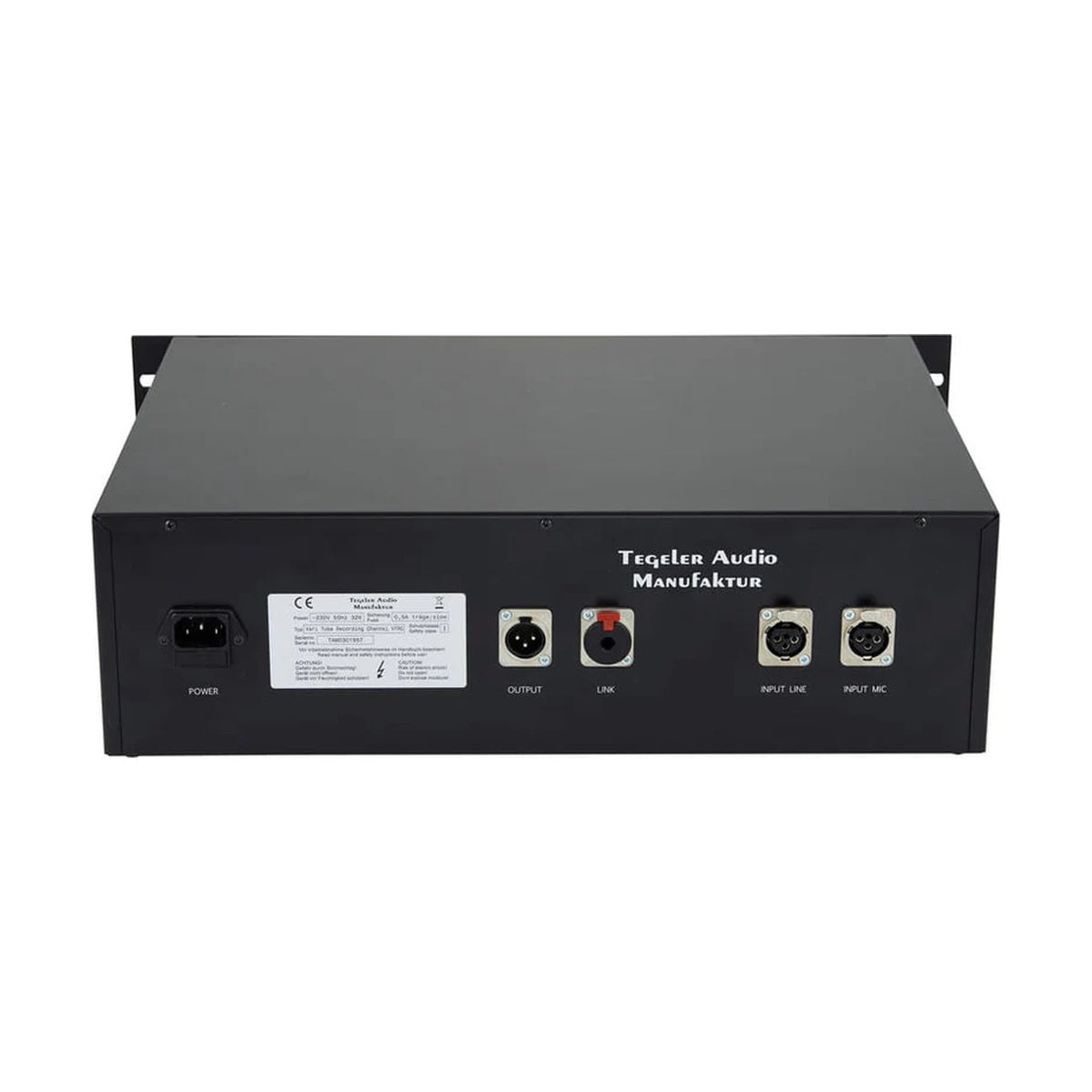

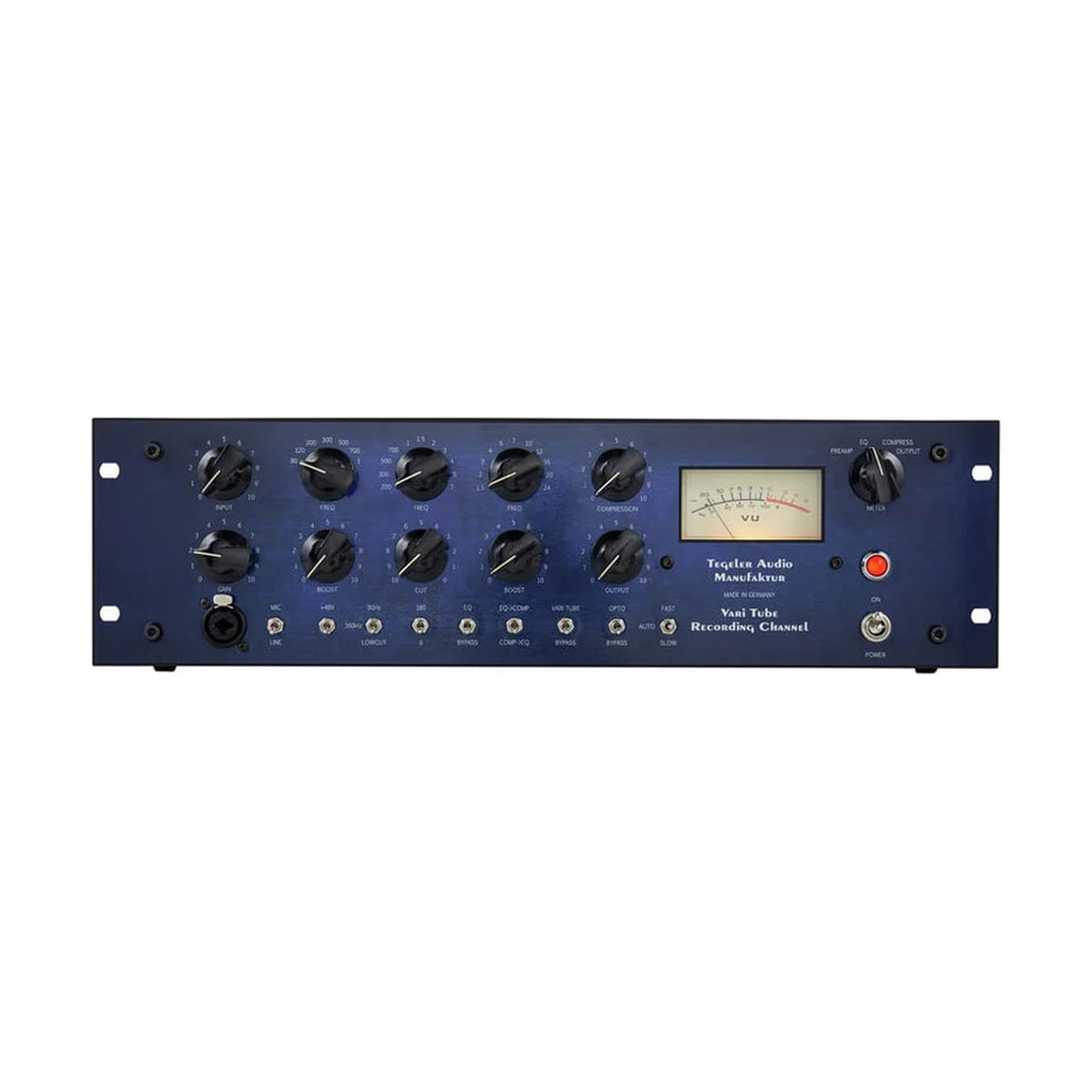

Tegeler Audio Manufaktur Vari Tube Aufnahmekanal VTRC – Kanalzug

Tegeler Audio Manufaktur Vari Tube Recording Channel VTRC – versatile channel strip with tube preamp, compressor, and EQ for professional vocal, instrument, and mix recording. Inspired by classic circuits, offers warm analog sound with transformers and ECC81/12AX7 tubes. Ideal for recording studios. Compact 1U rack enclosure (483 x 44 x 240 mm, 4 kg).

VTRC features tube preamp with 70 dB gain, opto-compressor with sidechain, Pultec-style 3-band EQ. Switches: PAD (-20 dB), +48V phantom, HPF (80 Hz). Hi-Z instrument input, balanced XLR/TRS I/O. Hand-soldered in Germany for top quality.

As analog tribute, VTRC adds depth and character to recordings without compromise.

MAIN FEATURES

• Tube preamp with transformers for warmth
• Opto-compressor with ratio/threshold control
• 3-band EQ: low/high shelf, mid peak
• 70 dB gain, PAD -20 dB, +48V, HPF 80 Hz
• Hi-Z instrument input
• Balanced XLR/TRS I/O
• 1U rackmount, hand-soldered
• Portable: 483 x 44 x 240 mm, 4 kg

TECHNICAL SPECIFICATIONS

• Preamp: Tube ECC81/12AX7, gain 70 dB
• Compressor: Opto, ratio 1:1-20:1, threshold -40 to +10 dBu
• EQ: Low 20-200 Hz (±15 dB), Mid 200 Hz-5 kHz (±15 dB), High 5-20 kHz (±15 dB)
• Inputs: XLR mic (1.3 kOhm), TRS Hi-Z (1 MOhm)
• Outputs: Balanced XLR/TRS, +26 dBu max
• Frequency Response: 10 Hz–100 kHz (±0.5 dB)
• THD + N: < 0.05% @ 1 kHz
• Noise EIN: < -125 dBu
• Power Supply: 230 V AC
• Dimensions (W × H × D): 483 x 44 x 240 mm
• Weight: 4 kg
• Included: VTRC, manual
• Product Code: TEG-VTRC
