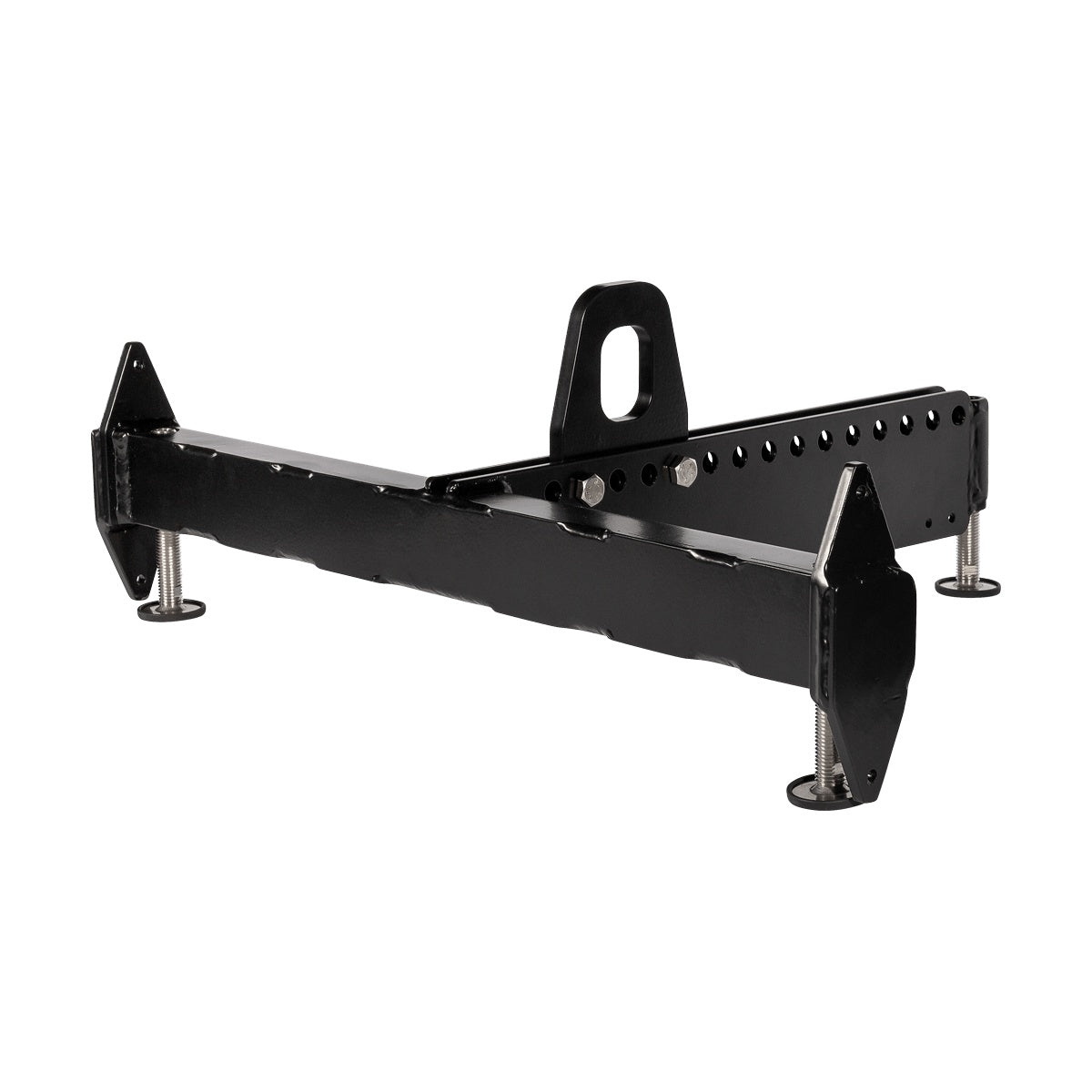

Solton FLC 210 FST

Solton FLC 210 FST – a universal frame for flying or ground-stacking Solton SL 210 line array modules, carrying the load of the whole column through a single suspension point. The problem it solves is familiar to anyone building line array systems on a touring schedule: SL 210 is a light, compact module (23 kg, 680 x 294 x 430 mm), but once you stack a dozen or so units, what matters is not just load capacity but repeatable angle settings and fast rigging at every load-in. FLC 210 FST gives you one mechanism for both flying and ground-stack duty, with no hardware swap between the two.

One frame, two operating modes

The same frame handles both flying the SL 210 column and building a ground stack, so there's no need to carry two separate hardware sets for the same speaker series. The crew works from one set of rigging components regardless of whether the plot calls for a truss hang or a floor stack – that's real savings in truck space and changeover time between venues.

Repeatable angles across stacks of up to a dozen modules

The three-point rigging system, matched to the SL 210's own rigging design for arrays of up to around twelve cabinets in line, lets you set each section's tilt angle in a repeatable way from one show to the next. For the engineer, that means a coverage preset worked out once can be reproduced without recalculating angles on site, and the steel frame holds the stack's geometry through repeated load-in and load-out.

KEY FEATURES

• Universal frame for flying and ground-stacking SL 210
• Single hardware set for both operating modes
• Three-point rigging system for stacks of up to a dozen modules
• Repeatable tilt-angle settings across sections
• Steel construction built for frequent touring load-in and load-out
• Matched to the SL 210's factory mounting points

TECHNICAL SPECIFICATIONS

• Purpose: flying and stacking frame for Solton SL 210
• Operating modes: flying (suspended), ground stacking
• Rigging system: 3-point, matched to SL 210's factory rigging
• Maximum array size: up to 12 SL 210 enclosures in line
• Material: steel
• Compatible systems: Solton SL 210 (optionally with A 18 FL Sub via the AD 210 adapter frame)
