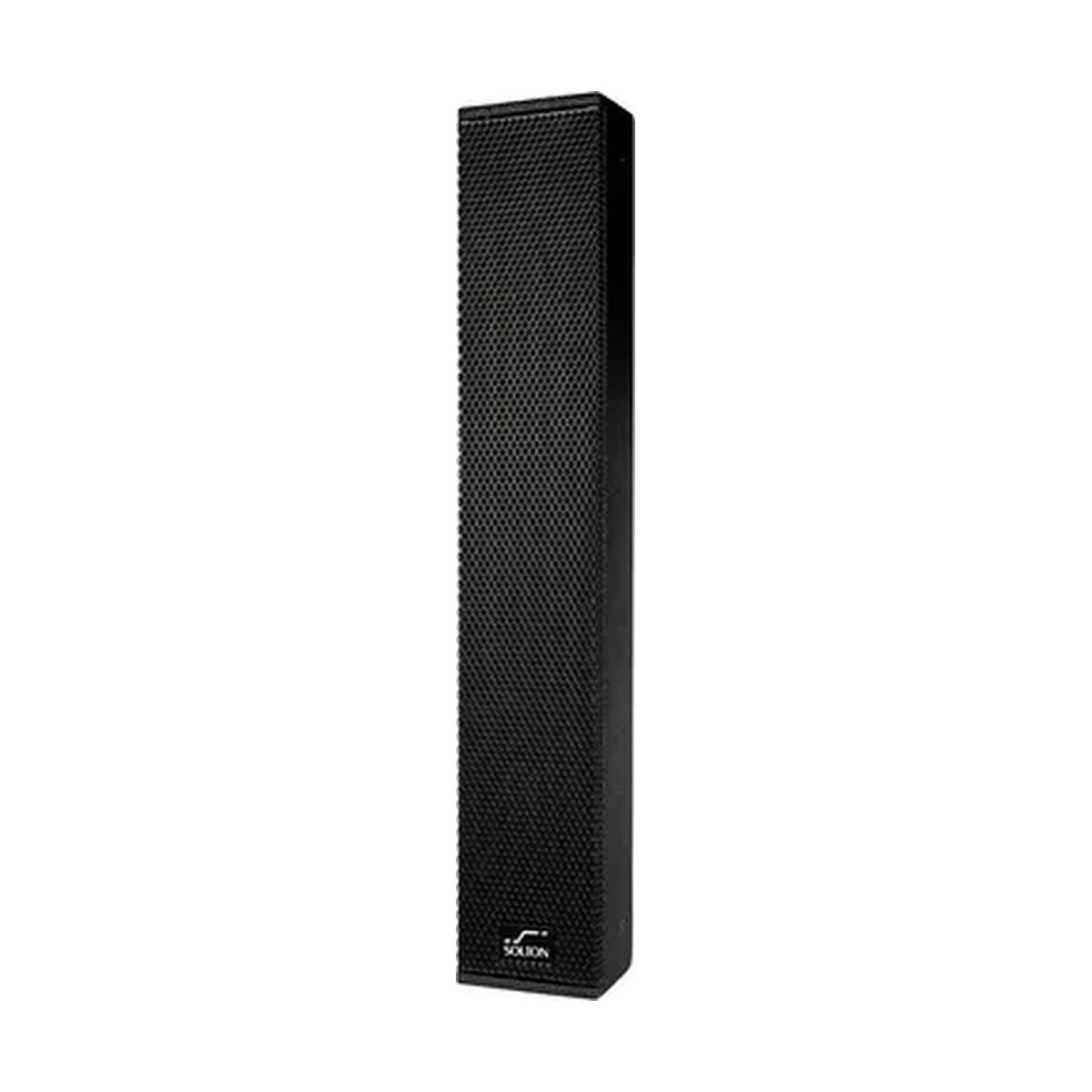

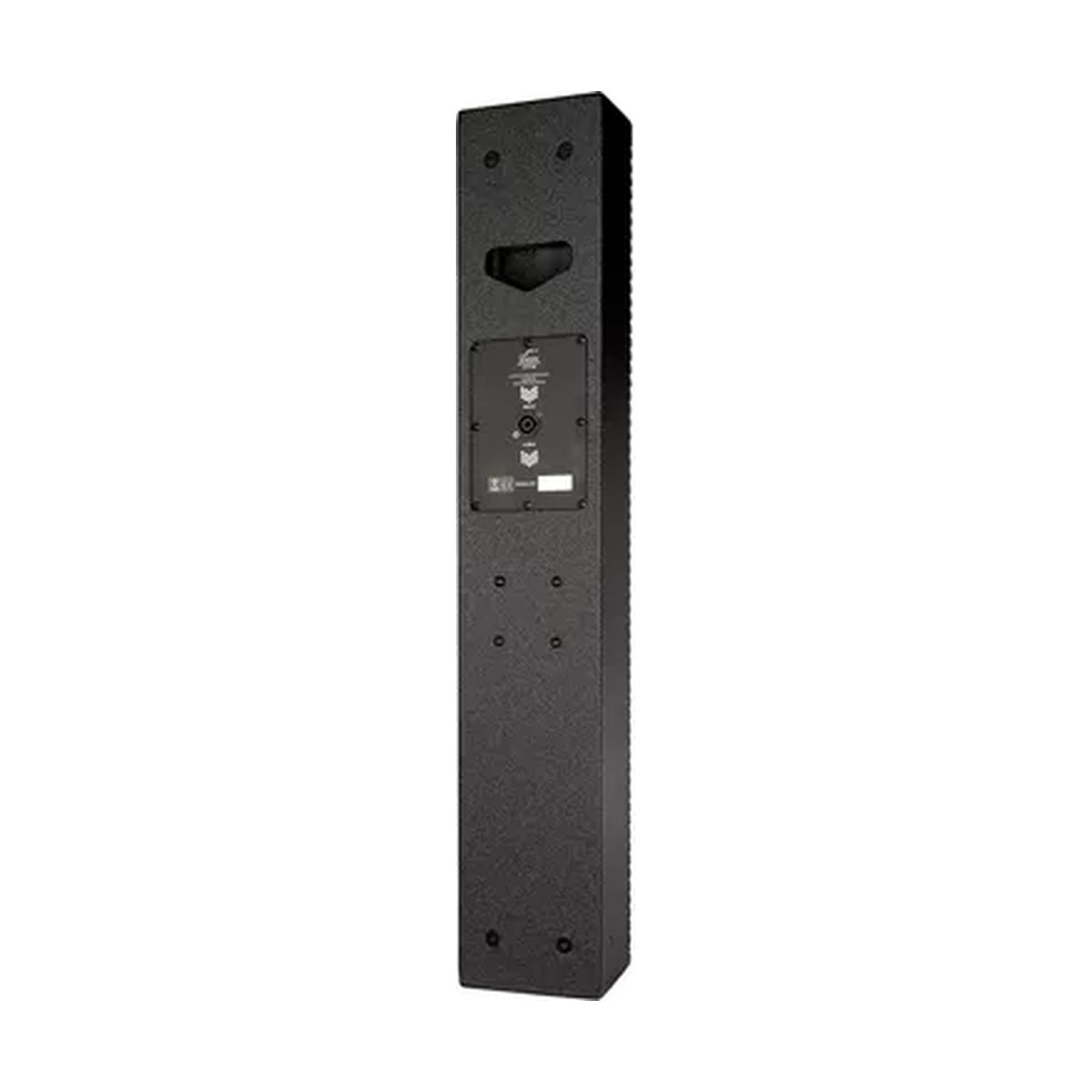

Solton CT 5 N (art. no. 13307) is a passive two-way compact line array with four 5" woofers and a 1" Neodymium compression driver, designed for discreet permanent installations and portable PA applications. At 150 x 880 x 124 mm and 8 kg it is one of the slimmest cabinets in the Solton range — mountable on a wall, column or stand in spaces where a conventional PA cabinet would be visually or proportionally out of place.
Four 5" drivers and Neodymium HF — 120° x 20° coverage and 122 dB in a 150 mm profile
The vertical arrangement of four 5" woofers creates a line source with 120° H x 20° V nominal coverage — wide horizontal throw across the listening area with tight vertical control that minimises ceiling and floor reflections, improving speech intelligibility and tonal consistency in acoustically challenging rooms. The 1" Neodymium compression driver takes over from the 2.1 kHz passive crossover to 20 kHz (-10 dB). PTC protection guards the HF driver under overload without compressing dynamics at normal working levels. At 97 dB sensitivity (1 W/1 m) and 122 dB continuous / 128 dB peak maximum SPL, the CT 5 N handles rooms of up to 200 people without a subwoofer for light programme content. The 4 Ω nominal impedance and single NL4 connector (pins 1+/1-) connect directly to a QX 700 or DX 43 amplifier channel. Eight M8 inserts, a pole-mount socket and the optional dual-axis WB 1 bracket (art. 12521) cover all standard mounting scenarios. A dedicated transport bag is available as art. 12624.
Satellite for TWA 15 SUB and aart SUB 315 — complete system without a processor
The CT 5 N is the officially recommended satellite for the TWA 15 SUB, which drives the columns directly from its built-in satellite amplifier channel (350 W / 4 Ω continuous). It is equally compatible with the aart SUB 315, which powers two 4 Ω satellites from its own amplifier stage. In both configurations the system operates without an external processor or controller — the passive crossover in the column handles the HF split, while LP crossover frequency and level are set on the subwoofer's rear panel. Black polyurea coating is moisture and scratch resistant; a White version is available on request.
KEY FEATURES
- Type: passive, 2-way, compact line array, 4x 5"
- LF drivers: 4x 5" woofer, vertical line array arrangement
- HF driver: 1" Neodymium compression driver
- Crossover: passive 2.1 kHz + PTC driver protection
- Nominal impedance: 4 Ω
- Power: 320 W continuous / 1280 W peak
- Sensitivity: 97 dB (1 W/1 m); max. SPL: 122 dB continuous / 128 dB peak
- Coverage: 120° H x 20° V nominal
- Connector: 1x NL4 (pins 1+/1-)
- 8x M8, handle, pole socket; WB 1 bracket (art. 12521) optional
- Dimensions: 150 x 880 x 124 mm; weight: 8 kg
- Recommended subs: aart SUB 315, TWA 15 SUB
- Recommended amplifiers: QX 700, DX 43
TECHNICAL SPECIFICATIONS
- Art. No.: 13307
- Type: passive, 2-way, compact line array
- LF drivers: 4x 5" woofer
- HF driver: 1" Neodymium compression driver
- Crossover: passive 2.1 kHz
- Protection: PTC driver protection
- Nominal impedance: 4 Ω
- Power: 320 W continuous / 1280 W peak
- Frequency range (-10 dB): 90 Hz – 20 kHz
- Frequency response (±3 dB): 100 Hz – 18 kHz
- Coverage pattern: 120° H x 20° V nominal
- Sensitivity: 97 dB (1 W/1 m)
- Max. SPL: 122 dB continuous / 128 dB peak
- Connector: 1x NL4 (pins 1+/1-)
- Enclosure: birch plywood
- Finish: black polyurea coating
- Fittings: 8x M8, 1x handle, pole socket; WB 1 U-bracket (art. 12521) optional
- Grille: black perforated steel with acoustically transparent foam backing
- Dimensions (WxHxD): 150 x 880 x 124 mm
- Weight: 8 kg
- Accessories: WB 1 wall bracket (art. 12521), bag (art. 12624), RM8 ring screw (art. 12516)
- EAN: 4262552320234
